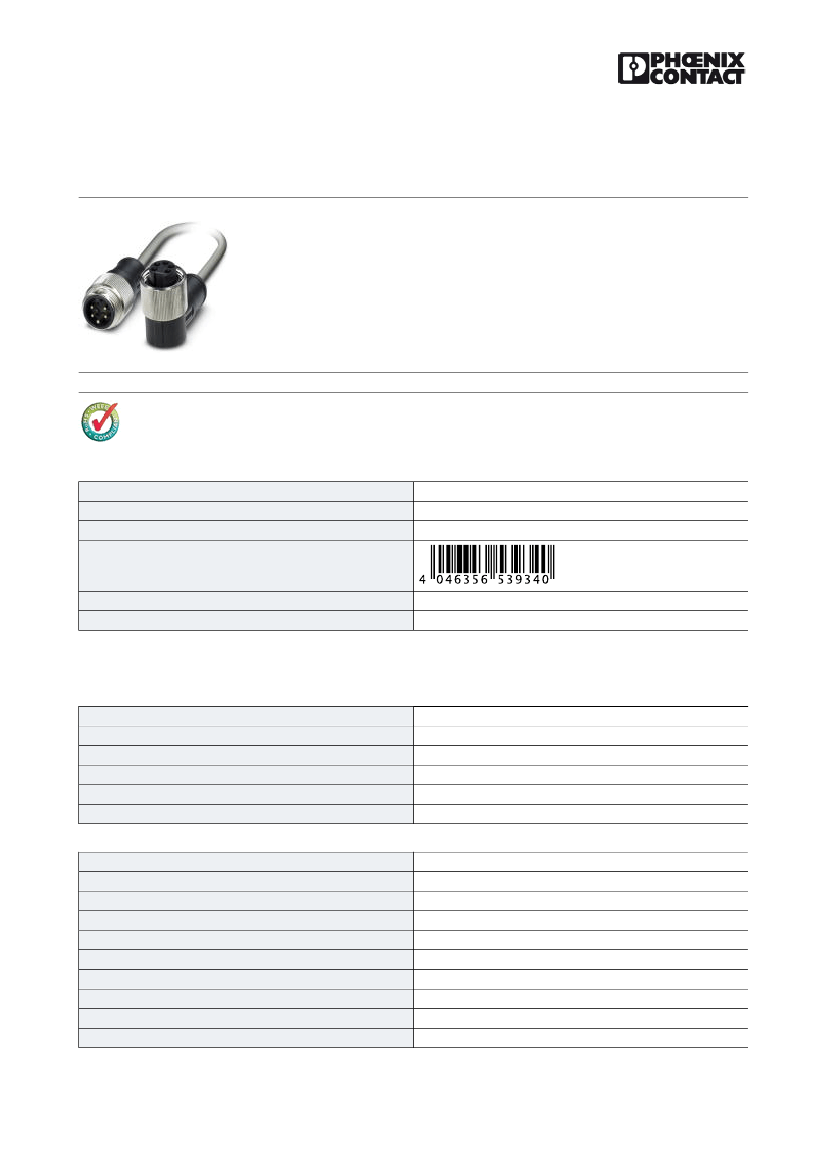

Bus system cable - SAC-5P-MINMS/ 0,3-923/MINFR DN - 1418785
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Bus system cable, DeviceNet, 5-position, PUR halogen-free, Gray RAL 7001, Plug straight
7/8"-16UNF, on Socket angled 7/8"-16UNF, Cable length: 0.3 m
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85444290
GERMANY
0
1
Page 398 (PC-2011)
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Length of cable
Stripping length of the free conductor end
5.2 A
30 V
5
< 5 mΩ
0.3 m
50 mm
General characteristics
Coding
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
A - standard
II
3
IP65/IP67/IP69K
CuZn
Au
PA 66
TPU
High-grade steel
TPU
06.09.2012 Page 1 / 4
https://www.phoenixcontact.com/us/produkte/1418785
Bus system cable - SAC-5P-MINMS/ 0,3-923/MINFR DN - 1418785
Technical data
General characteristics
Status display
No
Conductor data
Cable type
Cable type (abbreviation)
Conductor cross section
Conductor cross section
Conductor cross section
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Material conductor insulation
Conductor material
Insulation resistance
Insulation resistance
Conductor resistance
Conductor resistance
Working capacitance
Working capacitance
Nominal voltage, conductor
Nominal voltage, conductor
Test voltage, conductor
Test voltage, conductor
CAN Bus/DeviceNet
923
2x 0.2 mm² (signal line)
2x 0.32 mm² (Power supply)
1x 0.32 mm² (Drain wire)
24
22
19x 0.12 mm
19x 0.15 mm
2.05 mm ±0.1 mm (signal line)
1.4 mm ±0.05 mm (Power supply)
Red-black, blue-white
2 cores to the pair
Aluminum-lined polyester foil
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
70 %
Gray RAL 7001
6.70 mm
67 mm
67 mm
5000000
67 mm
10 m
3 m/s
7 m/s²
PUR
PE (Power supply)
Foamed PE (signal line)
Tin-plated Cu litz wires
≥ 5 GΩ*km (signal line)
≥ 100 MΩ*km (Power supply)
≤ 78.4 Ω/km (signal line)
≥ 51.6 Ω/km (Power supply)
39.3 pF (Signal line, Core-Core)
78.7 pF (Signal line, Core-Shield)
30 V (signal line)
300 V (Power supply)
1500 V (signal line)
2000 V (Power supply)
06.09.2012 Page 2 / 4
https://www.phoenixcontact.com/us/produkte/1418785
Bus system cable - SAC-5P-MINMS/ 0,3-923/MINFR DN - 1418785
Technical data
Conductor data
Halogen-free
Ambient temperature (operation)
Ambient temperature (operation)
complying with IEC 60754-1/2
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 75 °C (cable, flexible installation)
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060307
27060307
27061801
27060307
27061801
27061801
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC000830
EC000830
EC001855
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121616
26121616
26121604
26121616
26121616
Drawings
Schematic diagram
1
5
Schematic diagram
5
1
2
3
4
4
3
2
Connector pin assignment for 7/8"-16UNF conn., 5-pos.
Pin assignment, socket, 7/8"-16UNF, 5-pos., view of female side
06.09.2012 Page 3 / 4
https://www.phoenixcontact.com/us/produkte/1418785
Bus system cable - SAC-5P-MINMS/ 0,3-923/MINFR DN - 1418785
Dimensioned drawing
54,1
22,4
1
2
3
1 --- (Drain)
2 RD (V+)
3 BK (V-)
4 WH (CAN_H)
5 BU (CAN_L)
Circuit diagram
Ø25
7/8”
4
5
7/8" connector, straight
Contact assignment of the 7/8" connector and the 7/8" socket
© Phoenix Contact 2012 - all rights reserved
http://www.phoenixcontact.com
06.09.2012 Page 4 / 4
