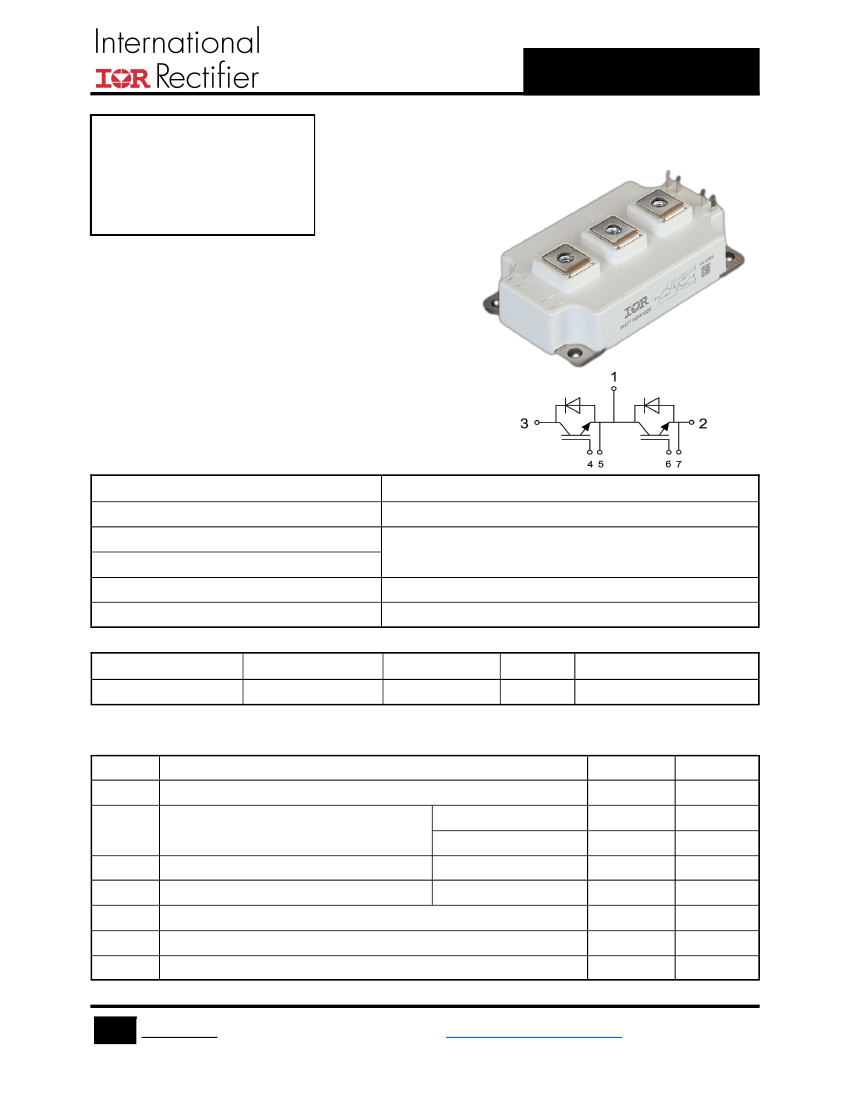

IRG5K50P5K50PM06E
IRG5K400HF06B
V
CES
= 600V
I
C
= 400A at T
C
= 80°C
t
SC
≥ 10µsec
V
CE(ON)
= 1.80V at I
C
= 400A
IGBT Half-Bridge
POWIR 62
™
Package
Applications：
Industrial Motor Drive
Uninterruptible Power Supply
Welding and Cutting Machine
Switched Mode Power Supply
Induction Heating
Features
Low V
CE(ON)
and Switching Losses
RBSOA Tested
10µsec Short Circuit Safe Operating Area
POWIR 62
™
Package
Lead Free
Benefits
High Efficiency in a Wide Range of Applications
Rugged Transient Performance
Industry Standard
RoHS Compliant, Environmental Friendly
Base Part Number
IRG5K400HF06B
Package Type
POWIR 62
™
Standard Pack
Box
Quantity
45
Orderable Part Number
IRG5K400HF06B
Absolute Maximum Ratings of IGBT
V
CES
V
GES
I
C
I
CM
P
D
T
J
T
JOP
T
stg
Collector to Emitter Voltage
Continuous Gate to Emitter Voltage
Continuous Collector Current
Pulse Collector Current
Maximum Power Dissipation (IGBT)
Maximum IGBT Junction Temperature
Maximum Operating Junction Temperature Range
Storage Temperature
T
C
= 80°C
T
C
= 25°C
T
J
= 150°C
T
C
= 25°C, T
J
= 150°C
600
±20
400
670
800
1620
150
-40 to +150
-40 to +125
V
V
A
A
A
W
°C
°C
°C
1
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
September 2, 2014
IRG5K50P5K50PM06E
IRG5K400HF06B
Electrical Characteristics of IGBT at T
J
= 25°C (Unless Otherwise Specified)
Parameter
V
(BR)CES
V
GE(th)
V
CE(ON)
I
CES
I
GES
R
Gint
Collector to Emitter Breakdown
Voltage
Gate Threshold Voltage
Collector to Emitter Saturation Voltage
Collector to Emitter Leakage Current
Gate to Emitter Leakage Current
Internal Gate Resistance
1.18
Min.
600
3.5
4.5
1.80
2.00
2
400
5.5
2.10
Typ.
Max.
Unit
V
V
V
V
mA
nA
Ω
Test Conditions
V
GE
= 0V, I
C
= 2mA
I
C
= 1mA, V
CE
= V
GE
T
J
= 25°C
T
J
= 125°C
I
C
= 400A,
V
GE
= 15V
V
GE
= 0V, V
CE
= V
CES
V
GE
= ±20V, V
CE
= 0
Switching Characteristics of IGBT
Parameter
t
d(on)
Turn-on Delay Time
Min.
Typ.
445
425
385
390
1085
1160
290
280
3.0
5.8
16.0
17.2
1850
25.0
2.60
1.04
nF
V
CE
= 25V, V
GE
= 0V,
f
＝1MHz,
T
J
= 25°C
Max.
Unit
ns
Test Conditions
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
V
CC
=300V,
I
C
= 400A,
R
G
= 15Ω,
V
GE
=±15V,
Inductive
Load
t
r
Rise Time
ns
t
d(off)
Turn-off Delay Time
ns
t
f
Fall Time
ns
E
on
Turn-on Switching Loss
mJ
E
off
Q
g
C
ies
C
oes
C
res
Turn-off Switching Loss
Total Gate Charge
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
mJ
nC
RBSOA
Reverse Bias Safe Operating Area
Trapezoid
I
C
= 800A,V
CC
= 480V,
V
P
=600V, R
G
= 15Ω,
V
GE
= +15V to 0V,
T
J
= 150°C
μs
V
CC
= 300V, V
GE
= 15V,
T
J
= 150°C
SCSOA
Short Circuit Safe Operating Area
10
2
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
September 2, 2014
IRG5K50P5K50PM06E
IRG5K400HF06B
Absolute Maximum Ratings of Freewheeling Diode
V
RRM
I
F
I
FM
Repetitive Peak Reverse Voltage
Diode Continuous Forward Current, T
C
= 25°C
Diode Continuous Forward Current, T
C
= 80°C
Pulse Diode Current
600
800
400
800
V
A
A
Electrical and Switching Characteristics of Freewheeling Diode
Parameter
V
F
Forward Voltage
Typ.
1.40
1.50
85
125
6.9
14.8
0.26
1.30
Max.
1.70
Unit
V
Test Conditions
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
I
F
＝400A,
di/dt=1100A/μs,
V
rr
= 300V,
V
GE
= -15V
I
F
= 400A ,
V
GE
= 0V
I
rr
Peak Reverse Recovery Current
A
Q
rr
Reverse Recovery Charge
µC
E
rec
Reverse Recovery Energy
mJ
Module Characteristics
Parameter
V
iso
R
θJC
R
θJC
R
θCS
M
M
G
Isolation Voltage
(All Terminals Shorted),
f = 50Hz, 1minute
Junction-to-Case (IGBT)
Junction-to-Case (Diode)
Case-To-Sink
(Conductive Grease Applied)
Power Terminals Screw: M6
Mounting Screw: M6
Weight
3.0
4.0
230
0.077
0.348
0.1
5.0
6.0
Min.
Typ.
Max.
2500
Unit
V
°C/W
°C/W
°C/W
N·m
N·m
g
3
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
September 2, 2014
IRG5K50P5K50PM06E
IRG5K400HF06B
800
700
600
500
VGE =15V
TJ =125°C
TJ =25°C
800
700
600
500
TJ =125°C
VGE =17V
VGE =15V
VGE =13V
VGE =11V
VGE =9V
IC (A)
400
300
200
100
0
0.0
0.4
0.8
1.2
1.6
VCE (V)
2.0
2.4
2.8
3.2
IC (A)
400
300
200
100
0
0.0
0.6
1.2
1.8
2.4
VCE (V)
3.0
3.6
4.2

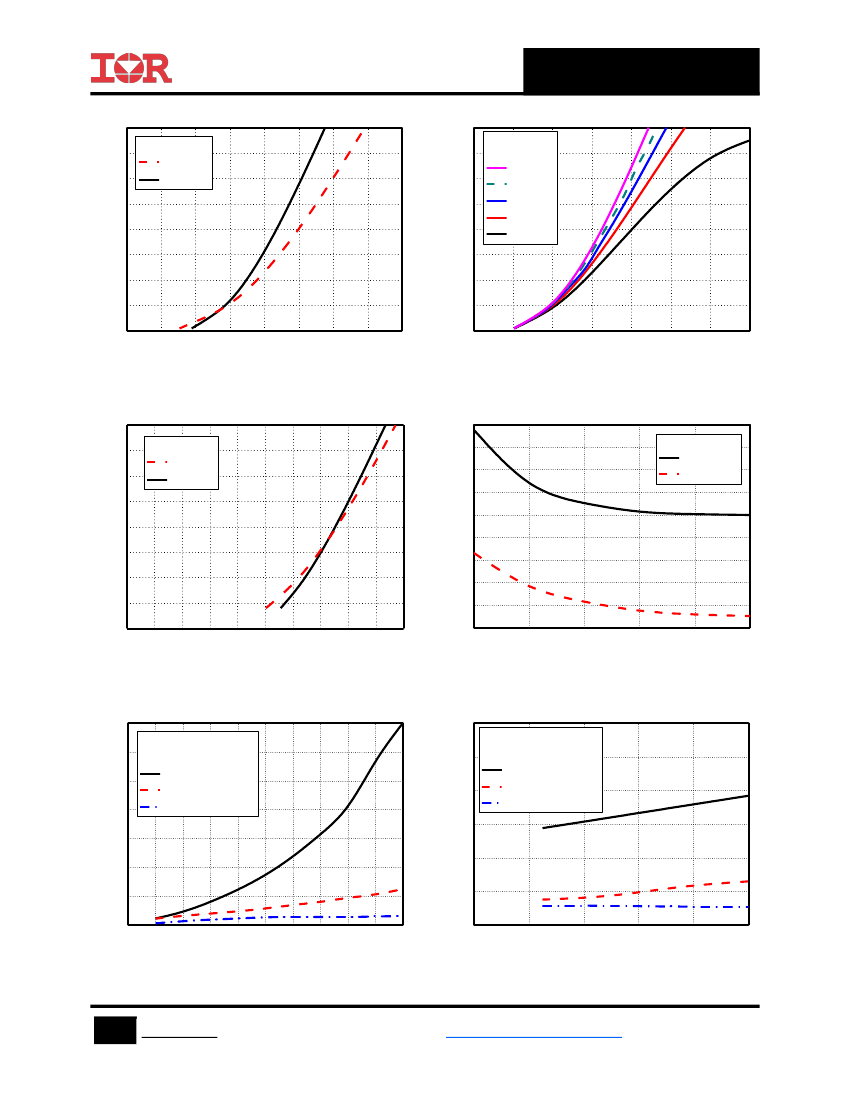

Fig.1 Typical IGBT Saturation Characteristics
Fig.2 Typical IGBT Output Characteristics
45
800
700
600
500
VGE =0V
TJ =125°C
TJ =25°C
40
35
30
VGE =0V,f =1MHz
Cies
Coes
IF (A)
400
300
200
100
0
0.0
0.2
0.4
0.6
0.8
1.0 1.2
VF (V)
1.4
1.6
1.8
2.0
C (nF)
25
20
15
10
5
0
0
5
10
15
20
25
VCE (V)
Fig.3 Typical Freewheeling Diode Characteristics
Fig. 4 Typical Capacitance Characteristics
70
60
50
40
30
20
10
0
VCC =300V,VGE =+/-15V,
Rg =15 ohm,TJ =125°C
Eoff
Eon
30
25
20
VCC
=300V,VGE =+/-15V,
IC
=400A,TJ =125°C
Eoff
Eon
Erec
15
10
5
0
E (mJ)
0
80
160
240
320
400 480
IC (A)
560
640
720
800
E (mJ)
Erec
0
4
8
Rg (
)
12
16
20
Fig.5 Typical Switching Loss vs. Collector Current
Fig.6 Typical Switching Loss vs. Gate Resistance
4
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
September 2, 2014
IRG5K50P5K50PM06E
IRG5K400HF06B
560
480
400
Load Current (A)
Duty Cycle:50%
TJ =125°C
TC =80°C
Rg =15 ohm,VGE =15V
Square Wave:
Vcc
800
600
IC (A)
I
320
240
160
80
0
400
200
Diode as specified
Module
Chip
100
0
0
100
200
300
400
VCES (V)
500
600
1
10
Frequency (KHz)

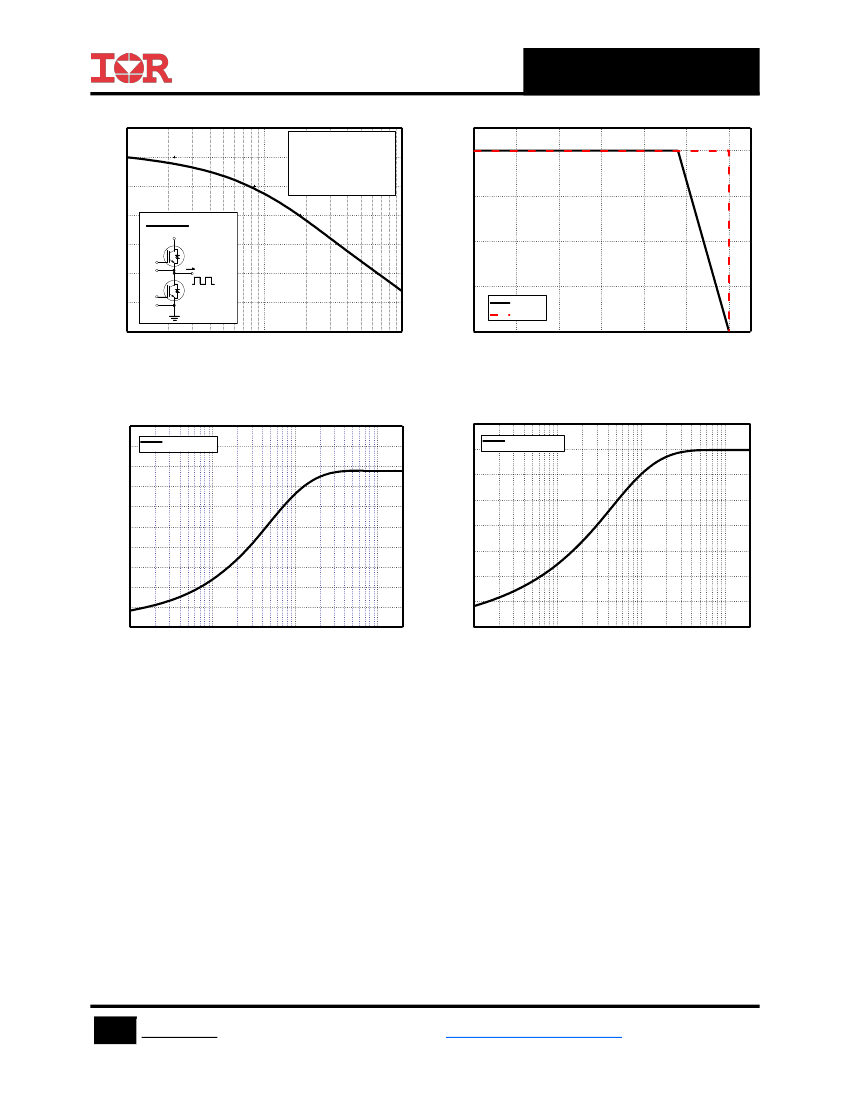

Fig.7 Typical Load Current vs. Frequency
Fig.8 Reverse Bias Safe Operation Area (RBSOA)
0.10
ZthJC:IGBT
0.08
0.4
ZthJC:Diode
0.3
ZthJC (K/W)
ZthJC
(K/W)
0.06
0.2
0.04
0.02
0.1
0.00
0.001
0.01
t (
s
)
0.1
1
2
0.0
0.001
0.01
t
(
s
)
0.1
1
2
Fig.9 Typical Transient Thermal Impedance (IGBT) Fig.10 Typical Transient Thermal Impedance (Diode)
5
www.irf.com © 2014 International Rectifier
Submit Datasheet Feedback
September 2, 2014
