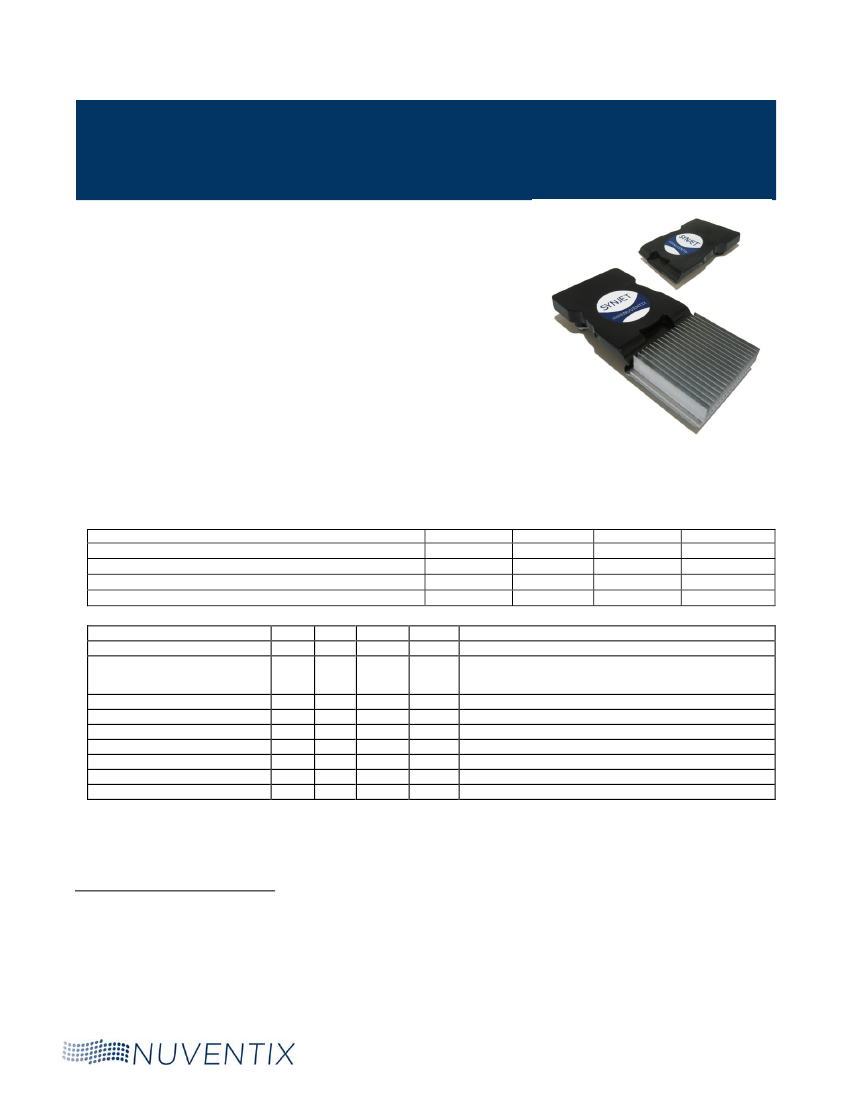

SynJet Low Profile Cooler with HS
Features/Benefits
•
Covers all your Low Profile Chip cooling needs
o
o
o
•
•
Thermal loads from 10 to nearly 20W
Low acoustic sound sensitive applications
Ultra-low power
®
Very low profile applications
100K hours L10 life at 60C
Overview
SynJet
®
fan-less air moving technology provides the most reliable active cooling solution available today. The
Low Profile family of SynJet
®
cooling modules has been developed by Nuventix Inc. to be integrated with a wide
array of thermal needs.
5
Specifications
Parameter
Low Profile – High Performance, 19W Cooler
Low Profile – Standard, 15W Cooler
Low Profile – Low Power, 12W Cooler
Low Profile – Silent, 10W Cooler
Parameter – All Modules
6
Voltage
Power Lead
Operating Temperature
Storage Temperature
Storage Altitude
Relative Humidity (operating)
Weight
Agency Certifications
7
Reliability
0
-40
5
60
75
15K
95
125
100K
°C
°C
m
%
gr
hrs
Min
4.75
Typ
Max
5.25
Units
VDC
Θs-a
2.1
2.7
3.25
4.0
123
SPL (dBA)
30
25
23
17
4
TDP (W)
19
15
12
10
Power W (5V)
0.80
0.60
0.20
0.40
6
Conditions
150mV max ripple p-p
Power
Ground
(Red wire)
(Black wire)
Above Sea Level
Non-condensing
CE, UL , RoHS
L10 @ 60°C
In fully open air or well vented fixtures from 25C to 60C in full on condition with Cu heatsink. Thermal data is given as a reference only.
Actual performance may vary by application.
2
2
Thermal resistance is measured from the bottom middle of the heat sink, with a heat source at least 15cm , to ambient air measured at the
inlet to the SynJet.
3
SynJet Cooler is suitable for enclosed fixtures but thermal performance will vary depending on the enclosure.
4
Per ISO 7779
5
Total Design Power based on a 40ºC delta in temperature.
6
See Nuventix Design Guide for detailed power requirements.
7
L10 is the life for which 90% of a group of modules will exceed the specified life.
4635 Boston Lane,
Austin, TX 78735
Phone: 512-382-8100
Fax: 512-382-8101
Email: info@nuventix.com
www.nuventix.com
1
PRODUCT

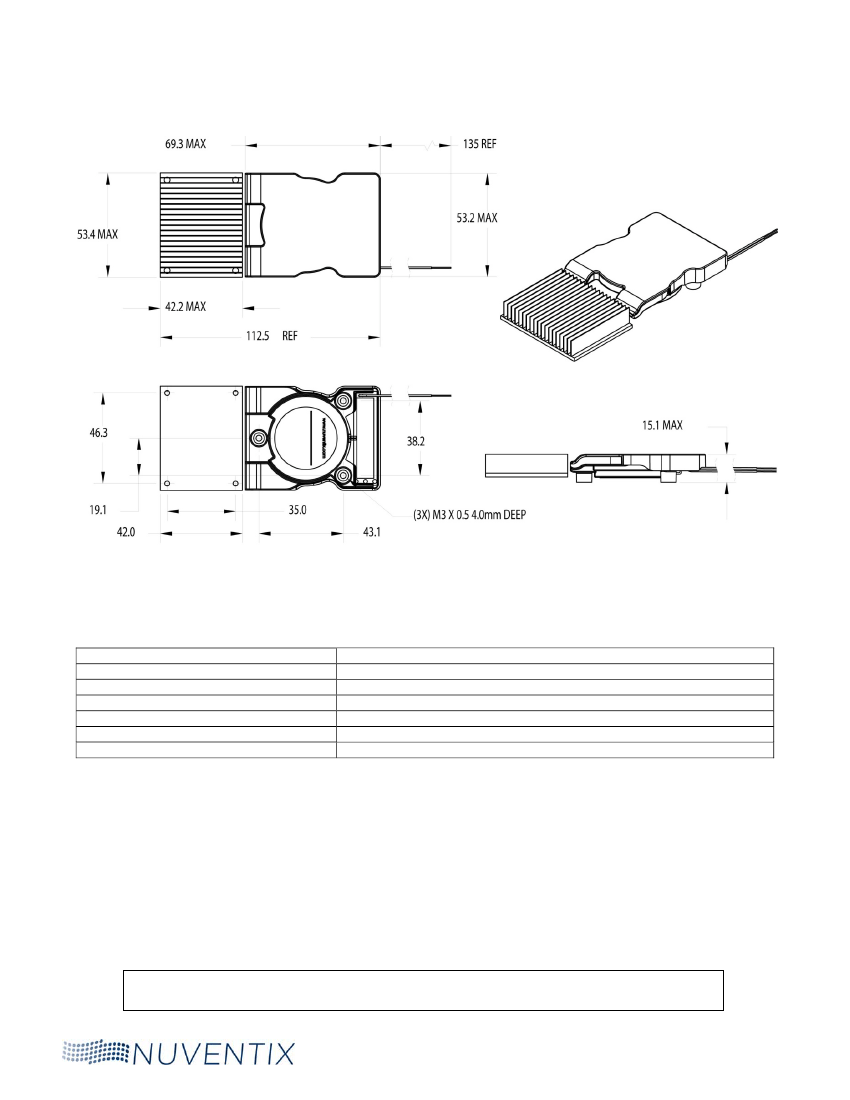

Mechanical drawing
All dimensions in mm.
Part Numbers
Low Profile Cooler
SSCCS-CM005-008
SSCCS-CM005-001
SSCCS-CM005-009
SSCCS-CM005-010
HSCCS-CALCL-001
HSCCS-CCUCL-001
Document revision: 2.3
SynJet, Low Profile Chip Cooler 5v – HP, 19W Cooler
SynJet, Low Profile Chip Cooler 5v – Standard, 15W Cooler
SynJet, Low Profile Chip Cooler 5v – LA, 12W Cooler
SynJet, Low Profile Chip Cooler 5v – S, 10W Cooler
Low Profile Chip Cooler Heatsink, Al
Low Profile Chip Cooler Heatsink, Cu
