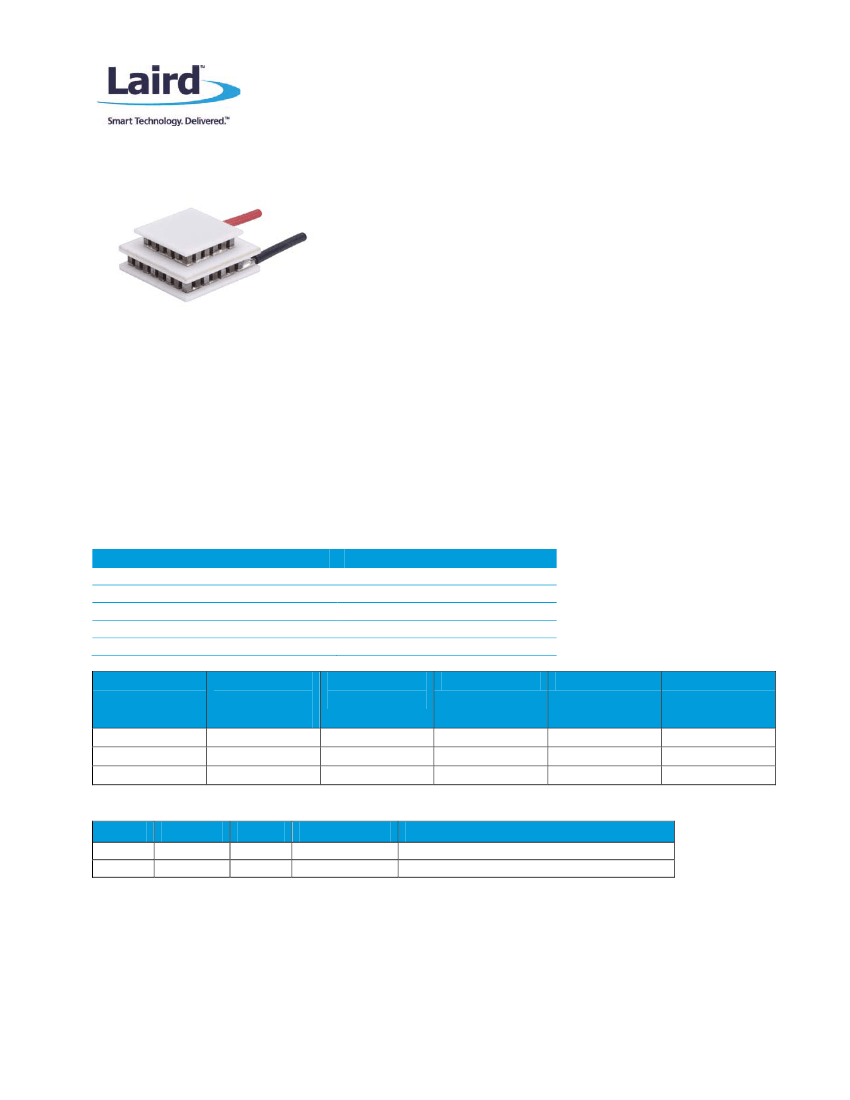

Multistage Series MS2-049-10-10-15-15
Thermoelectric Modules
The MS Series of thermoelectric modules (TEMs) are designed to
reach cool down temperatures that are not achievable with single
stage TEMs.
This product line is available in numerous heat pumping capacities,
geometric shapes and temperature differentials. Assembled with
Bismuth Telluride semiconductor material and thermally conductive
Aluminum Oxide ceramics, the MS Series is designed for higher
current and lower heat-pumping applications.
FEATURES
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
•
•
•
•
•
•
High temperature differential
Precise temperature control
Reliable solid state operation
Environmentally friendly
DC operation
RoHS compliant
CCD cameras
Electron microscope
Calibration equipment
Photonics laser systems
•
Gas analyzers
•
Infrared (IR) sensors
•
Guidance systems
•
•
•
•
APPLICATIONS
SPECIFICATIONS
TECHNICAL

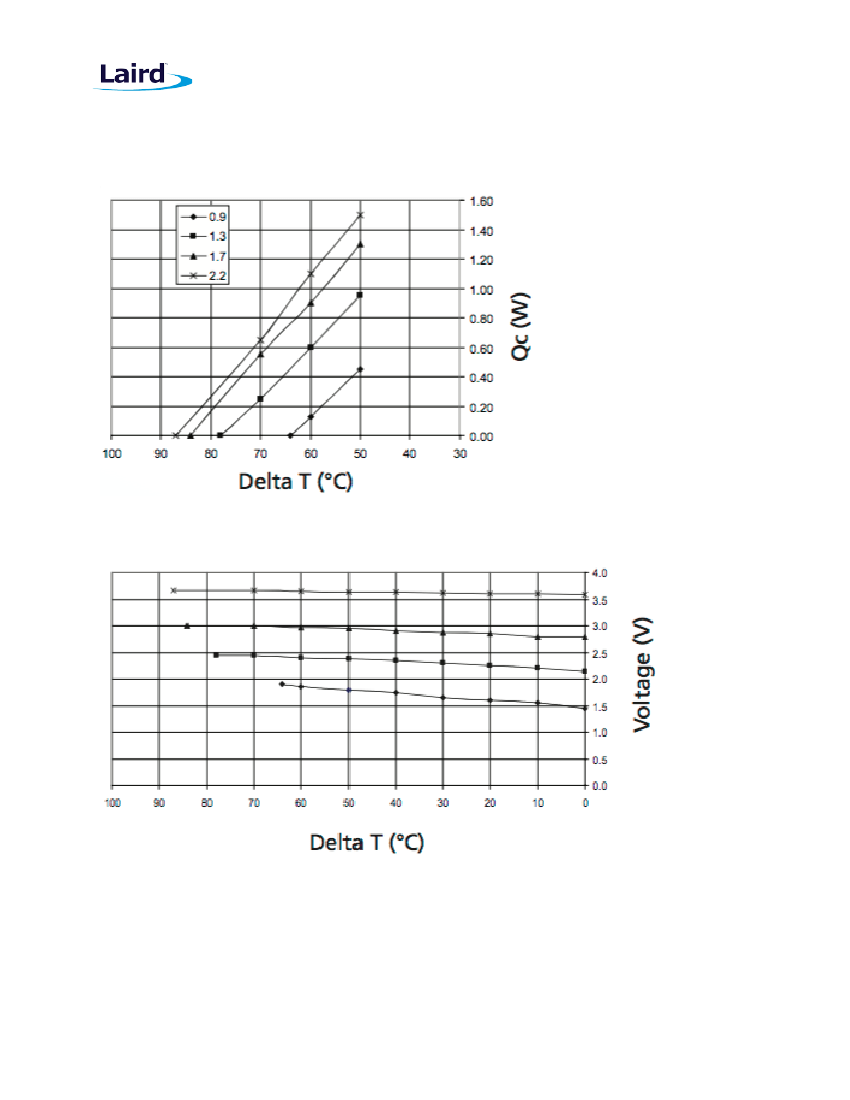

Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
25°C
3.5
87
2.2
3.7

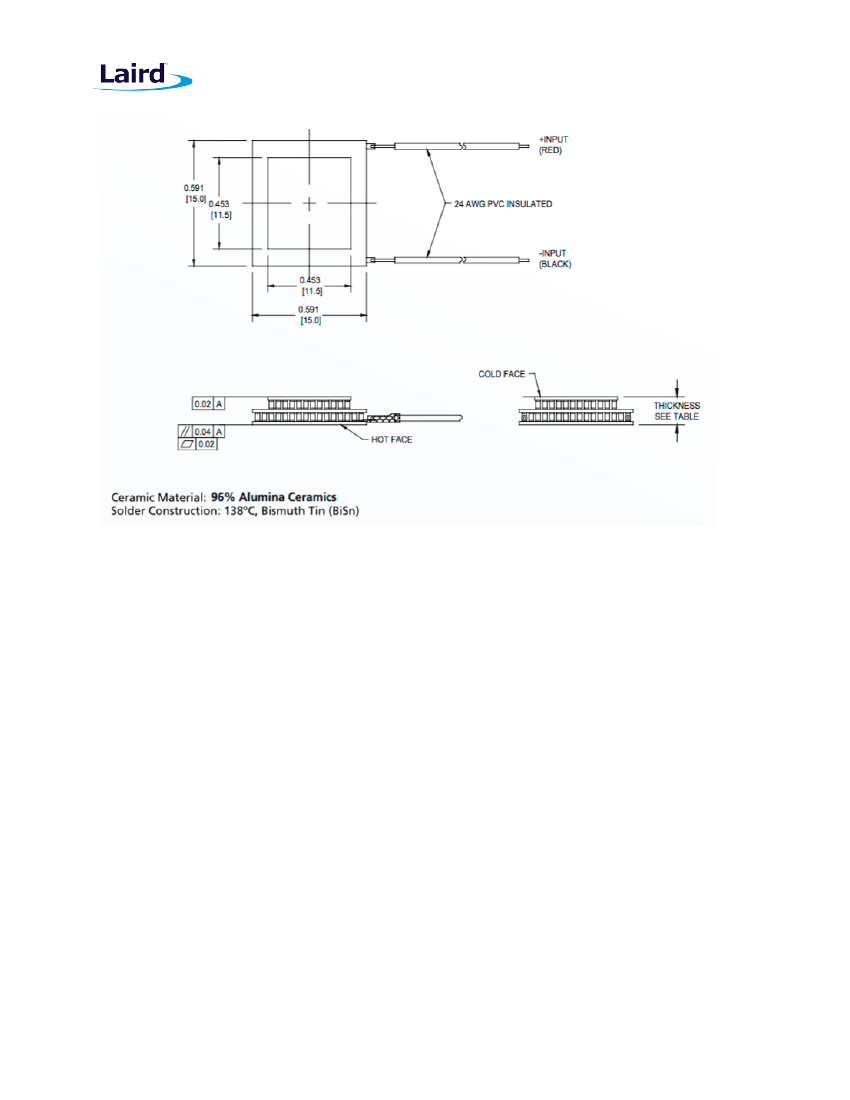

SUFFIX
00
11
22
THICKNESS
(PRIOR TO
TINNING)
FLATNESS &
PARALLELISM
0.001”/0.004”
0.001”/0.002”
0.001”/0.004”
HOT FACE
Metallized
Lapped
Pre-tinned
COLD FACE
Metallized
Lapped
Pre-tinned
LEAD LENGTH
7.87”
7.87”
7.87”
0.268”±0.008”
0.256”±0.008”
0.268”±0.008”
SEALING OPTIONS
SUFFIX SEALANT COLOR TEMP RANGE DESCRIPTION
RT
EP
RTV
Epoxy
White
Black
-60 to 204 °C
-55 to 150 °C
Non-corrosive, silicone adhesive
Low density syntactic foam epoxy encapsulant
Page
1
of
3
MS2-049-10-10-15-15
NOTES
1. Max operating temperature: 80°C
2. Do not exceed Imax or Vmax when operating module
3. Reference assembly guidelines for recommended installation
4. Solder tinning also available on metallized ceramics
