MC1489AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Drivers and interfaces> MC1489AN

MC1489AN: DescriptionIC QUAD LINE RECEIVER, PDIP14, Line Driver or Receiver; CategoryDrivers and interfaces; File Size75KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Related ProductsFound18parts with similar functions to MC1489AN

Download Datasheet Parametric Compare View All

MC1489AN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC1489AN	-	-	View	Buy Now

MC1489AN Overview

IC QUAD LINE RECEIVER, PDIP14, Line Driver or Receiver

MC1489AN Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-232-C
JESD-30 code	R-PDIP-T14
length	19.025 mm
Number of functions	4
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum receive delay	85 ns
Number of receiver bits	1
Maximum seat height	4.2 mm
Maximum slew rate	26 mA
Maximum supply voltage	5.005 V
Minimum supply voltage	4.995 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

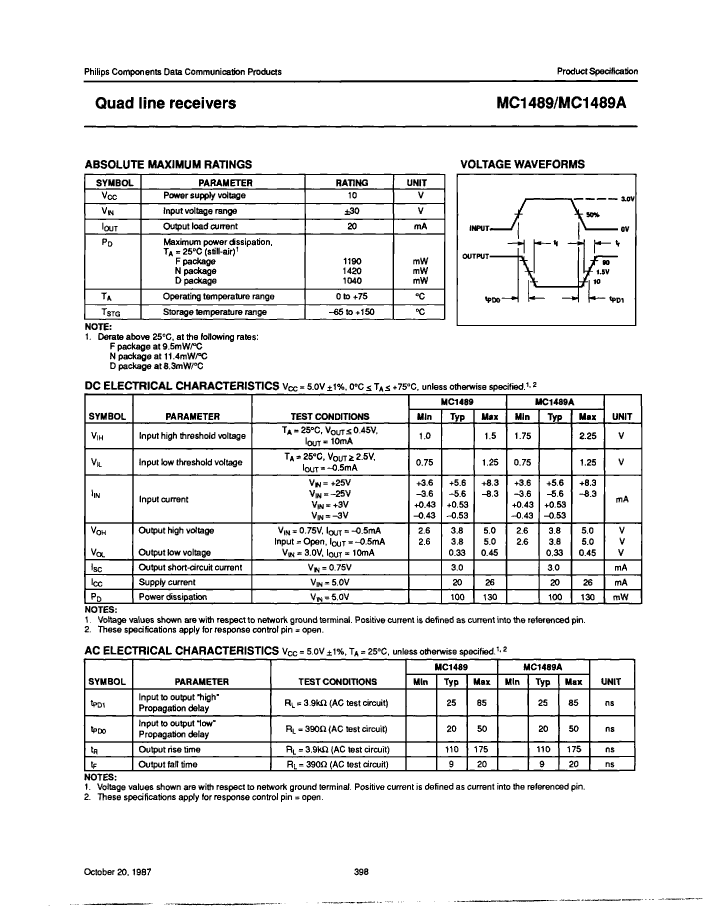

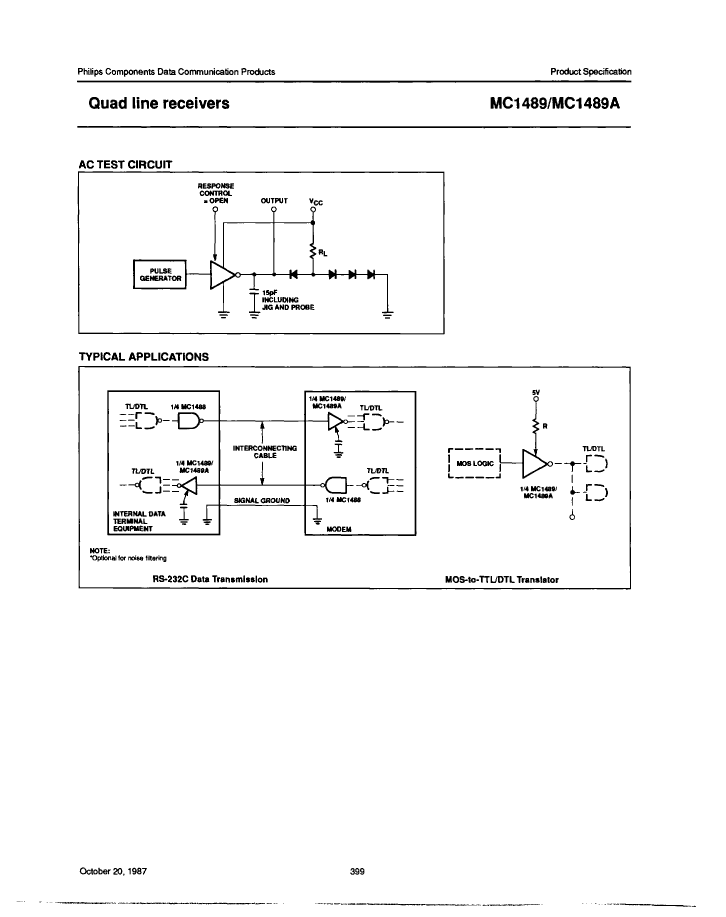

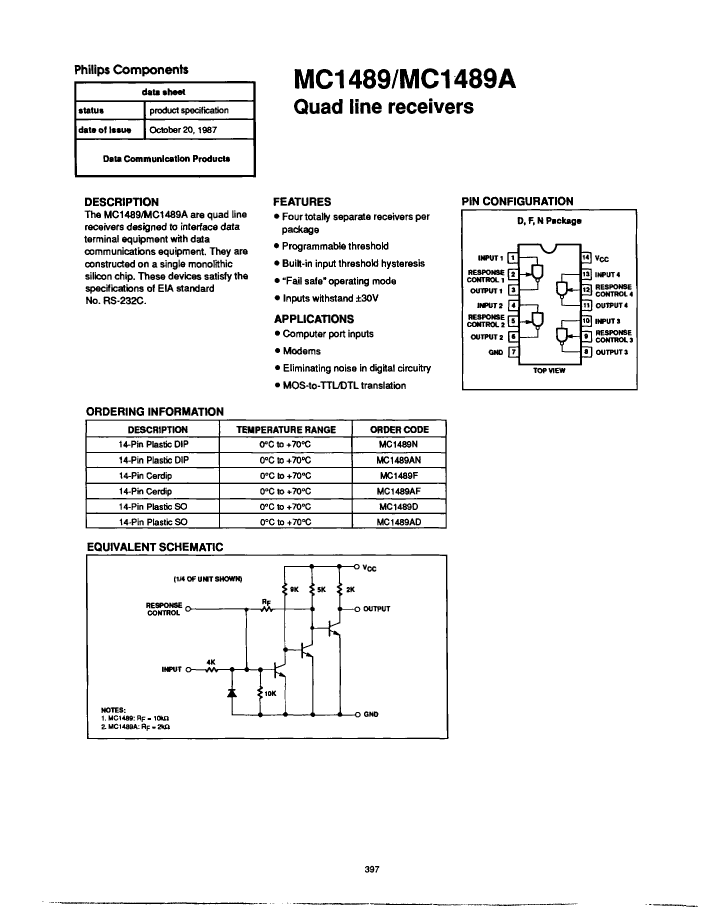

Preview

Download Datasheet

View All

MC1489AN Related Products

	MC1489AN	MC1489N	MC1489AF	MC1489AD	MC1489F
Description	IC QUAD LINE RECEIVER, PDIP14, Line Driver or Receiver	IC QUAD LINE RECEIVER, PDIP14, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDIP14, CERDIP-14, Line Driver or Receiver	IC,LINE RECEIVER,QUAD,BIPOLAR,SINGLE-ENDED,SOP,14PIN,PLASTIC	IC QUAD LINE RECEIVER, CDIP14, CERDIP-14, Line Driver or Receiver
Maker	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-GDIP-T14	R-PDSO-G14	R-GDIP-T14
Number of terminals	14	14	14	14	14
Maximum operating temperature	75 °C	75 °C	75 °C	70 °C	75 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	85 ns	85 ns	85 ns	85 ns	85 ns
Maximum slew rate	26 mA	26 mA	26 mA	26 mA	26 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	-	SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	-	LINE RECEIVER
Interface standards	EIA-232-C	EIA-232-C	EIA-232-C	-	EIA-232-C
length	19.025 mm	19.025 mm	19.535 mm	-	19.535 mm
Number of functions	4	4	4	-	4
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	-	OPEN-COLLECTOR
Output polarity	INVERTED	INVERTED	INVERTED	-	INVERTED
Number of receiver bits	1	1	1	-	1
Maximum seat height	4.2 mm	4.2 mm	5.08 mm	-	5.08 mm
Maximum supply voltage	5.005 V	5.005 V	5.005 V	-	5.005 V
Minimum supply voltage	4.995 V	4.995 V	4.995 V	-	4.995 V
width	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm
package instruction	-	-	DIP,	SOP, SOP14,.25	DIP,
