0233005P: DescriptionMEDIUM BLOW ELECTRIC FUSE, 1A, 125VAC, 10000A (IR), INLINE/HOLDER; CategoryCircuit protection; File Size240KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet View All

0233005P Overview

MEDIUM BLOW ELECTRIC FUSE, 1A, 125VAC, 10000A (IR), INLINE/HOLDER

Preview

Download Datasheet

View All

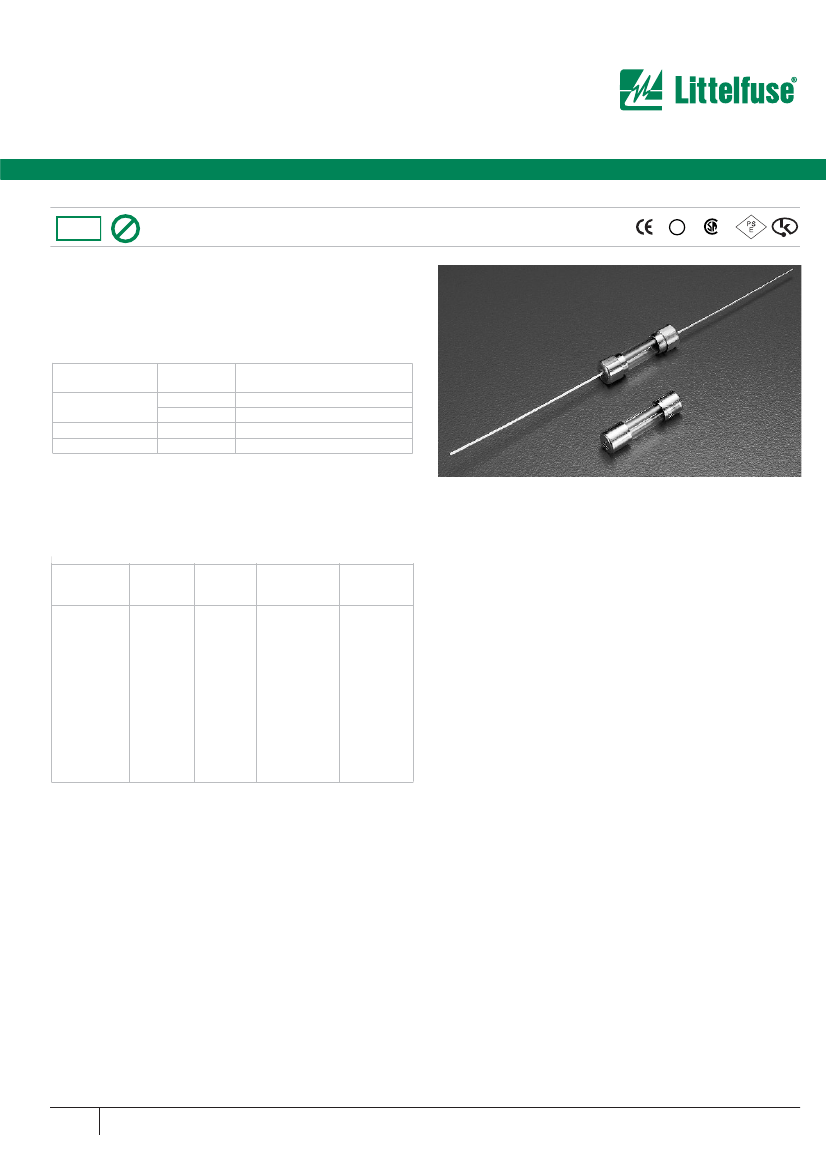

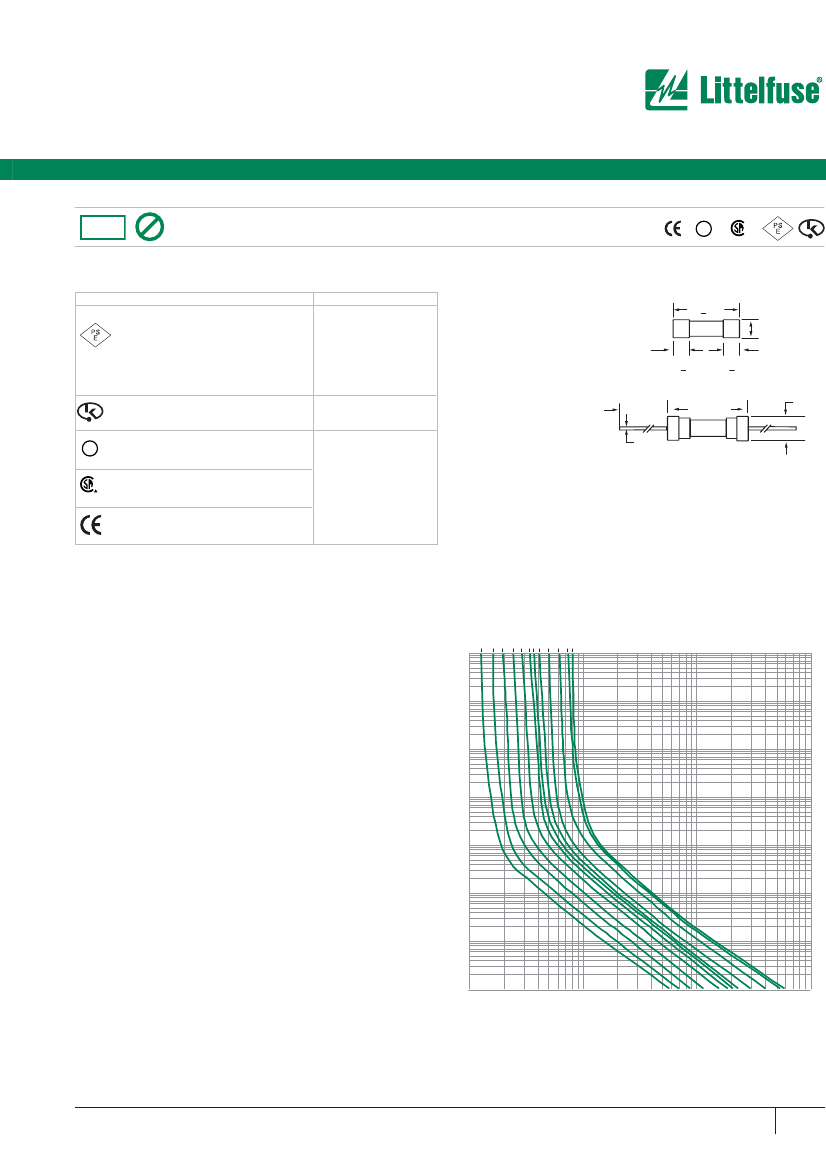

Axial Lead and Cartridge Fuses

Designed to UL/CSA Standards

RoHS

Pb

5 x 20 mm

Medium-Acting Fuse 233P Series

UL

®

• Designed to UL/ CSA/ANCE 248 Standard.

• Available in Cartridge, Axial and Radial Lead Format.

• Available in ratings of 1A to 10A.

• RoHS compliant and Lead-Free

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Ampere

Rating

1–3.5

4–10

1–10

Opening

Time

4 hours,

Minimum

1 hour,

Minimum

3 sec.,

Min.;

1 hour

Max.

0.4 sec.,

Min.;

4 sec.,

Max.

INTERRUPTING RATING:

10,000 amperes at 125 VAC, 0.7-0.8 power factor

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

ORDERING INFORMATION:

Catalog

Number

0233

001.P

0233

1.25P

0233

01.6P

0233

002.P

0233

02.5P

0233

003.P

0233

3.15P

0233

03.5P

0233

004.P

0233

005.P

0233

006.P

0233

06.3P

0233

008.P

0233

010.P

Ampere

Rating

1

1.25

1.6

2

2.5

3

3.15

3.5

4

5

6

6.3

8

10

Voltage

Rating

125

Nominal

Resistance

Cold Ohms

0.18

0.13

0.088

0.068

0.052

0.043

0.038

0.032

0.029

0.022

0.018

0.017

0.008

0.007

Nominal

Melting

I

2

t A

2

Sec

1.977

3.389

6.144

9.971

17.041

26.243

29.797

36.272

51.609

89.975

131.456

151.905

169.433

274.411

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).
