ASFL3-7.3728MHZ-EK-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ASFL3-7.3728MHZ-EK-T

Preview

ASFL3-7.3728MHZ-EK-T: DescriptionOSC XO 7.3728MHZ CMOS SMD; CategoryPassive components; File Size104KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFL3-7.3728MHZ-EK-T Overview

OSC XO 7.3728MHZ CMOS SMD

ASFL3-7.3728MHZ-EK-T Parametric

Parameter Name	Attribute value
type	XO (Standard)
frequency	7.3728MHz
Function	enable/disable
output	CMOS
Voltage - Power	1.8V
frequency stability	±30ppm
Operating temperature	-20°C ~ 70°C
Current - Power (maximum)	5mA
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.197" long x 0.126" wide (5.00mm x 3.20mm)
Height - Installation (maximum)	0.051"（1.30mm）
Current - Power (disabled) (maximum)	-

Preview

Download Datasheet

View All

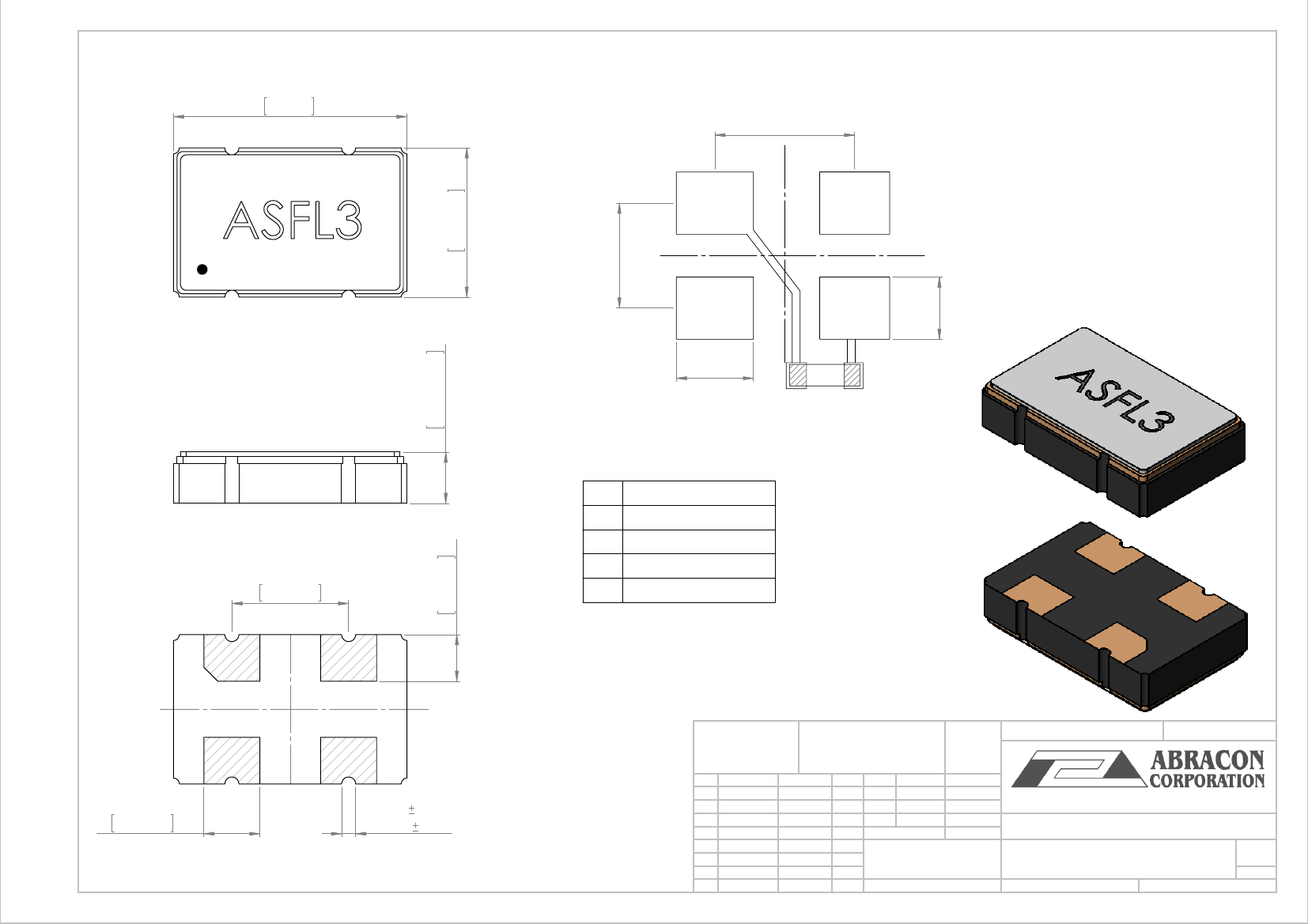

Recommended Land Pattern

0.197 ±0.008

5 ±0.2

0.10

[2.54]

4

3

0.126 ±0.008

3.2 ±0.2

0.087

[2.2]

1

2

0.043 ±0.008

1.10 ±0.20

0.055

[1.4]

0.01 uF

1

0.098 ±0.004

2.5 ±0.1

0.039 ±0.006

1 ±0.15

FUNCTION

Tri-state

GND

Output

VDD

2

3

4

Note: : It is recommended to use an approximately 0.01uF

bypass capacitor between PIN 2 and 4.

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

0.047

[1.2]

-

SIGNATURE

DATE

0.047 ±0.004

1.2 ±0.1

DRAWN

SAAZVAT

XXXXXX

0.03 0.004

[0.8 0.1]

CHK'D

APPV'D

MFG

Q.A

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

OSCILLATOR

Bottom view

MATERIAL:

DWG NO.

ASFL3

SHEET 1 OF 1

A3

WEIGHT:

SCALE:15:1
