1000B-5006T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> 1000B-5006T

1000B-5006T: DescriptionMDL DUAL 1000B 1:1 SMT TR PBC; CategoryPower/power management; File Size351KB，1 Pages; ManufacturerPulseR

Download Datasheet Parametric Compare View All

1000B-5006T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1000B-5006T	-	-	View	Buy Now

1000B-5006T Overview

MDL DUAL 1000B 1:1 SMT TR PBC

1000B-5006T Parametric

Parameter Name	Attribute value
Transformer type	LAN 10/100/1000 Base-T
inductance	350µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	1：1
Installation type	surface mount
size/dimensions	0.518" long x 0.595" wide (13.16mm x 15.11mm)
Height - Installation (maximum)	0.251" (6.38mm)

Preview

Download Datasheet

View All

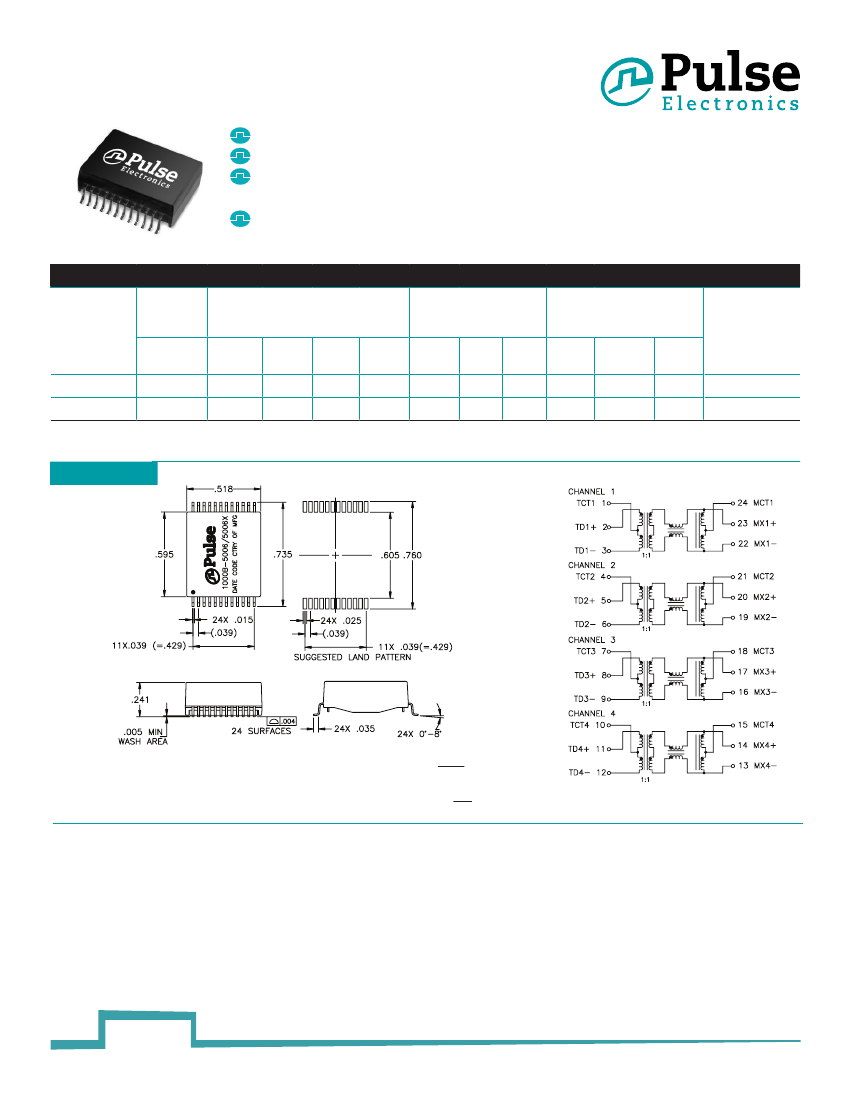

1000 BASE-T TRANSFORMER MODULES

Military/Aerospace Grade

Compliant with IEEE802.3 standards

350uH OCL with 8mA DC bias

Operating temperature:

1000B-5006: -40°C to +85°C

1000B-5006X: -55°C to +125°C

Epoxy encapsulated package withstands 235°C peak

temperature profile

Electrical specification @25°C

Insertion Loss

(dB MIN)

0.1-100

MHz

1000B-5006

1000B-5006X

-1.2

-1.4

5-30

MHz

-18

Return Loss

(dB MAX)

MHz

-13

MHz

-12

MHz

-10

MHz

-43

Cross Talk

(dB MAX)

MHz

-37

100

MHz

-33

Differential to Common

Mode Rejection

(dB MAX)

1-30

MHz

-43

30-60

MHz

-37

60-100

MHz

-30

-33

Hipot

(Vrms)

1500

Part Number

Mechanicals

100B-5006/X

Schematic

Weight.....................

1.60grams

Tape & Reel.............

350/reel

Tube..........................

35/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

For More Information

Pulse North America

Headquarters

Two Pearl Buck Court

Bristol, PA 19007

U.S.A.

Tel: 215 781 6400

Fax: 215 781 6403

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 7806 0

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks

pulseelectronics.com

M199.B (1/14)
