PTK-18423: DescriptionBOX PLASTIC GRAY 5.12"L X 3.15"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size64KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric Compare View All

PTK-18423 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTK-18423	-	-	View	Buy Now

PTK-18423 Overview

BOX PLASTIC GRAY 5.12"L X 3.15"W

PTK-18423 Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	5.120" long x 3.150" wide (130.05mm x 80.00mm)
high	3.350"（85.09mm）
Area (L x W)	16.1 in²（104 cm²）
design	Cover included
Material	Polycarbonate (PC)
color	grey
thickness	0.120"（3.05mm）
characteristic	PCB holder, sealing gasket
grade	IP67，NEMA 4X，UL 508
Material flammability rating	UL94 5VA
weight	0.251 lbs (113.85g)

Preview

Download Datasheet

View All

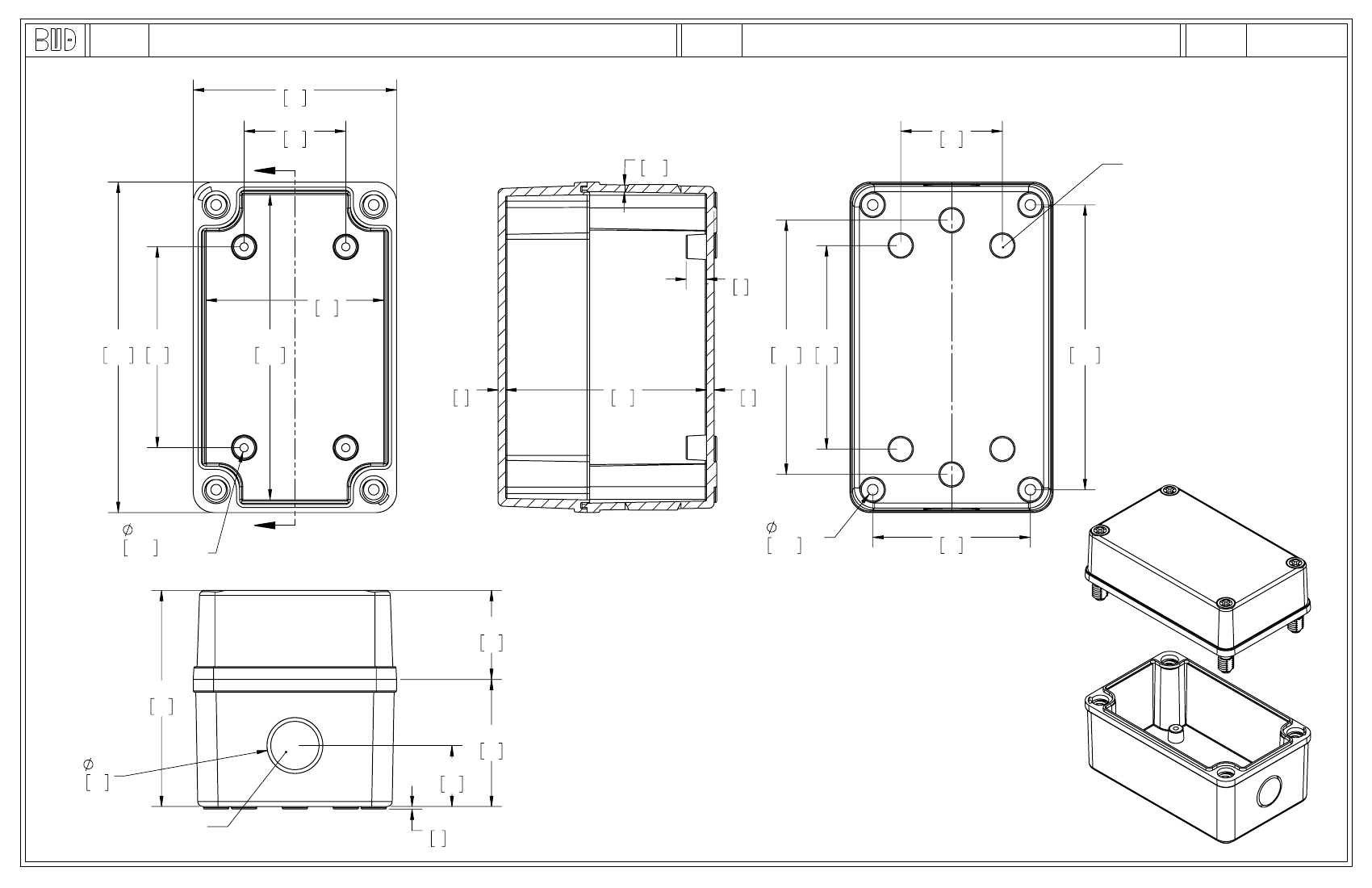

PART

NAME

NEMA 4X PLASTIC BOX (PTK SERIES)

3.15

1.57

.11

2.8

PART

No.

PTK-18423

PTK-18423-C

REVISION

DATE

10-11-17

1.57

WE RESERVE THE RIGHT TO MAKE CHANGES TO OUR

STANDARD PRODUCTS. PLEASE CONSULT WITH BUD INDUSTRIES

PRIOR TO USING THIS DRAWING FOR DESIGN PURPOSE.

DRAWING FOR REFERENCE

PADS 6X

2.75

5.12 3.11

130

4.72

120

.12

3.11

.31

3.94

100

.12

3.15

4.41

112

.126 4X

3.20

X 0.24 [6.1] DEEP

COVER NOT SHOWN

SECTION

A-A

.165 4X

4.20

2.44

1.38

3.35

1.97

NOTES:

1- MATERIAL: BODY - GRAY POLYCARBONATE RESIN 10% GLASS FIBER FILLED

COVER - GRAY OR CLEAR (-C SUFFIX) POLYCARBONATE

2- UL508 / NEMA TYPE 4X & TYPE 6 WITH IP-67 TUV RATING & UL-94 5VA

3- CONTINUOUS POURED FOAM GASKET IN COVER

4- COVER ATTACHES WITH NON-METALLIC CAPTIVE SCREWS

5- INTERNAL BOSSES WILL ACCEPT M4x0.7 x 6mm LG. THREAD FORMING

SCREWS FOR ATTACHING AN INTERNAL PANEL OR PCB (NOT SUPPLIED)

6 - DIMENSIONS ARE INCH [MM]

OPTIONAL ACCESSORIES:

INTERNAL STEEL PANEL #

MOUNTING BRACKET KIT (STAINLESS STEEL) - #NBX-10922

MOUNTING BRACKET KIT (PLASTIC) #PIX-4117

.87

MOLDED KNOCKOUT

(2) PLACES

.94

.04 PADS

PTK-18423 Related Products

	PTK-18423	PTK-18423-C
Description	BOX PLASTIC GRAY 5.12"L X 3.15"W	BOX PLASTIC GRAY 5.12"L X 3.15"W
Container type	box	box
size/dimensions	5.120" long x 3.150" wide (130.05mm x 80.00mm)	5.120" long x 3.150" wide (130.05mm x 80.00mm)
high	3.350"（85.09mm）	3.350"（85.09mm）
Area (L x W)	16.1 in²（104 cm²）	16.1 in²（104 cm²）
design	Cover included	Cover included
Material	Polycarbonate (PC)	Polycarbonate (PC)
color	grey	grey
thickness	0.120"（3.05mm）	0.120"（3.05mm）
characteristic	PCB holder, sealing gasket	PCB holder, sealing gasket
grade	IP67，NEMA 4X，UL 508	IP67，NEMA 4X，UL 508
Material flammability rating	UL94 5VA	UL94 5VA
weight	0.251 lbs (113.85g)	0.251 lbs (113.85g)
