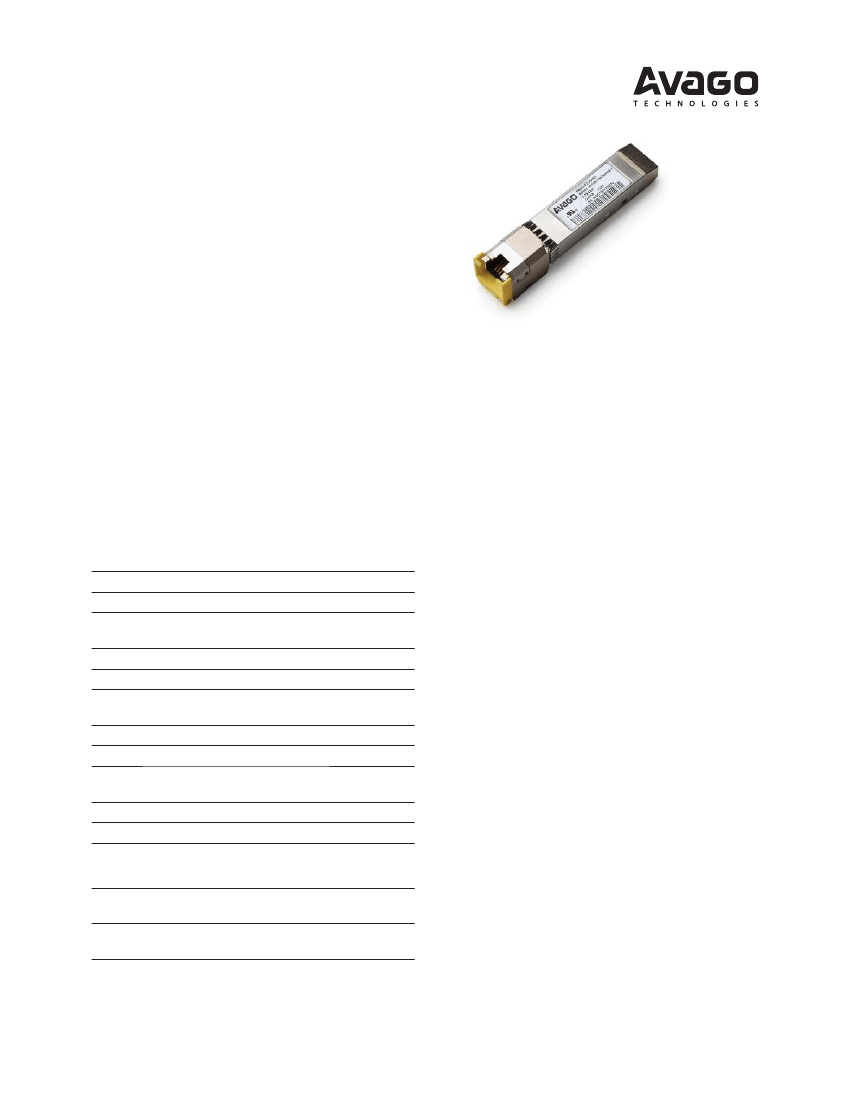

ABCU-57xxxxZ Family
10/100/1000BASE-T 1.25 GBd Small Form Pluggable
Low Voltage (3.3 V) Electrical Transceiver over Category 5 Cable
Data Sheet
Description
The ABCU-57xxxxZ family of electrical transceivers from
Avago Technologies offer full-duplex throughput of 1000
Mbps by transporting data over shielded and unshielded
twisted pair category 5 cable with 5-level PAM (Pulse
Amplitude Modulation) signals.
The Avago Technologies 1000BASE-T module takes sig-
nals from both the twisted pair category 5 cable and the
SerDes interface. Pin count overhead between the MAC
and the PHY is minimized, and Gigabit Ethernet opera-
tion is achieved with maximum space savings.
Features
RoHS-6 Compliant (see Table 1)
Designed for Industry-Standard, Small Form Factor
Pluggable (SFP) Ports
Compliance with IEEE 802.3:2005
Custom RJ-45 connector with integrated magnetics
Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
Low power, high performance 1.25 Gbd SerDes inte-
grated in module
Single +3.3 V power supply operation
Auto-negotiation per IEEE 802.3:2005 Clause 28
(Twisted Pair) and Clause 37 (1000BASE-X)
Compatible to both shielded and unshielded twisted
pair category 5 cable
Available in Commercial Temperature (-5~70 °C) and
Industrial Temperature (-40~85 °C)
10/100/1000BASE-T operation available with SGMII
host systems.
Product Ordering Information
ABCU-5730RZ
ABCU-5740RZ
ABCU-5730GZ
ABCU-5730ARZ
ABCU-5740ARZ
ABCU- 5740AGZ
ABCU-5731ARZ
ABCU-5741ARZ
ABCU-5741AGZ
ABCU-5731RZ
ABCU-5741RZ
-5~70
-5~70
-5~70
-40~85
-40~85
-40~85
-40~85
-40~85
-40~85
-5~70
-5~70
RX_LOS enabled
RX_LOS disabled
RX_LOS enabled & Isolated
ground
RX_LOS enabled
RX_LOS disabled
RX_LOS disabled
& Isolated ground
SGMII RX_LOS enabled
SGMII RX_LOS disabled
SGMII RX_LOS disabled &
Isolated ground
SGMII RX_LOS enabled
SGMII RX_LOS disabled
Applications
Switch to switch interface
Switched backplane applications
File server interface
Module Diagrams
Figure 1 illustrates the major functional components
of the ABCU-57xxxxZ family of transceivers. The 20-pin
connection diagram of module printed circuit board of
the module is shown in Figure 2. Figure 3 depicts the pin
assignment of the MDI (RJ45 jack).
Figure 6 depicts the external configuration and dimen-
sions of the module.
Related Products
AFBR-5710Z
AFCT-5710Z
Family of 850nm +3.3V SFP optical
transceivers for Gigabit Ethernet
Family of 1310nm +3.3V SFP optical
transceivers for Gigabit Ethernet
Installation
The ABCU-57xxxxZ family can be installed in or removed
from any MultiSource Agreement (MSA) compliant Small
Form Pluggable port whether the host equipment is
operating or not. The module is simply inserted, small
end first, under finger-pressure. Controlled hot-plugging
is ensured by design and by 3-stage pin sequencing at
the electrical interface to the host board. The module
housing makes initial contact with the host board EMI
shield, mitigating potential damage due to ElectroStatic
Discharge (ESD). The module pins sequentially contact
the (1) Ground, (2) Power, and (3) Signal pins of the host
board surface mount connector. This printed circuit board
card-edge connector is depicted in Figure 2.
TX_DISABLE
TX_DATA
RX_DATA
SerDes/
DSP
RJ45
Adapter
Serial Identification (EEPROM)
The ABCU-57xxxxZ family complies with an industry stan-
dard MultiSource Agreement that defines the serial identi-
fication protocol. This protocol uses the 2-wire serial CMOS
EEPROM protocol of the ATMEL AT24C01A or equivalent.
The contents of the ABCU-57xxxxZ family serial ID memory
are defined in Table 10 as specified in the SFP MSA.
Controller and Data I/O
Data I/Os are designed to accept industry standard dif-
ferential signals. In order to reduce the number of passive
components required on the customer’s board, Avago
Technologies has included the functionality of the trans-
mitter bias resistors and coupling capacitors within the
module. The transceiver is compatible with an “ac-coupled”
configuration and is internally terminated. Figure 1 depicts
the functional diagram of the ABCU-57xxxxZ family of
transceivers. 100-ohm resistor shown at RX_LOS in Figure
1 refers to ABCU-573xxxZ configuration.
Caution should be taken into account for the proper inter-
connection between the supporting Physical Layer integrat-
ed circuits and the ABCU-57xxxxZ family of transceivers.
Figure 4 illustrates the recommended interface circuit.
Several control data signals and timing diagrams are imple-
mented in the module and are depicted in Figure 6.
RX_LOS
MOD_DEF2
MOD_DEF1
MOD_DEF0
100
Magnetics
100
EEPROM
Figure 1. Transceiver Functional Diagram
PIN 1
20
19
18
17
16
15
14
13
12
11
V
EE
T
TD-
TD+
V
EE
T
V
CC
T
V
CC
R
V
EE
R
RD+
RD-
V
EE
R
1
2
3
4
5
6
7
8
9
10
V
EE
T
TX_FAULT
TX_DISABLE
MOD-DEF(2)
MOD-DEF(1)
MOD-DEF(0)
Rate Select
LOS
V
EE
R
V
EE
R
PIN 8
Figure 3. MDI ( RJ 45 Jack) Pin Assignment
Top of Board
Bottom of Board
(as viewed thru top of board)
Note: LOS is only applicable for ABCU-573xxxZ models
Figure 2. 20-pin Connection Diagram of Module Printed Circuit Board
2
V_SUPPLY
1 uH
10 uF
0.1 uF
1 uH
10 uF
0.1 uF
0.1 uF
VCC_T
ABCU-57xxxxZ
VCC_R
4.7 K
TX_DISABLE
TX_FAULT
100
TD+
TX[0:9]
TD-
SerDes
PROTOCOL IC
RX[0:9]
100
RD-
0.01 uF
RX_LOS
*100
MOD_DEF 1
MOD_DEF 2
MOD_DEF 0
100
REF CLK
4.7 K
4.7 K
4.7 K
4.7 K
V_SUPPLY
RD+
0.01 uF
100
0.01 uF
0.01 uF
100
RJ45 JACK &
MAGNETICS
CAT5
CABLE
PHY
IC
EEPROM
*
All models that have LOS disabled, will ground
the LOS pin through a 100 ohm internal resistor.
Figure 4. Typical Application Configuration for ABCU-57xxxxZ
1 μH
V
CC
T
0.1 μF
1 μH
V
CC
R
0.1 μF
10 μF
0.1 μF
10 μF
3.3 V
SFP MODULE
HOST BOARD
Note: Inductors must have less than 1ohm series resistance per MSA
Figure 5. MSA Recommended Power Supply Filter
3
Application Support
Evaluation Kit
To help you in your preliminary transceiver evaluation,
Avago Technologies offers a 1.25 GBd Gigabit Ethernet
evaluation board. This board will allow testing of the
electrical parameters of transceiver. Please contact your
local Field Sales representative for availability and order-
ing details.
Electrostatic Discharge (ESD)
There are two conditions in which immunity to ESD dam-
age is important. Table 1 documents our immunity to
both of these conditions. The first condition is during han-
dling of the transceiver prior to insertion into the trans-
ceiver port. To protect the transceiver, it is important to
use normal ESD handling precautions. These precautions
include using grounded wrist straps, work benches, and
floor mats in ESD controlled areas. The ESD sensitivity of
the ABCU-57xxxxZ is compatible with typical industry
production environments.
The second condition is static discharges to the exterior
of the host equipment chassis after installation. To the
extent that the RJ45 connector interface is exposed to the
outside of the host equipment chassis, it may be subject
to system-level ESD requirements. The ESD performance
of the ABCU-57xxxxZ exceeds typical industry standards.
Regulatory Compliance
See Table 1 for transceiver Regulatory Compliance perfor-
mance. The overall equipment design will determine the
certification level. The transceiver performance is offered
as a figure of merit to assist the designer.
Immunity
Equipment hosting the ABCU-57xxxxZ modules will be
subjected to radio-frequency electromagnetic fields in
some environments. The transceivers have excellent im-
munity to such fields due to their shielded design.
Table 1. Regulatory Compliance
Feature
Electrostatic Discharge
(ESD) to the Electrical
Pins
Electrostatic Discharge
(ESD) to the RJ 45
Connector Receptacle
Electromagnetic
Interference (EMI)
Radiated Immunity
Test Method
MIL-STD-883C Method 3015.4
JEDEC/EIA JES022-A114-A
Variation of IEC 61000-4-2
Performance
Class 2 (2000 Volts)
Typically withstand 15 KV ( Air Discharge), 8 KV
(Contact) without damage when the RJ 45 connector
receptacle is contacted by a Human Body Model probe.
System margins are dependent on customer board and
chassis design.
Typically shows a negligible effect from a 10 V/m field
swept from 80 to 1000 MHz applied to the transceiver
without a chassis enclosure.
UL File # E173874
FCC Part 15 Class B
CENELEC EN55022 Class B
(CISPR 22A)VCCI Class 1
Variation of IEC 61000-4-3
Component
Recognition
Underwriters Laboratories and Canadian
Standards Association Joint Component
Recognition for Information Technology
Equipment Including Electrical Business
Equipment
DC short between signal and chassis
grounds
Chemical composition analysis
Grounding
Configuration
ROHS Compliance
- Meets all regulatory requirements as listed above.
- Compliant with system boards using multi-point
grounding scheme
Less than 0.1% lead, mercury, hexavalent chromium,
polybrominated biphenyls, and polybrominated
biphenyl ethers by weight of homogeneous material.
Exemption for lead in high melting temperature solder
applied to module connector. Less than 0.01% cadmium
by weight of homogeneous material.
4
Electromagnetic Interference (EMI)
Most equipment designs utilizing these high-speed trans-
ceivers from Avago Technologies will be required to meet
the requirements of FCC in the United States, CENELEC
EN55022 (CISPR 22A) in Europe and VCCI in Japan.
The metal housing and shielded design minimize the
EMI challenge facing the host equipment designer. These
transceivers provide superior EMI performance. This
greatly assists the designer in the management of the
overall system EMI performance.
Caution
There are no user serviceable parts nor any maintenance
required for the ABCU-57xxxxZ. Tampering with or
modifying the performance will result in voided product
warranty. It may also result in improper operation of the
ABCU-57xxxxZ circuitry, and possible overstress of the
RJ 45 connector. Device degradation or product failure
may result. Connecting the module to a non-approved
1000BaseT module, operating above the recommended
absolute maximum conditions or operating the ABCU-
57xxxxZ in a manner inconsistent with its design and
function may result in hazardous radiation exposure and
may be considered an act of modifying or manufacturing
an electrical module product.
Flammability
The ABCU-57xxxxZ electrical transceiver housing is
made of metal and high strength, heat resistant, chemi-
cally resistant, and UL 94V-0 flame retardant plastic.
Ordering Information
Please contact your local field sales engineer or one of
Avago Technologies franchised distributors for ordering
information. For technical information, please visit Avago
Technologies web page at www.avagotech.com or con-
tact Avago Technologies Customer Response Center. For
information related to the MSA visit www.schelto.com/
SFP/index.html
Customer Manufacturing Processes
This module is pluggable and is not designed for aqueous
wash, IR reflow or wave soldering processes.
5
京公网安备 11010802033920号
EEWORLD
