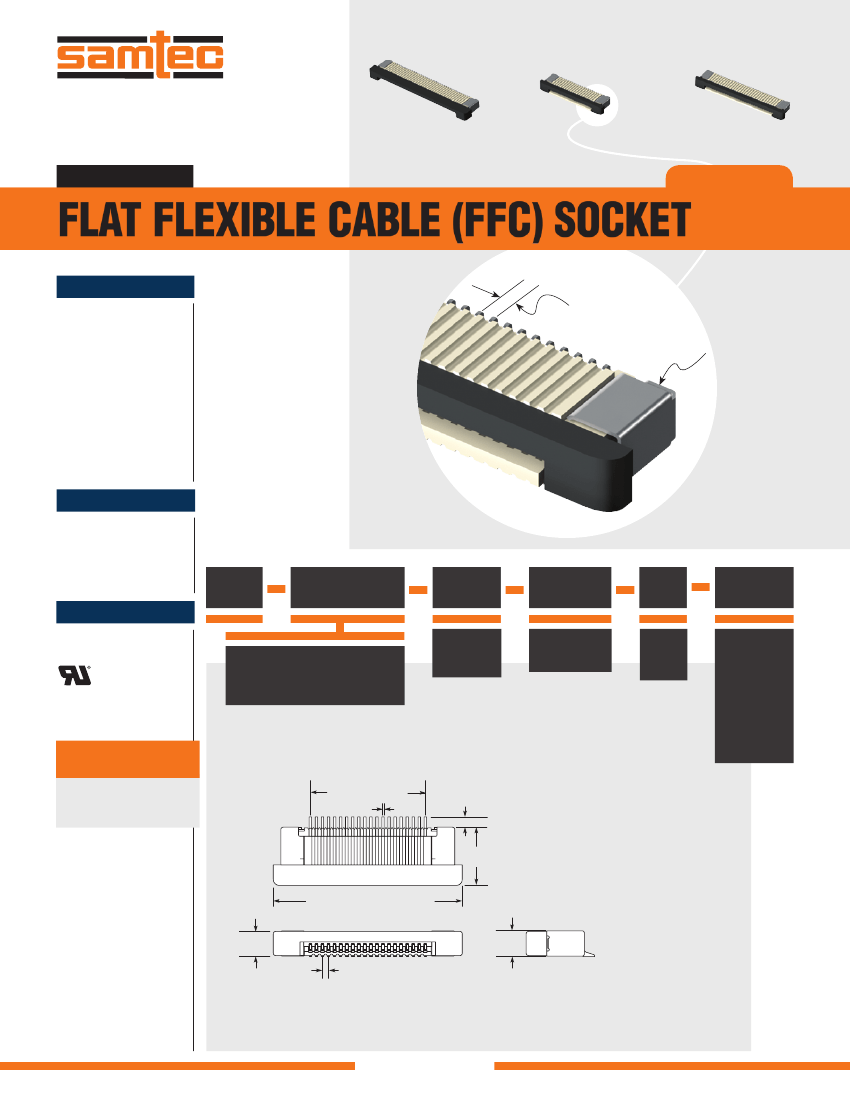

F-219
ZF5S–20–01–T–WT
ZF5S–40–01–T–WT
ZF5S–30–01–T–WT
(0.50 mm) .0197"
ZF5S SERIES
FLAT FLEXIBLE CABLE (FFC) SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?ZF5S
Insulator Material:
Natural LCP
Contact Material:
Phosphor Bronze
Plating:
Sn over 50 µ" (1.27 µm) Ni
Weld Tab:
Phosphor Bronze
Operating Temp Range:
-55 °C to +105 °C
Current Rating:
1.8 A per pin
(1 pin powered)
RoHS Compliant:
Yes
Mates with:
FJH
(0.50 mm)
.0197"
pitch
Weld Tabs
for rugged
connection
to the board
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (10-30)
(0.15 mm) .006" max (40-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
ZF5S
NO. OF
POSITIONS
LEAD
STYLE
PLATING
OPTION
WT
–WT
= Weld
Tab
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
FILE NO. E111594
–10, –15, –20, –25,
–30, –40, –43, –50
(Standard sizes)
= Contact
Bottom
–01
= Matte Tin
–T
= (3.00 mm)
.118" DIA
Polyimide Film
Pick &
Place Pad
–K
ALSO AVAILABLE
(MOQ Required)
• Vertical
• Contact top
• Other positions
= Tape & Reel
Packaging
–TR
01
(No. of positions -1)
x (0.50) .0197
(0.20) .008
(0.84)
.033
(4.82)
.190
No. of positions x
(0.50) .0197 + (5.65) .222
(2.00)
.079
(0.50)
.0197
(2.10)
.083
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
