Conductive Polymer Tantalum Solid Capacitors
2016.01
http://industrial.panasonic.com/ww/products/capacitors/polymer-capacitors/poscap
——— Notices ———
■
Applicable Laws and Regulations
●
This product complies with the RoHS Directive (Restriction of the use of certain Hazardous substances in
electrical and electronic equipment (DIRECTIVE 2011/65/EU).
●
No Ozone Depleting Chemicals(ODC's), controlled under the Montreal Protocol Agreement, are used in
producing this product.
●
We do not PBBs or PBDEs as brominated flame retardants.
●
Export procedure which followed export related regulations, such as foreign exchange and a foreign trade
method, on the occasion of export of this product Thank you for your consideration.
■
Limited applications
●
This capacitor is designed to be used for electronics circuits such as audio/visual equipment, home
appliances, computers and other office equipment, optical equipment, measuring equipment.
●
High reliability and safety are required [ be / a possibility that incorrect operation of this product may do harm
to a human life or property ] more. When use is considered by the use, the delivery specifications which suited
the use separately need to be exchanged.
——— Items to be observed ———
●
This specification guarantees the quality and performance of the product as individual components.
Before use, check and evaluate their compatibility with installed in your products.
●
Do not use the products beyond the specifications described in this document.
■
For specifications
●
Install the following systems for a failsafe design to ensure safety if these products are to be used in
equipment where a defect in these products may cause the loss of human life or other signification damage,
such as damage to vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment,
electric heating appliances, combustion/ gas equipment, rotating rotating equipment, and disaster/crime
prevention equipment.
· The system is equipped with a protection circuit and protection device.
· The system is equipped with a redundant circuit or other system to prevent an unsafe status in the event of
a single fault.
■
Conditions of use
●
Before using the products, carefully check the effects on their quality and performance, and determined
whether or not they can be used. These products are designed and manufactured for general-purpose and
standard use in general electronic equipment. These products are not intended for use in the following special
conditions.
(1) In liquid, such as Water, Oil, Chemicals, or Organic solvent.
(2) In direct sunlight, outdoors, or in dust.
(3) In vapor, such as dew condensation water of resistive element, or water leakage, salty air, or air with a
high concentration corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NOx.
(4) In an environment where strong static electricity or electromagnetic waves exist.
(5) Mounting or placing heat-generating components or inflammables, such as vinyl-coated wires, near
these products.
(6) Sealing or coating of these products or a printed circuit board on which these products are mounted,
with resin and other material.
(7) Using resolvent, water or water-soluble cleaner for flux cleaning agent after soldering. (In particular,
when using water or a water-soluble cleaning agent, be careful not to leave water residues)
(8) Using in the atmosphere which strays Acid or alkaline.
(9) Using in the atmosphere which there are excessive vibration and shock.
●
Please arrange circuit design for preventing impulse or transitional voltage.
Do not apply voltage, which exceeds the full rated voltage when the capacitors receive impulse voltage,
instantaneous high voltage, high pulse voltage etc.
●
Our products there is a product are using an electrolyte solution. Therefore, misuse can result in rapid
deterioration of characteristics and functions of each product. Electrolyte leakage damages printed circuit and
affects performance, characteristics, and functions of customer system.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Nov. 2015
Conductive Polymer Tantalum Solid Capacitors
Guidelines and precautions (POSCAP)
1. Circuit design
1.1 Prohibited circuits
Since problems can be expected, POSCAP cannot be used on the following circuits
(1) High impedance voltage retention circuits
(2) Time constant circuits
(3) Circuits greatly affected by leakage current
(4) The circuit in which two or more POSCAP are connected in a series so as to raise the endurance voltage.
1.2 Failure and life-span
The failure rate is 0.5 %
½
/ 1000 h (Confidence level : 60 %) based on JIS C 5003.
The mainly failure modes are as follows.
½
B2 size or less : 1.0 %
1.2-1 Contingency failure
The main causes of failure are thermal stresses cause by the soldering or thermal use environment, along with
heat stresses, electrical stresses or mechanical stresses. The most common failure mode is a short circuit.
In case a short circuit occurs, ensure safety by fully considering the followings.
(1) If POSCAP emit smoke, turn off the main power of the equipment. In this case, keep your face and
hands away from the area.
(2) It may take a few seconds to a few minutes before POSCAP emits smoke by the situation. Increase
safety by using a protective circuit.
(3) If the smoke comes into eyes, rinse immediately. If the smoke is inhaled, gargle immediately.
(4) In case a large current continues to flow after a short circuit, in the worst case, the shorted-out
section may ignite. For safety, install a redundant circuit or a protective circuit, etc.
1.2-2 Wear-out failure (lifetime)
When lifetime exceeded the specified guarantee time of Endurance and Damp heat, electrolyte
might insulate and cause electric characteristic changed. This is called an open circuit. The electric
characteristics of capacitance and ESR may possibly change within the specified range in specifications
when it is used under the condition of the rated voltage, electric and mechanical performance. Please
note it when design.
1.3 Reduction of failure stress
When POSCAP is used within the rated voltage, it shows a stable characteristic, but it may be damaged
in a short circuit when an overvoltage, for instance, is applied. The time to reach the failure mode can be
extended by using POSCAP with reduced environment temperature, ripple current and applied voltage.
Failure rate
In the case of the endurance which is 105 °C 2000 h.
0.5 %/1000 h (Environment temp. : 105 °C, Rated voltage or Category voltage applied)
In the case of the endurance which is 105 °C 1000 h or 125 °C 1000 h.
1.0 %/1000 h (Environment temp. : 105 °C, Rated voltage or Category voltage applied)
In the case of the endurance which is 85 °C 1000 h.
1.0 %/1000 h (Environment temp. : 85 °C, Rated voltage applied)
1.4 Check the rated performance
After checking the operation and installation environments, design the circuit so that it falls within the rated
performance range stipulated in this delivery specification.
1.5 Operating temperature and ripple current
(a) Set the operating temperature so that it falls within the range stipulated in this delivery specification.
(b) Do not apply current that exceeds the allowable ripple current. Ripple current should be controlled so that
surface temperature of a capacitor do not exceed the rated temperature.
(For questions regarding TQC series, please contact us.)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2015
Conductive Polymer Tantalum Solid Capacitors
1.6 Leakage current
Even when the soldering conditions fall within the range of this delivery specifications, leakage current
increases a little on occasion. It also increases a little during high temperature storage, high humidity storage
and temperature cycling with no voltage applied. In cases such as these, leakage current will decrease by
applying voltage under the condition of below the POSCAP's maximum operating temperature.
The speed at which the leakage current is restored is increased by applying voltage when the POSCAP's
temperature is close to the maximum operating temperature.
1.7 Rapid charge and discharge limitation
Rapid charge and discharge are restricted (for maintainance of high-proof reliability).
A protective circuit is recommended for when a rapid charge or discharge causes excessive rush current
since this is main cause of short circuit and large leakage current. Use a protective circuits in case the rush
current value exceeds 20 A
½
.
Be sure to insert a protection resistor of about 1 kΩ for charge and discharge when measuring the leakage current.
½
When TH series use under the ambient temperature more than 105 °C : 10 A
TPU series : 10 A
2. Mounting
2.1 Protect circuit
The failure mode of POSCAP is the short mode. When it breaks down, short electric current flows to it.
POSCAP gives off heat by this short current.
Do the following consideration in design fully for the safety because it has a bad influence on the part around
POSCAP due to this heat.
∙ A protective circuit and a protective device are set up, so as to make the system safer.
∙ A diffuse circuit and so on is set up, so as to make the system safer such as that a machine may not
break down as to the single trouble.
2.2 Considerations when soldering
The soldering conditions are to be within the range prescribed in this delivery specification.
If the specifications are not followed, there is the possibility of degradation of electric characteristic and
lifetime when soldering is conducted under conditions that are harsher that those stipulated.
2.3 Others
POSCAP’s Electrical characteristics are affected by temperature and frequency fluctuations.
Design circuits after checking the amount of fluctuation.
3. Storage
It is necessary to set an environment to prevent a trouble at the time of soldering by the degradation of solder
ability or moisture's getting into the molding resin when POSCAP are stored.
Please make storage of POSCAP sealing up in the reel and storage bag at the time of delivery in the following
environment. Also, set storage period as 18 months or shorter.
Room temperature and room humidity (generally : 15 to 35 °C, 45 to 75% RH ) are desirable.
Place where POSCAP is not exposed by direct sunshine.
Please unseal storage bag just before mounting and be conscious that POSCAP in the storage bag is used up.
When remainder unfortunately occurs, return them to the storage bag once again and, please seal the unsealed
part by adhesive tape etc., including desiccants. Moreover, once and use it in time the storage bag is opened,
store POSCAP according to the table's Floor Life “Time” and “conditions”.
MSL
2a
3
5
Floor life
Time
4 weeks
168 hours
48 hours
Conditions
<
30 °C/60 %Rh
<
30 °C/60 %Rh
<
30 °C/60 %Rh
(Conform to IPC/JEDEC J-STD-020)
◇
Intellectual property right
We, Panasonic Group are providing the product and service that customers can use without anxiety, and are
working positively on the protection of our products under intellectual property rights.
Representative patents relating to POSCAP are as follows:
US Patent Nos. 6168639 and 6313979
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2015
Conductive Polymer Tantalum Solid Capacitors

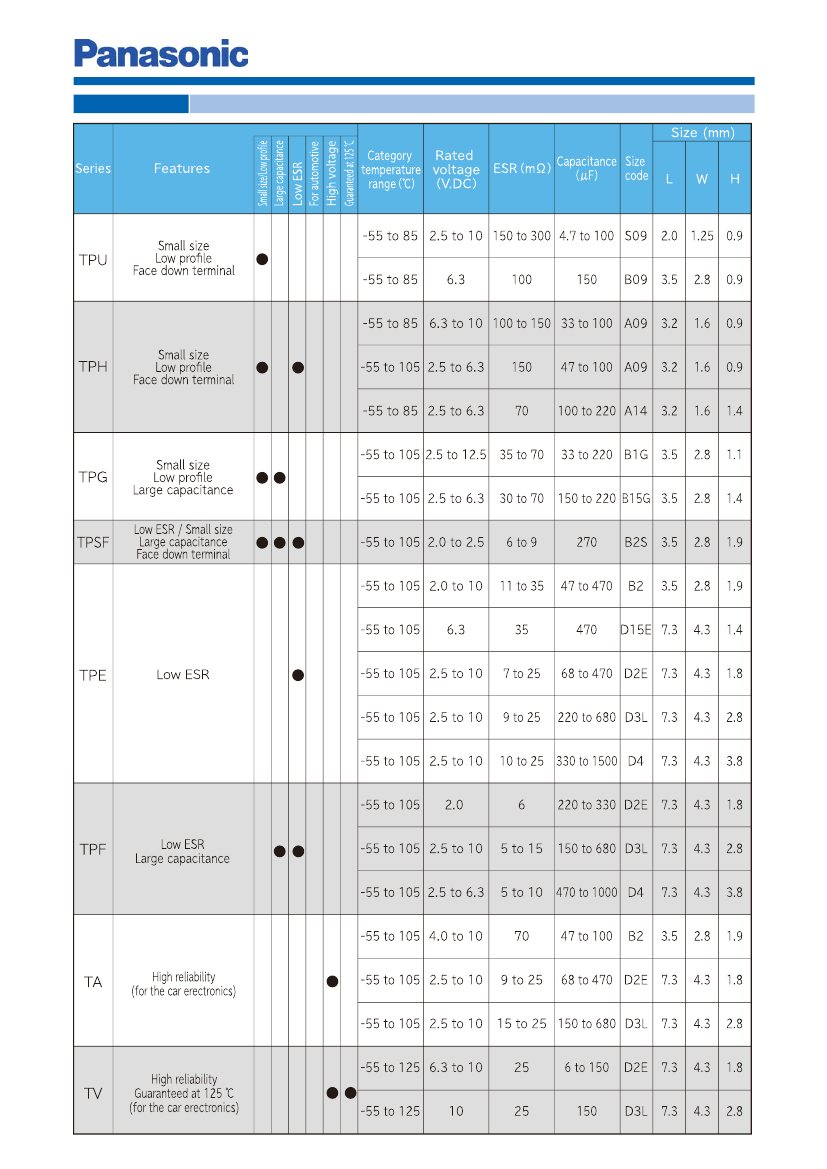

Line up
