EXTreme Ten60Power Hybrid
Power-and-Signal Connectors
and Harness Solutions
Designed for board-to-board, wire-to-board, and panel-to-board applications
that require high current density, low power loss, and design flexibility, EXTreme
Ten60Power Hybrid Power-and-Signal Connectors and Harness Solutions provide up
to 260A per linear inch, faster response times, and are easily configured for individual
design requirements
Features and Benefits
Available in 2 through 6
power circuits: 0, 12, 18, and
24 signal circuits
Configurable for optimizing
design requirements
Complete plug and harness
solutions available
Removes the burden of plug
and harness assembly from
the customer
Panel mount receptacle
harness mates to standard
EXTreme Ten60Power
right-angle plug
Allows blind mating via
proven EXTreme Ten60Power
alignment guides
Multiple mating levels available
on plug power and signal contacts
Provides Last-Mate-First-Break (LMFB) or
First-Mate-Last-Break (FMLB) capability

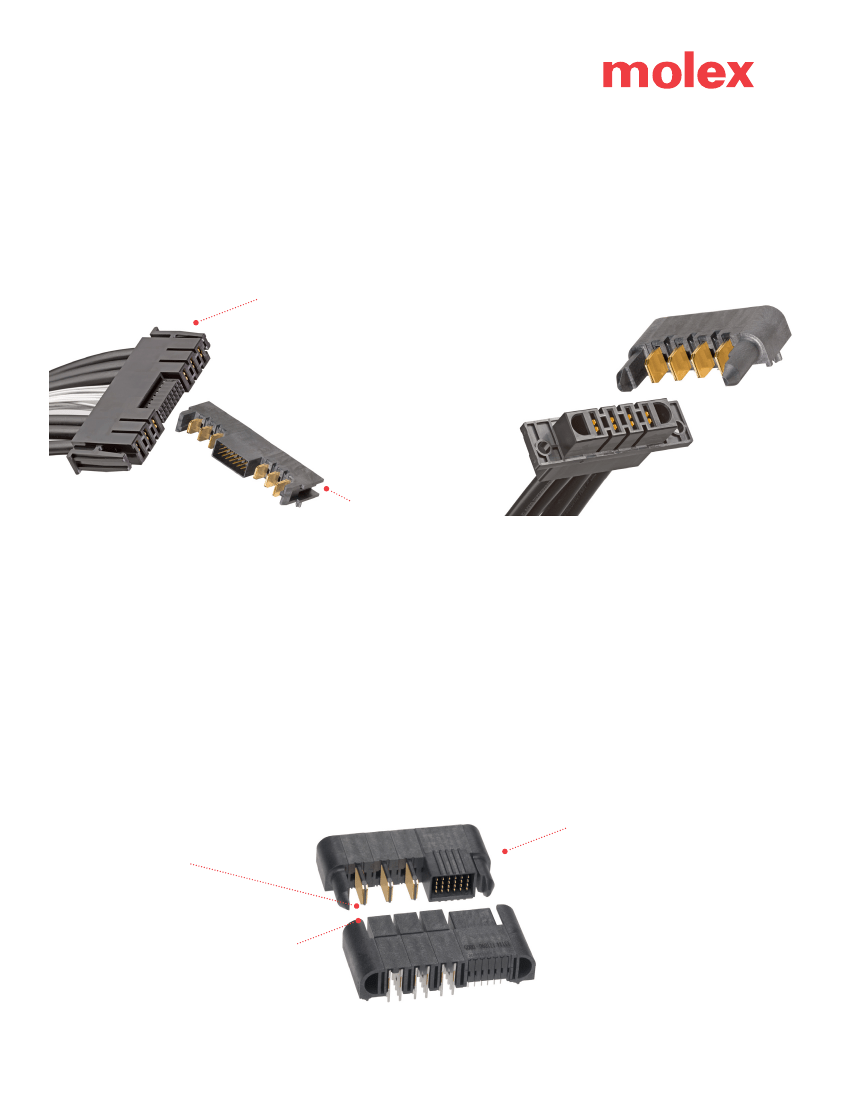

EXTreme Ten60Power Wire-to-Board Hybrid
Signal-and-Power Receptacle Harness and
Right-Angle Header
8 to 16 AWG power receptacle
terminals, 22 to 28 AWG signal
receptacle terminals
Maximum flexibility in wire gauge
design requirements
Right-angle and vertical
PCB plug mating possible
Optimizes flexibility in
design requirements
Rated for resistance to arcing
in hot-pluggable applications
Prevents electrical interruptions
Robust, high-current
contact blades with
7.50mm power pitch
Provides 50.0A of current
EXTreme Ten60Power Wire-to-Board
4-Power Receptacle Harness and Right-
Angle Header
Power-only and hybrid power-
and-signal configurations
Maximizes number of
configurations for optimized
flexibility in design requirements
Panel mount housing
flange mounts to either
the front of back of the
panel
Allows multiple chassis
mounting arrangements
Low-profile design:
10.00mm height
Enhances system airflow
Standard power blades
are rated up to 60.0A per
blade at a 30°C T-rise
Ensures maximum
current-to-length ratio
Multiple mating levels
available on header power
and signal contacts
Provides last-mate-first-break
(LMFB) or first-mate-last-break
(FMLB) capabilities
Available as separate
components
Allows pick-and-place
harness assembly and
maintenance
Modular assembly (modules can be arranged in
virtually any configuration and added together)
Additional circuit configurations can be achieved
Robust, high-current contact blades in DC
(5.50mm) and AC (7.50mm) power pitches
Provides excellent design flexibility
Available in 1 through 9 circuit split-blade
power modules: 1 through 10 circuit
standard power blade modules, 6 though 60
circuit signal modules; either end-mount or
top-mount guidance
Modules can be configured to accommodate
virtually any design application
Rated for resistance to arcing
Supports hot-pluggable applications
Right-angle and vertical orientations available
Accommodates either coplanar or perpendicular
applications
EXTreme Ten60Power Hybrid
Power-and-Signal Connectors
and Harness Solutions
Features and Benefits
Isolated split mated contacts with dielectric
LCP plastic (each split-blade terminal
carries a 30.0A current rating at 30°C T-rise
Shortens the distance between energized
power contacts resulting in faster response
times, lower overall impedance, and
capacitance benefits. Increases power contact
granularity if the customer does not need the
standard, full 60.0A current rating for all power
contacts

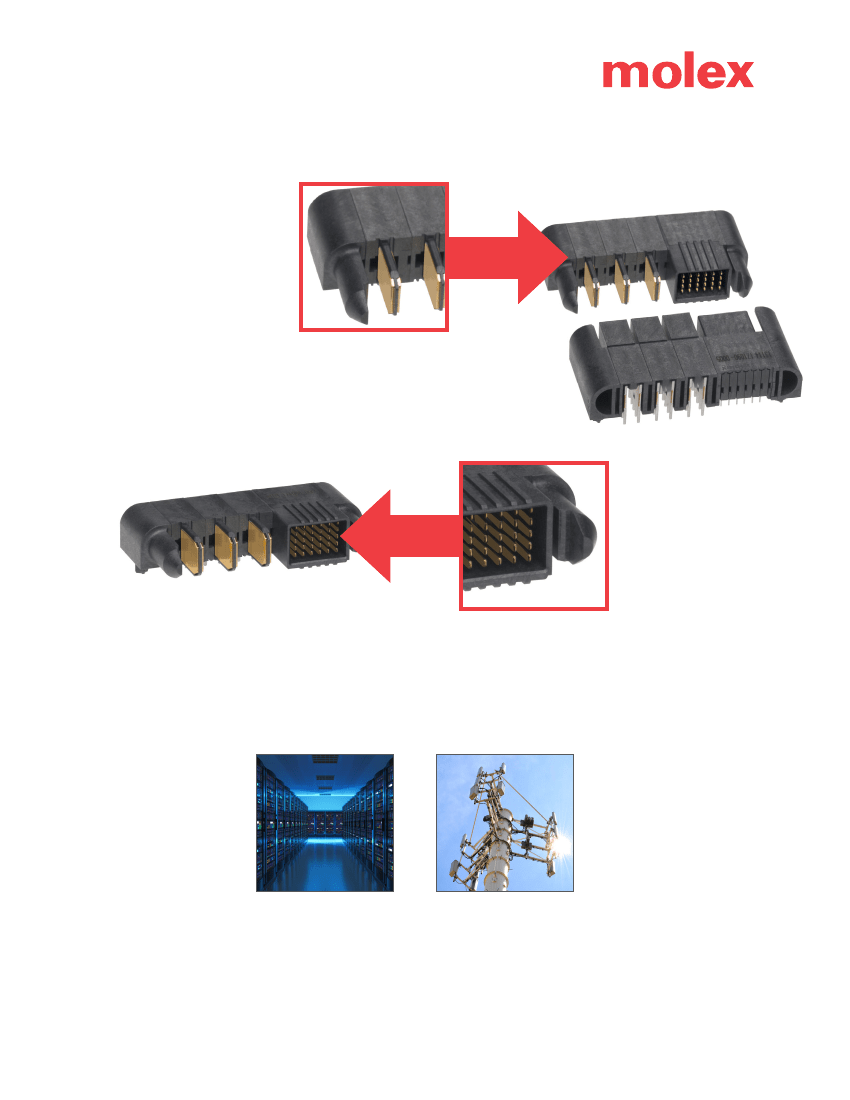

Board-to-Board: Split-Blade Power
Modules (1 Though 9 Circuits)
Through-hole versions available in right-angle plug
and receptacles; press-fit versions available in right-
angle plug and receptacles and vertical receptacles
Provides excellent design flexibility
Board-to-Board:3- and 5-
Row Signal Modules
3-Row (2.54 by 2.54mm
pitch) and 5-row signal
modules available (2.00 by
1.65 pitch)
Provides design flexibility.
5-row version saves over
10.00mm space when using
a 25-signal module versus the
3-row version with 24-signal
modules. For use in more
critical space-constrained
applications
Applications
Datacommunication Equipment
High-End Servers
Rack Servers
Telecommunication Equipment
Hubs
Cellular Base Stations
Switches
Routers
Consumer Electronics
Appliances
Entertainment Systems
HVAC
Server
Cellular Base Station
EXTreme Ten60Power Hybrid
Power-and-Signal Connectors
and Harness Solutions
Specifications
REFERENCE INFORMATION
Reference Information
Packaging: Tray
UL File No.: E29719
CSA File No.: LR-19980_A_ Class 6233-81 CSA
tested to UL-1977 andCSA C22.2 No. 182.3-M1987
TUV: R 72081037
Designed In: Millimeters
ELECTRICAL
Voltage (max.): Power — 600V
Signal — 250V
Current (max.):
Power:
Board-to-Board — 60.0A
Wire-to-Board — 50.0A
Panel-to-Board — 50.0A
Signal — 2.5A
Dielectric Withstanding Voltage: 1500V
Insulation Resistance (min.): 5000 Megohms
MECHANICAL
Pitch:
Original 3-Row Connectors:
Power — 5.50mm (DC) or 7.50mm (AC)
Signal — 2.54 by 2.45mm
High-Density Signal 5-Row Connectors:
Power — 5.50mm (DC) or 7.50mm (AC)
Signal — 2.00 by 1.65mm
Mating Force (max. per circuit):
Power Contacts:
Vertical Receptacle — 764g
Right-Angle Receptacle — 460g
Signal Contacts — 75g
Un-mating Force (min. per circuit):
Power Contacts:
Vertical Receptacle — 340g
Right-Angle Receptacle — 235g
Signal Contacts — 30g
Durability: 200 cycles
PHYSICAL
Housing: 30% glass filled LCP or PBT
Contact:
Power Contacts — Copper (Cu) Alloy
Signal Contacts — Copper (Cu) Alloy
Plating:
Contact Area — Select Gold (Au)
Solder Tail Area — Tin (Sn)
Underplating — Nickel (Ni)
Flammability Rating: 94V-0
RoHS Compliant: Yes
Operating Temperature: -40 to +105°C
Ordering Information
Series No.
172452
172453
172457
172458
46437
171088
172509
172510
172511
172512
46562
171089
46436
171090
46708
46709
44262
TBD*
TPA Retainer
Signal Wafer
Power Terminal
Signal Terminal
---
---
---
Right Angle
Receptacle
Split Blade
Standard
Split Blade
---
Signal Only
Power Only
Signal Only
Hybrid
Vertical
Plug
Right Angle
Component
Orientation
Interface
Wire-to-Board Harness
Standard
Power Blade Style
Function
Power Only
Hybrid
Power Only
Panel-to-Board Harness
Board-to-Board
Hybrid
Split Blade
Power Only
Hybrid
Standard
Power Only
Wire-to-Board Harness
Panel-to-Board Harness
Board-to-Board
www.molex.com/link/ten60.html
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners.
Order No. 987650-1981 Rev. 10
USA/0k/GF/2018.01
©2018 Molex
