Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC4428AJ

Preview

MIC4428AJ: DescriptionBuffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size200KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Related ProductsFound20parts with similar functions to MIC4428AJ

Download Datasheet Parametric View All

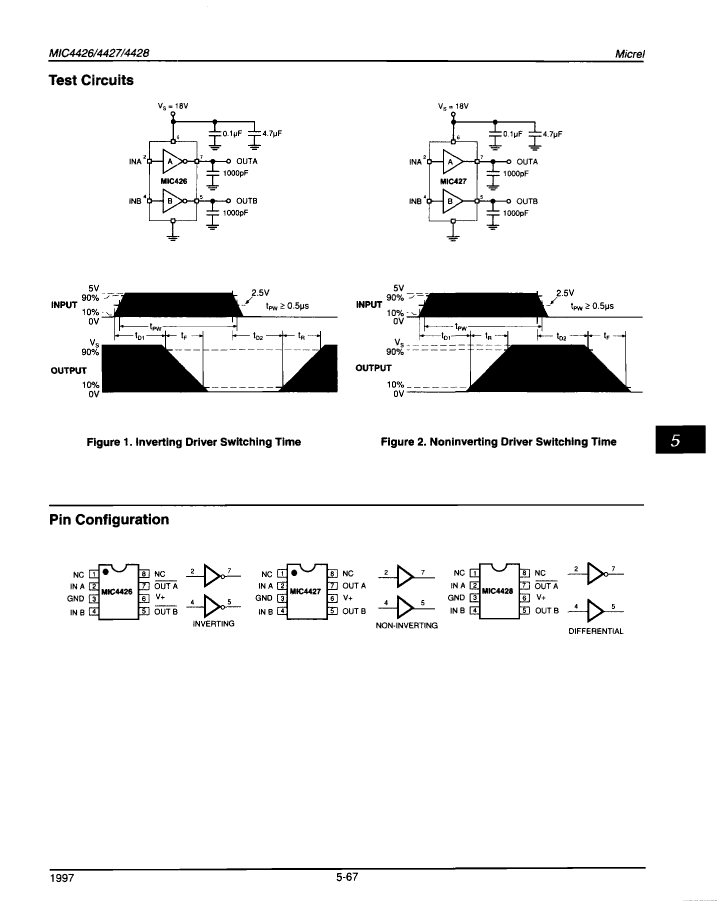

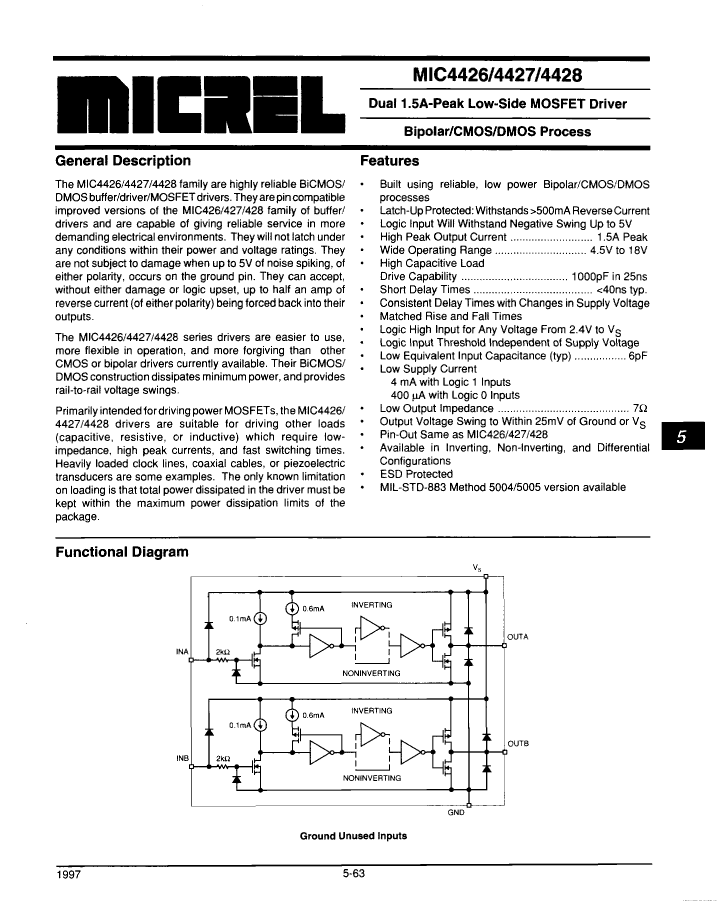

MIC4428AJ Overview

Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8

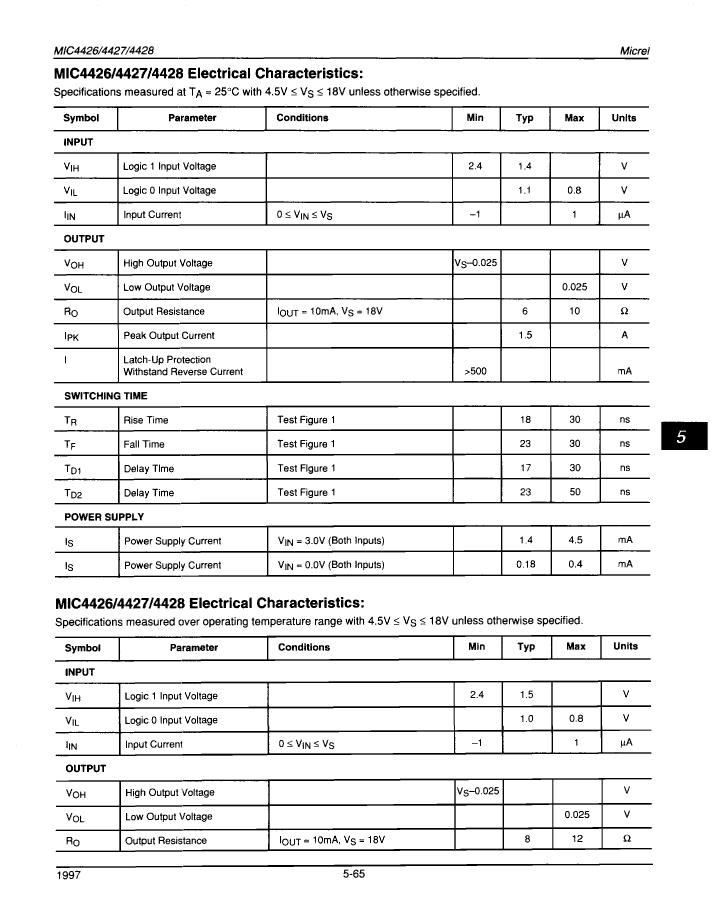

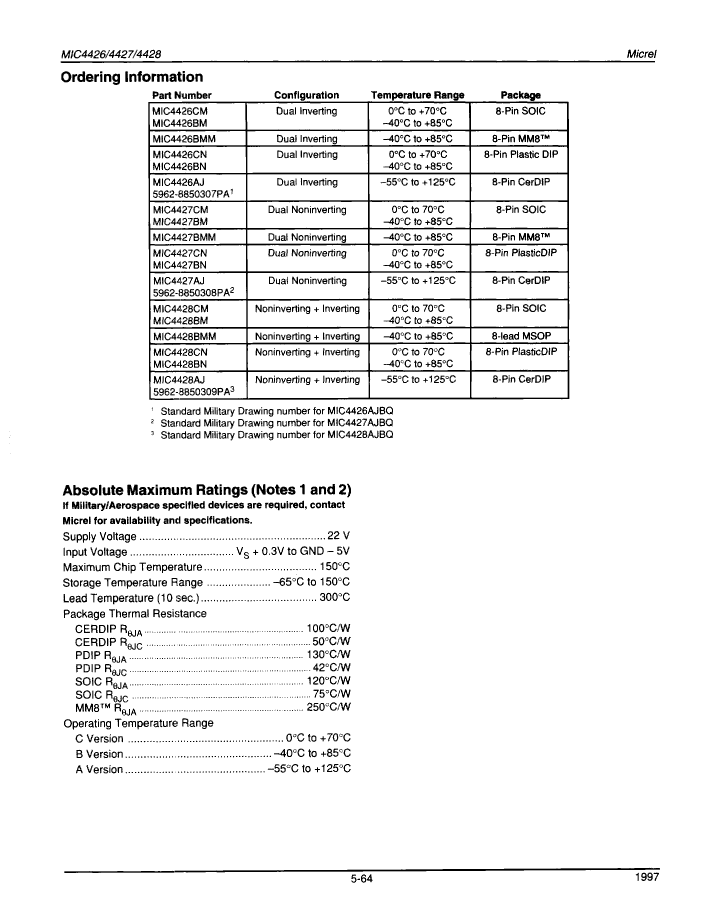

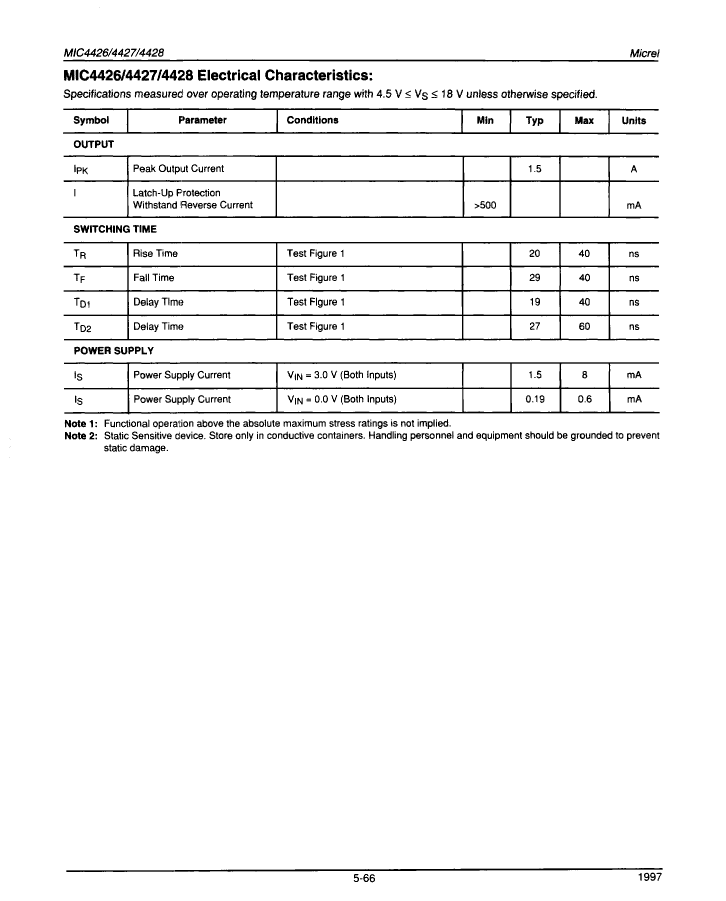

MIC4428AJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
high side driver	NO
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Nominal output peak current	1.5 A
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	4.5/18 V
Certification status	Not Qualified
Maximum slew rate	8 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	0.06 µs
connection time	0.04 µs
