Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC4428BJ

Preview

MIC4428BJ: DescriptionBuffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size224KB，8 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Related ProductsFound20parts with similar functions to MIC4428BJ

Download Datasheet Parametric Compare View All

MIC4428BJ Overview

Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8

MIC4428BJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
high side driver	NO
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.7155 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Nominal output peak current	1.5 A
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	4.5/18 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	8 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	18 V
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	0.06 µs
connection time	0.06 µs
width	7.62 mm

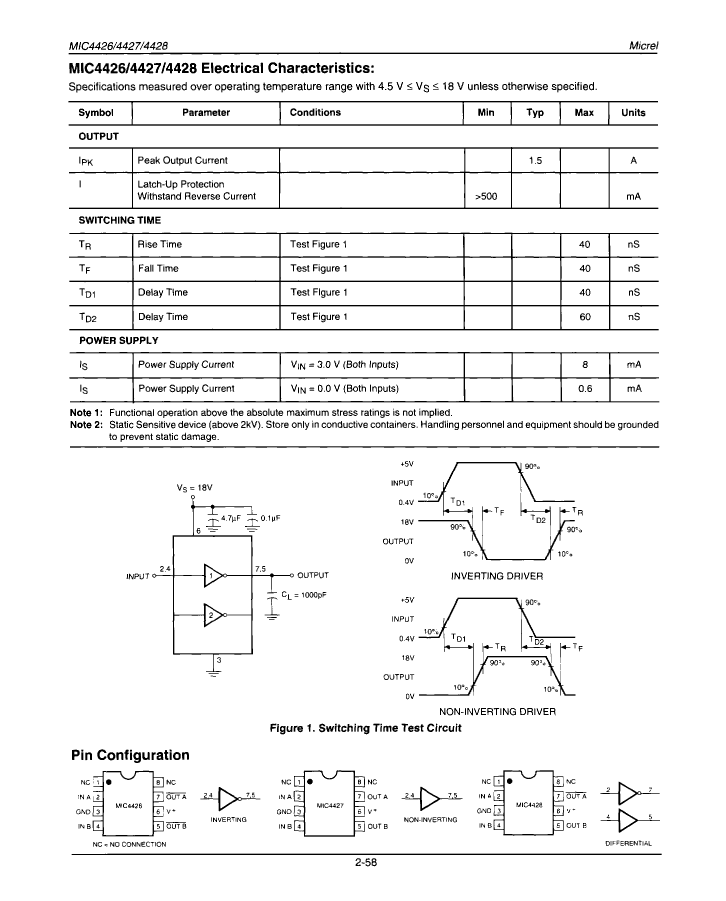

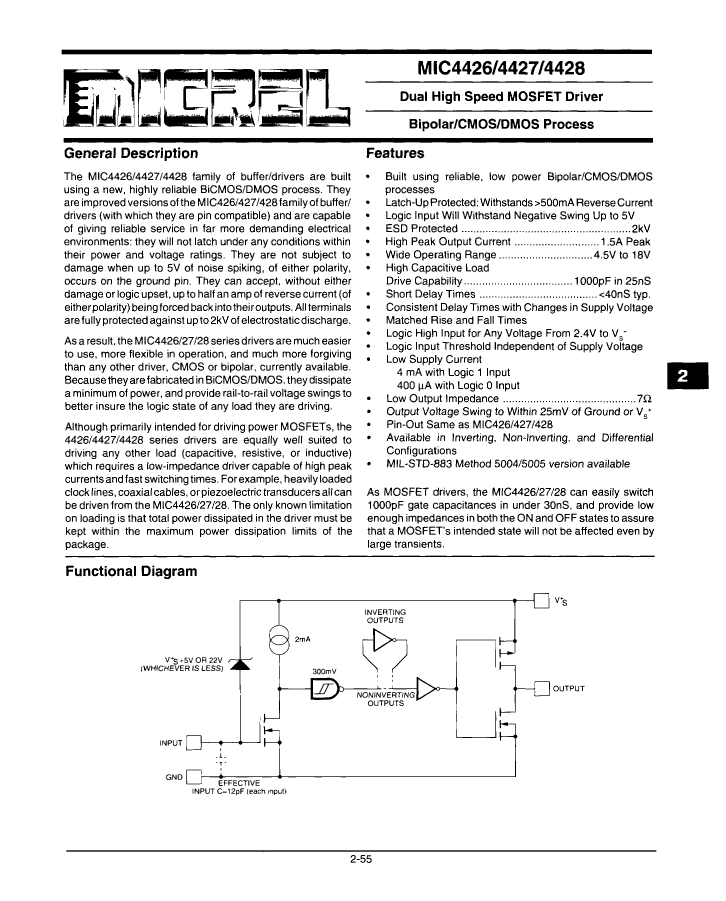

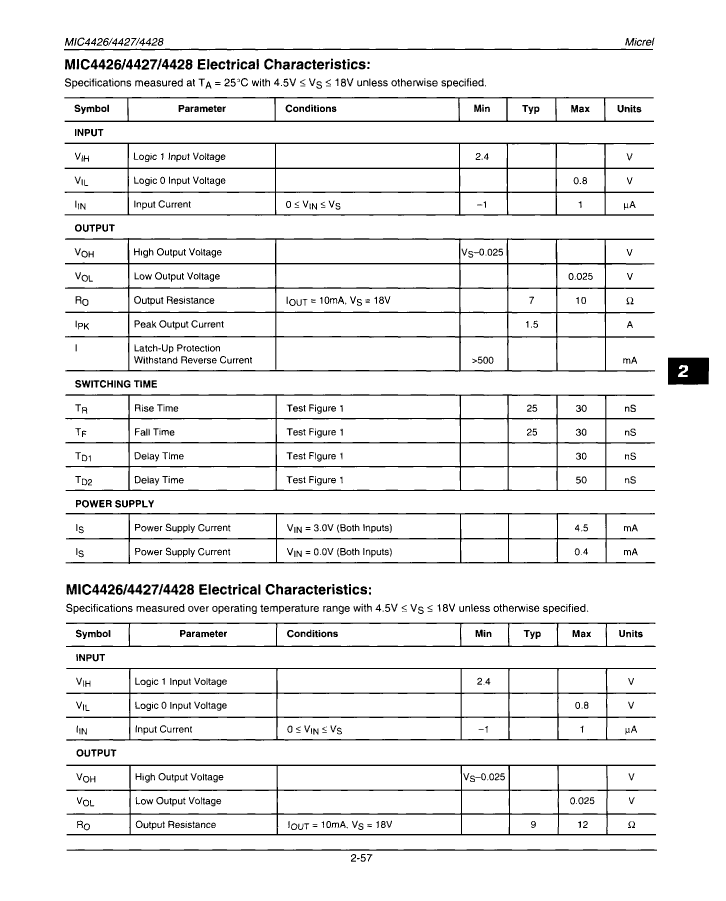

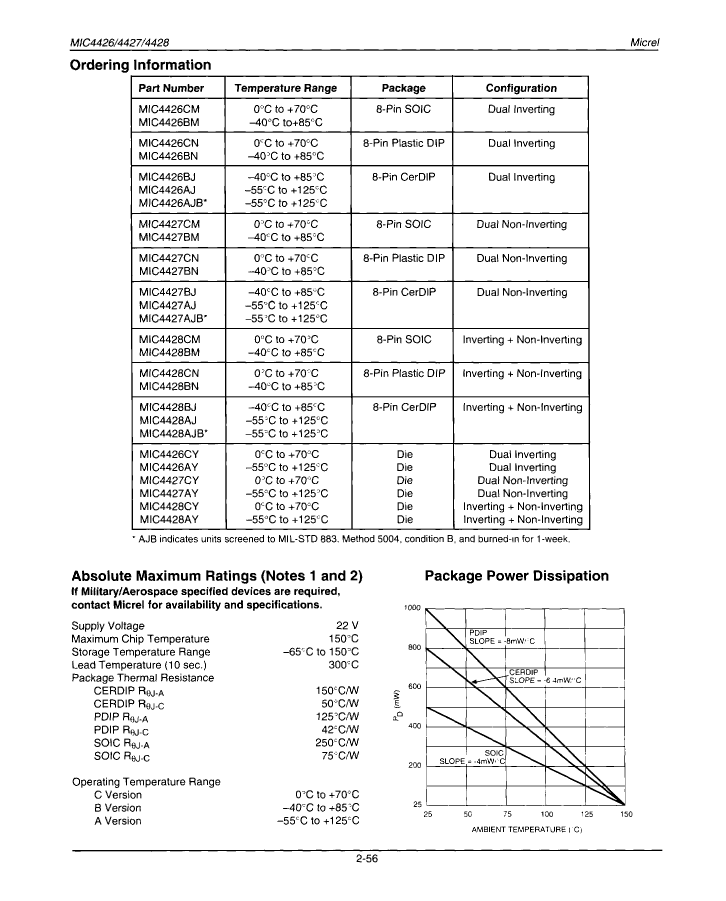

Preview

Download Datasheet

View All

MIC4428BJ Related Products

	MIC4428BJ	MIC4426BJ	MIC4428AY	MIC4426AY	MIC4427BJ
Description	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8	1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, UUC6	1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, UUC6	Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS, CDIP8, CERDIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microchip	Microchip	Microchip	Microchip	Microchip
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIE-6	DIE-6	DIP, DIP8,.3
Reach Compliance Code	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
high side driver	NO	NO	NO	NO	NO
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8	R-GDIP-T8	X-XUUC-N6	X-XUUC-N6	R-GDIP-T8
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	2	2	2	2	2
Number of terminals	8	8	6	6	8
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Nominal output peak current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Output polarity	COMPLEMENTARY	INVERTED	TRUE AND INVERTED	INVERTED	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	UNSPECIFIED	UNSPECIFIED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIE	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	UNSPECIFIED	RECTANGULAR
Package form	IN-LINE	IN-LINE	UNCASED CHIP	UNCASED CHIP	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	240	240	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	8 mA	8 mA	8 mA	8 mA	8 mA
Maximum supply voltage	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	18 V	18 V	18 V	18 V	18 V
surface mount	NO	NO	YES	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	UPPER	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	30	30	NOT SPECIFIED
Disconnect time	0.06 µs	0.04 µs	0.06 µs	0.04 µs	0.06 µs
connection time	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.04 µs
Parts packaging code	DIP	DIP	-	-	DIP
Contacts	8	8	-	-	8
length	9.7155 mm	9.7155 mm	-	-	9.7155 mm
Encapsulate equivalent code	DIP8,.3	DIP8,.3	-	-	DIP8,.3
power supply	4.5/18 V	4.5/18 V	-	-	4.5/18 V
Maximum seat height	5.08 mm	5.08 mm	-	-	5.08 mm
Terminal pitch	2.54 mm	2.54 mm	-	-	2.54 mm
width	7.62 mm	7.62 mm	-	-	7.62 mm
