PACSR12025
12V Output AC/DC Converter, Module Package
FEATURES
Full Load Efficiency up to 91.5% @220VAC
Metal Case Box Type Package
Package Dimension:
110.8x50.8x13.7mm (4.33”x2.00”x0.54”)
Operating Baseplate Temperature Range - 40°C to
+100°C
Input Brown-Out, Output OCP, OTP, OVP, SHORT
protection
3000VAC Isolation
ROHS Compliant
CE Mark
EMC compatible: CISPR11 ClassB（with external
EMC filter）
ISO 9001, ISO 14001 certified manufacturing facility
UL/cUL 60950-1 (US & Canada)
Prohibit parallel application
The PACSR12025, a wide input voltage range of 85~265VAC, and single isolated output converter, is the latest product offering from a
world leader in power systems technology and manufacturing ― Delta Electronics, Inc. Such module type ACDC converter can provide 300W,
12V regulated DC output voltage with full load efficiency up to 91.5% @220Vac; The PACSR12025 offers Brown-out, output OCP, OTP, OVP
and Short protections, and allows a wide operating baseplate temperature range of –40°C to +100°C. With creative design technology and
optimization of component placement, this converter possess outstanding electrical and thermal performance, as well as high reliability under
extremely harsh operating conditions.
(All specifications valid base on the connection of figure 9, unless otherwise indicated)
INPUT CHARACTERISTICS
Item
Rated input voltage range
Max input voltage range
Input voltage frequency range
Maximum Input Current
Open load loss
Input PF value
Allowable bus capacitance range（*1）
Condition
Min.
100
85
45
Typ.
110/220
50/60
2.5
Max.
240
265
65
4.5
Unit
VAC
VAC
Hz
A
W
Vin=85VAC, 100% Load
Vin=110VAC, 100% Load
Vin=110/220VAC 100% Load
0.95
440
1000
uF
OUTPUT CHARACTERISTICS
Item
PG
Output voltage setpoint
Output current range
Output OCP point
Turn-on rise time
Start up time
Hold up time
Output OVP point
Output trim range
Output Current Transient
Trim up
Positive voltage step, 75% to 25% load
dynamic, 0.1A/us slew rate
Negative voltage step, 25% to 75% load
dynamic, 0.1A/us slew rate
Vin=110/220VAC
Vin=110/220VAC, Io= 100% Load
13
Conditions
Vo=12V
Vin=220VAC, Io=0-25A
Min.
3.1
11.8
0
26
30
15
1500
20
14
15
12.6
300
300
600
600
Typ.
3.2
12.0
Max.
3.3
12.2
25
34
Unit
V
Vdc
A
A
ms
mS
mS
V
V
mV
mV
DS_PACSR12025_07032018
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P1
Output Voltage Ripple and Noise
Output overshoot
Efficiency @ 60% Load
Efficiency @ 60% Load
Efficiency @ 100% Load
Efficiency @ 100% Load
Allowable output capacitance range（*2）
Item
I/O Isolation Voltage
I/O Isolation Resistance
MTBF
Weight
Vin=110/220Vac, Io=25, peak to peak,
20MHz bandwidth
RMS
Vin=110VAC
Vin=220VAC
Vin=110VAC
Vin=220VAC
Vin=110/220VAC, Io= 100% Load
Conditions
Input to output
Input to case
Output to case
500Vdc
Ta=25ºC, 100%load
10
4000
Min.
100
50
89
91
90
91.5
200
100
3
mV
mV
%
%
%
%
%
GENERAL CHARACTERISTICS
10000
Typ.
3000
1500
500
1
240
Max.
uF
Unit
VAC
VAC
VAC
MΩ
Mhours
g
ENVIRONMENTAL SPECIFICATIONS
Parameter
Conditions
Plate Temperature
Min.
-55
-40
Max.
+125
+100
3000
Unit
℃
℃
meter
Storage Temperature Range
Operating Temperature Range
Operating altitude
ELECTRICAL CURVES
Figure 1:
Efficiency vs. Output current @ Vin=110,220VAC
Figure 2:
Vout vs. Vin @ Full load
Figure 3:
Output voltage vs. Output current@
@ Vin=110,220VAC
DS_PACSR12025_07032018
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P2

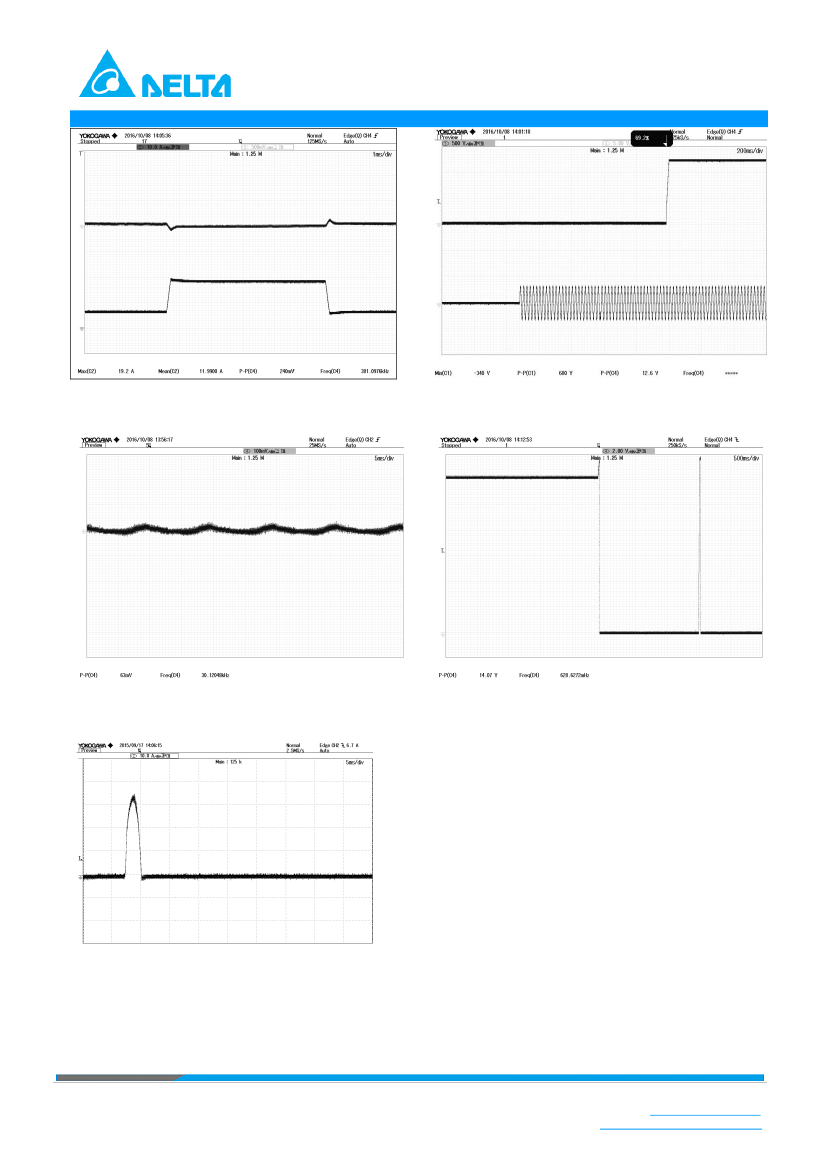

ELECTRICAL CURVES (continuous)
Figure 4:
Dynamic response to load step 25%~75% with
0.1A/uS slew rate at 110/220Vac
TOP: Vout,500mV/div, BOTTOM:Iout,10A/div, 1mS/div
Figure 5:
Vout start up with Enable on at
220
Vac,25A Iout,
TOP:Vout, 5V/div, 200mS/div
BOTTOM: Vin, 500V/div, 200mS/div
Figure 6:
Output ripple & noise at
110/220Vac, 25
A Iout
VOUT
:
100m
V/div, 5mS/div
Figure 7:
Output over voltage protection at
110/220Vac,25AIout
VOUT: 2V/div, 500mS/div
Figure 8:
Inrush current @ Vin=220Vac Iin: 10A/div, 5mS/div;
DS_PACSR12025_07032018
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P3
SIMPLIFIED APPLICATION CIRCUIT
Figure 9:
Application connection
TYPICAL value ADVISED
No
Location
item
bus cap
Cap0
1
bus cap
Cap1
2
bus cap
3
Cap2
value
220uF/450V
220uF/450V
NC
2200pF/250Vac Y1/X1
820uF/16V
820uF/16V
820uF/16V
820uF/16V
820uF/16V
10A/250Vac
300VAC
300VAC
300VAC
300VAC
2.5KV/10KA
100pF/250Vac Y2/X1
4700pF/250Vac Y2/X1
1uF /305VAC X2
0.47uF /275VAC X2
0.47uF /275VAC X2
100pF/250Vac Y2/X1
4700pF/250Vac Y2/X1
1500pF/250Vac Y1/X1
4700pF/250Vac Y2/X1
4700pF/250Vac Y2/X1
Part No
Capacitor should have good low-
temperature characteristics, keep
at least 75% capacitance at -40℃
if need -40C application.(*3)
ESR≤8mΩ(100kHz), Rated ripple
≥7000mArms(125℃)(*4)
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Cap3
Cap4
Cap5
Cap6
Cap7
Cap8
F1
RV1
RV2
RV3
RV4
GT1
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
Cap for pri-sec
Output cap
Output cap
Output cap
Output cap
Output cap
Input Fuse
Input VDR
Input VDR
Input VDR
Input VDR
Input GAS TUBE
Input Y-cap
Input Y-cap
Input X-cap
Input X-cap
Input X-cap
Input Y-cap
Input Y-cap
Cap for pri-PE
output Y-cap
output Y-cap
TVR14471KOOOTB9Y/THINKING
TVR14471KOOOTB9Y/THINKING
TVR14471KOOOTB9Y/THINKING
TVR14471KOOOTB9Y/THINKING
B88069X8661S102(EF2500X8S)
DS_PACSR12025_07032018
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P4
No
Location
C11
C12
C13
C14
L1
L2
26
27
28
29
30
31
item
output Y-cap
output Y-cap
Input Y-cap
Input Y-cap
Input chock
Input chock
value
4700pF/250Vac Y2/X1
4700pF/250Vac Y2/X1
100pF/250Vac Y2/X1
100pF/250Vac Y2/X1
6.5mH φ1mm
6.5mH φ1mm
Part No
PH9455.705NL/Pulse Electronics
*read the Application Note for this module carefully before using the power supply unit
=Note=
*1 and *3 . About the bus cap, pls read the Application Note about the hold up time configure.
*2 and *5. About the min output cap, pls use the cap which has more performance than the cap in the table
above, or refer the cap about the output cap ability in the Application Note.
*2 . About the max output cap, pls follow the Application Note about the output cap ability.
THERMAL CONSIDERATION
Thermal management is an important part of the system design. To ensure proper, reliable operation,
sufficient cooling of the power module is needed over the entire temperature range of the module. Conduction
cooling is usually the dominant mode of heat transfer.
Thermal Testing Setup
The following figure shows the testing setup in which the power module is mounted on an Al plate and
was cooled by cooling liquid.
Figure 10:
Thermal test setup
DS_PACSR12025_07032018
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P5
