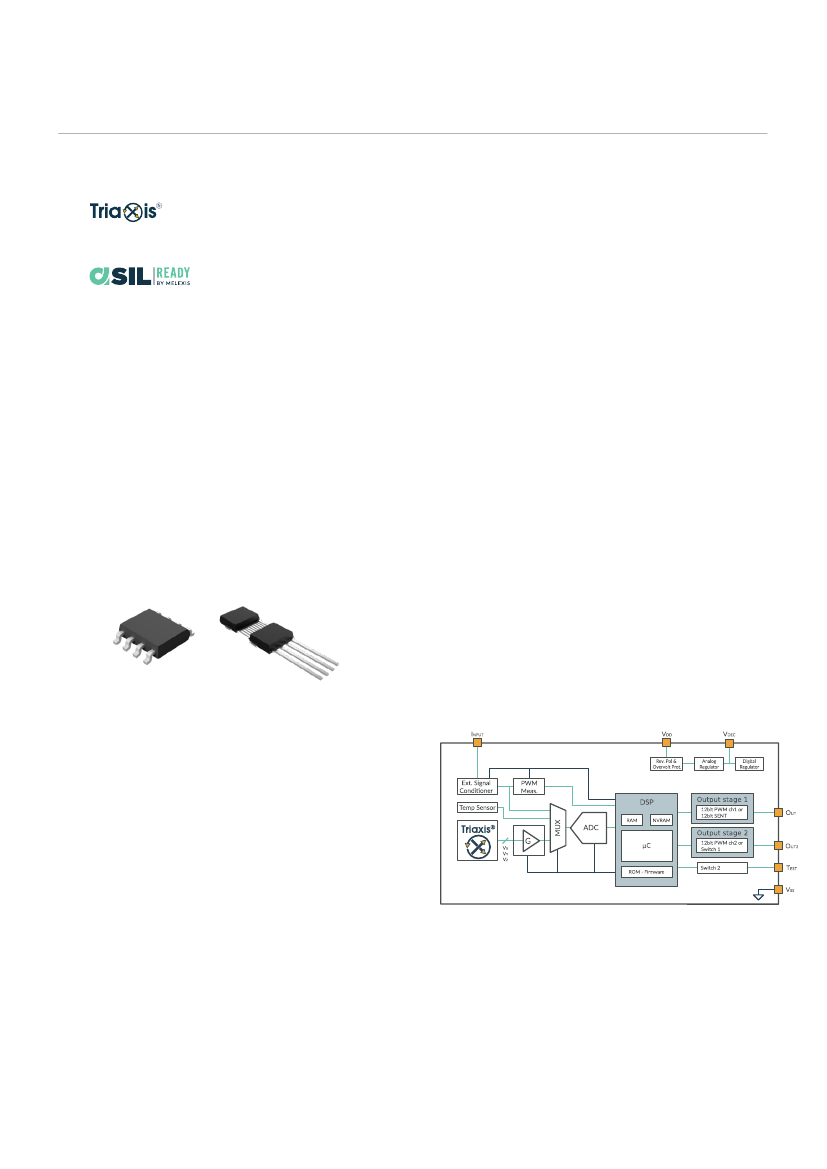

MLX90374 - Triaxis® Position Processor
Datasheet
Features and Benefits
Triaxis
Hall Technology
On Chip Signal Processing for Robust
Absolute Position Sensing
ISO26262 ASIL-C Safety
Element out of Context
AEC-Q100 Qualified
Programmable Measurement Range
Programmable Linear Transfer Characteristic
(4 or 8 Multi-points or 16 or 32 PWL)
PWM Redundant Dual Output
SENT and Programmable Switch Dual Output
SAE J2716 APR2016 SENT
Enhanced serial data communication
48 bits ID Number option
Single Die - SOIC-8 Package (RoHS)
PCB-less DMP-4 Package (RoHS)
Robustness against stray-field
Description
The MLX90374 is a monolithic magnetic position
processor IC. It consists of a Triaxis® Hall magnetic
front end, an analog to digital signal conditioner, a
DSP for advanced signal processing and a dual
output stage driver.
The MLX90374 is sensitive to the three
components of the magnetic flux density applied to
the IC (i.e. Bx, By and Bz). This allows the MLX90374
with the correct magnetic circuit to decode the
absolute position of any moving magnet (e.g.
rotary position from 0 to 360 Degrees or linear
displacement, see fig. 2). It enables the design of
non-contacting position sensors that are
frequently required for both automotive and
industrial applications.
The MLX90374 provides either a dual PWM output
or a combination of SENT plus a programmable
switch function. In dual PWM output mode, the
circuit offers a wide panel of configurations from
fully redundant signals to individually configurable
outputs, including the choice between several
error reporting modes. In SENT mode, the circuit
delivers enhanced serial messages consisting of
error codes, and user-defined values.
SOIC-8
DMP-4
Application Examples
Absolute Rotary Position Sensor
Pedal Position Sensor
Throttle Position Sensor
Ride Height Position Sensor
Absolute Linear Position Sensor
Steering Wheel Position Sensor
Float-Level Sensor
Non-Contacting Potentiometer
REVISION 4 - 20 MAR 2019
3901090374
MLX90374 - Triaxis® Position Processor
Datasheet
Ordering Information
Product
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
MLX90374
Temp.
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
Package
DC
DC
VS
VS
VS
VS
DC
DC
DC
VS
VS
VS
VS
VS
VS
Option Code
ABB-200
ABB-300
ABB-200
ABB-207
ABB-300
ABB-307
ABC-100
ABC-200
ABC-300
ABC-100
ABC-107
ABC-200
ABC-207
ABC-300
ABC-307
Packing
Form
RE
RE
RE/RX
RE/RX
RE/RX
RE/RX
RE
RE
RE
RE/RX
RE/RX
RE/RX
RE/RX
RE/RX
RE/RX
Definition
Linear position Strayfield Immune
Angular Rotary / Linear position
Linear position Strayfield Immune
Linear position Strayfield Immune
Angular Rotary / Linear position
Angular Rotary / Linear position
Angular Rotary Strayfield Immune
Linear position Strayfield Immune
Angular Rotary / Linear position
Angular Rotary Strayfield Immune
Angular Rotary Strayfield Immune
Linear position Strayfield Immune
Linear position Strayfield Immune
Angular Rotary / Linear position
Angular Rotary / Linear position
Table 1 - Ordering Codes
Temperature Code:
Package Code:
G: from -40°C to 160°C
DC : SOIC-8 package (see 17.1)
VS : DMP-4 package (PCB-less dual mold, see 17.6)
Option Code - Chip revision
ABC-123 : Chip Revision
ABB : Not recommended for new designs
(1)
ABC : Standard preferred revision
(1)
Option Code - Application
ABC-123 :
1-Application
- Magnetic configuration
1: Angular Rotary Strayfield Immune
2: Linear position Strayfield Immune
3: Legacy / Angular Rotary / Linear position
ABC is preferred product revision to be selected for new designs. ABB remains in production during the entire product lifecycle
but does not include all the features of the ABC revision.
1
REVISION 4 - 20 MAR 2019
3901090374
Page 2 of 77
MLX90374 - Triaxis® Position Processor
Datasheet
Option Code - SW &
DMP-4 configuration
ABC-123:
2-SW
and DMP-4 package configuration
For SOIC-8 (code DC) packages
0: 2x PWM / SENT 3µs mode
For DMP-4 (code VS) package (see section 14.2)
0 : 2x PWM / SENT 3 µs mode (C
1
, C
4
= 10nF)
Option Code - Trim & Form ABC-123:
3
-
DMP-4 Trim & Form configuration
0: Standard straight leads. See section 17.5
7: Trim and Form STD3 2.00 See section 17.6
Packing Form:
-RE : Tape & Reel
VS:2500 pcs/reel
DC:3000 pcs/reel
-RX : Tape & Reel, similar to RE with parts face-down (VS package only)
MLX90374GVS-ABC-307-RX
For a legacy version in DMP-4 package with trim and form STD3 2.00,
delivered in Reel face down.
Table 2 - Ordering Codes Information
Ordering Example:
REVISION 4 - 20 MAR 2019
3901090374
Page 3 of 77
MLX90374 - Triaxis® Position Processor
Datasheet
Contents
Features and Benefits ............................................................................................................ 1
Application Examples............................................................................................................. 1
Description............................................................................................................................ 1
Ordering Information ............................................................................................................ 2
1. Functional Diagram and Application Modes ........................................................................ 6
2. Glossary of Terms .............................................................................................................. 7
3. Pin Definitions and Descriptions ......................................................................................... 8
3.1. Pin Definition for SOIC-8 package .................................................................................. 8
3.2. Pin Definition for DMP ................................................................................................... 8
4. Absolute Maximum Ratings ................................................................................................ 9
5. General Electrical Specifications ....................................................................................... 10
6. Timing Specification ......................................................................................................... 12
6.1. General Timing Specifications ..................................................................................... 12
6.2. Timing Modes .............................................................................................................. 12
6.3. Timing Definitions ........................................................................................................ 14
6.4. PWM timing specifications .......................................................................................... 16
6.5. SENT timing specifications ........................................................................................... 17
7. Magnetic Field Specifications ........................................................................................... 20
7.1. Rotary Stray-field Immune Mode (-100 code) ............................................................. 20
7.2. Linear Stray-field Immune ........................................................................................... 21
7.3. Standard/Legacy Mode ................................................................................................ 22
8. Accuracy Specifications .................................................................................................... 24
8.1. Definition ..................................................................................................................... 24
8.2. Rotary Stray-field Immune (-100 code) ....................................................................... 25
8.3. Linear Stray-field Immune Mode (-200 code) ............................................................. 26
8.4. Standard/Legacy Mode (-300 code) ............................................................................ 27
9. Memory Specifications..................................................................................................... 28
10. Digital output protocol ................................................................................................... 29
10.1. PWM (pulse width modulation)................................................................................. 29
10.2. Single Edge Nibble Transmission (SENT) SAE J2716 .................................................. 30
11. End-User Programmable Items ....................................................................................... 38
11.1. End User Identification Items .................................................................................... 44
12. Description of End-User Programmable Items ................................................................ 45
REVISION 4 - 20 MAR 2019
3901090374
Page 4 of 77
MLX90374 - Triaxis® Position Processor
Datasheet
12.1. Sensor Front-End ....................................................................................................... 45
12.2. Sensor DSP Configuration .......................................................................................... 46
12.3. Selection of Output modes ........................................................................................ 56
12.4. Programmable Diagnostics Settings .......................................................................... 59
13. Functional Safety ........................................................................................................... 62
13.1. Safety Manual ............................................................................................................ 62
13.2. Safety Mechanisms .................................................................................................... 62
14. Recommended Application Diagrams ............................................................................. 66
14.1. Wiring with the MLX90374 in SOIC-8 Package .......................................................... 66
14.2. Wiring with the MLX90374 in DMP-4 Package (built-in capacitors) .......................... 67
15. Standard information regarding manufacturability of Melexis products with different
soldering processes ......................................................................................................... 68
16. ESD Precautions ............................................................................................................. 68
17. Package Information ...................................................................................................... 69
17.1. SOIC-8 - Package Dimensions .................................................................................... 69
17.2. SOIC-8 - Pinout and Marking ..................................................................................... 69
17.3. SOIC-8 - Sensitive spot positioning ............................................................................ 70
17.4. SOIC-8 - Angle detection ........................................................................................... 71
17.5. DMP-4 - Package Outline Dimensions (POD) STD1 1.27 ............................................ 72
17.6. DMP-4 - Package Outline Dimensions (POD) STD3 2.00 ............................................ 73
17.7. DMP-4 - Marking ....................................................................................................... 74
17.8. DMP-4 - Sensitive Spot Positioning ........................................................................... 74
17.9. DMP-4 - Angle detection MLX90374 DMP-4 ............................................................. 76
17.10. Packages Thermal Performances ............................................................................. 76
18. Contact ......................................................................................................................... 77
19. Disclaimer ..................................................................................................................... 77
