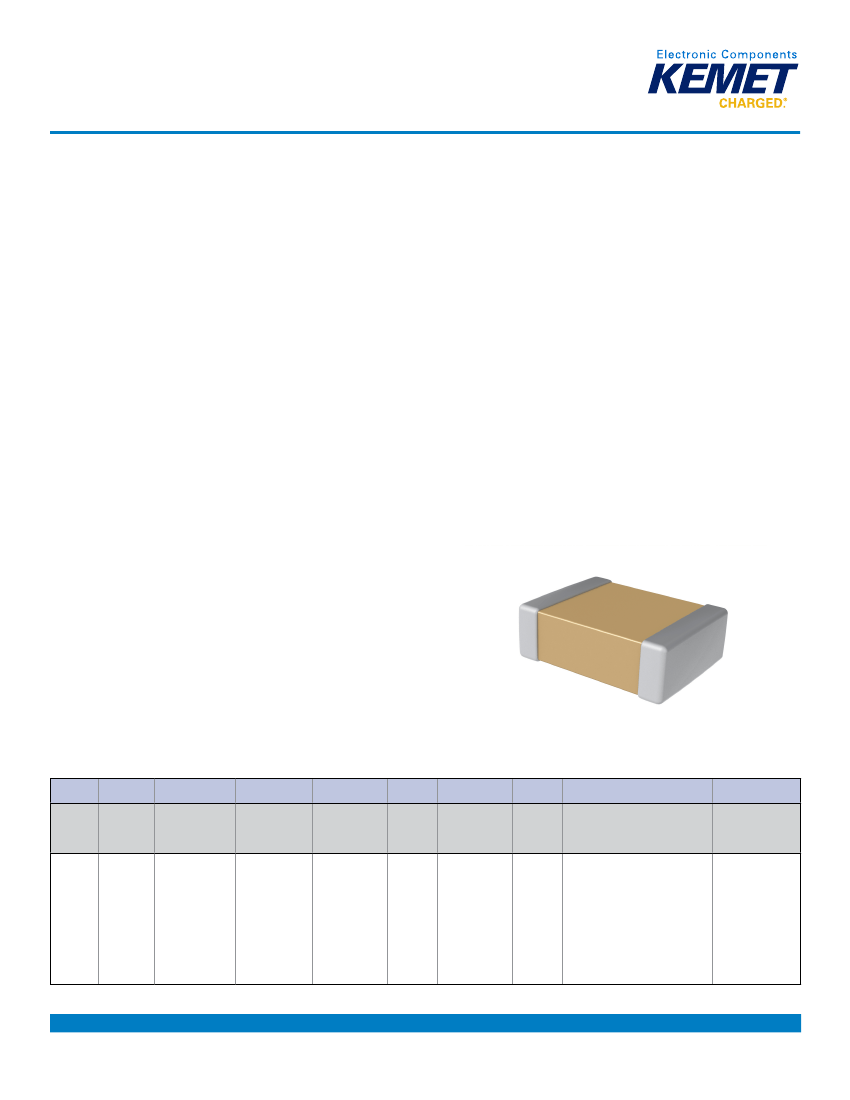

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), Ultra-Stable X8R
Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Overview
KEMET’s Flexible Termination (FT-CAP) Multilayer Ceramic
Capacitor in Ultra-Stable X8R dielectric incorporates a
unique, flexible termination system that is integrated with
KEMET’s standard termination materials. A conductive
silver epoxy is utilized between the base metal and nickel
barrier layers of KEMET’s standard termination system
in order to establish pliability, while maintaining terminal
strength, solderability and electrical performance.
This technology was developed in order to address the
primary failure mode of MLCCs– flex cracks, which are
typically the result of excessive tensile and shear stresses
produced during board flexure and thermal cycling. Flexible
termination technology inhibits the transfer of board stress
to the rigid ceramic body, therefore mitigating flex cracks
which can result in low IR or short circuit failures.
Although this technology does not eliminate the potential
for mechanical damage that may propagate during extreme
environmental and handling conditions, it does provide
superior flex performance over standard termination
systems. FT-CAP complements KEMET’s Open Mode,
Floating Electrode (FE-CAP), Floating Electrode with
Flexible Termination (FF-CAP), and KEMET Power Solutions
(KPS) product lines by providing a complete portfolio of flex
mitigation solutions.
Combined with the stability of KEMET’s Ultra-Stable high
temperature dielectric technology, these flex-robust devices
are RoHS Compliant, offer up to 5 mm of flex-bend capability
and feature a 150°C maximum operating temperature.
Ultra-Stable X8R dielectric offers the same temperature
capability as conventional X8R, but without the capacitance
loss due to applied DC voltage. These devices exhibit no
change in capacitance with respect to voltage and boast a
minimal change in capacitance with reference to ambient
temperature. They are also suitable replacements for higher
capacitance and larger footprint devices that fail to offer
capacitance stability. Capacitance change with respect to
temperature is limited to ±15% from −55°C to +150°C.
In addition to Commercial Grade, Automotive Grade devices
are available which meet the demanding Automotive
Electronics Council's AEC-Q200 qualification requirements.
Ordering Information
C
1206
X
104
J
3
H
Dielectric
Reated
Capacitance
Voltage
Tolerance
(VDC)
B = ±0.10 pF
C = ±0.25 pF
D = ±0.5 pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
A
Failure
Rate/
Design
A=
N/A
C
Termination Finish
1
AUTO
Packaging/
Grade
(C-Spec)
See
"Packaging
C-Spec
Ordering
Options Table"
below
Case Size
Specification/
Capacitance
Ceramic
(L" x W")
Series
Code (pF)
0603
0805
1206
1210
1812
X = Flexible
Termination
Two
significant
digits +
number of
zeros.
H = Ultra-
Stable X8R
C = 100% Matte Sn
L = SnPb (5% Pb minimum)
1
1
Additional termination finish options may be available. Contact KEMET for details.
SnPb termination finish option is not available on Automotive Grade product.
One world. One KEMET
C1063_X8R_FT-CAP_SMD • 10/2/2017
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), Ultra-Stable X8R Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
Commercial Grade
1
Bulk Bag
7" Reel/Unmarked
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
7" Reel
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
1
1
Packaging/Grade
Ordering Code (C-Spec)
Not Required (Blank)
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
7081
7082
Automotive Grade
3
AUTO
AUTO7411 (EIA 0603 and smaller case sizes)
AUTO7210 (EIA 0805 and larger case sizes)
3190
3191
Default packaging is “Bulk Bag”. An ordering code C-Spec is not required for “Bulk Bag” packaging.
The terms “Marked” and “Unmarked” pertain to laser marking option of capacitors. All packaging options labeled as “Unmarked” will contain
capacitors that have not been laser marked.
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see “Tape & Reel Packaging Information”.
3
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L” x W”) and thickness dimension. See “Chip Thickness/Tape & Reel
Packaging Quantities” and “Tape & Reel Packaging Information”.
3
For additional Information regarding “AUTO” C-Spec options, see “Automotive C-Spec Information”.
3
All Automotive packaging C-Specs listed exclude the option to laser mark components. Please contact KEMET if you require a laser marked option. For
more information see “Capacitor Marking”.
Benefits
−55°C to +150°C operating temperature range
Superior flex performance (up to 5 mm)
Lead (Pb)-free, RoHS and REACH compliant
EIA 0603, 0805, 1206, 1210, and 1812 case sizes
DC voltage ratings of 10 V, 16 V, 25 V, 50 V and 100 V
Capacitance offerings ranging from 0.5 pF to 0.22 μF
Available capacitance tolerances of ±0.10 pf, ±0.25 pf,
±0.5 pf, ±1%, ±2%, ±5%,
±10%, and ±20%
• Extremely low ESR and ESL
•
•
•
•
•
•
•
• High thermal stability
• High ripple current capability
• No capacitance change with respect to applied rated DC
voltage
• Non-polar device, minimizing installation concerns
• Commercial and Automotive (AEC–Q200) grades available
• 100% pure matte tin-plated termination finish allowing for
excellent solderability
• SnPb plated termination finish option available upon
request (5% Pb minimum)
Applications
Typical applications include decoupling, bypass, filtering and transient voltage suppression in critical and safety relevant
circuits without (integrated) current limitation, including those subject to high levels of board flexure or temperature cycling.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1063_X8R_FT-CAP_SMD • 10/2/2017
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), Ultra-Stable X8R Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Automotive C-Spec Information
KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council.
Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process
warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec,
“AUTO”. This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive
grade component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review
by a KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers
and are not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are
limited (see details below).
Product Change Notification (PCN)
The KEMET Product Change Notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit, function, and/or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification due to:
Process/Product change
Yes (with approval and sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days prior to
implementation
180 days minimum
90 days minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design record and specification requirements are properly
understood and fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part.
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
●
○
2
●
3
●
○
4
●
5
●
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
●
Part number specific PPAP available
○
Product family PPAP only
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1063_X8R_FT-CAP_SMD • 10/2/2017
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), Ultra-Stable X8R Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA Size
Code
0603
0805
1206
1210
1812
Metric Size
Code
1608
2012
3216
3225
4532
L
Length
1.60 (0.063)
±0.17 (0.007)
2.00 (0.079)
±0.30 (0.012)
3.30 (0.130)
±0.40 (0.016)
3.30 (0.130)
±0.40 (0.016)
4.50 (0.178)
±0.40 (0.016)
W
Width
0.80 (0.032)
±0.15 (0.006)
1.25 (0.049)
±0.30 (0.012)
1.60 (0.063)
±0.35 (0.013)
2.60 (0.102)
±0.30 (0.012)
3.20 (0.126)
±0.30 (0.012)
T Thickness
B
Bandwidth
0.45 (0.018)
±0.15 (0.006)
0.50 (0.02)
±0.25 (0.010)
0.60 (0.024)
±0.25 (0.010)
0.60 (0.024)
±0.25 (0.010)
0.70 (0.028)
±0.35 (0.014)
S
Separation
Minimum
0.58 (0.023)
0.75 (0.030)
Mounting
Technique
Solder Wave
or
Solder Reflow
See Table 2 for
Thickness
N/A
Solder Reflow
Only
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 4, Performance & Reliability.
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1063_X8R_FT-CAP_SMD • 10/2/2017
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Flexible Termination System (FT-CAP), Ultra-Stable X8R Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to
+25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
1
Parameters/Characteristics
−55°C to +150°C
±15%
0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50mA)
2.5%
1,000 MΩ µF or 100 GΩ
(Rated voltage applied for 120 ±5 seconds at 25°C)
Dielectric Withstanding Voltage (DWV)
2
Dissipation Factor (DF) Maximum Limit at 25ºC
3
Insulation Resistance (IR) Minimum Limit at 25°C
DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the
capacitor.
2
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 ±0.2 V
rms
if capacitance ≤ 1,000 pF.
1 kHz ±50 Hz and 1.0 ±0.2 V
rms
if capacitance > 1,000 pF.
3
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON".
1
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Ultra-Stable X8R
Rated DC
Voltage
All
Capacitance
Value
All
Dissipation Factor
(Maximum %)
3.0
Capacitance
Shift
0.3% or ±0.25 pF
Insulation
Resistance
10% of Initial
Limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1063_X8R_FT-CAP_SMD • 10/2/2017
5
Analog electronics
京公网安备 11010802033920号
EEWORLD
