EC4A13HMS-E: DescriptionIsolated DC/DC ConverterDC-DC Converter, 5 to 6 Watt, 2:1 Input Range, 18-36VDC Input, 15VDC Output, Black Coated Copper with Non-Conductive Base, 1.5KVDC min. Isolation, SMD; CategoryThe power supply DC/DC converters Isolated DC/DC converter; File Size269KB，2 Pages; ManufacturerCincon; Environmental Compliance

Download Datasheet Parametric View All

EC4A13HMS-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EC4A13HMS-E	-	-	View	Buy Now

EC4A13HMS-E Overview

Isolated DC/DC ConverterDC-DC Converter, 5 to 6 Watt, 2:1 Input Range, 18-36VDC Input, 15VDC Output, Black Coated Copper with Non-Conductive Base, 1.5KVDC min. Isolation, SMD

EC4A13HMS-E Parametric

Parameter Name	Attribute value
Maker	Cincon
Product Category	Isolated DC/DC converter
Shipping restrictions	Mouser does not currently sell this product.
Number of outputs	1 Output
Output Power	6 W
Input voltage	18 V to 36 V
Output voltage—channel 1	15 V
Output current—channel 1	400 mA
Insulation voltage	1.5 kVDC
Installation style	SMD/SMT
length	31.8 mm
width	20.3 mm
high	11.4 mm
industry	Commercial
product	Isolated
series	EC4A-E
Package/box	SMD-24
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 40 C

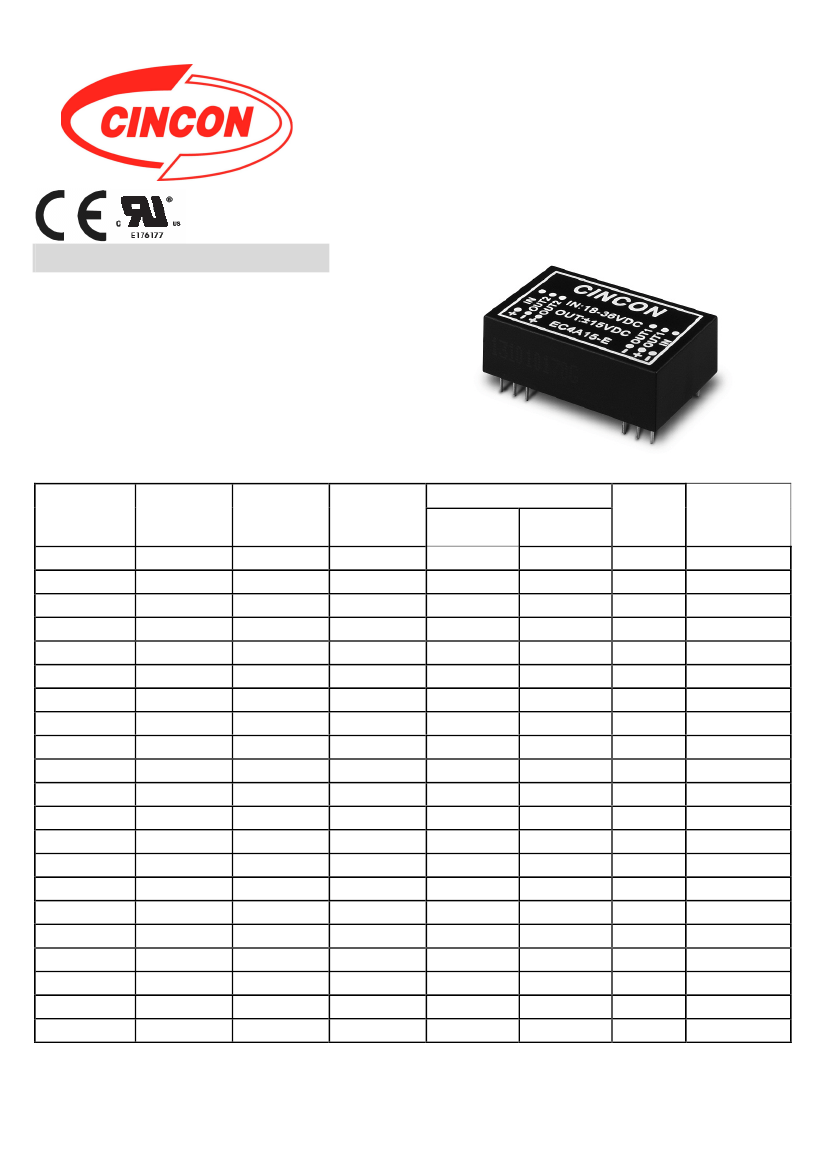

Preview

Download Datasheet

View All

V10

︳

FEATURES

* 5-6W Isolated Output

* 24-Pin DIP Package

* Efficiency to 87%

* 2:1 Input Range

* Regulated Outputs

* Pi Input Filter

* Continuous Short Circuit Protection

* Meet EMI EN55022 class A

* No Tantalum Capacitor inside

* Wide Operating Temperature Range

* UL60950-1 Approval

MODEL

NUMBER

(1)

INPUT

VOLTAGE

(2)

OUTPUT

VOLTAGE

OUTPUT

CURRENT

EC4A-E SERIES

5-6 WATT 2:1 INPUT RANGE

DC-DC CONVERTERS

INPUT CURRENT

% EFF.

(3)

NO LOAD

FULL LOAD

CAPACITOR

LOAD MAX.

EC4A01

□

-E

EC4A02

□

-E

EC4A03

□

-E

EC4A04

□

-E

EC4A05

□

-E

EC4A06

□

-E

EC4A07

□

-E

9-18 VDC

5 VDC

12 VDC

15 VDC

±12 VDC

±15 VDC

±5 VDC

3.3 VDC

5 VDC

12 VDC

15 VDC

±12 VDC

±15 VDC

±5 VDC

3.3 VDC

5 VDC

12 VDC

15 VDC

±12 VDC

±15 VDC

±5 VDC

3.3 VDC

1000 mA

500 mA

400 mA

±250 mA

±200 mA

±500 mA

1200 mA

1000 mA

500 mA

400 mA

±250 mA

±200 mA

±500 mA

1200 mA

1000 mA

500 mA

400 mA

±250 mA

±200 mA

±500 mA

1200 mA

7.5 mA

10 mA

15 mA

12 mA

18 mA

12 mA

7.5 mA

5 mA

8 mA

10 mA

8 mA

5 mA

3 mA

6 mA

5 mA

2 mA

514 mA

595 mA

588 mA

514 mA

429 mA

251 mA

291 mA

287 mA

291 mA

287 mA

254 mA

209 mA

126 mA

144 mA

126 mA

104 mA

4700uF

2200uF

4700uF

2200uF

4700uF

2200uF

4700uF

EC4A11

□

-E 18-36 VDC

EC4A12

□

-E 18-36 VDC

EC4A13

□

-E 18-36 VDC

EC4A14

□

-E 18-36 VDC

EC4A15

□

-E 18-36 VDC

EC4A16

□

-E 18-36 VDC

EC4A17

□

-E 18-36 VDC

EC4A21

□

-E 36-72 VDC

EC4A22

□

-E 36-72 VDC

EC4A23

□

-E 36-72 VDC

EC4A24

□

-E 36-72 VDC

EC4A25

□

-E 36-72 VDC

EC4A26

□

-E 36-72 VDC

EC4A27

□

-E 36-72 VDC

NOTE:

□

can be none, M, H, HM, S, MS, HS or HMS.

2. Nominal Input Voltage is 12, 24 or 48 VDC.

3. Typical value at nominal input voltage and full load.
