NES-100-7.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> Switching power supply> NES-100-7.5

NES-100-7.5: DescriptionSwitching power supply 102W 7.5V 13.6A; CategoryPower/power management Switching power supply; File Size561KB，3 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric View All

NES-100-7.5 Overview

Switching power supply 102W 7.5V 13.6A

NES-100-7.5 Parametric

Parameter Name	Attribute value
Maker	MEAN WELL
Product Category	switching power supply
Output voltage—channel 1	7.5 VDC
Number of outputs	1 Output
Output Power	102 W
Input voltage	85 VAC to 132 VAC, 176 VAC to 264 VAC, 248 VDC to 373 VDC
Output current—channel 1	13.6 A
Insulation voltage	3 kVAC
Installation style	Chassis
length	159 mm
width	97.03 mm
high	38.1 mm
Certification	UL60950-1
series	NES-100
efficiency	81 %
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 20 C
Factory packaging quantity	30

Preview

Download Datasheet

View All

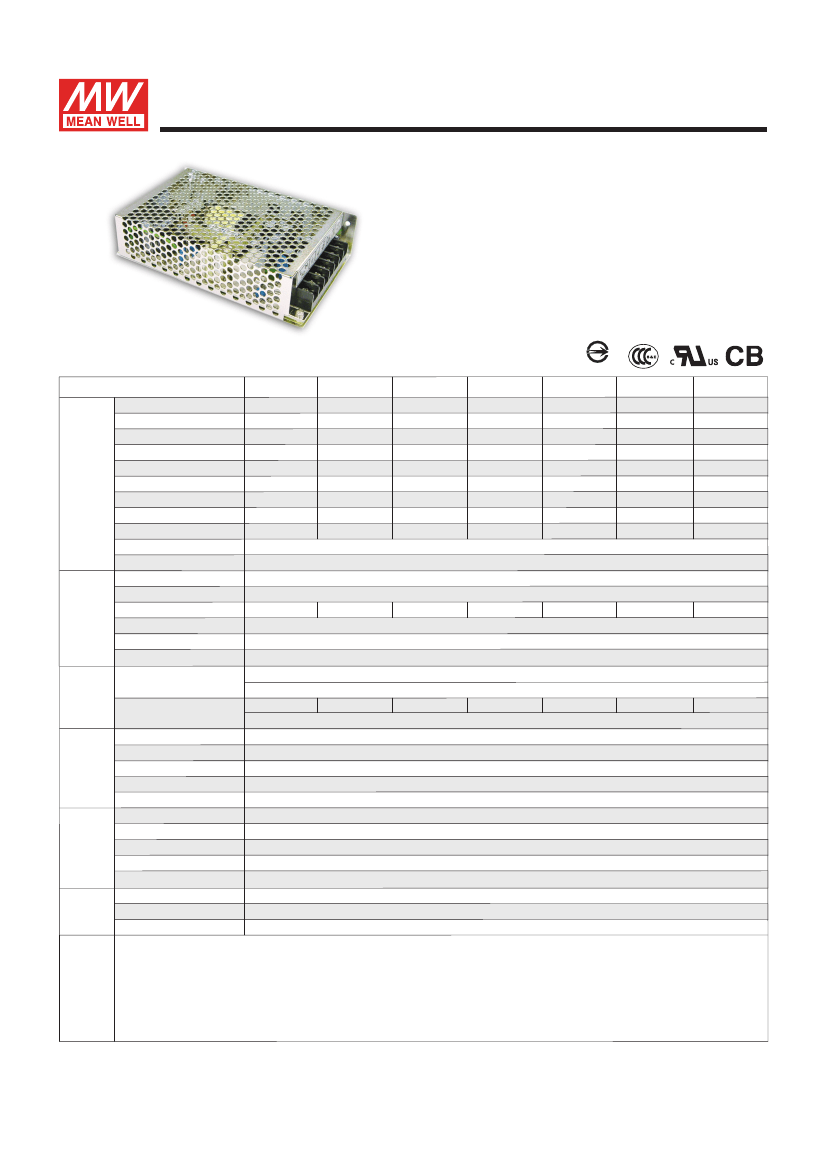

100W Single Output Switching Power Supply

NES-100

series

■



‧



‧



‧



‧



‧



SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

OUTPUT

VOLTAGE ADJ. RANGE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

INPUT

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVERLOAD

PROTECTION

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

NES-100-5

20A

0 ~ 20A

100W

NES-100-7.5

7.5V

13.6A

0 ~ 13.6A

102W

120mVp-p

7.13 ~ 8.3V

±1.0%

±0.5%

NES-100-9

11.2A

0 ~ 11.2A

100.8W

120mVp-p

8.55 ~ 9.9V

±1.0%

±0.5%

NES-100-12

12V

8.5A

0 ~ 8.5A

102W

120mVp-p

11.4 ~ 13.2V

±1.0%

±0.5%

15V

0 ~ 7A

105W

(only for 12V)

NES-100-15

NES-100-24

24V

4.5A

0 ~ 4.5A

108W

120mVp-p

22.8 ~ 26.4V

±1.0%

±0.5%

NES-100-48

48V

2.3A

0 ~ 2.3A

110.4W

150mVp-p

45.6 ~ 52.8V

±1.0%

±0.5%

RIPPLE & NOISE (max.)

Note.2

80mVp-p

4.75 ~ 5.5V

VOLTAGE TOLERANCE

Note.3

±2.0%

Note.4

±0.5%

Note.5

±0.5%

120mVp-p

14.25 ~ 16.5V

±1.0%

±0.5%

1000ms, 20ms/230VAC

30ms/230VAC

47 ~ 63Hz

80%

81%

1000ms, 20ms/115VAC at full load

248 ~ 373VDC

83%

84%

86%

25ms/115VAC at full load

85 ~ 132VAC / 176 ~ 264VAC selected by switch

81%

2A/115VAC

1.2A/230VAC

COLD START 45A

<2mA / 240VAC

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

5.75 ~ 6.75V

8.6 ~ 10.1V

10.4 ~ 12.2V

13.8 ~ 16.2V

17.25 ~ 20.25V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

-20 ~ +60℃ (Refer to "Derating Curve")

20 ~ 90% RH non-condensing

-40 ~ +85℃, 10 ~ 95% RH

±0.03%/℃

(0 ~ 50℃)

27.6 ~ 32.4V

55.2 ~ 64.8V

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

VIBRATION

SAFETY STANDARDS

Note.6

UL60950-1, CB(IEC60950-1),BSMI (CNS14336-1),CCC GB4943.1:2011 approved

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

SAFETY & WITHSTAND VOLTAGE

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC

(Note 7)

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3

EMC IMMUNITY

MTBF

OTHERS

NOTE

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A

320.7Khrs min. MIL-HDBK-217F (25℃)

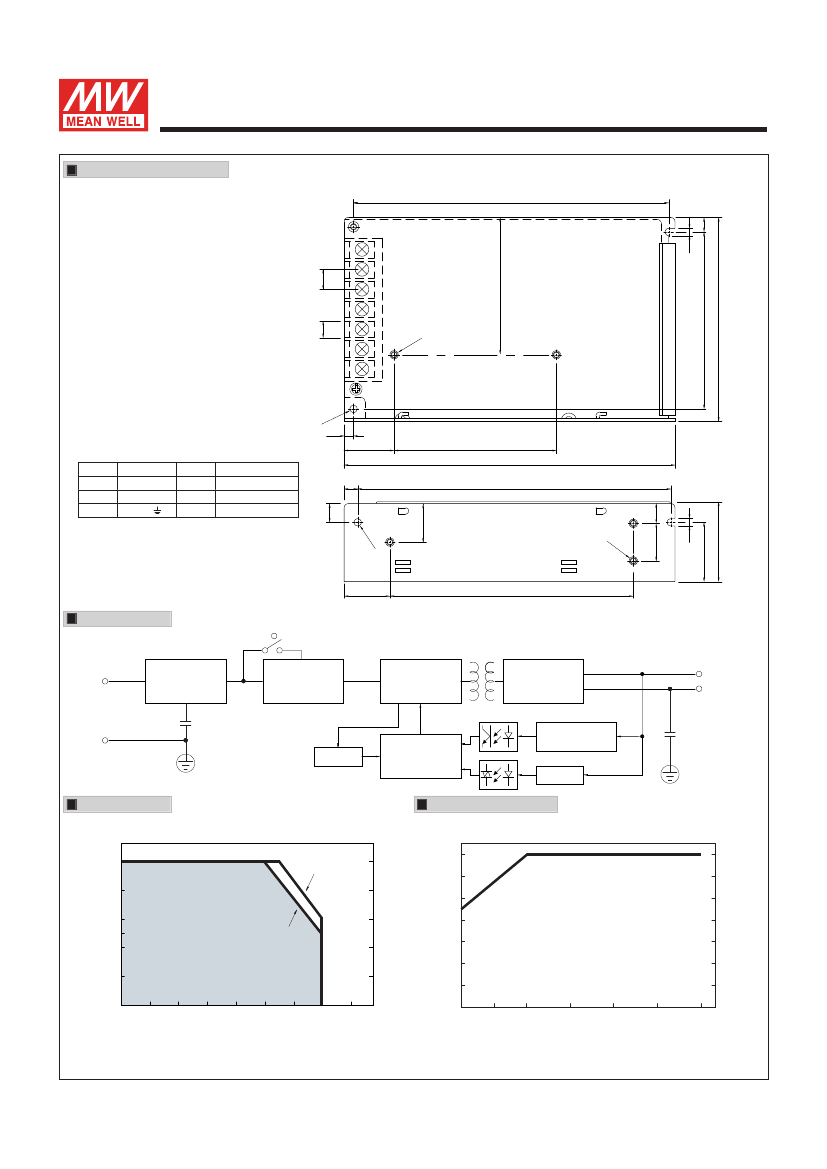

159*97*38mm (L*W*H)

0.55Kg; 30pcs/17.5Kg/0.97CUFT

DIMENSION

PACKING

℃

















File Name:NES-100-SPEC 2017-07-14
