33_BNC-MMCX-50-1/1--_NE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size125KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

33_BNC-MMCX-50-1/1--_NE Overview

RF Adapters - Between Series

33_BNC-MMCX-50-1/1--_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeBNC-MMCX
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-FEMALE
Coupling typeBAYONET-SNAP
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
MIL complianceYES
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.23
Base Number Matches1

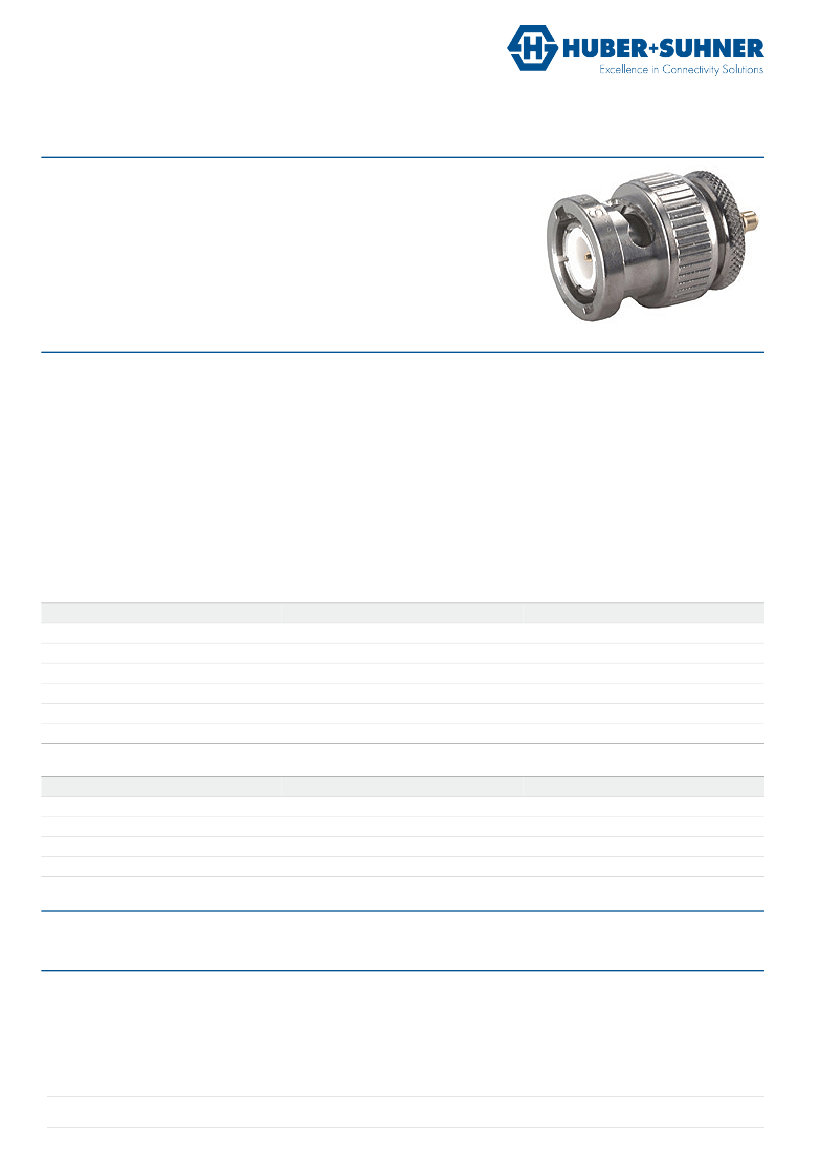

Data Sheet
Between Series Adaptor
33_BNC-MMCX-50-1/1--_N
Description
Adaptor plug/jack
BNC plug (male) / MMCX jack (female)
Interface standards
Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120
Series MMCX - SUHNER-MMCX
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
4 GHz
DC - 4 GHz
≤ 1.03 + 0.05 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0114 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - BNC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - MMCX jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Catalogue drawing
DCA-00014387
Ordering Information
Single package
33_BNC-MMCX-50-1/1--_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195395 R / PDO D / date of publication: 12/4/2014 4:36:12 PM / uncontrolled copy
