ZXMN10A25GTA: DescriptionDrain-source voltage (Vdss): 100V Continuous drain current (Id) (at 25°C): 2.9A Gate-source threshold voltage: 4V @ 250uA Drain-source on-resistance: 125mΩ @ 2.9A, 10V Maximum power dissipation ( Ta=25°C): 2W Type: N channel N channel, 100V, 4A; CategoryDiscrete semiconductor MOS (field effect tube); File Size621KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

ZXMN10A25GTA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXMN10A25GTA	-	-	View	Buy Now

ZXMN10A25GTA Overview

Drain-source voltage (Vdss): 100V Continuous drain current (Id) (at 25°C): 2.9A Gate-source threshold voltage: 4V @ 250uA Drain-source on-resistance: 125mΩ @ 2.9A, 10V Maximum power dissipation ( Ta=25°C): 2W Type: N channel N channel, 100V, 4A

ZXMN10A25GTA Parametric

Parameter Name	Attribute value
Drain-source voltage (Vdss)	100V
Continuous drain current (Id) at 25°C	2.9A
Gate-source threshold voltage	4V @ 250uA
Drain-source on-resistance	125mΩ @ 2.9A,10V
Maximum power dissipation (Ta=25°C)	2W
type	N channel

Preview

Download Datasheet

View All

Green

ZXMN10A25G

100V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

100V

DS(on) max

125mΩ @ V

= 10V

150mΩ @ V

= 6.0V

= +25°C

4.0A

3.7A

Features and Benefits



Low On-Resistance

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

NEW PRODUCT

Description

This new generation MOSFET is designed to minimize the on-state

resistance (R

DS(on)

) and yet maintain superior switching performance,

making it ideal for high efficiency power management applications.

Mechanical Data



Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals Connections: See Diagram Below

Terminals: Finish - Matte Tin Annealed over Copper Leadframe;

Solderable per MIL-STD-202, Method 208

Weight: 0.112 grams (Approximate)

Applications



DC Motor Control

DC-AC Inverters

SOT223

Top View

Pin Out - Top View

Equivalent Circuit

Ordering Information

(Note 4)

Part Number

ZXMN10A25GTA

Notes:

Qualification

Standard

Case

SOT223

Packaging

1,000 / Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

ZXMN

10A25

ZXMN 10A25 = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

YWW

ZXMN10A25G

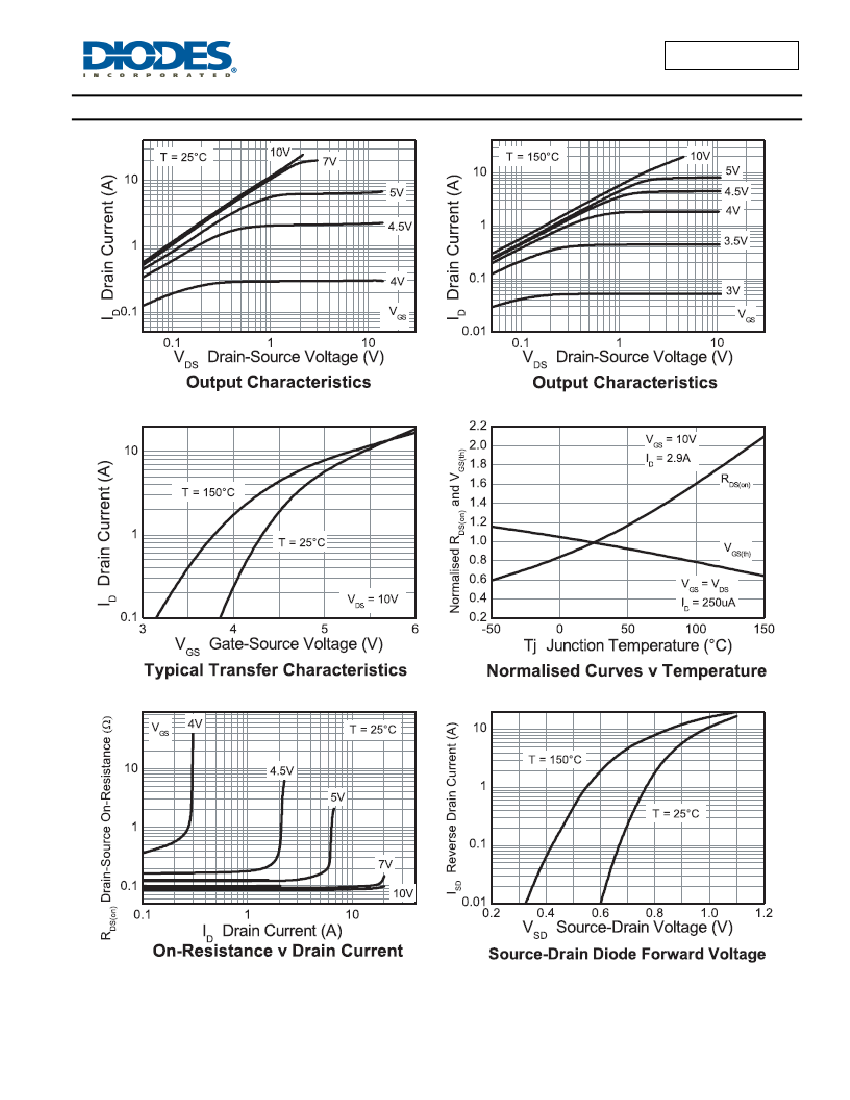

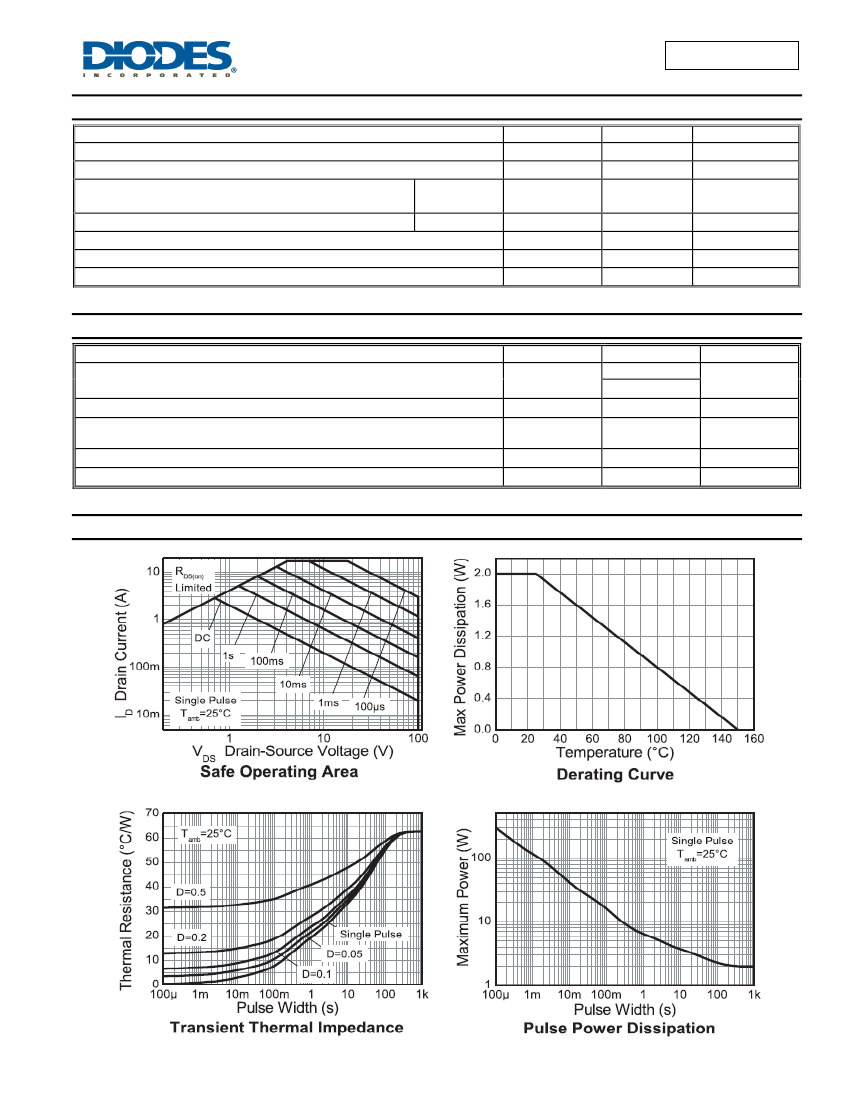

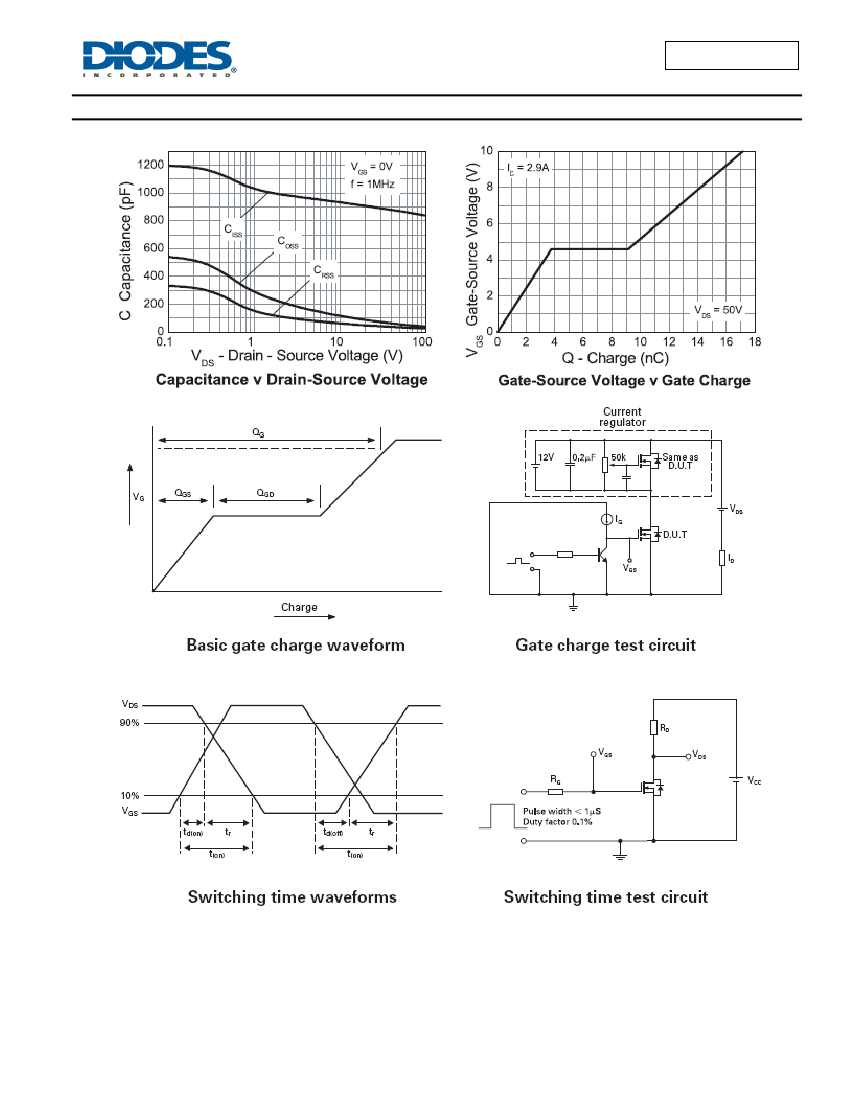

Document number: DS33568 Rev. 4 - 2

1 of 7

www.diodes.com

March 2015
