800AWSP9M2QE: DescriptionSelf-locking/unlocked: Unlocked switch height: 18.85mm Contact rated current: 3A Action force: - Installation type: Through hole Dimensions (length and width): 8.13mm x 5.08mm Circuit structure: SPST; CategoryMechanical and electronic products switch; File Size100KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

800AWSP9M2QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800AWSP9M2QE	-	-	View	Buy Now

800AWSP9M2QE Overview

Self-locking/unlocked: Unlocked switch height: 18.85mm Contact rated current: 3A Action force: - Installation type: Through hole Dimensions (length and width): 8.13mm x 5.08mm Circuit structure: SPST

800AWSP9M2QE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	5.08 mm
body height	8.89 mm
Body length or diameter	8.128 mm
Nozzle length	0.177 inch
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Contact function	OFF-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Manufacturer's serial number	800AWSP9M2QE
Installation features	THROUGH HOLE-STRAIGHT
PCB hole count	2
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

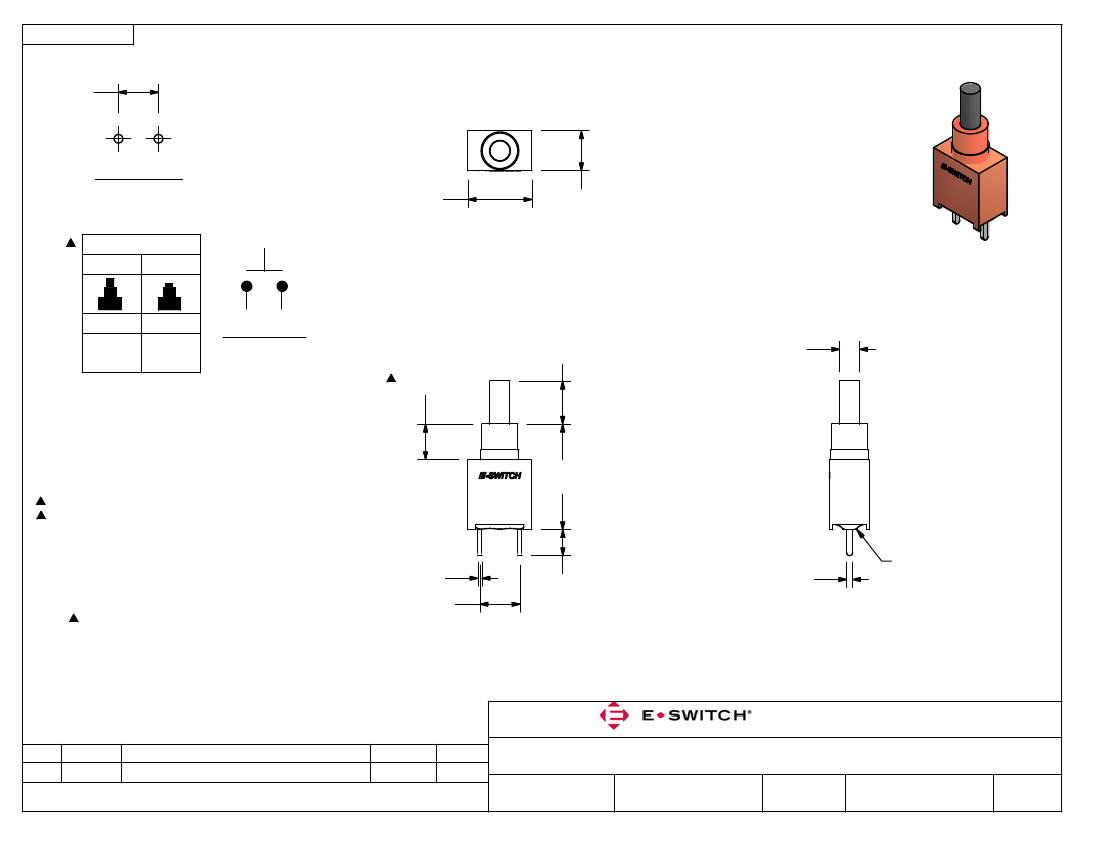

SHEET 1 OF 1

5.08

[.200 in]

P.C. MOUNTING

8.13

[.320 in]

5.08

[.200 in]

SWITCH FUNCTION

POS. 1

POS. 2

1

OFF

OPEN

(ON)

1-3

4.50

[.177 in]

3

ISOMETRIC

CIRCUIT: SPST

5.46

[.215 in]

n

2.54

[.100 in]

(ON)=MOMENTARY

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 1A @ 250 VAC

3A @ 120 VAC OR 28 VDC

6. MECHANICAL LIFE: 50,000 MAKE-AND-BREAK CYCLES

7. CONTACT RESISTANCE: 20 mΩ MAX. INITIAL @ 2-4VDC

100mA FOR BOTH GOLD AND SILVER CONTACTS

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

13.39

[.527 in]

1

.51

[.020 in]

5.08

[.200 in]

3

3.30

[.130 in]

.76

[.030 in]

EPOXY SEAL

BASE

D

REV

20063

PCR NO

UPDATE AND CONVERT TO INVENTOR

DESCRIPTION

07/20/11

DATE

BMA

BY

TITLE

SCALE

800AWSP9M2QE

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

7/20/2011

DR

BMA

DWG

T833053

REV

D
