22-11-2042 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-11-2042

22-11-2042: DescriptionOther names: 22112042; CategoryThe connector The connector; File Size1MB，17 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-11-2042 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-11-2042	-	-	View	Buy Now

22-11-2042 Overview

Other names: 22112042

22-11-2042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	238207
Samacsys Pin Count	4
Samacsys Part Category	Connector
Samacsys Package Category	Header, Vertical
Samacsys Footprint Name	22-11-2042
Samacsys Released Date	2016-01-28 12:28:56
Is Samacsys	N
Other features	KK
body width	0.25 inch
subject depth	0.322 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

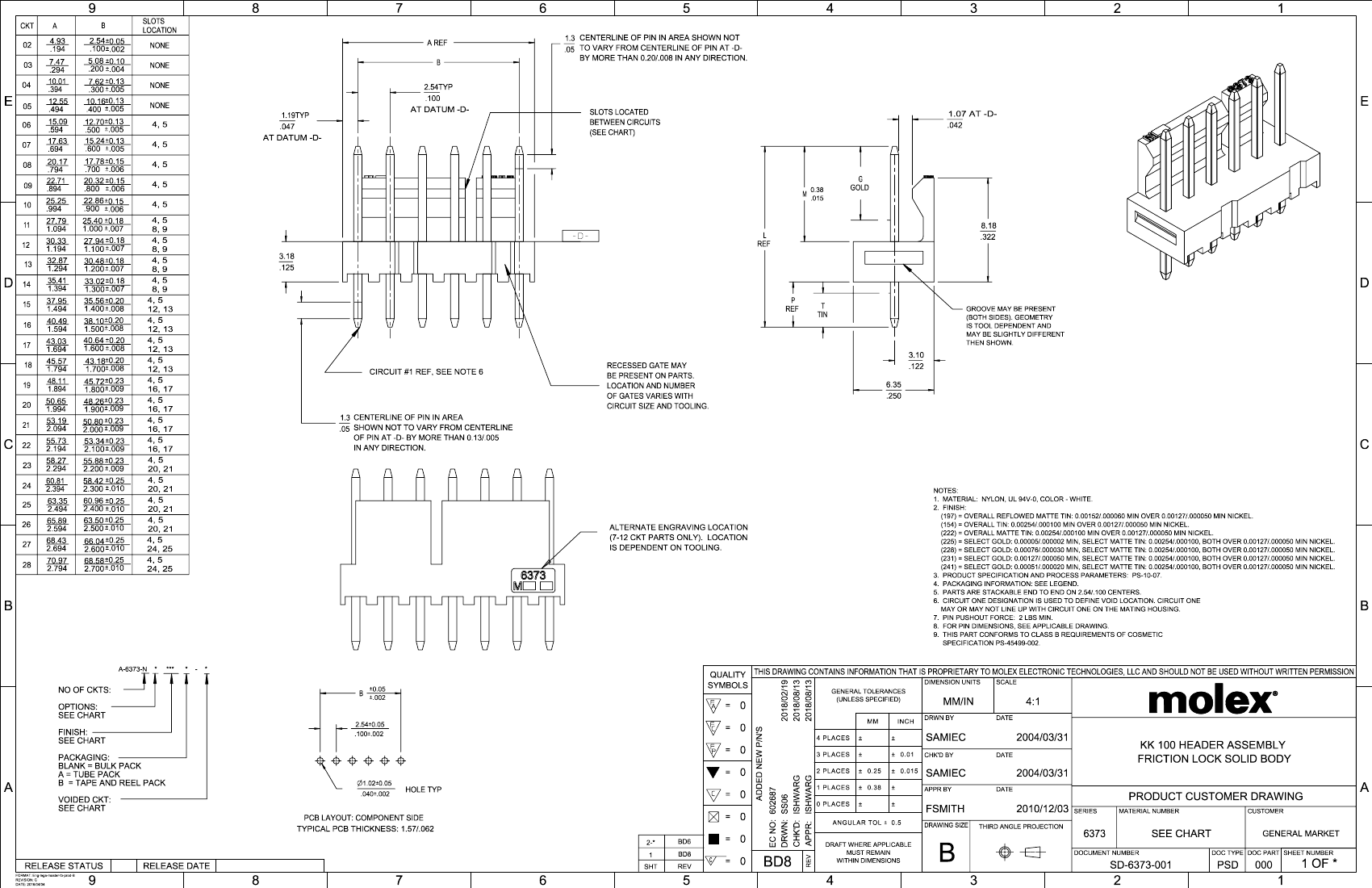

Preview

Download Datasheet

View All

22-11-2042 Related Products

	22-11-2042	22-23-2061	22-23-2031
Description	Other names: 22112042		Number of Pins: 3 Connector Type: Header Series: - Pitch: 0.100" (2.54mm) Contact Type: Male Pins
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	KK	KK	KK
body width	0.25 inch	0.25 inch	0.25 inch
subject depth	0.322 inch	0.322 inch	0.322 inch
body length	0.4 inch	0.594 inch	0.294 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN	TIN
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE
insulator material	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation option 1	GUIDE SLOT	FRICTION LOCK	FRICTION LOCK
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	20u inch	100u inch	100u inch
Guideline	UL, CSA	UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.14 inch	0.14 inch	0.14 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	4	6	3
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
ECCN code	EAR99	EAR99	-
Factory Lead Time	-	7 weeks	7 weeks
maximum insertion force	-	4.8928 N	4.8928 N
