MPSH10D74Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The transistor> MPSH10D74Z

MPSH10D74Z: DescriptionRF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-92; CategoryThe transistor; File Size139KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MPSH10D74Z Overview

RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-92

MPSH10D74Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW NOISE
Maximum collector current (IC)	0.05 A
Collector-based maximum capacity	0.7 pF
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
highest frequency band	ULTRA HIGH FREQUENCY BAND
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	650 MHz
Base Number Matches	1

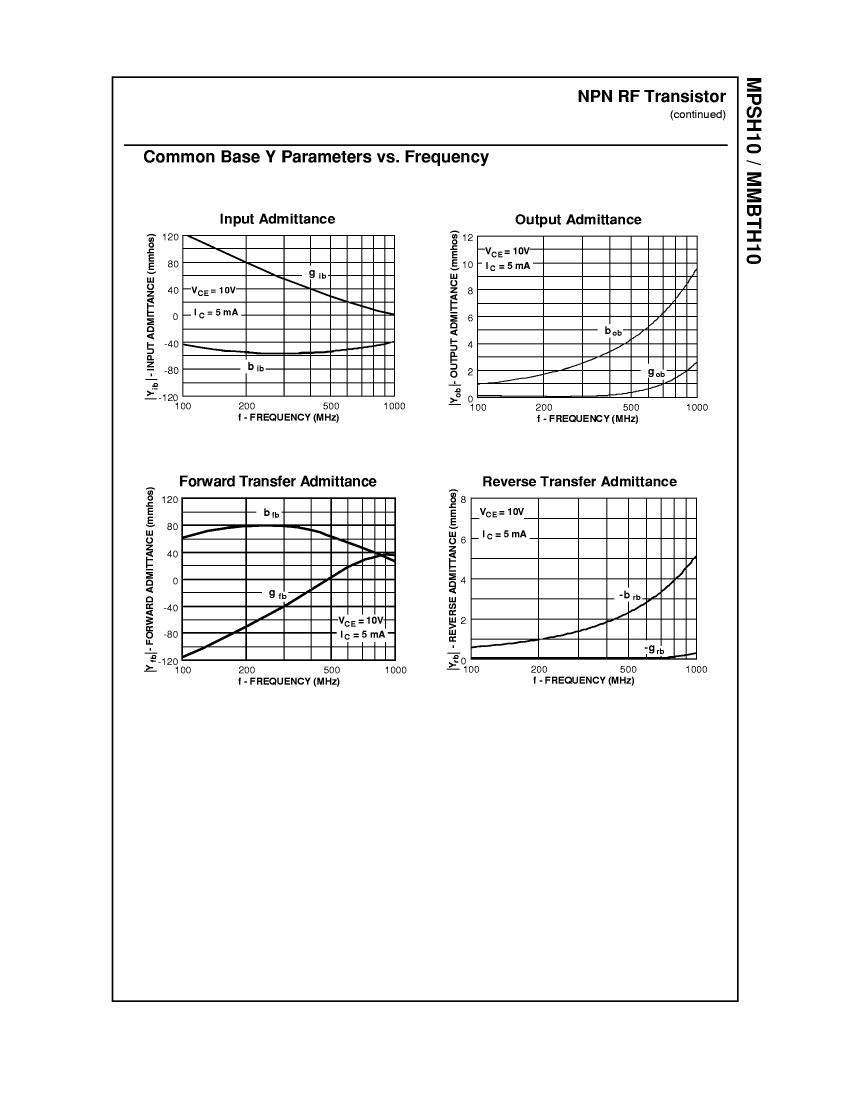

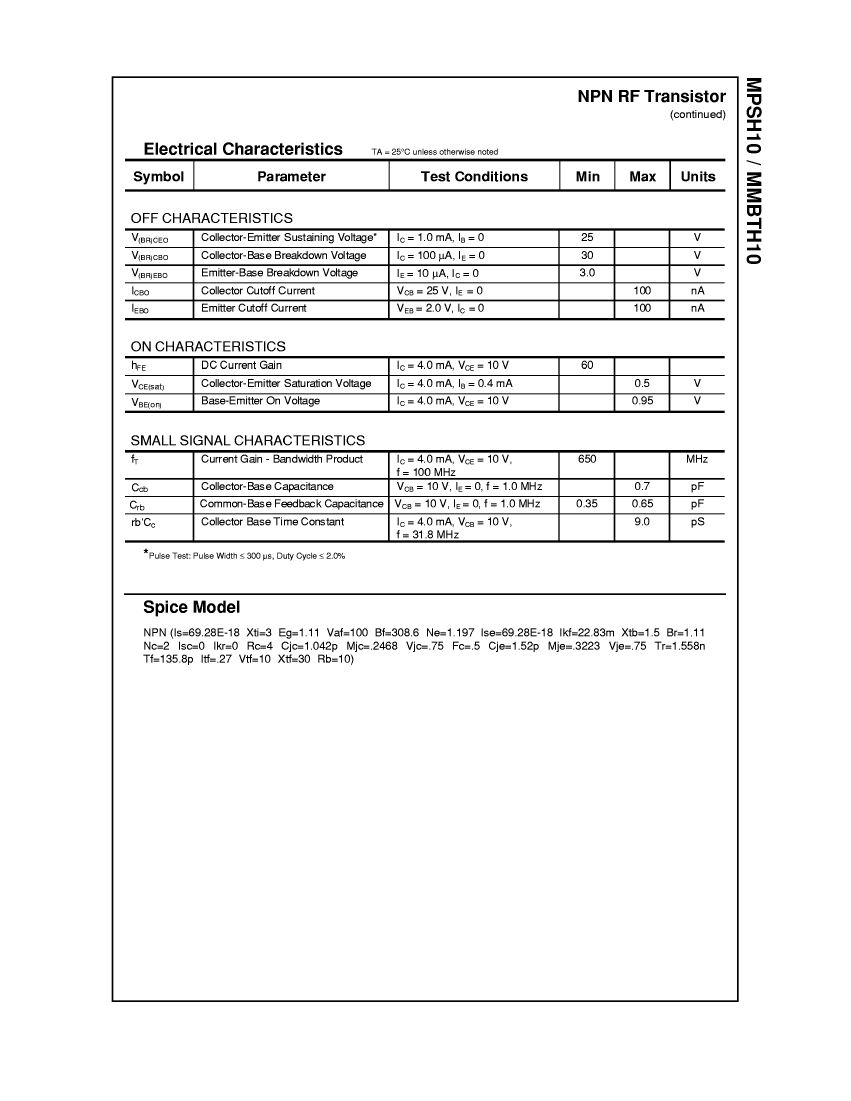

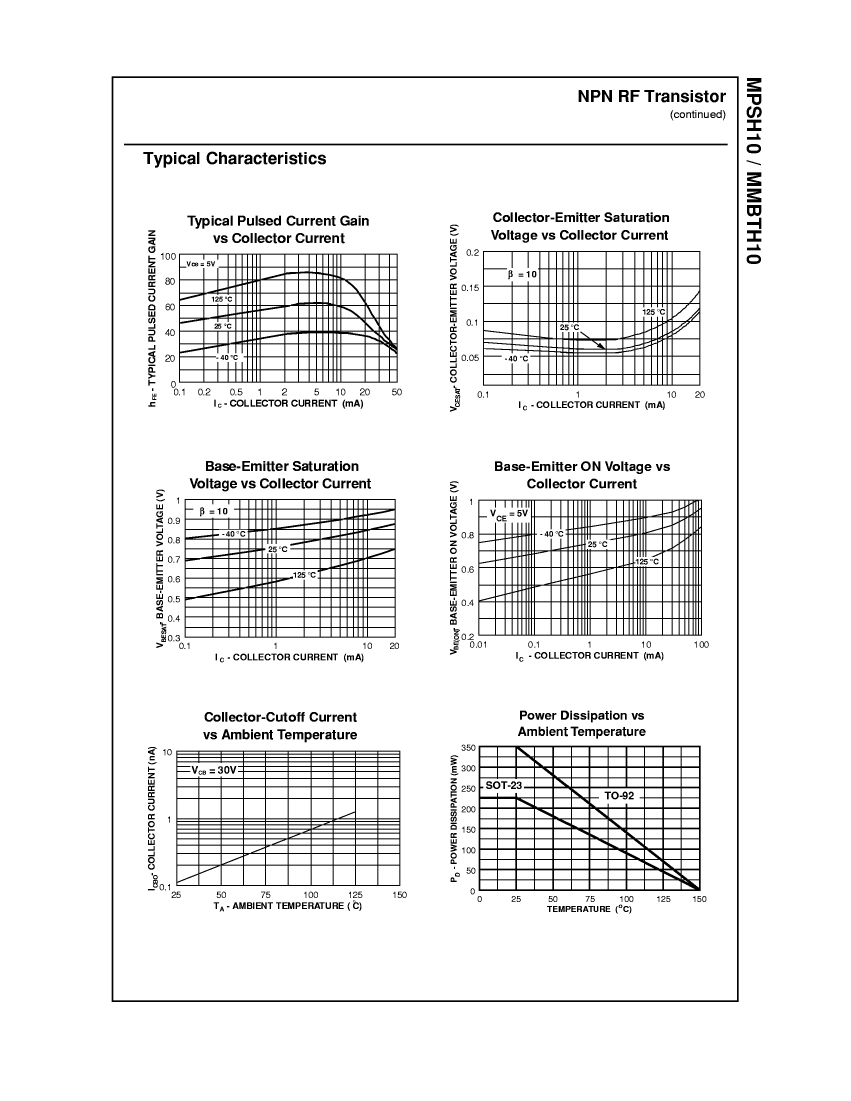

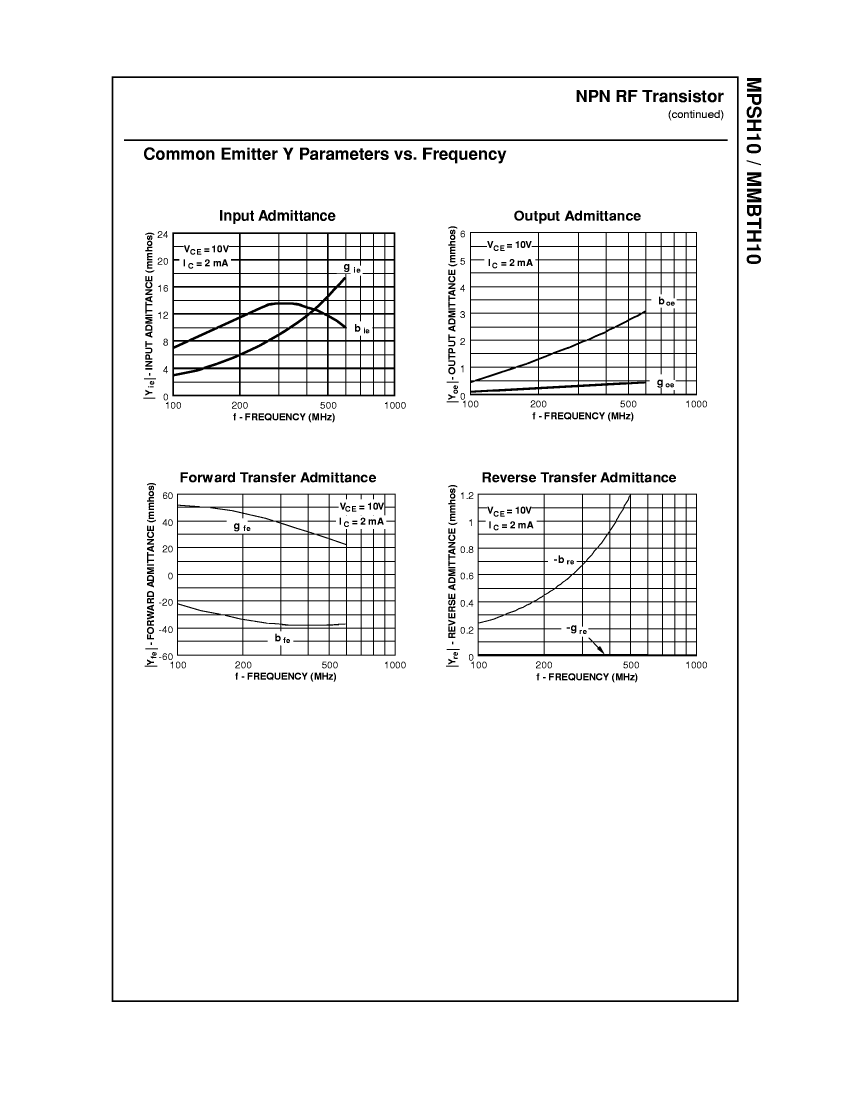

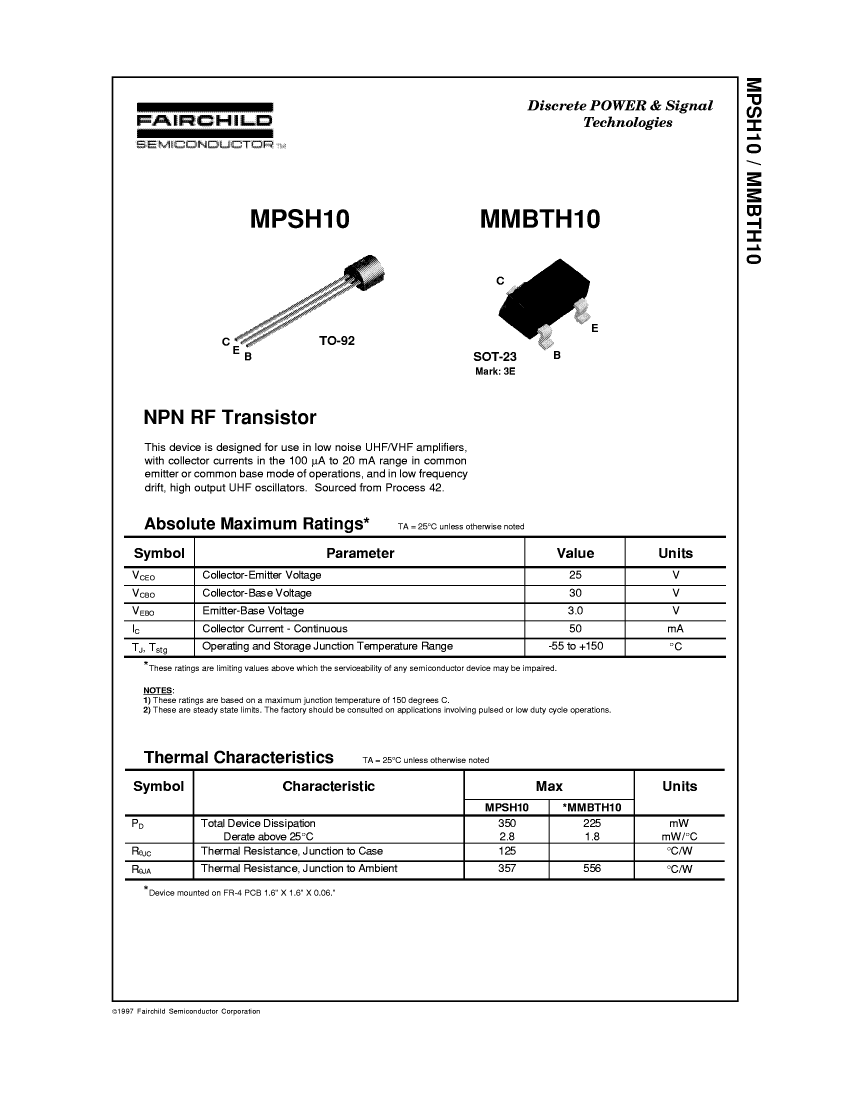

Preview

Download Datasheet

View All

MPSH10D74Z Related Products

	MPSH10D74Z	MMBTH10L99Z	MPSH10D27Z	MMBTH10D87Z	MPSH10D75Z	MMBTH10S62Z
Description	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN,
Reach Compliance Code	compliant	unknow	compliant	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Collector-based maximum capacity	0.7 pF	0.7 pF	0.7 pF	0.7 pF	0.7 pF	0.7 pF
Collector-emitter maximum voltage	25 V	25 V	25 V	25 V	25 V	25 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-PBCY-T3	R-PDSO-G3	O-PBCY-T3	R-PDSO-G3	O-PBCY-T3	R-PDSO-G3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR
Package form	CYLINDRICAL	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	YES	NO	YES
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	BOTTOM	DUAL	BOTTOM	DUAL	BOTTOM	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	650 MHz	650 MHz	650 MHz	650 MHz	650 MHz	650 MHz
Maker	Fairchild	-	Fairchild	-	Fairchild	Fairchild
Base Number Matches	1	1	1	1	-	-
