DH-166-015-312-AH30-125 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> DH-166-015-312-AH30-125

DH-166-015-312-AH30-125: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size1MB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

DH-166-015-312-AH30-125 Overview

Connector Accessory

DH-166-015-312-AH30-125 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	DH
Base Number Matches	1

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

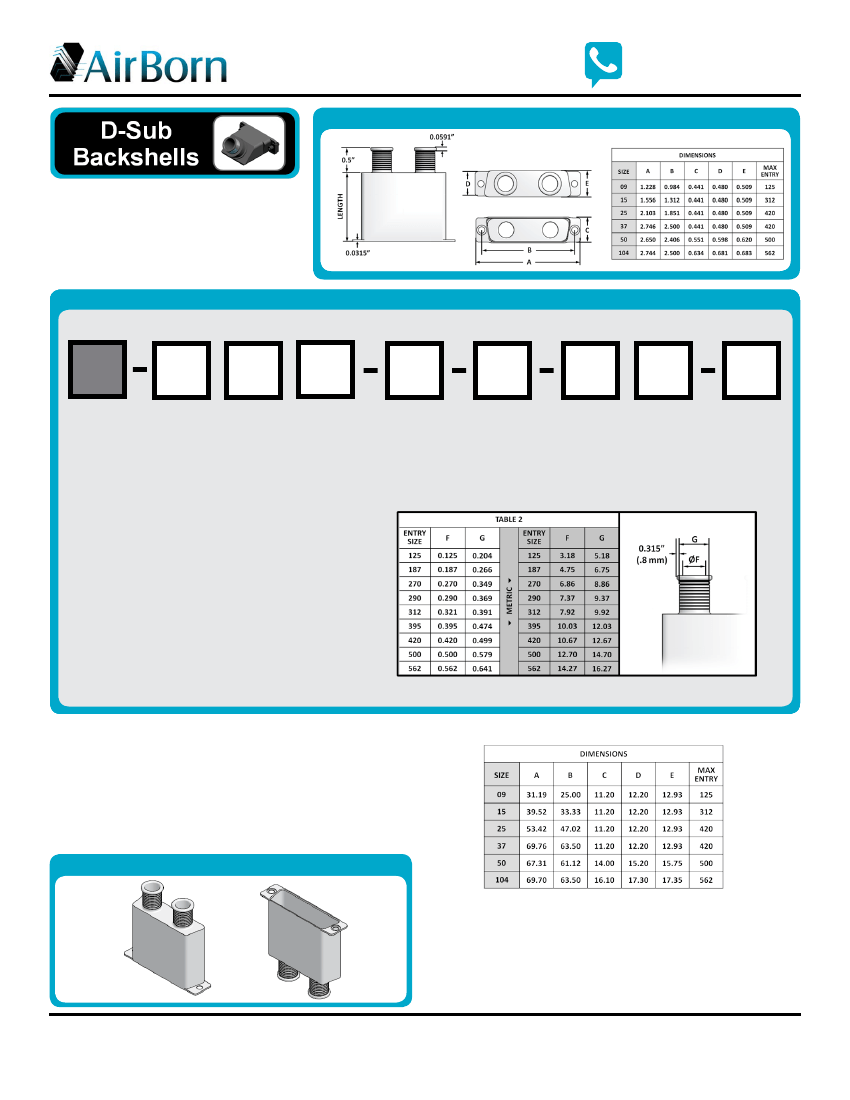

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

DH 6 – Banding Backshell with

Thin Walls and Double Circular

Top Entry

For use with D-Subminiature and

MIL-DTL-24308 connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: DH-166-037-XXX-0030-XXX

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Banding Backshells

with Thin Walls for

D-Subminiature

Connectors

MATERIAL

1 – Aluminum

alloy

STYLE

6 – Double

circular

top entry

PLATING

2 – Nickel-plated

aluminum

6 – Gold-plated

nickel

SIZE

009 – 9 Contacts

015 – 15 Contacts

025 – 25 Contacts

037 – 37 Contacts

050 – 50 Contacts

104 – 104 Contacts

ENTRY 1 SIZE

See Table 2 below

HARDWARE

00 – None

SH – Slot head

screw w/clip

AH – Allen head

screw w/clip

JP – Jackpost

LENGTH

30 – 30 mm

40 – 40 mm

50 – 50 mm

60 – 60 mm

ENTRY 2 SIZE

See Table 2 below

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited per SAE AMS-QQ-P-416, Type II, Class 2

Gold per ASTM B488 Type II, Grade C, Class 2 over

electroless nickel per MIL-C-26074 Class 4

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or

AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

DH-166-037-XXX-0030-XXX

DH6-PNB-1

www.airborn.com

(512 ) 863-5585
