Superior Jitter Performance (comparable to SAW based)
Frequencies from 150 MHz to 1.4 GHz
Designed for a short 2 week cycle time
Phase Lock Loop Applications:
Telecommunications such as SONET / SDH / DWDM / FEC /
SERDES / OC-3 thru OC-192
Wireless base stations / WLAN / Gigabit Ethernet
Avionic flight controls and military communications
Corporate Headquarters
100 Douglas Avenue
PO Box 630
Yankton, SD 57078-0630
1-800-762-8800
www.mtronpti.com
MtronPTI
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 5x7 mm
M310x Series
Product Features:
Product Specifications
•
Superior
Jitter Performance
comparable to SAW-based VCSO products (0.50 pS typical at 622.08 MHz)
•
Frequencies
from 150.0000MHz to 1.4000GHz
•
APR
(Absolute Pull Range) of
±50
or
±100ppm
over industrial temperature range
•
Crystal resonator based product offering
far better Stability
than SAW
•
Designed for
Short Cycle Time
manufacturing (2 weeks or less)
•
0.01 µF bypass capacitor from Vcc to ground built into the
5x7 mm package
Description:
The M310x series voltage controlled crystal oscillator is designed specifically for high performance PLL applications.
The M310x is available in PECL, LVDS, and CML output while featuring MtronPTI’s
QiK Chip
TM
Technology offering
significantly reduced cycle time.
Applications:
•
•
•
•
Telecommunications such as SONET / SDH / DWDM / FEC / SERDES / OC-3 thru OC-192
Wireless base stations / WLAN / Gigabit Ethernet
Avionic flight controls and communications
Test Equipment and Instrumentation
Ordering Information:

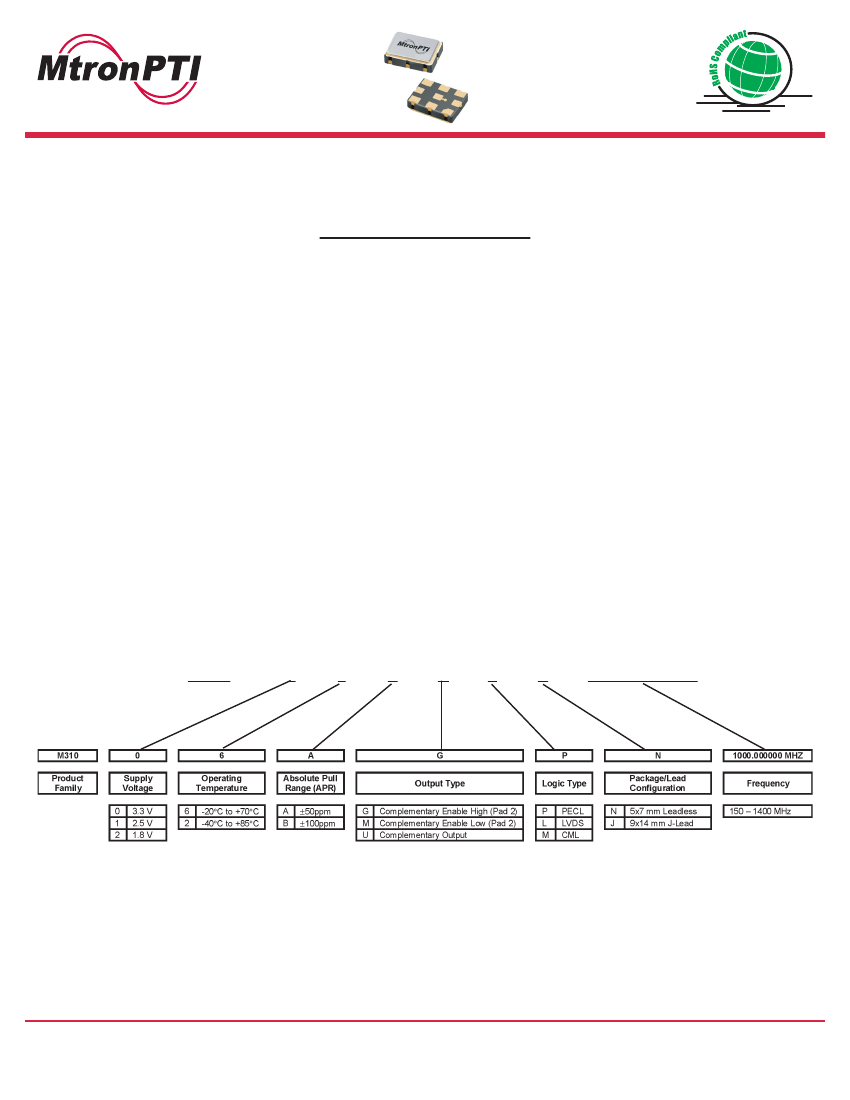

Part Number Example:
M310x
0
6
A
G
P
N
1000.000000MHz
Part Number Example: M31006ABPN – 1000.000000 MHz
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
2
M310x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 5x7 mm
Applications Note:
The MtronPTI M310x series of voltage controlled cystal oscillators, featuring
QiK Chip
TM
technology, provides for extremely low
jitter of 0.50 ps RMS, typical at 622.08 MHz. For applications requiring low jitter, frequencies from 150 MHz to 1.4 GHz are avail-
able. LVPECL, LVDS, or CML compatible outputs, as well as operating voltage of 1.8 V, 2.5 V, and 3.3 V are also options on the
M310x.
The M310x is available with a standard APR of ± 50 ppm and ± 100 ppm, over the industrial operating temperature range of
-40°C to +85°C. The M310x achieves this level of performance by utilizing an AT-cut crystal. An enable/disable function is also
an available option on the M310x. An internal 0.01 µF by-pass capacitor also assures optimum noise suppression on the supply
voltage pad.
The superior integrated jitter performance of 0.50 pS RMS, typical at 622.08 MHz, makes the M310x suitable for 10 Gig-E,
broadband networks, network switches, SONET, SDH, SERDES, DWDM, FEC, WLAN, and OC-3 thru OC-192 systems. The
M310x is available in a nine-pad, 5x7x1.9 mm, leadless, ceramic, surface mount package (see page 4, N package drawing)
that is RoHS and +260°C reflow compatible, (no PCB traces should be located directly under the 5x7 product). Figures 1 and 2
below show load termination conditions for LVPECL and LVDS. The M310x oscillators are backward compatible to many of the
existing products in the industry from Vectron, Epson, and others.
For superior performance in a high frequency clock oscillator, the M310x is a logical choice for designers. The unique design
architecture allows the M310x fast turn around on engineering design samples, as well as production quantities in 2 weeks or
less.
Figure 1. 3.3V LVPECL Load Circuit
Figure 2. LVDS Load Circuit
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
3
M310x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 5x7 mm

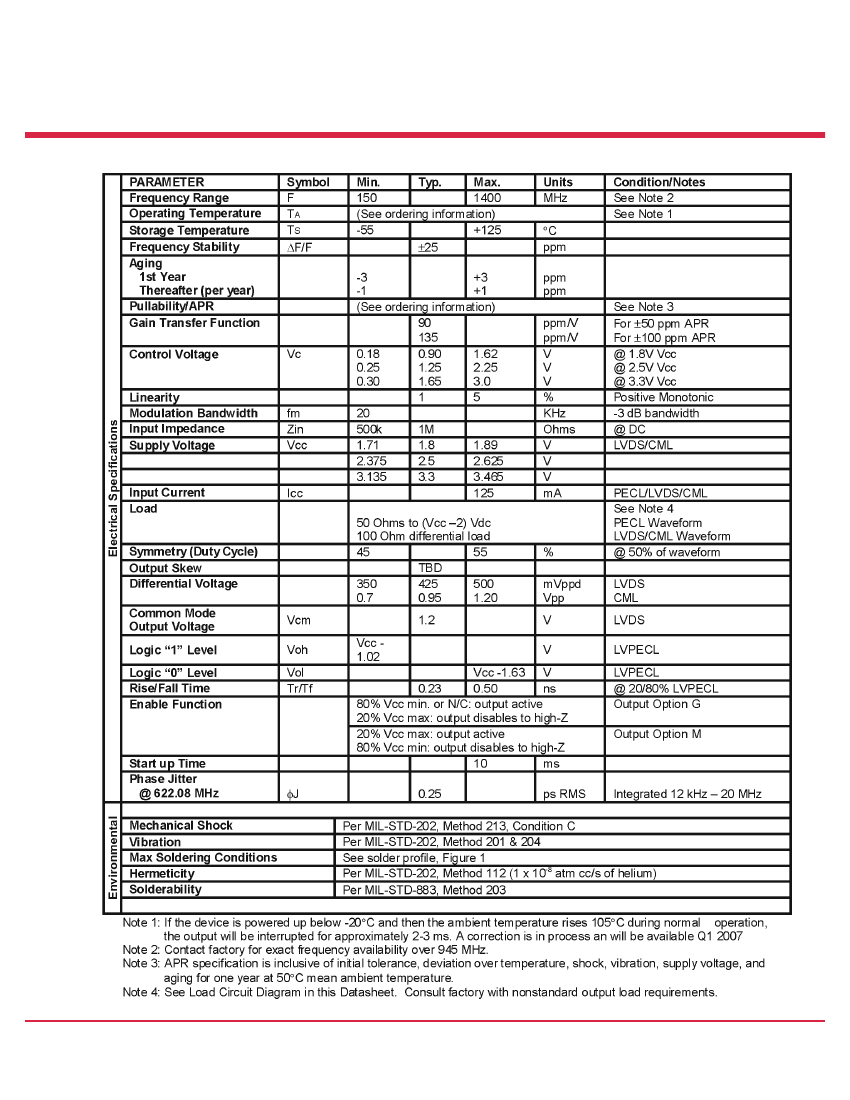

Performance Characteristics:
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
4
M310x Series
PECL/LVDS/CML Voltage Controlled Crystal Oscillator – 3.3/2.5/1.8 Volt – 5x7 mm

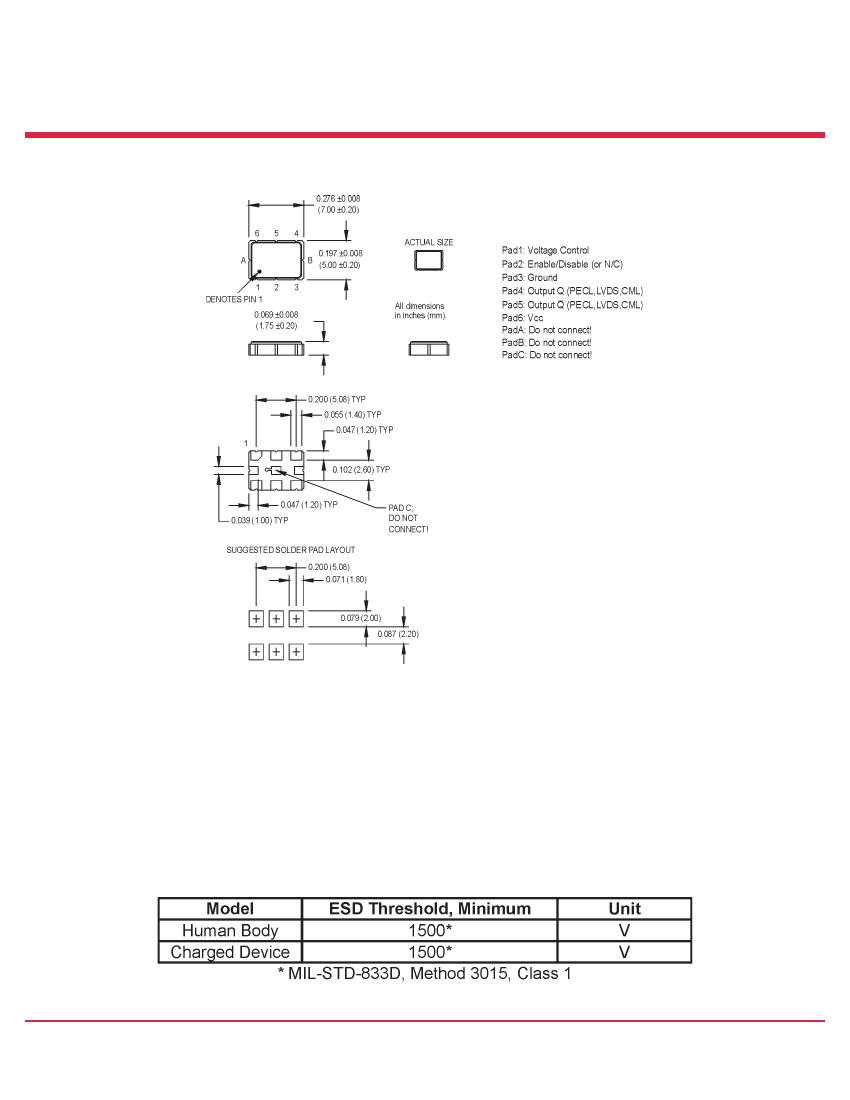

Product Dimensions & Pinout Information:
Handling Information:
Although protection circuitry has been designed into the M310 VCXO, proper precautions should be taken to avoid
exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body model
(HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation. ESD
voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-wide
standard has been adopted for the CDM, a standard HBM (resistance = 1500, capacitance = 100 pF) is widely used
and therefore can be used for comparison purposes. The HBM ESD threshold presented here was obtained using
these circuit parameters.
