CXP83621Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CXP83621Q

CXP83621Q: DescriptionMicrocontroller, 8-Bit, MROM, SPC700 CPU, 10MHz, CMOS, PQFP80, 14 X 14 MM, 0.65 MM PITCH, PLASTIC, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size436KB，31 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

CXP83621Q Overview

Microcontroller, 8-Bit, MROM, SPC700 CPU, 10MHz, CMOS, PQFP80, 14 X 14 MM, 0.65 MM PITCH, PLASTIC, QFP-80

CXP83621Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFP
package instruction	14 X 14 MM, 0.65 MM PITCH, PLASTIC, QFP-80
Contacts	80
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	8
CPU series	SPC700
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G80
JESD-609 code	e6
length	14 mm
Number of I/O lines	50
Number of terminals	80
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.64SQ
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	736
rom(word)	20480
ROM programmability	MROM
Maximum seat height	1.85 mm
speed	10 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

CXP83620/83624

CXP83621/83625

CMOS 8-bit Single Chip Microcomputer

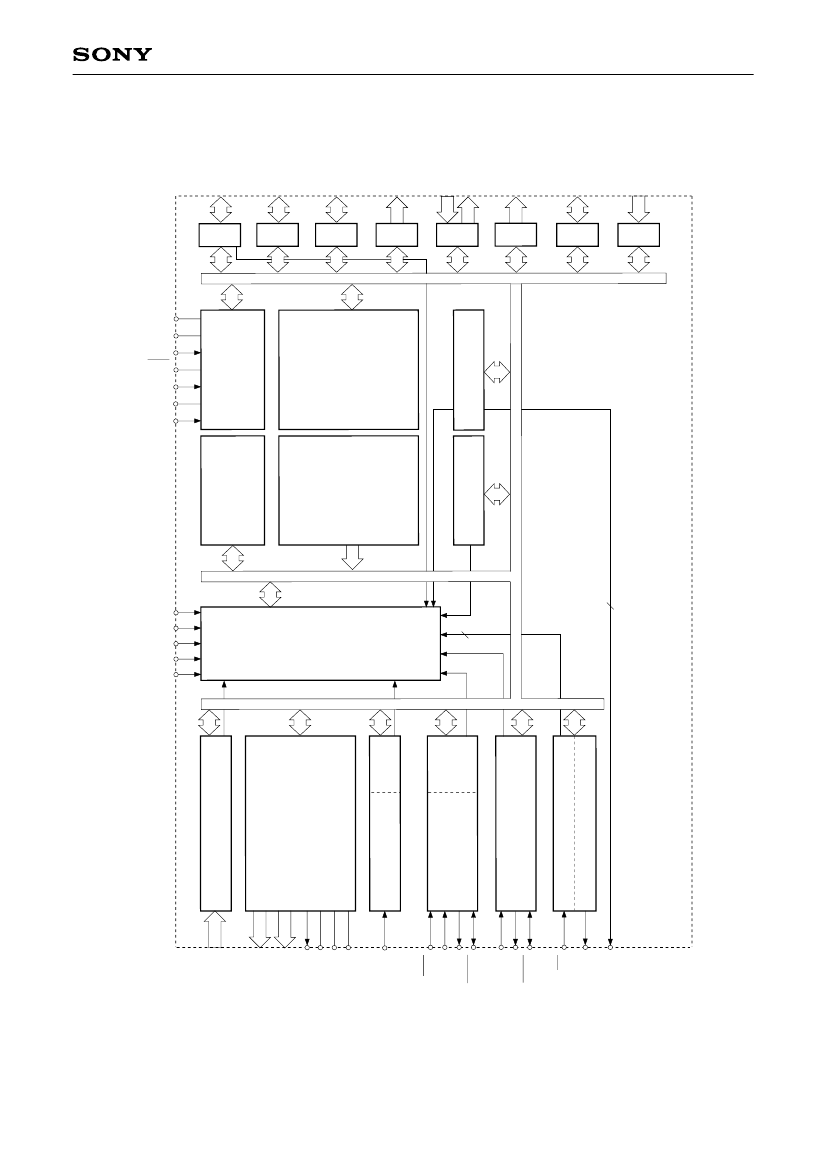

Description

The CXP83620/83624 and the CXP83621/83625

are CMOS 8-bit single chip microcomputer integrating

on a single chip an A/D converter, serial interface,

timer/counter, time-base timer, sub timer/counter, LCD

controller/driver and remote control reception circuit

besides the basic configurations of 8-bit CPU, ROM,

RAM, and I/O port.

The CXP83620/83624 and the CXP83621/83625 also

provide a sleep/stop function that enables lower power

consumption.

CXP83620/83624

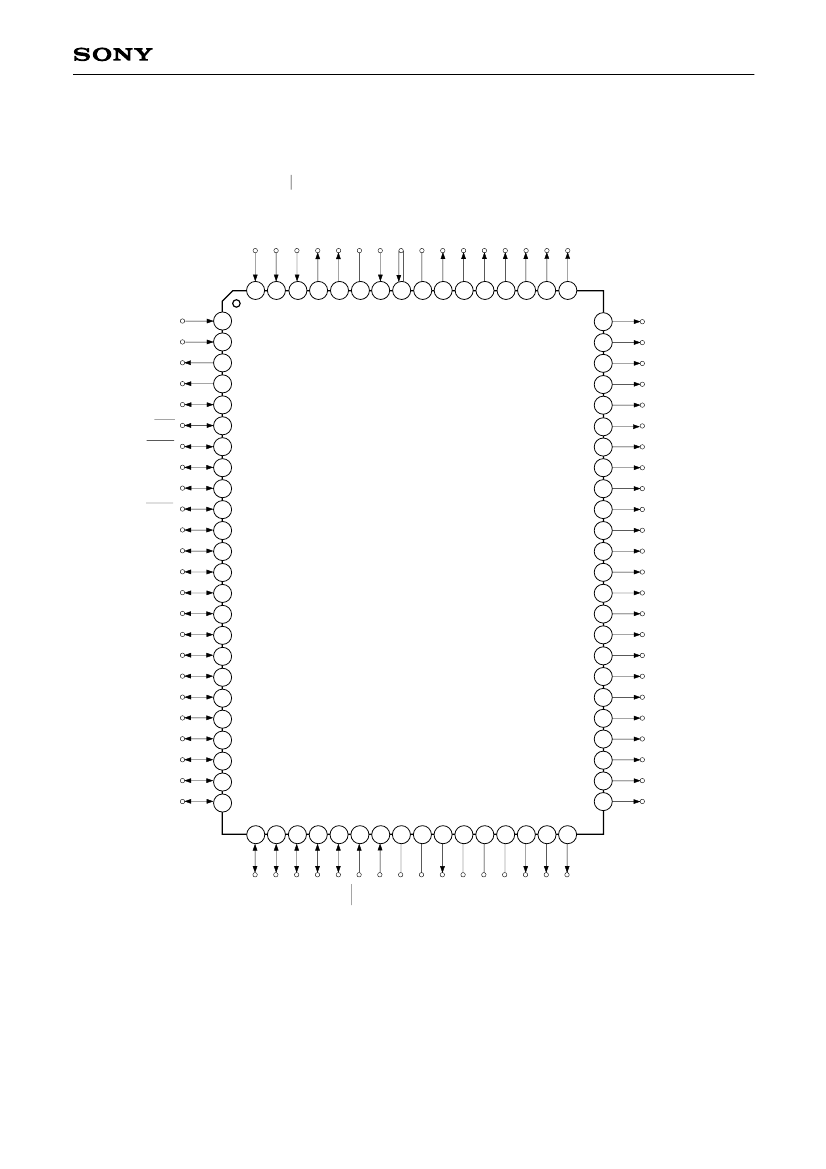

80 pin QFP (Plastic)

80 pin LQFP (Plastic)

Features

•

Wide-range instruction system (213 instructions) to

cover various types of data.

— 16-bit arithmetic/multiplication and division/boolean

bit operation instructions

•

Minimum instruction cycle

400ns at 10MHz operation (4.5 to 5.5V)

1µs at 4MHz operation (2.7 to 5.5V)

122µs at 32kHz operation (2.7 to 5.5V)

•

Incorporated ROM capacity

20K bytes (CXP83620, 83621)

24K bytes (CXP83624, 83625)

•

Incorporated RAM capacity

736 bytes (includes LCD display data area and serial interface RAM)

•

Peripheral functions

— A/D converter

8-bit, 8-channel, successive approximation method

(Conversion time of 12.4µs/10MHz)

— Serial interface

Incorporated buffer RAM

(Auto transfer for 1 to 32 bytes), 1 channel

8-bit clock synchronized type (MSB/LSB first selectable), 1 channel

— Timer

8-bit timer, 8-bit timer/counter, 19-bit time-base timer,

Sub timer/counter

— LCD controller/driver

Maximum 128 segment display possible (during 1/4 duty)

4 common output, 32 segment output

Display method static, 1/2, 1/3, 1/4 duty

Bias method 1/2, 1/3 bias

— Remote control reception circuit

8-bit pulse measuring counter, 6-stage FIFO

•

Interruption

14 factors, 14 vectors, multi-interruption possible

•

Standby mode

Sleep/stop

•

Package

80-pin plastic QFP/LQFP

•

Piggy/evaluation chip

CXP83600 (CXP83620, 83624)

CXP83601 (CXP83621, 83625)

Structure

Silicon gate CMOS IC

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by

any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the

operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

CXP83621/83625

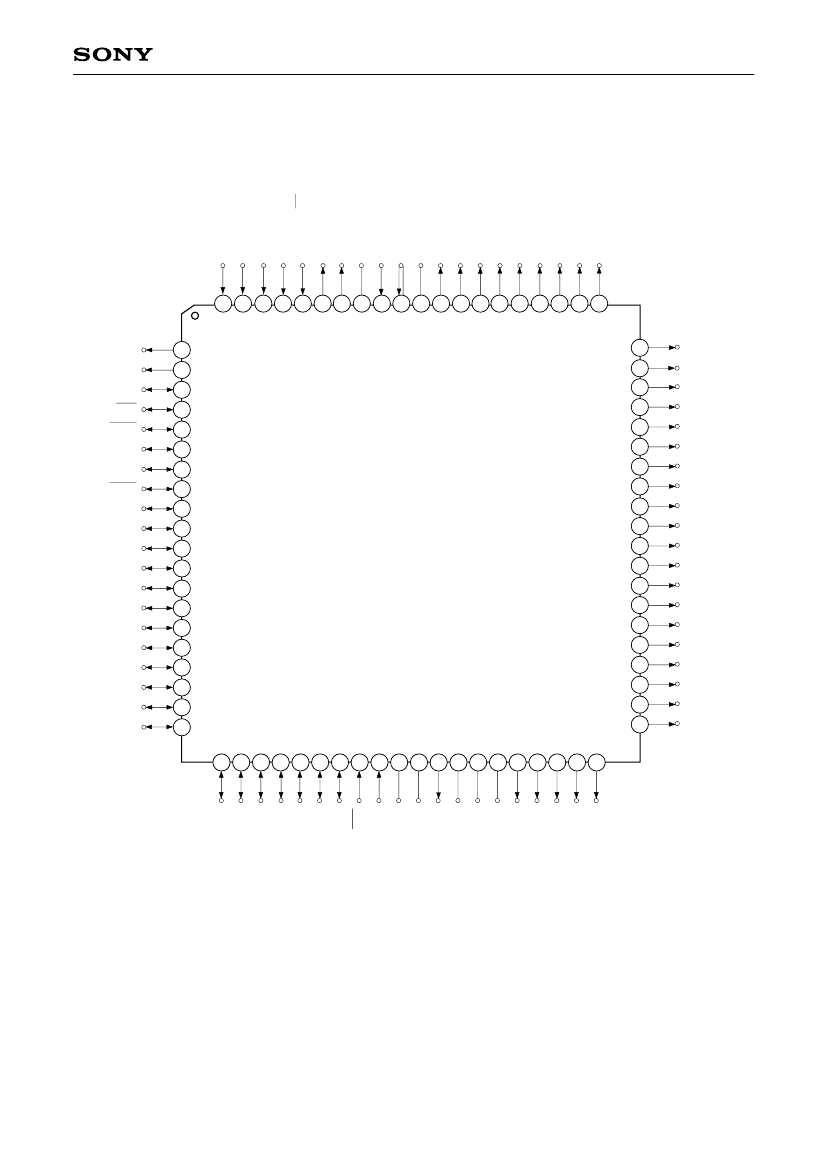

80 pin QFP (Plastic)

–1–

E98134D1Y-PS
