Low Noise GaAs FETs
July 2006 - Rev 31-Jul-06
Features
High Gain
Super Low Noise
Pseudomorphic HEMT
70 Mil Hermetic Package
CFA0103
Applications
Satellite Receivers
Point-to-Point Radio Receivers
Commercial Communications
Defense Electronics
General Description
The CFA0103-L series is a family of low noise, high-gain FETs intended for satellite and point-to-point radio receiver
applications. This family of devices is assembled in an industry standard 70 mil hermetic package. This family of high
reliability devices is ideally suited for operation-critical applications where reliability and performance are required.
Typical Noise Parameters
(Vds = 3V, Ids = 15 mA)
Freq
(GHz)
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
NF
opt
0.39
0.47
0.57
0.69
0.84
1.00
1.18
1.38
1.60
G
A
Gamma Opt Rn/50
(dB) Mag Ang
0.42
23.6 0.87
36
0.34
18.3 0.77
71
0.27
15.2 0.69 100
0.22
13.0 0.63 124
0.18
11.5 0.58 147
0.16
10.6 0.53 171
0.15
10.1 0.49 -163
0.16
9.9
0.46 -132
0.18
9.8
0.42
-94
Absolute Maximum Ratings
Drain-Source Voltage (Vds)
Gate-Source Voltage (Vgs)
Drain Current (Ids)
Continuous Dissipation (Pt)
RF Power In (Pin)
Channel Temperature (Tch)
Storage Temperature (Tstg)
8V
-5 V
Idss
800 mW
+17 dBm
175 ºC
-65 ºC to +175 ºC
Electrical Characteristics (Ambient Temperature T = 25
o
C)
Bias
Parameter
NFopt
Ga
IS211
2
P1dB
gm
Idss
Vp
BVgd
Rth
Vds (V)
3.0
3.0
3.0
6.0
Vds = 3.0V
Vds = 3.0V
Vds = 3.0V
Igd = 100 uA
Ids (mA)
15.0
15.0
15.0
40.0
Vgs = V
Vgs = 0V
Ids = 1 mA
Frequency
(GHz)
12.0
12.0
2.0
10.0
18.0
12.0
Units
dB
dB
dB
dB
dB
dBm
mS
mA
Volts
Volts
ºC/W
Grade
L1
L2
L3
L1
L2
L3
Min
-
-
-
10.0
10.0
8.0
Typ
0.7
0.9
0.9
11.0
11.0
9.0
13.0
9.6
7.2
19.0
90.0
60.0
-1.3
-8.0
250
Max
0.8
1.0
1.2
-
-
-
30.0
-0.5
-5.5
120.0
-2.5
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 2
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
Low Noise GaAs FETs
July 2006 - Rev 31-Jul-06

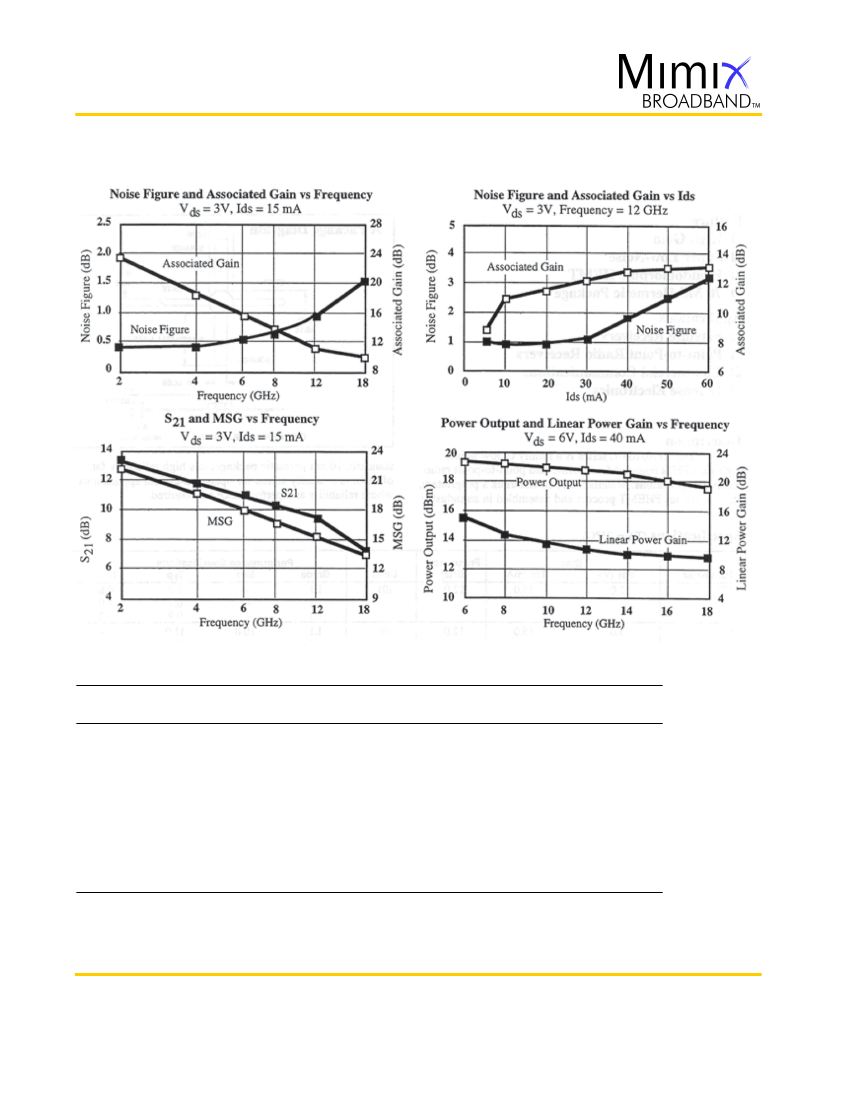

Typical Performance (TA = 25ºC)
CFA0103
Typical Scattering Parameters (TA = 25ºC,Vds = 3V, Ids = 15mA)
Frequency
S11
(GHz)
(Mag) (Ang)
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
0.97
0.88
0.79
0.66
0.59
0.57
0.57
0.57
0.51
-32
-69
-96
-129
-170
162
123
104
80
S21
(dB) (Mag) (Ang)
13.5
11.9
10.7
10.6
9.6
9.0
8.5
7.7
7.2
4.73
3.94
3.43
3.39
3.02
2.82
2.66
2.43
2.29
149
113
84
55
22
-4
-35
-66
-100
S12
(dB) (Mag) (Ang)
-31.1
-25.8
-23.6
-21.4
-21.6
-21.0
-21.0
-20.9
-21.3
0.03
0.05
0.07
0.08
0.09
0.08
0.09
0.09
0.09
69
45
27
10
-13
-21
-40
-56
-79
S22
MSG
(Mag) (Ang) (dB)
0.56
0.55
0.54
0.46
0.36
0.42
0.35
0.47
0.59
-22
-50
-70
-84
-121
-138
-166
151
128
22.3
18.9
17.1
16.3
15.5
15.3
14.8
14.3
14.3
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 2
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
