TC74HC4052AF(TP2) datasheet, PDF

TC74HC4052AF(TP2): DescriptionIC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size189KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

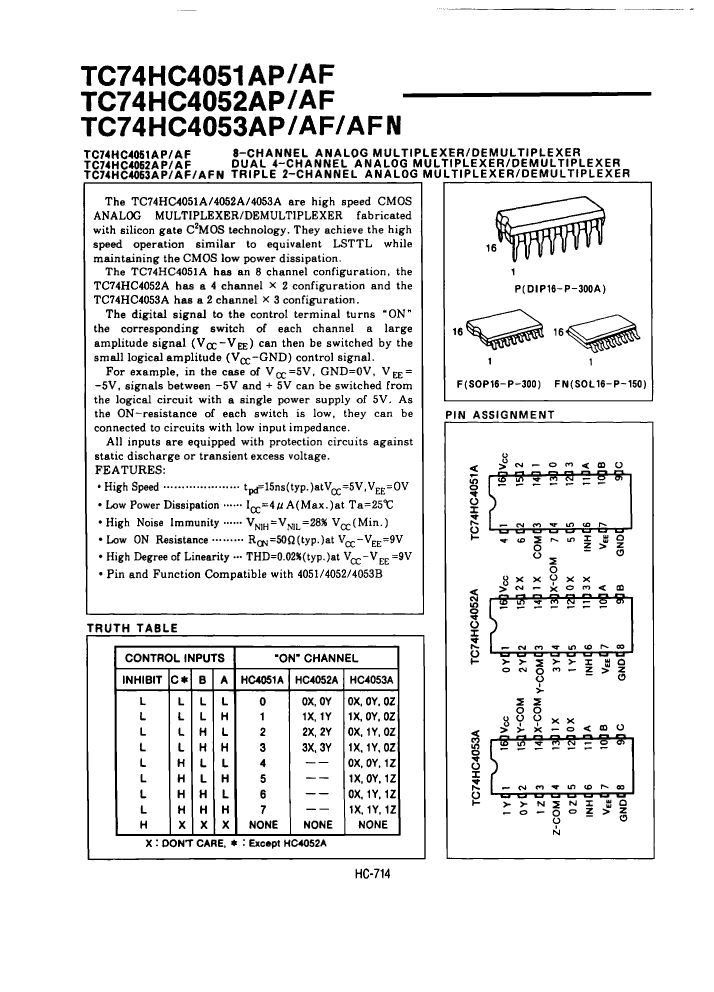

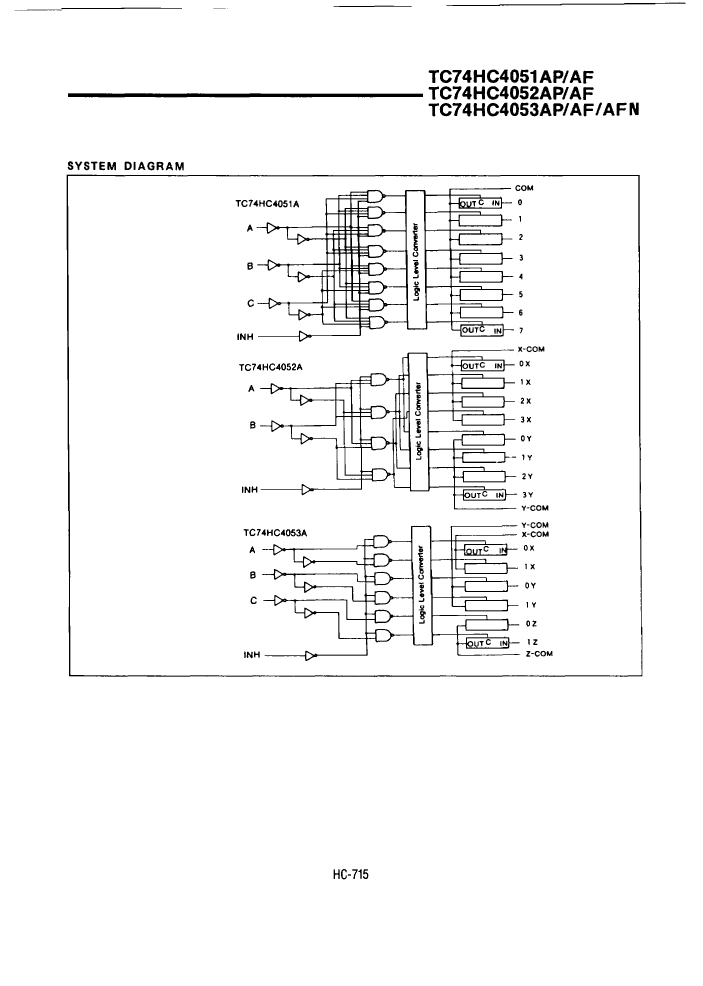

TC74HC4052AF(TP2) Overview

IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer or Switch

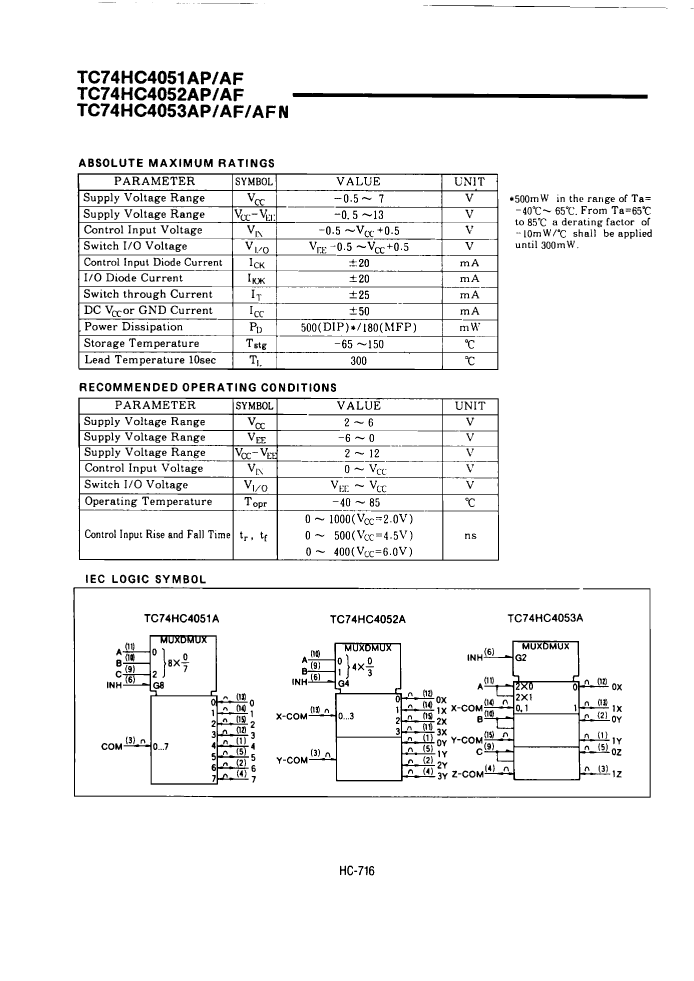

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of channels	4
Number of functions	1
Number of terminals	16

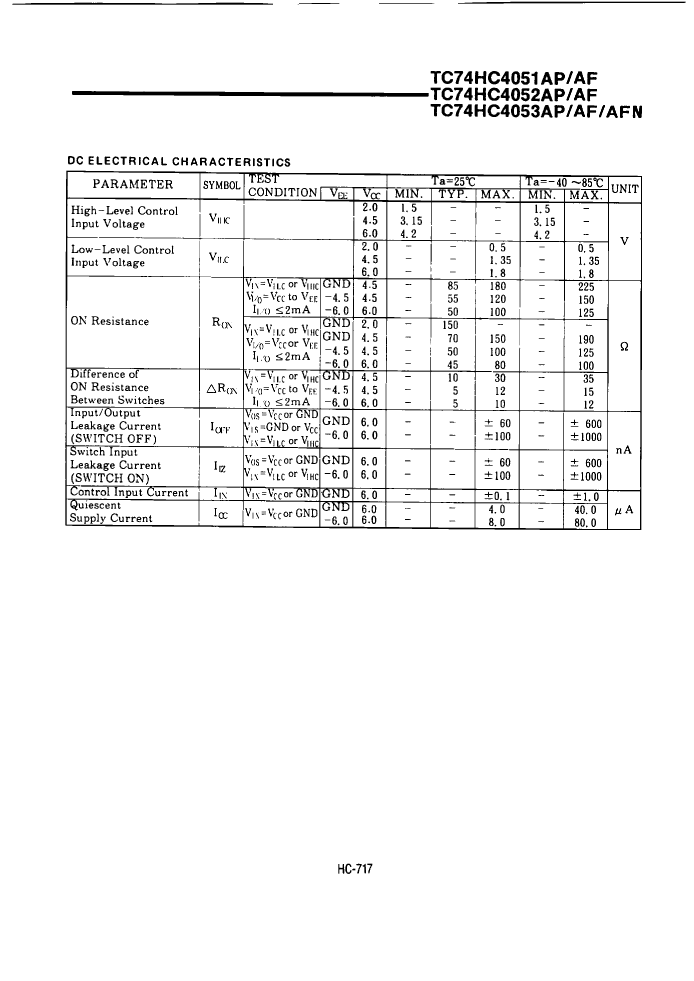

Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	6 V
surface mount	YES

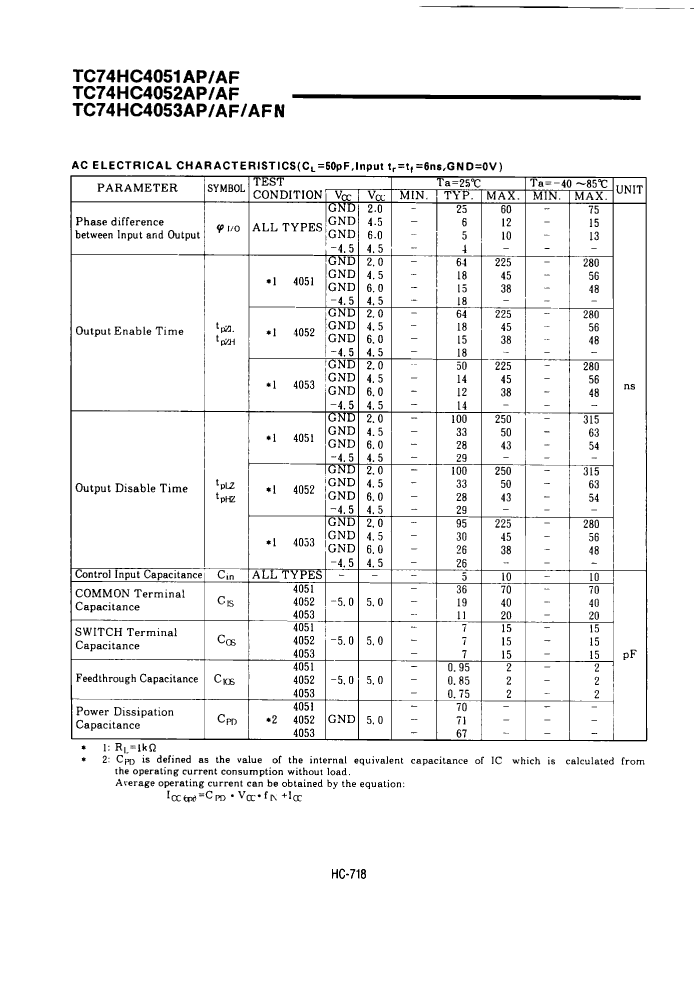

Maximum disconnect time	43 ns
Maximum connection time	38 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1
