PI74LPT16543AX: DescriptionRegistered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56; Categorylogic logic; File Size177KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74LPT16543AX Overview

Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56

PI74LPT16543AX Parametric

Parameter Name	Attribute value
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LPT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm
Base Number Matches	1

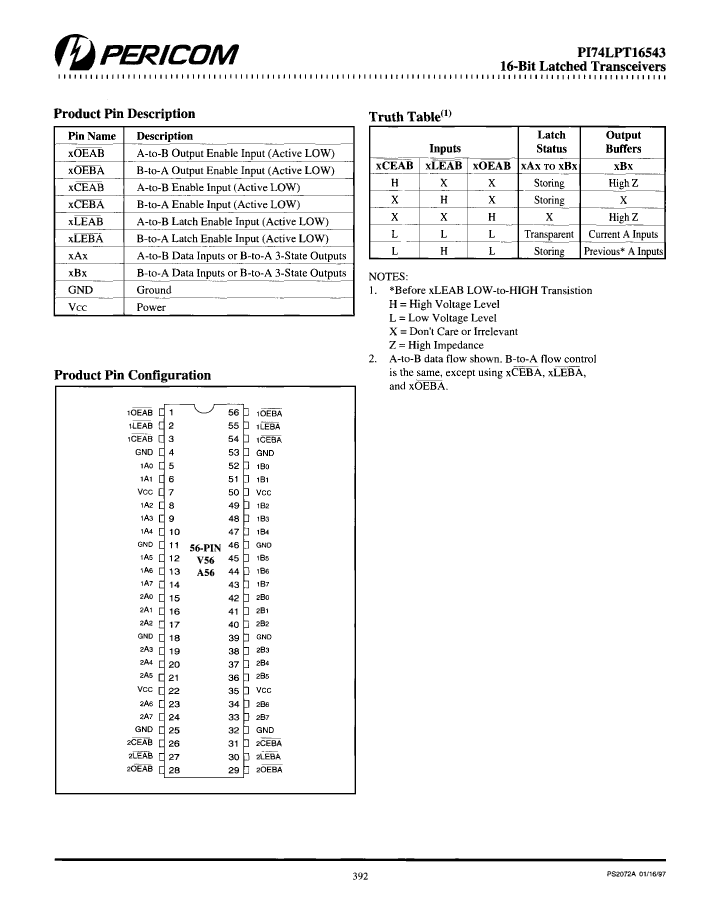

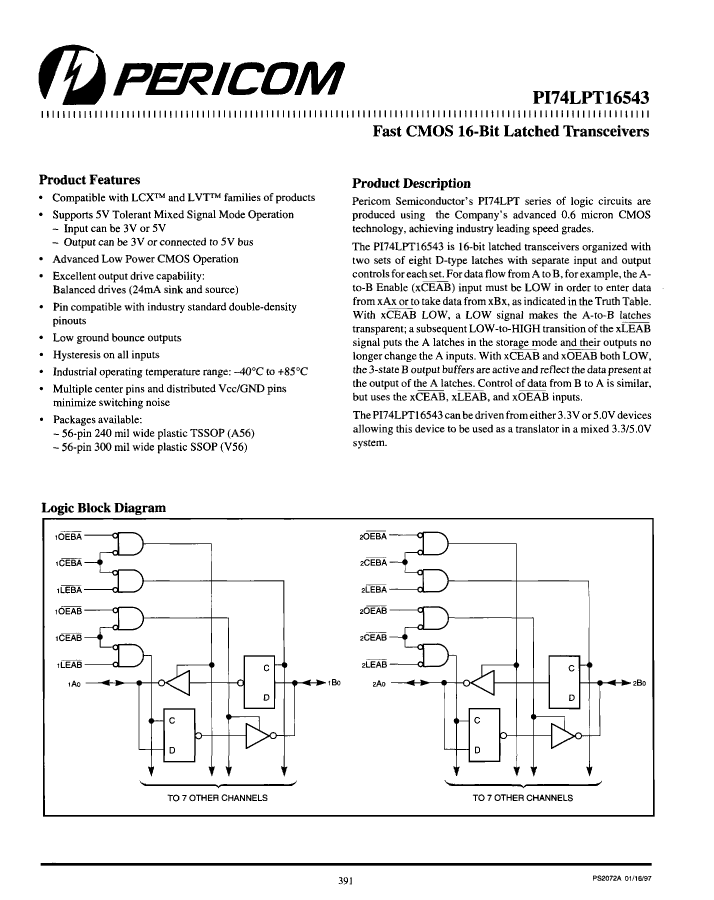

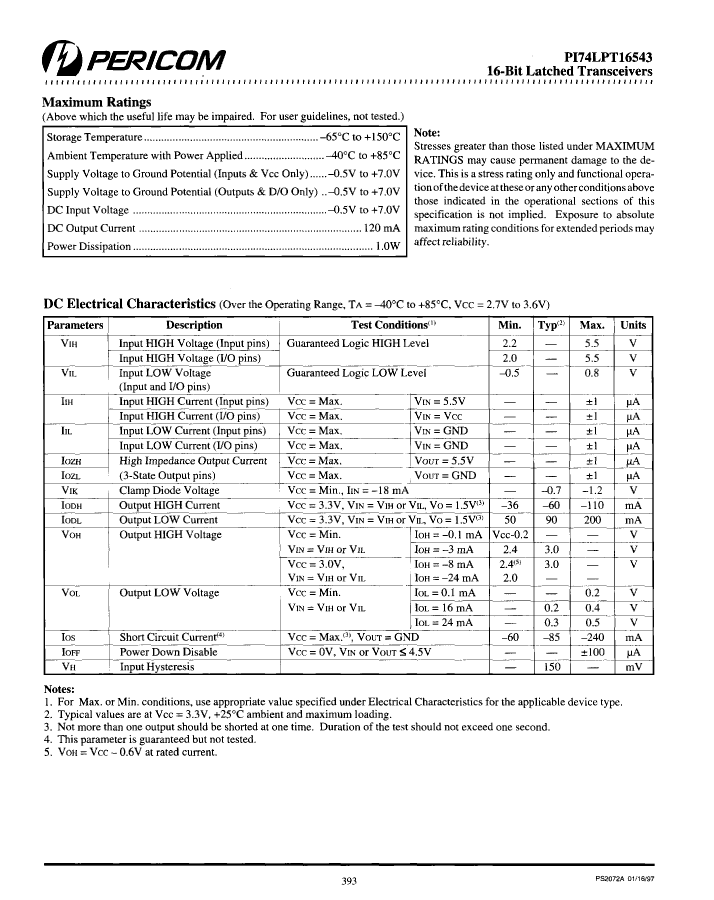

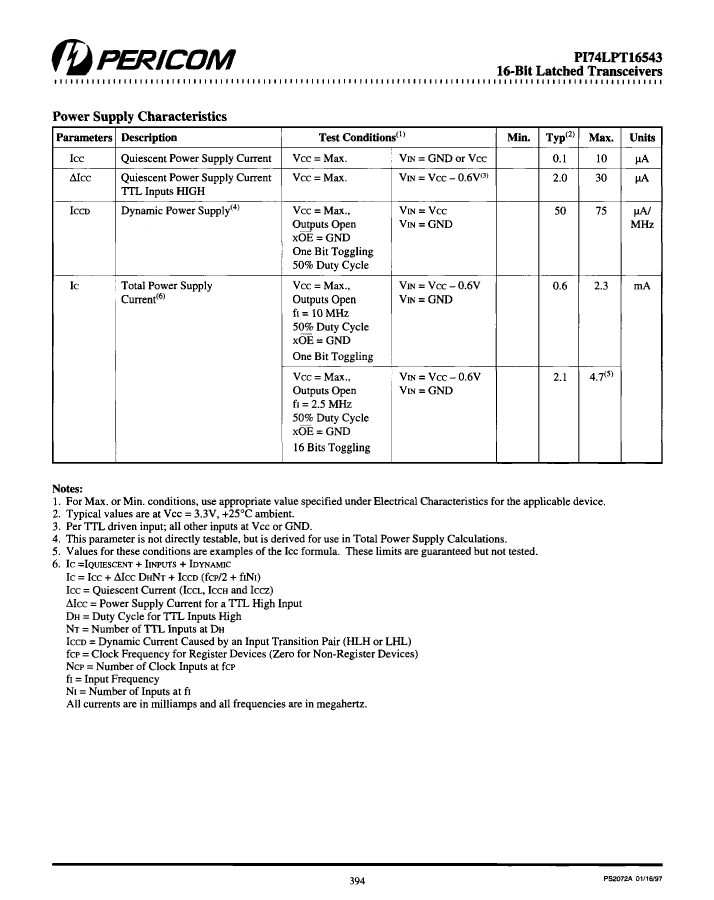

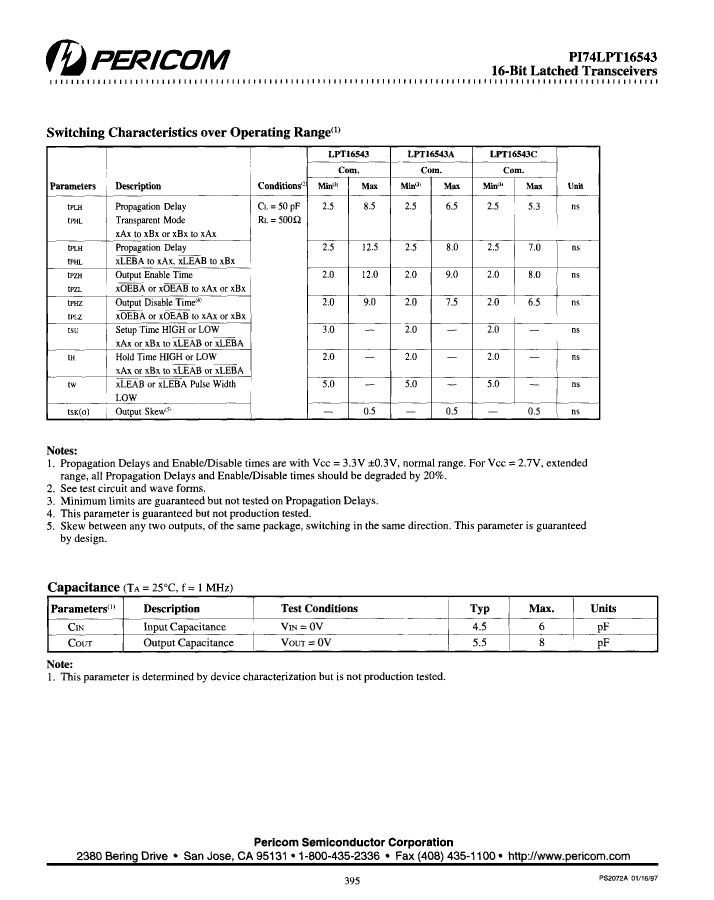

Preview

Download Datasheet

View All

PI74LPT16543AX Related Products

	PI74LPT16543AX	PI74LPT16543CAX	PI74LPT16543AAX	PI74LPT16543VX	PI74LPT16543AVX	PI74LPT16543CVX
Description	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	Registered Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56
Parts packaging code	TSSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP
package instruction	TSSOP,	0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	TSSOP,	SSOP,	SSOP,	SSOP,
Contacts	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	-	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LPT	LPT	LPT	LPT	-	LPT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	-	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0	-	e0
length	14 mm	14 mm	14 mm	18.415 mm	-	18.415 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	-	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	-	8
Number of functions	2	2	2	2	-	2
Number of ports	2	2	2	2	-	2
Number of terminals	56	56	56	56	-	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	-	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	SSOP	-	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	15 ns	8.4 ns	9.6 ns	15 ns	-	8.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	2.794 mm	-	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	-	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V
surface mount	YES	YES	YES	YES	-	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.635 mm	-	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL
width	6.1 mm	6.1 mm	6.1 mm	7.5 mm	-	7.5 mm
Base Number Matches	1	1	1	1	-	-
