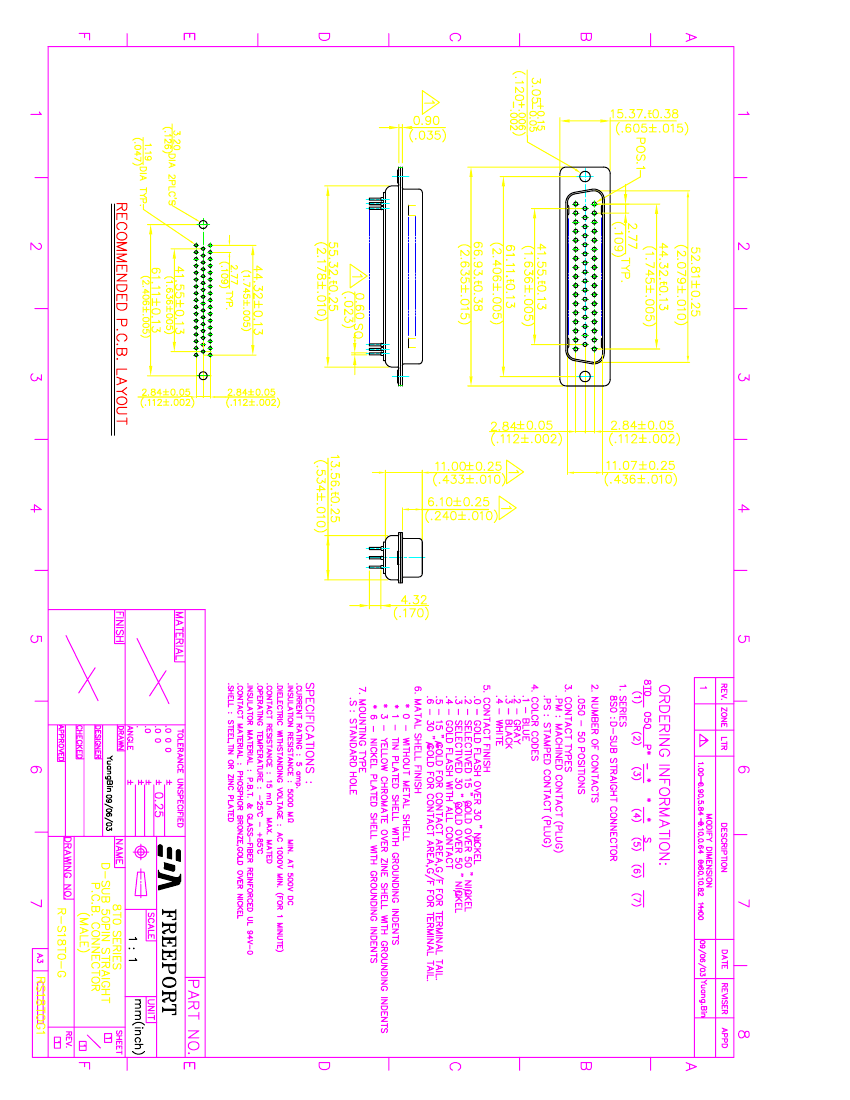

8T0050PS-450S: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerFreeport Resources Enterprises Corp

Download Datasheet Parametric Compare View All

8T0050PS-450S Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

8T0050PS-450S Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT METAL SHELL
body width	0.605 inch
subject depth	0.193 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8T0
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Rated current (signal)	5 A
reliability	COMMERCIAL
Terminal length	0.17 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

8T0050PS-450S Related Products

	8T0050PS-450S	8T0050PS-246S
Description	D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	WITHOUT METAL SHELL	WITH GROUNDING INDENTS
body width	0.605 inch	0.605 inch
subject depth	0.193 inch	0.193 inch
body length	2.635 inch	2.635 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	WHITE	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8T0	8T0
Plug contact pitch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
PCB row number	3	3
Number of rows loaded	3	3
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm
Plating thickness	15u inch	FLASH inch
Rated current (signal)	5 A	5 A
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.17 inch	0.17 inch
Terminal pitch	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER
Total number of contacts	50	50
