3CIF21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3CIF21

3CIF21: DescriptionElectric Fuse, 3A, 600VAC, 250VDC, 200000A (IR), Inline/holder; CategoryCircuit protection Circuit protection; File Size162KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

3CIF21 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3CIF21	-	-	View	Buy Now

3CIF21 Overview

Electric Fuse, 3A, 600VAC, 250VDC, 200000A (IR), Inline/holder

3CIF21 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body height	35.5 mm
Body length or diameter	13.8 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	CIF21
Installation features	INLINE/HOLDER
physical size	13.8mm x 35.5mm
Rated breaking capacity	200000 A
Rated current	3 A
Rated voltage (AC)	600 V
Rated voltage (DC)	250 V
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

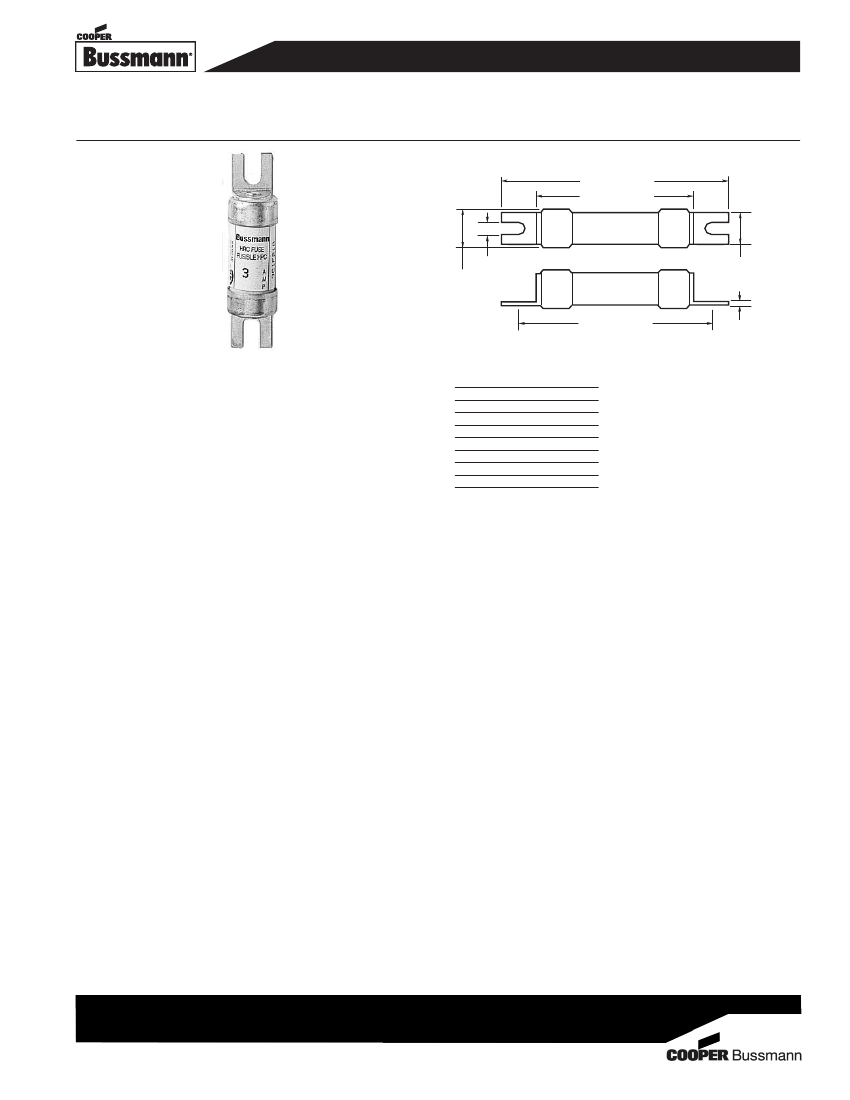

Industrial Ceramic Body Fuse

CIF21 Series, HRCI-CA, Bolt-On Mounting

Dimensions - in (mm)

2.15 (54.5)

1.44 (35.5)

0.19 (4.7)

0.54 (13.8)

0.44 (11.1)

1.75 (44.5)

0.03 (0.81)

Catalog Numbers

Catalog Symbol:

CIF21

Amps:

1 - 30A

Volts:

600Vac/250Vdc

Interrupting Rating:

200kA RMS Symmetrical

CSA C22.2 No.106-M92

Catalog

Numbers

1CIF21

3CIF21

6CIF21

10CIF21

15CIF21

20CIF21

25CIF21

30CIF21

Amp

Ratings

• Provides both overload and short-circuit protection to HRCI

requirements.

• Offset blades for bolt-on mounting.

• CIF21 fuse fits the Cooper Bussmann CAMaster fuse holder

(data sheet #4132).

0709 BU-SB09581

Page 1 of 2

Data Sheet 4127

3CIF21 Related Products

	3CIF21	10CIF21	15CIF21	1CIF21	20CIF21	25CIF21	30CIF21	6CIF21
Description	Electric Fuse, 3A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 10A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 15A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 1A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 20A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 25A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 30A, 600VAC, 250VDC, 200000A (IR), Inline/holder	Electric Fuse, 6A, 600VAC, 250VDC, 200000A (IR), Inline/holder
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknown	unknown
body height	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm
Body length or diameter	13.8 mm	13.8 mm	13.8 mm	13.8 mm	13.8 mm	13.8 mm	13.8 mm	13.8 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	CIF21	CIF21	CIF21	CIF21	CIF21	CIF21	CIF21	CIF21
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm	13.8mm x 35.5mm
Rated breaking capacity	200000 A	200000 A	200000 A	200000 A	200000 A	200000 A	200000 A	200000 A
Rated current	3 A	10 A	15 A	1 A	20 A	25 A	30 A	6 A
Rated voltage (AC)	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
Rated voltage (DC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	1	1	1	1	1	1	1	-
