SMP5022-683MLF: DescriptionGeneral Purpose Inductor, 680uH, 20%, 1 Element, Ferrite-Core, SMD, 7562, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

SMP5022-683MLF Overview

General Purpose Inductor, 680uH, 20%, 1 Element, Ferrite-Core, SMD, 7562, ROHS COMPLIANT

SMP5022-683MLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	7562
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	7562
structure	Chip
core material	Ferrite
DC Resistance	1.1 Ω
Nominal inductance(L)	680 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	SMP5022LF
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	7.11 mm
Package length	19.05 mm
Package form	SMT
Package width	15.75 mm
method of packing	TR, 13 Inch
Maximum rated current	0.72 A
series	SMP5022LF
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

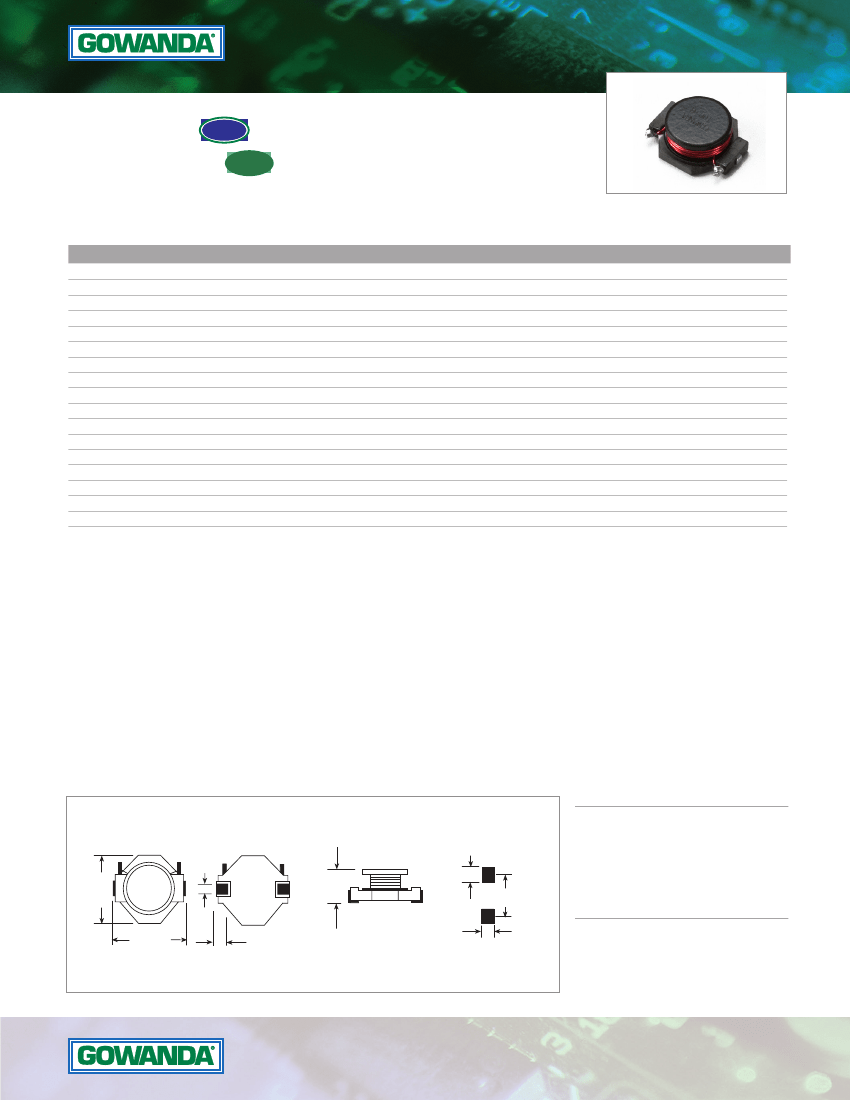

STANDARD POWER INDUCTORS - SURFACE MOUNT

SMP5022

SMP5022LF

*

PART

NUMBER

SMP5022-101M

SMP5022-221M

SMP5022-331M

SMP5022-561M

SMP5022-102M

SMP5022-152M

SMP5022-222M

SMP5022-332M

SMP5022-472M

SMP5022-682M

SMP5022-103M

SMP5022-153M

SMP5022-223M

SMP5022-333M

SMP5022-473M

SMP5022-683M

SMP5022-104M

TRADITIONAL

Pb

COMPLIANT

RoHS

Wirewound, Open Construction

L µH

@ 100 kHz

1.0

2.2

3.3

10

15

22

33

47

100

150

220

330

470

1000

680

68

5.6

DCR

OHMS

MAX

FERRITE CORE

0.0090

0.0140

0.0150

0.0200

0.0310

0.0360

0.0470

0.0660

0.0860

0.1900

0.2500

0.3800

0.5600

0.8500

1.1000

1.8000

0.1300

20

19

17

15

12

9.7

7.8

8.6

7.1

6.2

5.3

4.3

4.0

3.0

2.6

1.8

1.5

1.2

1.0

0.82

0.72

0.56

3.5

SATURATION CURRENT

A DC

CURRENT RATING

A DC

6.5

5.6

3.6

3.0

2.5

2.1

1.7

1.4

1.2

4.5

2.3

Suffix “M” for 20% tolerance

Custom designs are available to meet your specific requirements; please contact factory.

*Add “LF” suffix for RoHS requirement. Example: SMP5022-101MLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

TOP VIEW

0.620

(15.75)

MAX

0.075

(1.91)

REF

BOTTOM VIEW

SIDE VIEW

RECOMMENDED

FOOT PRINT

0.160 (4.06)

0.660 (16.76)

CENTERS

0.160

(4.06)

NOTES:

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 40°C temperature

rise at an ambient temperature of 85°C

• Saturation Current is the approximate value

that will reduce the initial inductance by 10%

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

350

24 mm

32 mm

13 in.

470µH

0.280

(7.11)

MAX

0.750

(19.05) MAX

0.050 (1.27) MIN

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

122813
