SMH101M
THRU
SMH107M
1.0 AMP SURFACE MOUNT HIGH EFFICIENCY RECTIFIERS
VOLTAGE RANGE
50 to 800 Volts
CURRENT
FEATURES
* Ideal for surface mount applications
* Easy pick and place
* Built-in strain relief
* Fast switching speed
1.0 Ampere
SOD-123
0.161(4.1)
0.146(3.7)
0.071(1.8)
0.055(1.4)
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.04 grams
0.035(0.9)
0.067(1.7)
0.060(1.5)
0.035(0.9)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at T
A
=50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 1.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Ta=100 C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range T
J
, T
STG
NOTES:
SMH101M SMH102M SMH103M SMH104M SMH105M SMH106M SMH107M
UNITS
V
V
V
A
A
V
A
A
nS
pF
C
50
35
50
100
70
100
200
140
200
300
210
300
1.0
30
400
280
400
600
420
600
800
560
800
1.0
5.0
100
50
1.3
1.7
75
15
-65 +150
1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

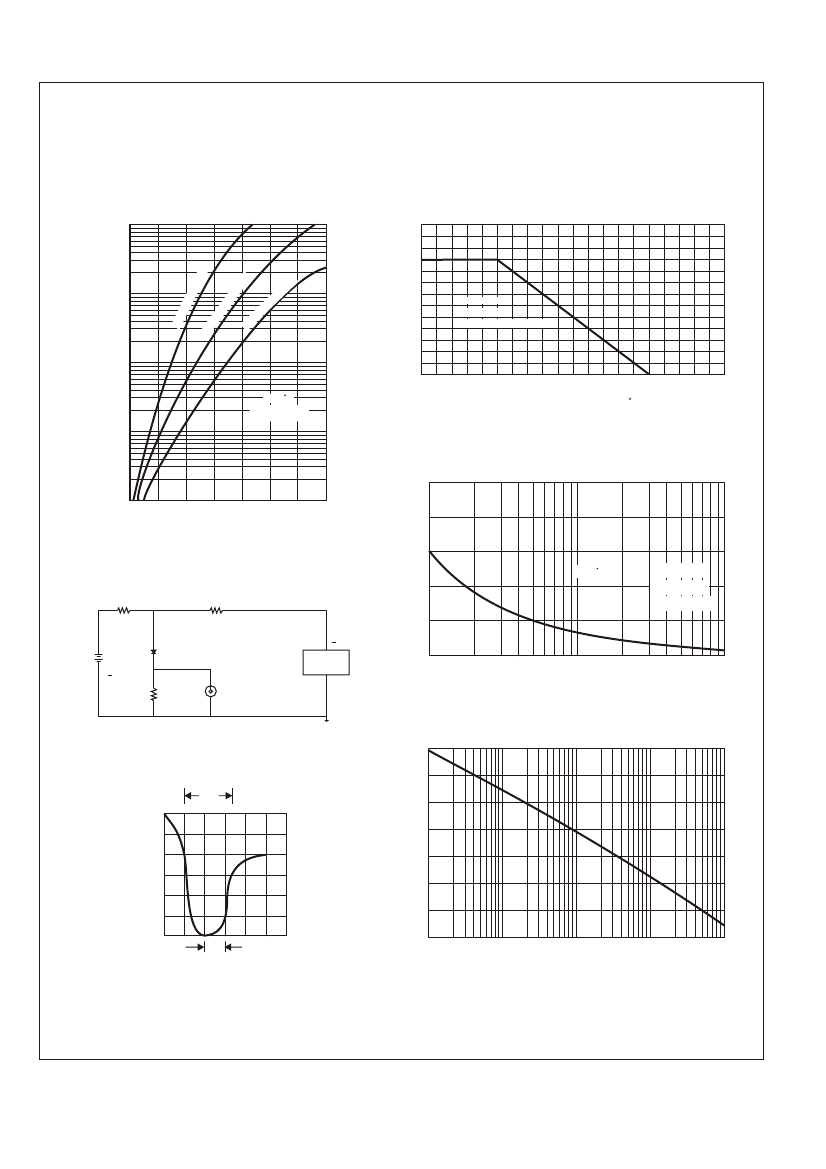

RATING AND CHARACTERISTIC CURVES (SMH101M THRU SMH107M)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
10
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
120
140
160
180
200
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
INSTANTANEOUS FORWARD CURRENT,(A)
03 M
01 M
~S
MH
1
M
05
SM
H1
04
SM
H1
0.1
Tj=25 C
Pulse Width 300us
1% Duty Cycle
SM
H
10
6M
~S
M
H
1.0
M~
SM
H1
10
7M
LEAD TEMPERATURE ( C)
0.01
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWAARD SURGE CURRENT,(A)
50
.001
.4
.6
.8
1.0
1.2
1.4
1.6
1.8
FORWARD VOLT
AGE,(V)
40
FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
30
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
20
10
(+)
25Vdc
(approx.)
( )
1
W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
FIG.5-TYPICAL JUNCTION CAPACITANCE
35
30
25
20
15
10
5
trr
+0.5A
|
|
|
|
|
|
|
|
0
-0.25A
JUNCTION CAPACITANCE,(pF)
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
0
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
