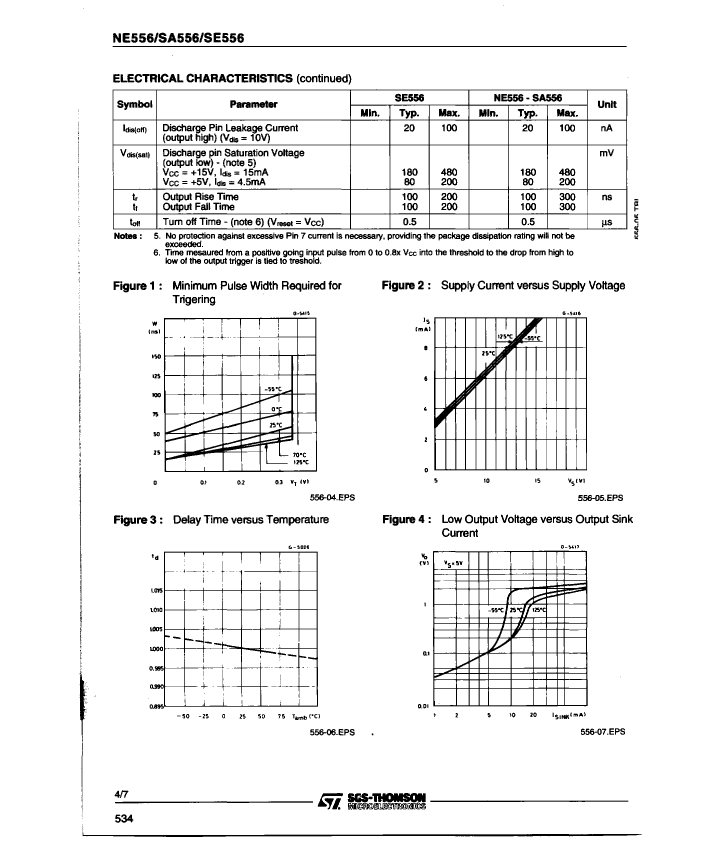

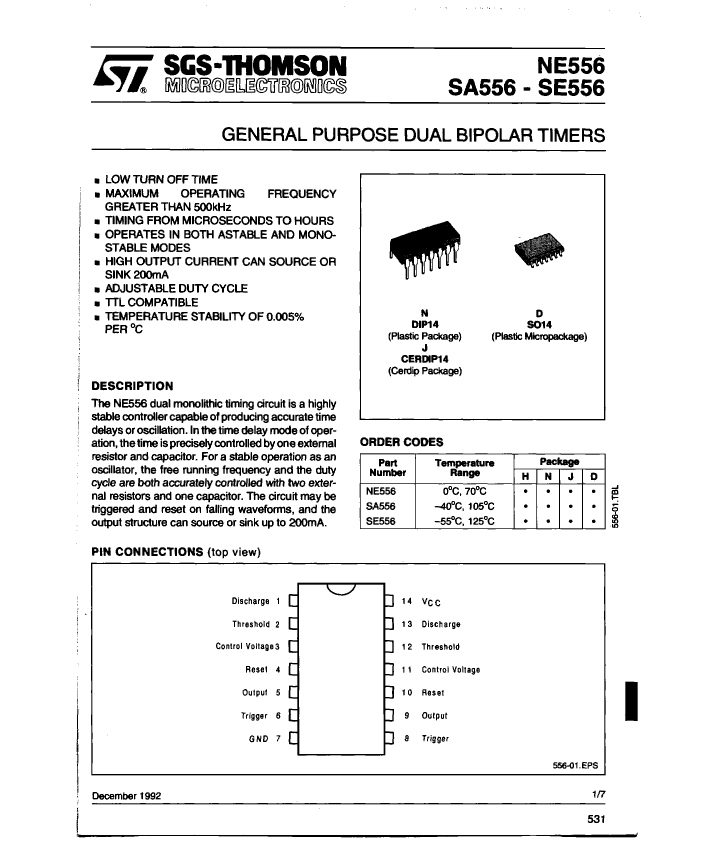

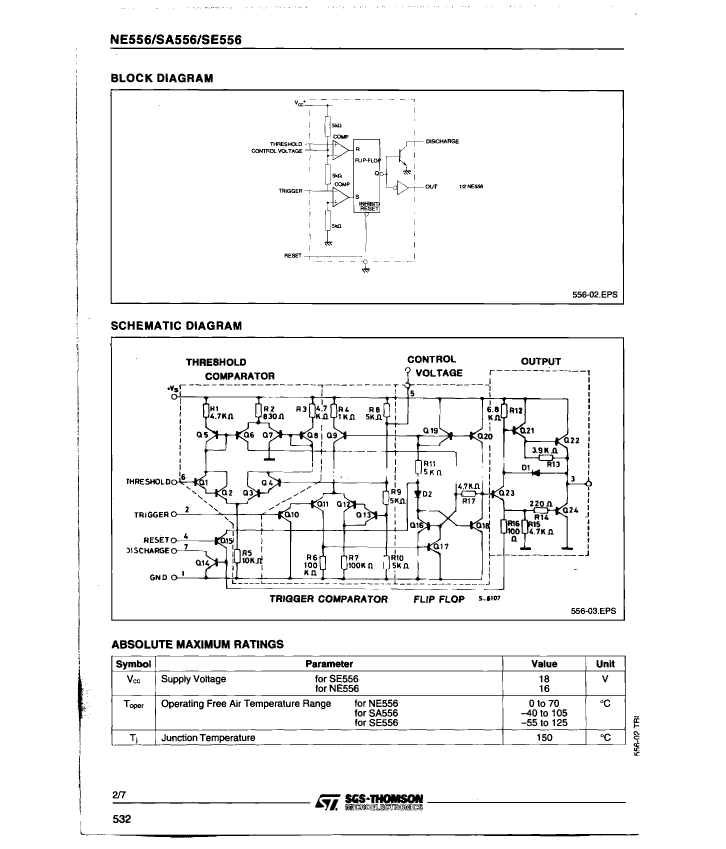

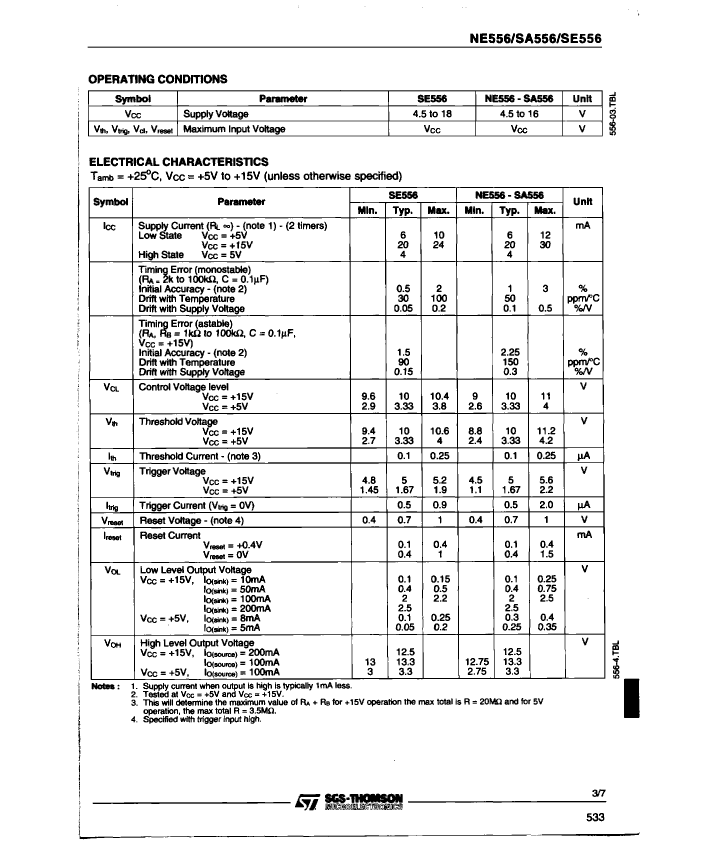

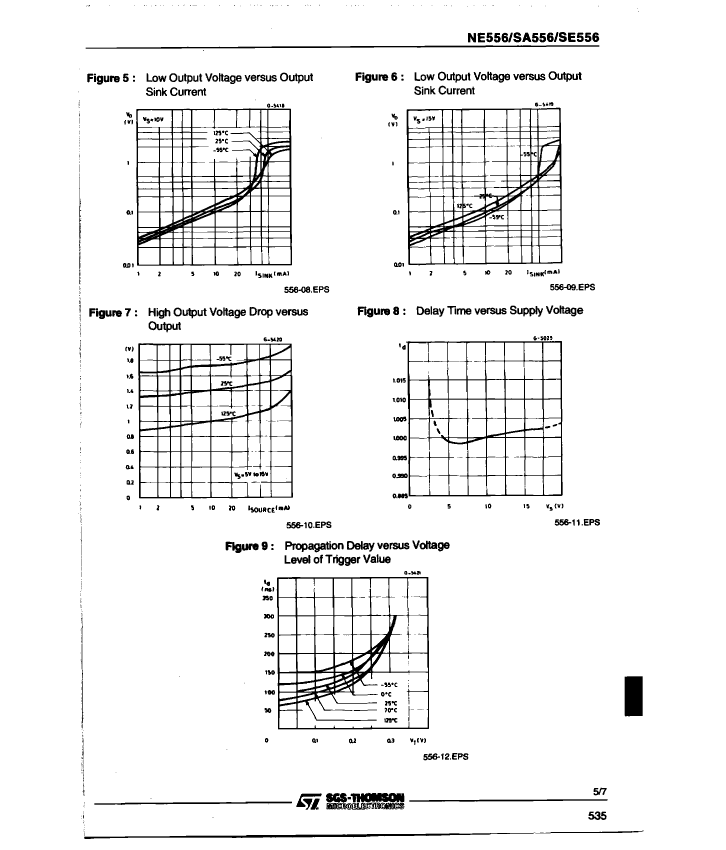

Preview

SA556J: DescriptionDUAL PULSE, TIMER, CDIP14, CERDIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size170KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

SA556J Overview

DUAL PULSE, TIMER, CDIP14, CERDIP-14

SA556J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	IT CAN ALSO OPERATE AT 15V NOM
Analog Integrated Circuits - Other Types	PULSE
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Number of functions	2
Number of terminals	14
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SA556J Related Products

	SA556J	NE556J	SE556J
Description	DUAL PULSE, TIMER, CDIP14, CERDIP-14	DUAL PULSE, TIMER, CDIP14, CERDIP-14	DUAL PULSE, TIMER, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Other features	IT CAN ALSO OPERATE AT 15V NOM	IT CAN ALSO OPERATE AT 15V NOM	IT CAN ALSO OPERATE AT 15V NOM
Analog Integrated Circuits - Other Types	PULSE	PULSE	PULSE
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14
JESD-609 code	e0	e0	e0
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	105 °C	70 °C	125 °C
Minimum operating temperature	-40 °C	-	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	16 V	16 V	18 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	-
