M5M5408ATP-10L-I datasheet, PDF

Datasheet> All Categories > storage> storage> M5M5408ATP-10L-I

M5M5408ATP-10L-I: DescriptionStandard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.400 INCH, TSOP2-32; Categorystorage storage; File Size31KB，7 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M5M5408ATP-10L-I Overview

Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.400 INCH, TSOP2-32

M5M5408ATP-10L-I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP32,.46
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	20.95 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP32,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.0001 A
Minimum standby current	2 V
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUBISHI LSIs

M5M5408AFP,TP,RT-70L-I,-70LL-I,

-10L-I,-10LL-I

4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

DESCRIPTION

The M5M5408A is 4,194,304-bit CMOS static RAM organized as

524,288-words by 8-bit, fabricated using high-performance

quadruple-polysilicon and double metal CMOS technology.

The use of thin film transistor (TFT) load cells and CMOS periphery

results in a high density and low power static RAM.

The

M5M5408A is designed for memory applications where the high

performance, high reliability, large storage, simple interfacing and

battery back-up are important design objectives.

The M5M5408A is offered in a 32-pin plastic small outline

package (SOP) and a 32-pin thin small outline package (TSOP),

providing high board level packing densities. Two types of TSOP

packages are available, M5M5408ATP(normal lead bend type

package) and M5M5408ART (reverse lead bend type package).

Using both two types makes it easy to design a printed circuit

board.

PIN CONFIGURATION (TOP VIEW)

FEATURES

Type

Access

time

(max)

M5M5408AFP,TP,RT-70L-I

M5M5408AFP,TP,RT-10L-I

70ns

100ns

90mA

(Vcc=5.5V)

M5M5408AFP,TP,RT-70LL-I

M5M5408AFP,TP,RT-10LL-I

70ns

100ns

40µA

(Vcc=5.5v)

Power supply current

Active

(max)

Stand-by

(max)

200µA

(Vcc=5.5v)

18 1

16 2

14 3

12 4

7 5

6 6

5 7

4 8

3 9

2 10

1 11

0 12

1 13

2 14

3 15

(0V)

GND

(5V)

Outline 32P2M-A(FP)

32P3Y-H(TP)

M5M5408AFP,TP

-I

(5V)

• Single +5V power supply

• No clocks, No refresh

• All inputs and outputs are TTL compatible.

• Easy memory expansion and power down by S

• Data retention supply voltage=+2.0V

• Three-state outputs: OR-tie capability

• OE prevents data contention in the I/O bus

• Common Data I/O

• Small stand-by current………………0.4µA(typ.)

• Package

M5M5408AFP : 32 pin 525 mil SOP

M5M5408ATP : 32 pin 400 mil TSOP(II)

M5M5408ART : 32 pin 400 mil TSOP(II)

GND

(0V)

Outline 32P3Y-J(RT)

M5M5408ART

-I

APPLICATION

Small capacity memory units, IC card, Battery operating system,

asynchronous server system

MITSUBISHI

ELECTRIC

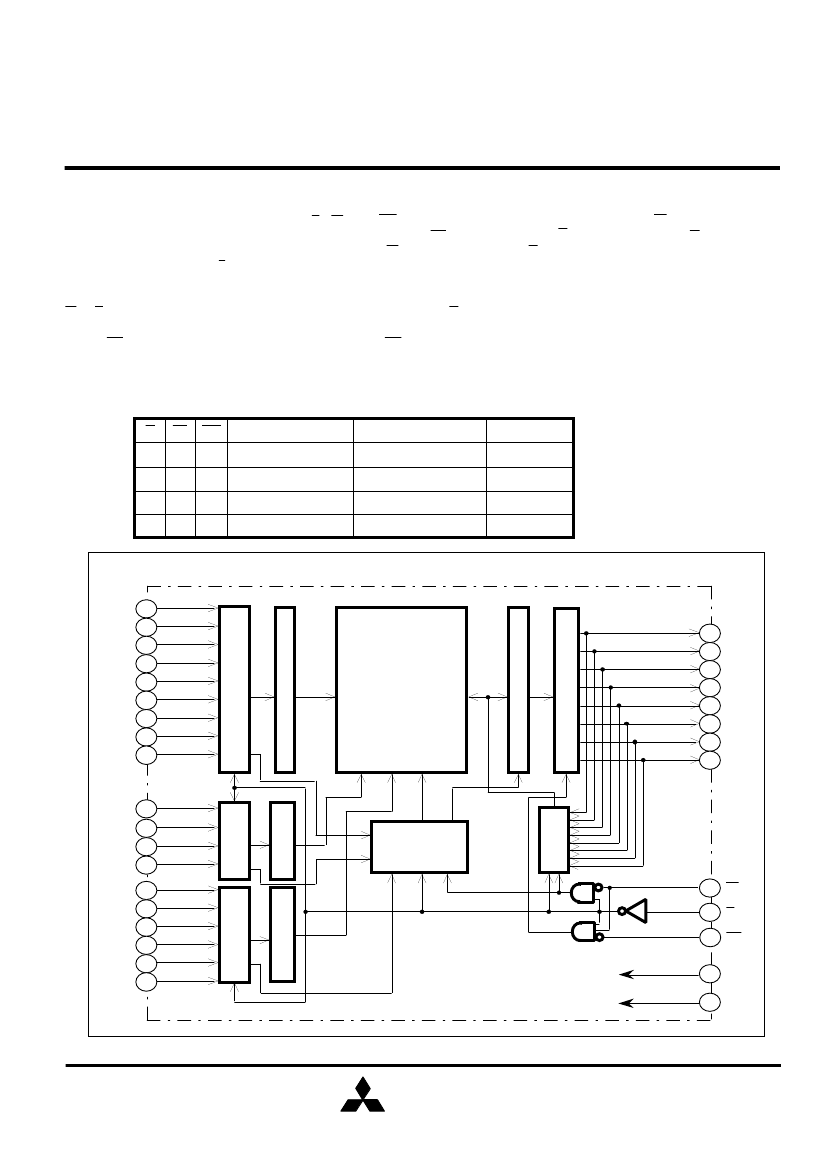

M5M5408ATP-10L-I Related Products

	M5M5408ATP-10L-I	M5M5408AFP-10L-I	M5M5408ATP-10LL-I	M5M5408AFP-70LL-I	M5M5408ART-10LL-I	M5M5408AFP-10LL-I	M5M5408AFP-70L-I	M5M5408ART-70LL-I	M5M5408ATP-70L-I
Description	Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.400 INCH, TSOP2-32	Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.400 INCH, TSOP2-32	Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.400 INCH, REVERSE, TSOP2-32	Standard SRAM, 512KX8, 100ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.525 INCH, PLASTIC, SOP-32	Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.400 INCH, REVERSE, TSOP2-32	Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.400 INCH, TSOP2-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP2	SOIC	TSOP2	SOIC	TSOP2	SOIC	SOIC	TSOP2	TSOP2
package instruction	TSOP2, TSOP32,.46	SOP, SOP32,.56	TSOP2, TSOP32,.46	SOP, SOP32,.56	TSOP2-R, TSOP32,.46	SOP, SOP32,.56	SOP, SOP32,.56	TSOP2-R, TSOP32,.46	TSOP2, TSOP32,.46
Contacts	32	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	100 ns	100 ns	100 ns	70 ns	100 ns	100 ns	70 ns	70 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	20.95 mm	20.75 mm	20.95 mm	20.75 mm	20.95 mm	20.75 mm	20.75 mm	20.95 mm	20.95 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bi	4194304 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	SOP	TSOP2	SOP	TSOP2-R	SOP	SOP	TSOP2-R	TSOP2
Encapsulate equivalent code	TSOP32,.46	SOP32,.56	TSOP32,.46	SOP32,.56	TSOP32,.46	SOP32,.56	SOP32,.56	TSOP32,.46	TSOP32,.46
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3.05 mm	1.2 mm	3.05 mm	1.2 mm	3.05 mm	3.05 mm	1.2 mm	1.2 mm
Maximum standby current	0.0001 A	0.0001 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.0001 A	0.00002 A	0.0001 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.09 mA	0.09 mA	0.09 mA	0.09 mA	0.09 mA	0.09 mA	0.09 mA	0.09 mA	0.09 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	11.4 mm	10.16 mm	11.4 mm	10.16 mm	11.4 mm	11.4 mm	10.16 mm	10.16 mm
Maker	-	Mitsubishi	-	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
