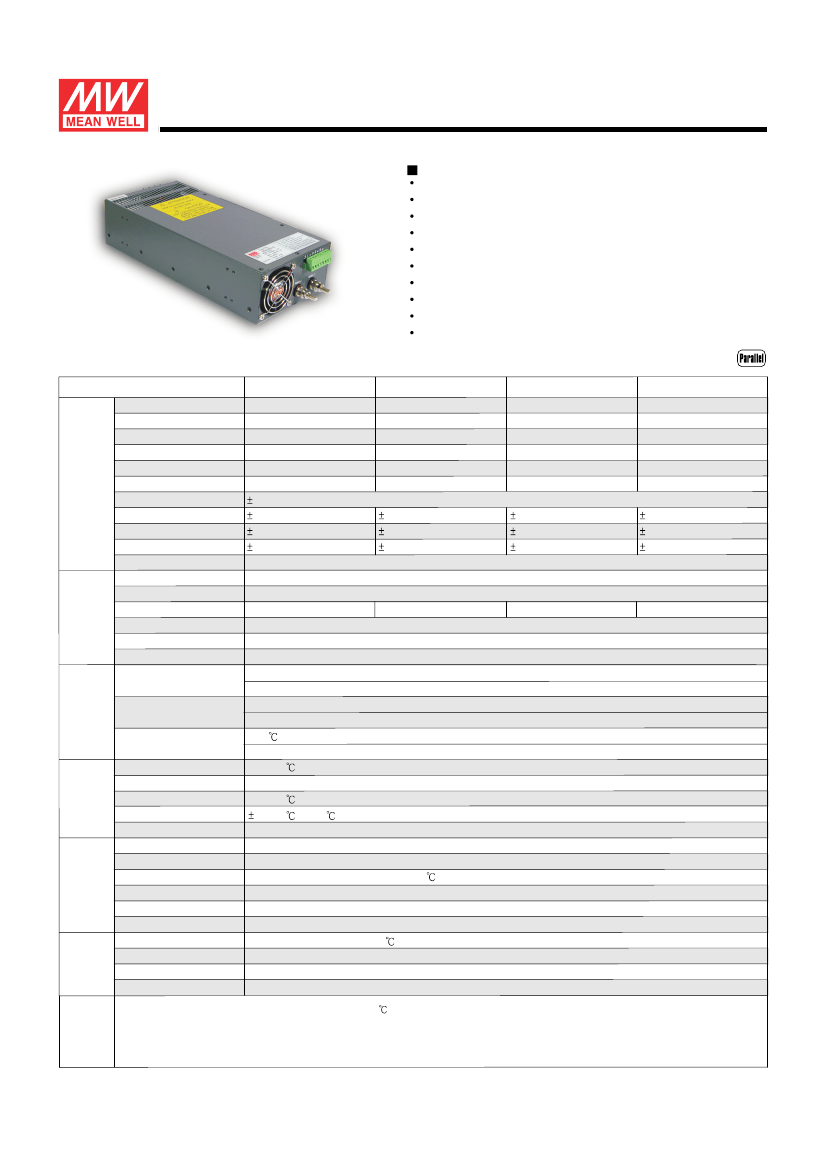

800W Single Output With Parallel Function
Features :
SCN-800
series
AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over temp.
High reliability/ Low ripple noise
Built-in remote sense function
Built-in remote ON-OFF control
Built-in parallel operation function
Can adjust from 20~100% output voltage by external control 1-5V
Forced air cooling by built-in DC fan
Case coating with paint
2 years warranty
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SCN-800-12
800S-N012
12V
66A
0 ~ 66A
792W
SCN-800-15
800S-N015
15V
54A
0 ~ 54A
810W
150mVp-p
SCN-800-24
800S-N024
24V
33A
0 ~ 33A
792W
240mVp-p
20~100% adjustment by 1~5VDC external control
1.0%
0.5%
0.5%
SCN-800-48
800S-N048
48V
16.6A
0 ~ 16.6A
796W
480mVp-p
1.0%
0.5%
0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
5.0% typical adjustment by potentiometer
1.0%
VOLTAGE TOLERANCE
Note.3
1.0%
0.5%
0.5%
0.5%
0.5%
SETUP, RISE, HOLD UP TIME
800ms, 50ms, 16ms at full load
90 ~ 130VAC / 180 ~ 260VAC selected by switch, 260 ~ 370VDC
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT (max.)
OVERLOAD
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING TEMP., HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
47 ~ 63Hz
80%
17A / 115VAC 9A / 230VAC
60A / 230VAC
3.5mA / 240VAC
110 ~ 135% rated output power
Protection type : Current limiting, delay shut down o/p voltage, re-power on to recover
110 ~ 135% follow to output set up point
Protection type : Shut down o/p voltage, re-power on to recover
>100
/ measure by heat sink, near transformer
Protection type : Shut down o/p voltage, re-power on to recover
-10 ~ +65 (Refer to output load derating curve)
20% ~ 90% RH non-condensing
-20 ~ +85
, 10 ~ 95% RH
0.04% / (0 ~ 50 )
10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Design refer to UL1950, CSA22.2, IEC60950
I/P-O/P, I/P-FG:1500VAC
I/P-O/P, I/P-FG, >100M Ohms / 500VDC / 25
81%
85%
87%
SAFETY &
ISOLATION RESISTANCE
EMC
EMI CONDUCTION & RADIATION
Design refer to FCC part 15 class A
(Note. 4)
HARMONIC CURRENT
----
EMS IMMUNITY
----
MTBF
OTHERS
DIMENSION
PACKING
SPECIAL FUNCTION
120khrs min. MIL-HDBK-217F (25
/ 70% RH
)
291*132*68mm (L*W*H)
2.3kg; 8pcs/ 24kg /CARTON

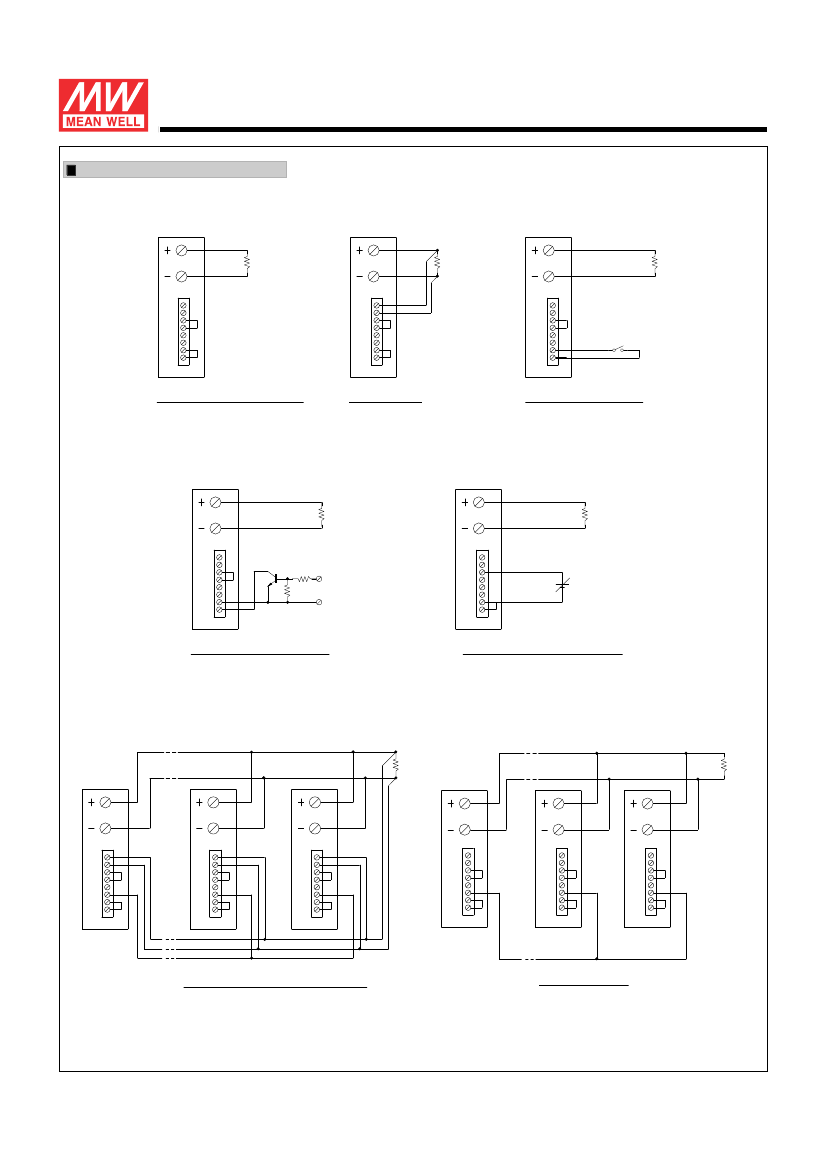

DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)
NOTE
1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient.
2.Tolerence: includes set up tolerance, line regulation, load regulation.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
