PM-AD001S: DescriptionTRANSFORMER FOR DIGITAL AUDIO DATA TRANSMISSION; File Size38KB，2 Pages; ManufacturerPremier Magnetics, Inc.; Websitehttp://www.premiermag.com/

Download Datasheet Compare View All

PM-AD001S Overview

TRANSFORMER FOR DIGITAL AUDIO DATA TRANSMISSION

Preview

Download Datasheet

View All

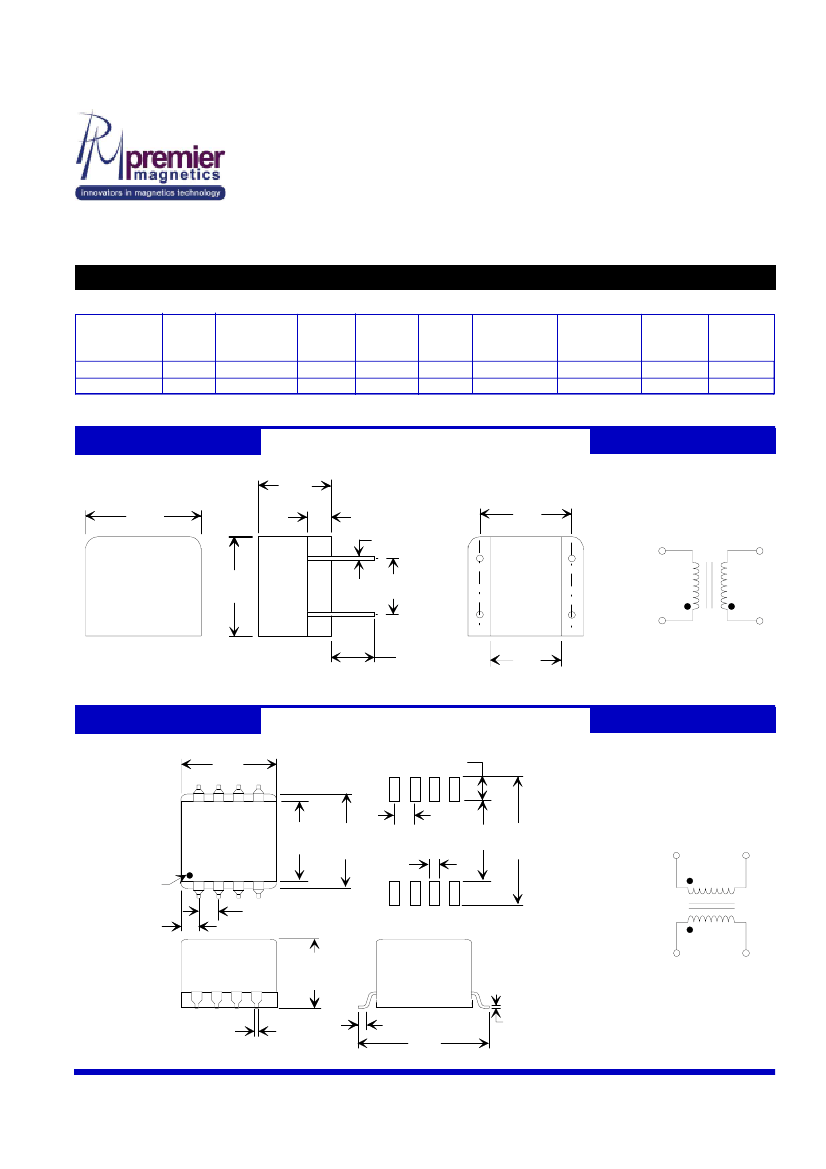

TRANSFORMER FOR DIGITAL

AUDIO DATA TRANSMISSION

Operating transmission rates:1 to 7 Mbps.

Controlled rise time: 25 nsec Maximum.

High isolation voltage: 2 kV Minimum.

Iinductance test at 100KHz.

ELECTRICAL SPECIFICATIONS AT 25

C - OPERATING TEMPERATURE RANGE 0

C TO +70

PART

NUMBER

PM-AD001

PM-AD001S

Turns

Ratio

(±42%)

PRI

Inductance

(mH

20%)

PRI

Rise Time

nsec

(µH Max)

( Max)

V-µsec

( Max)

Bandwidth

Return Loss

Isolation

Schematic

100KHz-55MHz 100KHz-10MHz

(Vrms MIN.)

(Typ)

(Min)

1:1

2.5

0.5

3 dB

20 dB

2000

THT

SMT

PM-AD001

.250

(6.35)

MAX

.080

(2.03)

TYP

#24 AWG

.400

(10.16)

SCHEMATIC

.500

(12.70)

MAX

PM-AD001

YYWW

.350

(8.89)

MAX

.200

(5.08)

.130

(3.30)

.340

(8.64)

PM-AD001S

.475

(12.06)

MAX

.120

(3.05)

SCHEMATIC

.400

(10.16)

MAX

.475

(12.06)

MAX

.100

(2.54)

PM-AD001S

YYWW

DOT FOR PIN 1

.100

(2.54)

.400

(10.16)

.640

(16.26)

.050

(1.27)

.085

(2.16)

.340

(8.64)

MAX

.030

(.76)

Specifications subject to change without notice.

.040-.050

(1.02-1.27)

.600

(15.24)

MAX

.010-.020

(.25-.51)

pm-adxxxx 03/02

20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630

•

TEL: (949) 452-0511

•

FAX: (949) 452-0512

•

http://www.premiermag.com
