Z84C3006FSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C3006FSC

Z84C3006FSC: DescriptionProgrammable Timer, 1 Timer(s), CMOS, PQFP44, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size574KB，16 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C3006FSC Overview

Programmable Timer, 1 Timer(s), CMOS, PQFP44, QFP-44

Z84C3006FSC Parametric

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	6.17 MHz
External data bus width	8
JESD-30 code	S-PQFP-G44
length	10 mm
Number of digits	8
Number of terminals	44
Number of timers	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE
Base Number Matches	1

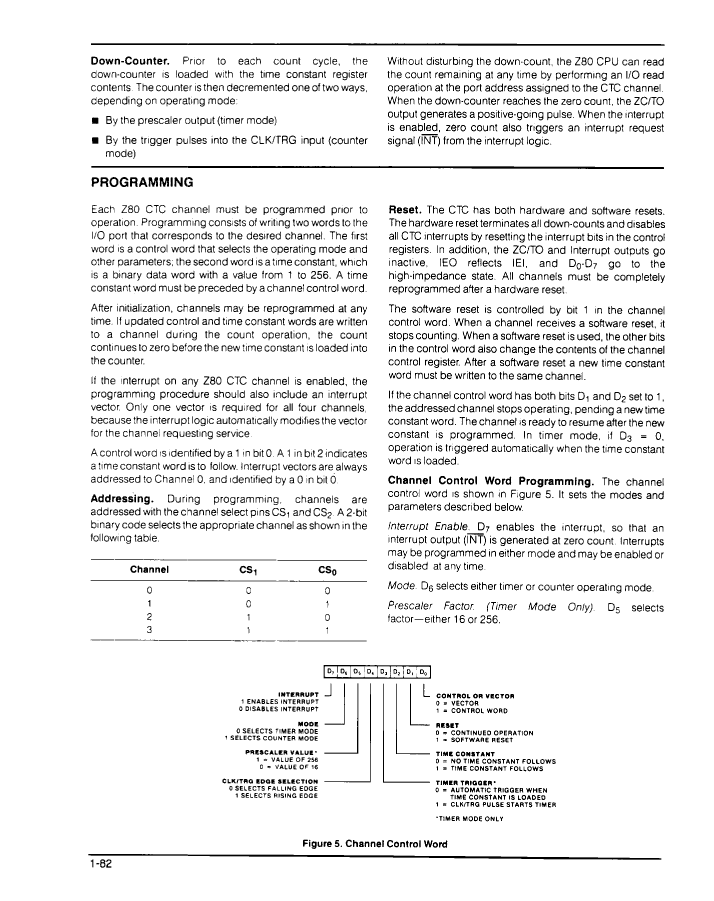

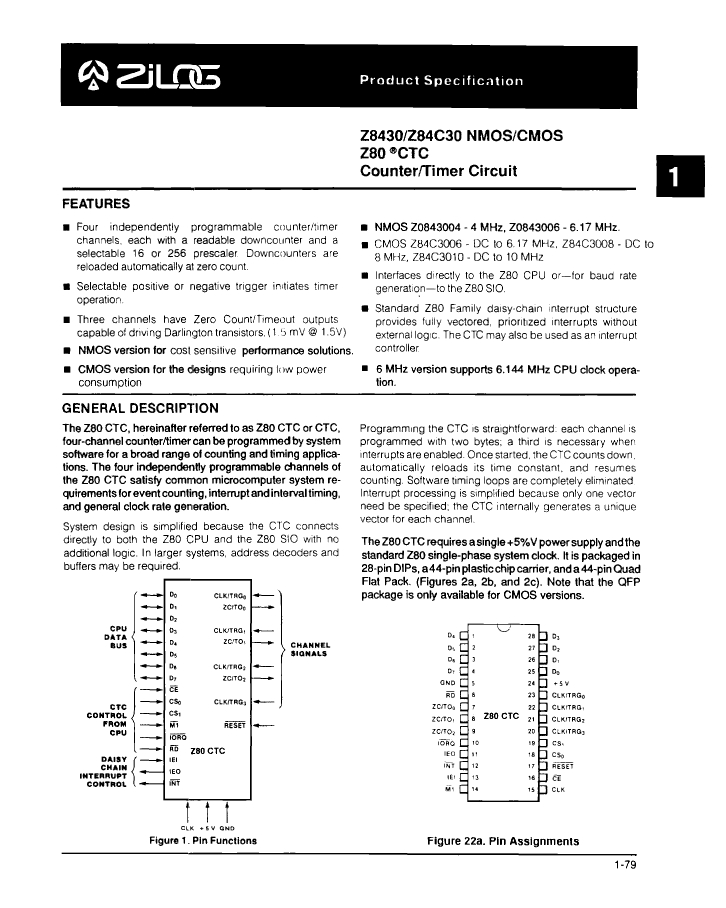

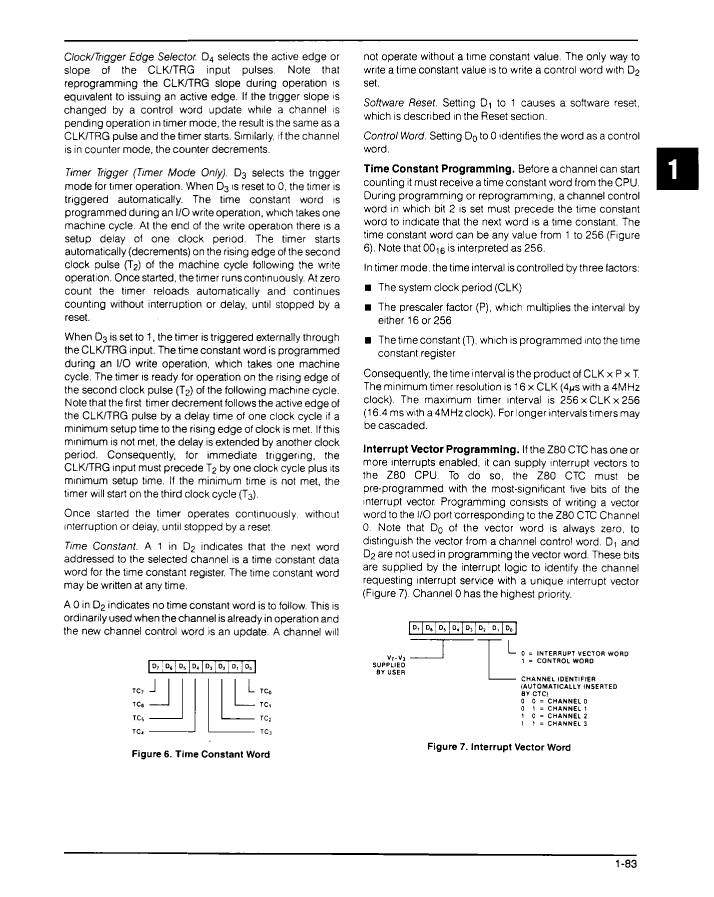

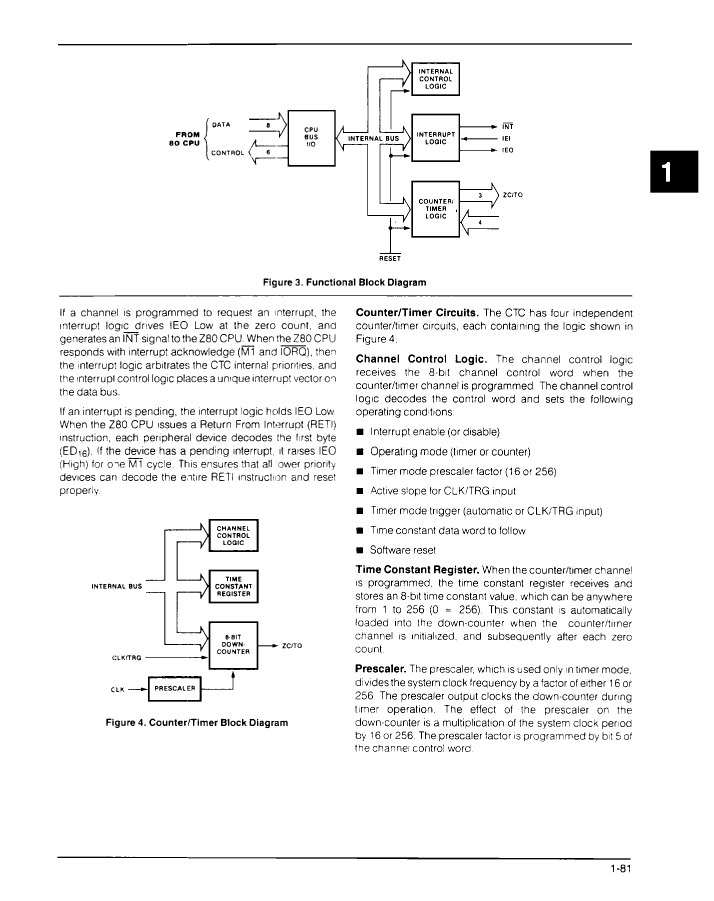

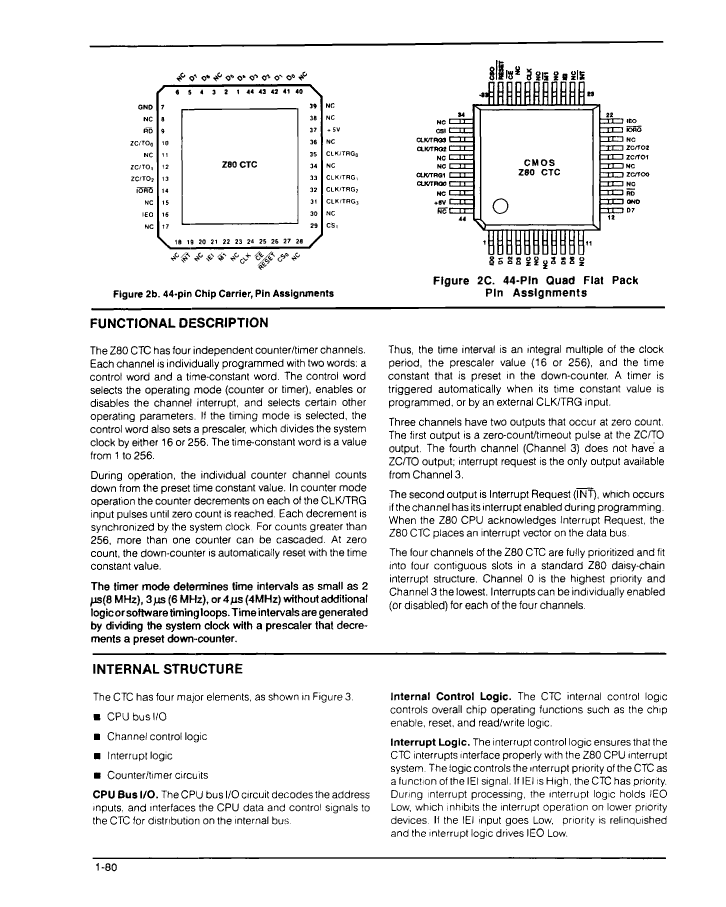

Preview

Download Datasheet

View All

Z84C3006FSC Related Products

	Z84C3006FSC	Z84C3010VSC	Z84C3010PSC	Z84C3006DSE	Z84C3010DEE	Z84C3010DSE	Z84C3010FSC	Z0843006PEC	Z84C3006PSC
Description	Programmable Timer, 1 Timer(s), CMOS, PQFP44, QFP-44	Programmable Timer, 1 Timer(s), CMOS, PQCC44, PLASTIC, CC-44	Programmable Timer, 1 Timer(s), CMOS, PDIP28, DIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERDIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERDIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERDIP-28	Programmable Timer, 1 Timer(s), CMOS, PQFP44, QFP-44	Programmable Timer, 1 Timer(s), NMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PDIP28, DIP-28
Parts packaging code	QFP	QFN	DIP	DIP	DIP	DIP	QFP	DIP	DIP
package instruction	QFP,	QCCJ,	DIP,	DIP,	DIP,	DIP,	QFP,	DIP,	DIP,
Contacts	44	44	28	28	28	28	44	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	6.17 MHz	10 MHz	10 MHz	6.17 MHz	10 MHz	10 MHz	10 MHz	6.17 MHz	6.17 MHz
External data bus width	8	8	8	8	8	8	8	8	8
JESD-30 code	S-PQFP-G44	S-PQCC-J44	R-PDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	S-PQFP-G44	R-PDIP-T28	R-PDIP-T28
Number of digits	8	8	8	8	8	8	8	8	8
Number of terminals	44	44	28	28	28	28	44	28	28
Number of timers	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	100 °C	70 °C	70 °C	100 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	DIP	DIP	DIP	DIP	QFP	DIP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	4.57 mm	4.96 mm	7.366 mm	7.366 mm	7.366 mm	2.5 mm	4.96 mm	4.96 mm
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	NMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.8 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	0.8 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
width	10 mm	16.5862 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	10 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
length	10 mm	16.5862 mm	36.96 mm	-	-	-	10 mm	-	36.96 mm
Base Number Matches	1	1	1	1	1	1	-	-	-
