PCLP20-100M-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCLP20-100M-RC

PCLP20-100M-RC: Description1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size81KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCLP20-100M-RC Overview

1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD

PCLP20-100M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	3631
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	3631
DC Resistance	0.24 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

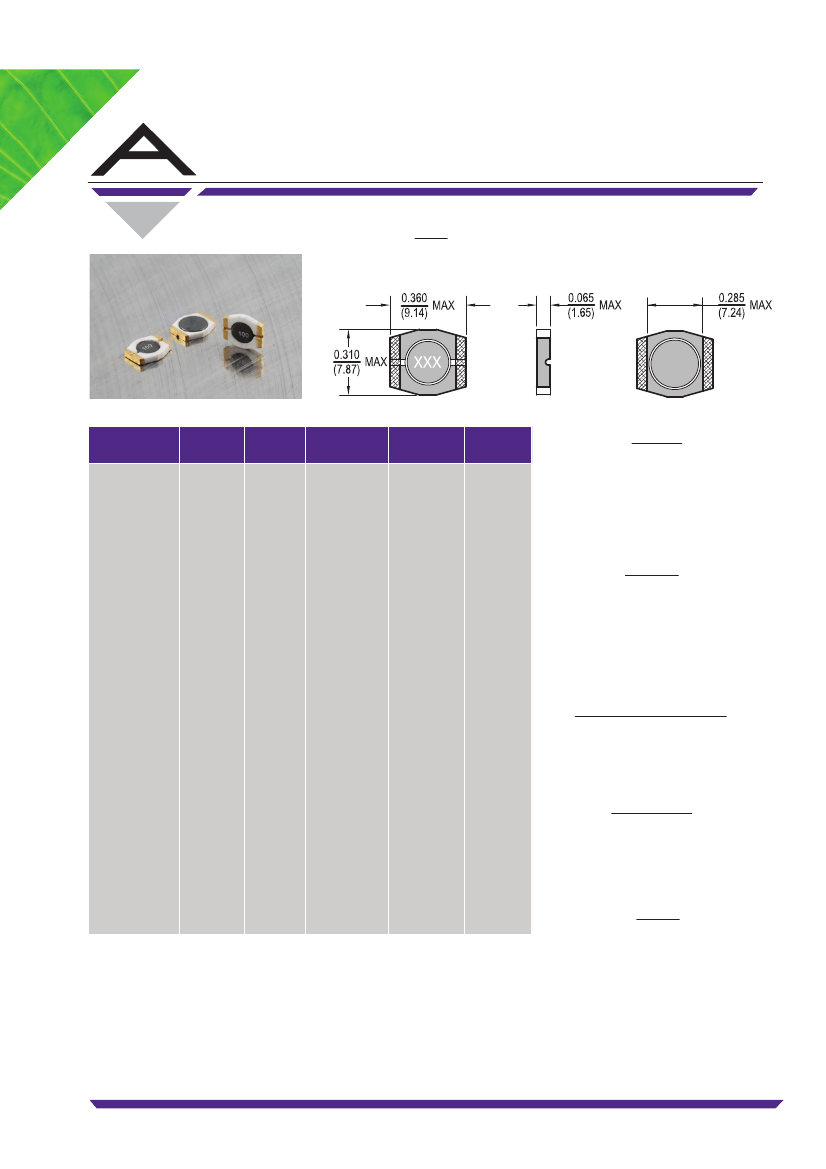

Power Chip Low Profile Inductors

Dimensions:

Inches

(mm)

PCLP20

Allied

Part

Number

PCLP20-4R7M-RC

PCLP20-6R8M-RC

PCLP20-100M-RC

PCLP20-150M-RC

PCLP20-220M-RC

PCLP20-330M-RC

PCLP20-470M-RC

PCLP20-680M-RC

PCLP20-101M-RC

PCLP20-151M-RC

PCLP20-221M-RC

PCLP20-331M-RC

PCLP20-471M-RC

PCLP20-681M-RC

PCLP20-102M-RC

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 1v

100

DCR

Max.

(Ω)

.145

.165

.240

.300

.420

.550

.765

1.10

1.60

2.50

3.65

4.65

6.75

9.15

14.2

Isat

(A)

Features

• Unshielded SMD low cost design

• Designed for high current applications

• Accurate and consistent dimensions for

auto insertion

• Excellent for use in DC-DC converter

applications

Electrical

Inductance Range:

4.7µh to 1000µh

Tolerance:

20% over entire range

Also available in tighter tolerances

Test Frequency:

(L/Q) as specified

Operating Temp:

-40ºC ~ +85ºC

IDC:

Current at which Inductance drops 10%

of original value

Resistance to Soldering Heat

Test Method:

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for 10 sec ± 1 sec.

4.7

6.8

100

150

220

330

470

680

1000

1.6

1.3

1.0

0.9

0.7

0.6

0.4

0.3

.25

.22

Test Equipment

.18

.12

.10

(L & Q):

HP4192A Impedence Analyzer

(DCR):

Chen Hwa 502

(IDC):

HP4284A with HP42841A or

CH1061 with CH301A

Physical

Packaging:

2500 pieces per 13 inch reel.

Marking:

EIA Inductance Code.

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/30/08

www.alliedcomponents.com
