PQ09TZ5UJ00H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PQ09TZ5UJ00H

PQ09TZ5UJ00H: DescriptionFixed Positive Standard Regulator, 9VPSSO5, SMT-5; CategoryPower/power management The power supply circuit; File Size260KB，8 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/; Environmental Compliance

Download Datasheet Parametric Compare View All

PQ09TZ5UJ00H Overview

Fixed Positive Standard Regulator, 9VPSSO5, SMT-5

PQ09TZ5UJ00H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SHARP
package instruction	SMT-5
Reach Compliance Code	unknown
Maximum input voltage	20 V
Minimum input voltage	10 V
JESD-30 code	R-PSSO-G5
length	6.6 mm
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.3 A
Maximum output voltage 1	9.22 V
Minimum output voltage 1	8.78 V
Nominal output voltage 1	9 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	3.05 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	SINGLE
width	5.5 mm
Base Number Matches	1

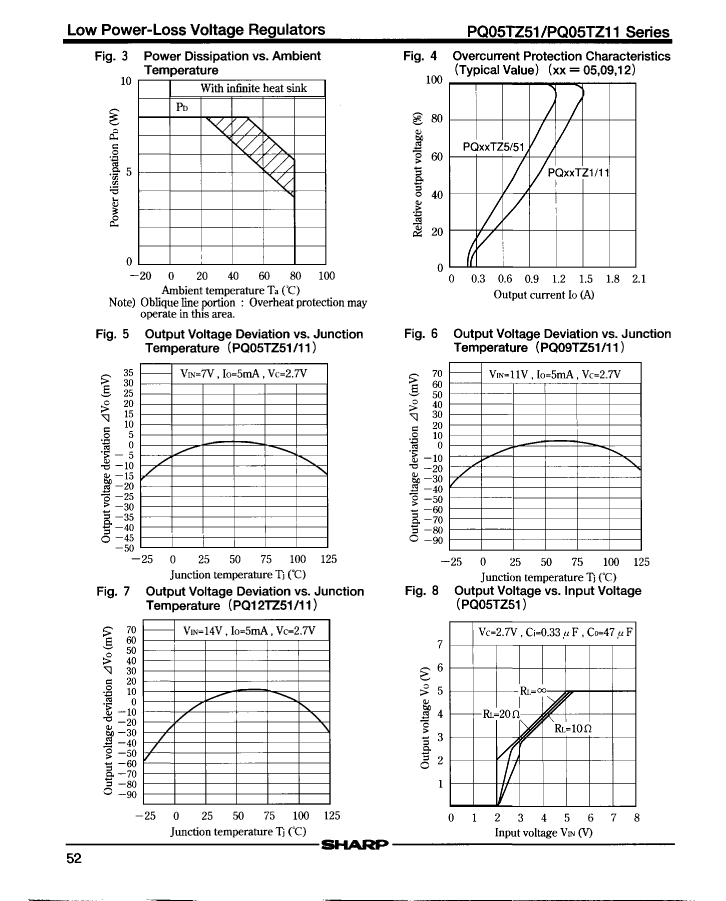

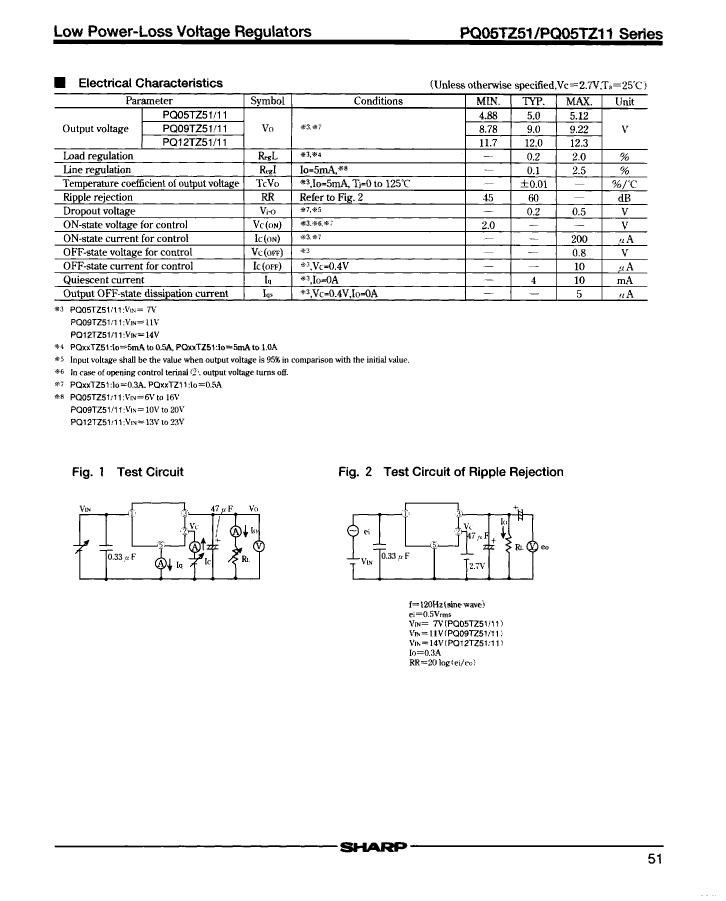

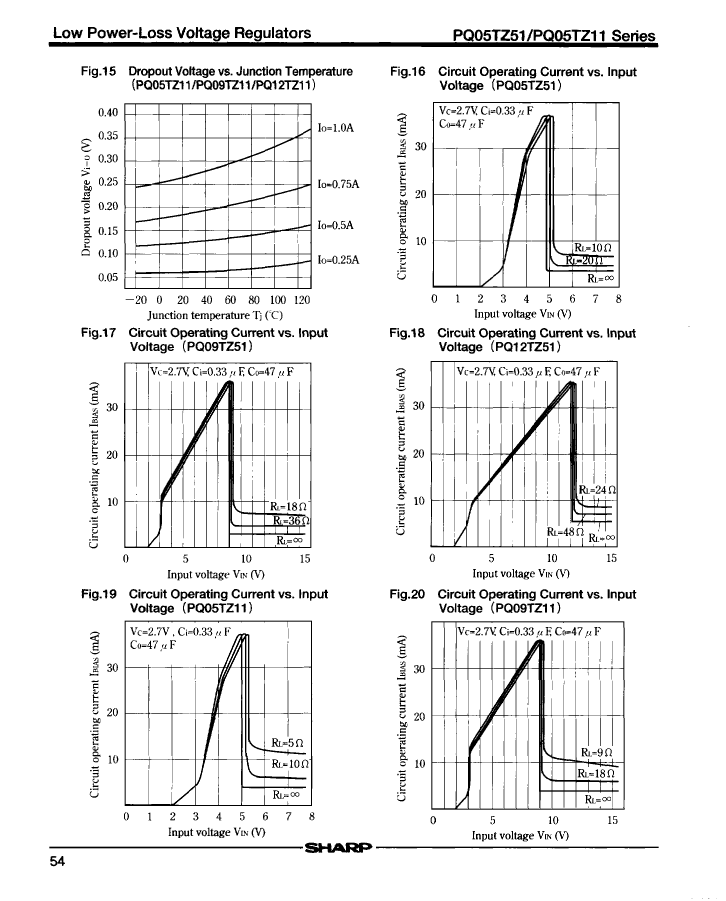

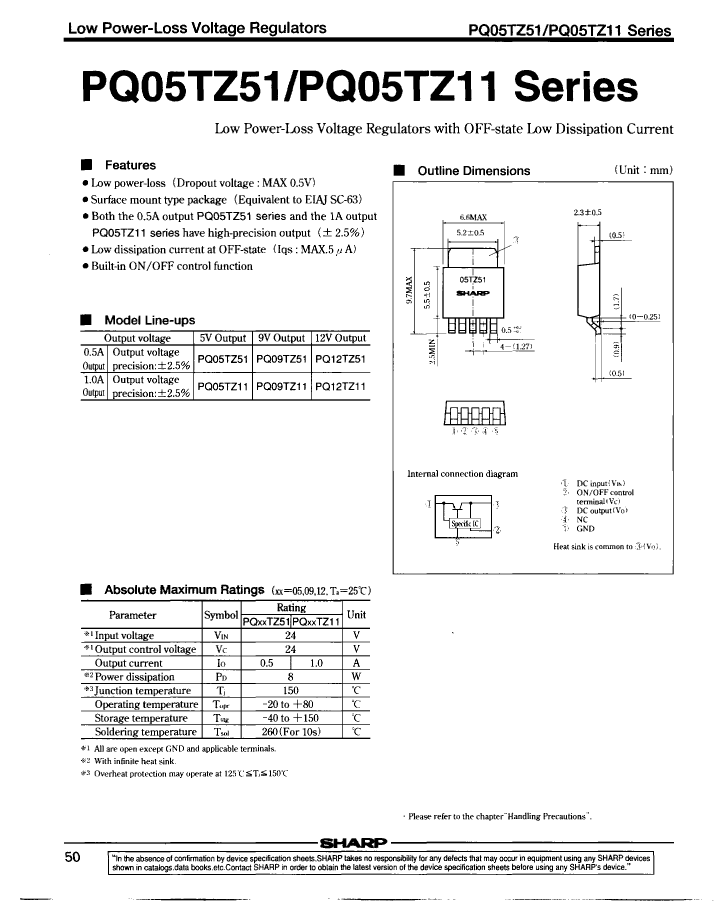

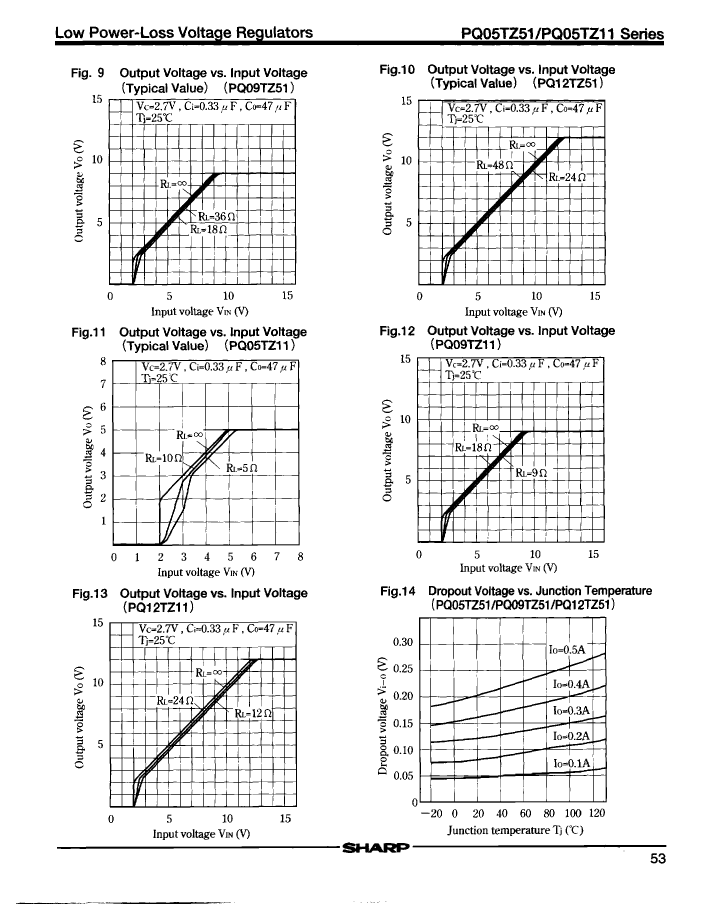

Preview

Download Datasheet

View All

PQ09TZ5UJ00H Related Products

	PQ09TZ5UJ00H	PQ09TZ1UJ00H	PQ12TZ5UJ00H	PQ12TZ1UJ00H	PQ05TZ1UJ00H	PQ05TZ5UJ00H
Description	Fixed Positive Standard Regulator, 9VPSSO5, SMT-5	Fixed Positive Standard Regulator, 9VPSSO5, SMT-5	Fixed Positive Standard Regulator, 12VPSSO5, SMT-5	Fixed Positive Standard Regulator, 12VPSSO5, SMT-5	Fixed Positive Standard Regulator, 5VPSSO5, SMT-5	Fixed Positive Standard Regulator, 5VPSSO5, SMT-5
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	SMT-5	SMT-5	SMT-5	SMT-5	SMT-5	SMT-5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input voltage	20 V	20 V	23 V	23 V	16 V	16 V
Minimum input voltage	10 V	10 V	13 V	13 V	6 V	6 V
JESD-30 code	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5
length	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm
Number of functions	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.3 A	0.5 A	0.3 A	0.5 A	0.5 A	0.3 A
Maximum output voltage 1	9.22 V	9.22 V	12.3 V	12.3 V	5.12 V	5.12 V
Minimum output voltage 1	8.78 V	8.78 V	11.7 V	11.7 V	4.88 V	4.88 V
Nominal output voltage 1	9 V	9 V	12 V	12 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-263	TO-263	TO-263	TO-263	TO-263	TO-263
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	3.05 mm	3.05 mm	3.05 mm	3.05 mm	3.05 mm	3.05 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
width	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm
