P50-100PG-SR1-TGF datasheet, PDF

Datasheet> All Categories > The connector> The connector> P50-100PG-SR1-TGF

P50-100PG-SR1-TGF: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size426KB，9 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

P50-100PG-SR1-TGF Overview

HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK

P50-100PG-SR1-TGF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	3M
Reach Compliance Code	unknown
Other features	GUIDE POST
body width	0.276 inch
subject depth	0.724 inch
body length	3.001 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	P50
Plug contact pitch	0.05 inch
Match contact row spacing	0.075 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1

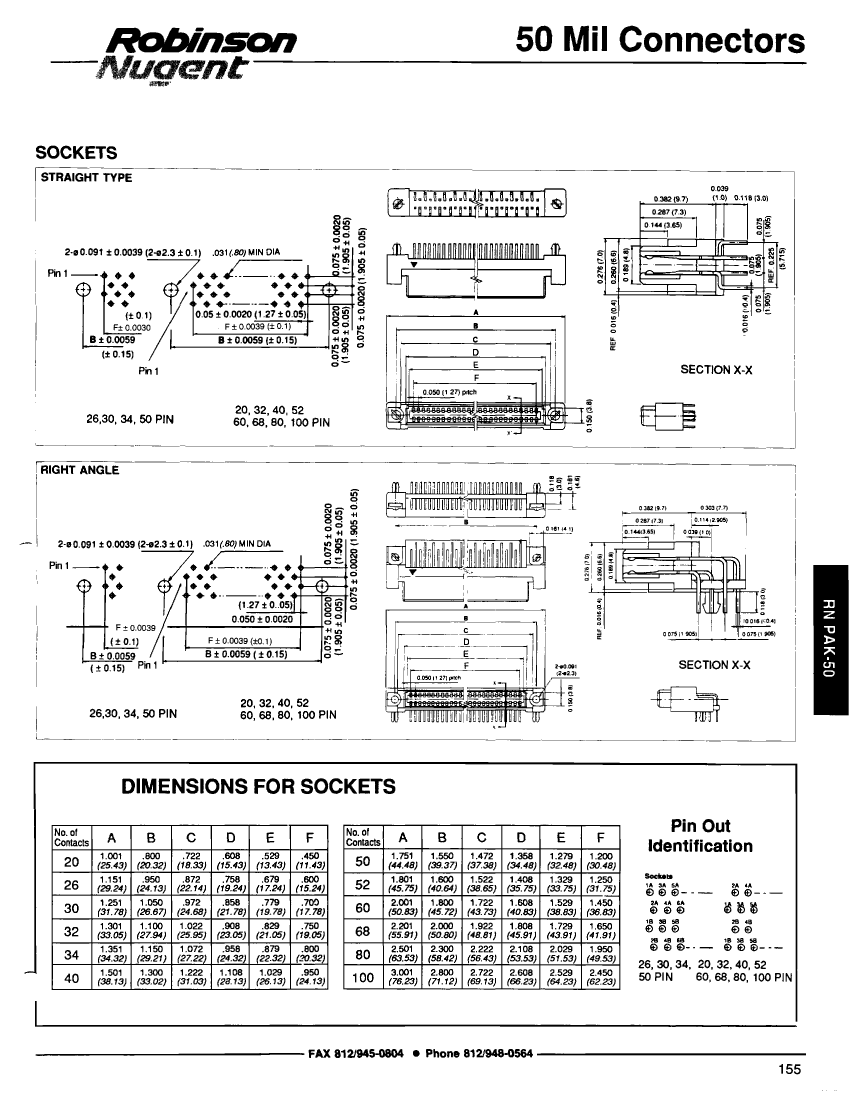

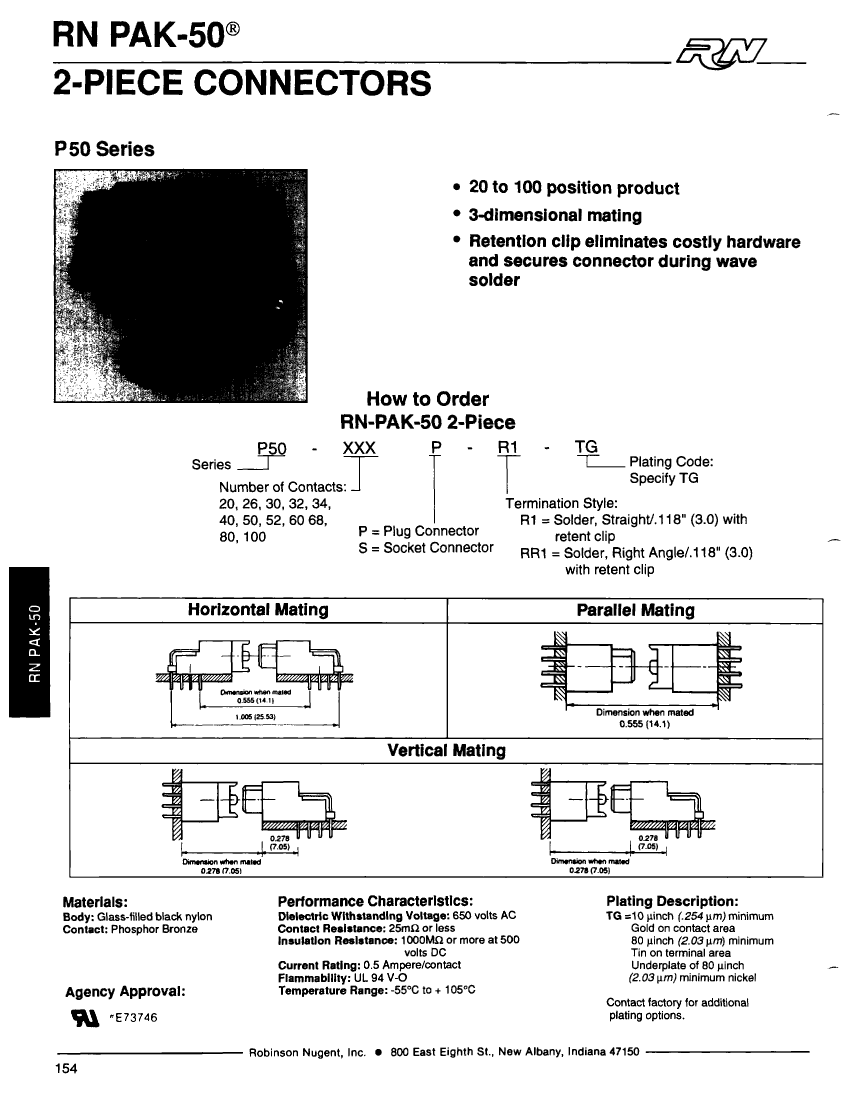

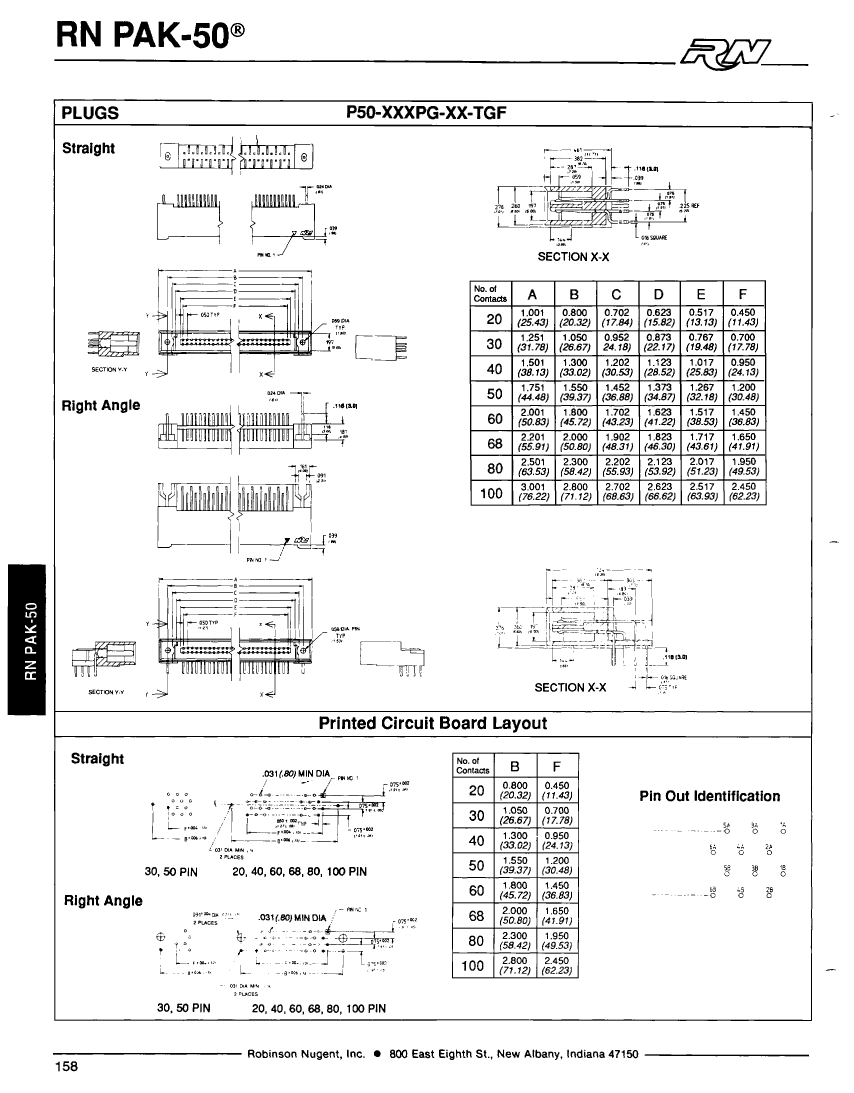

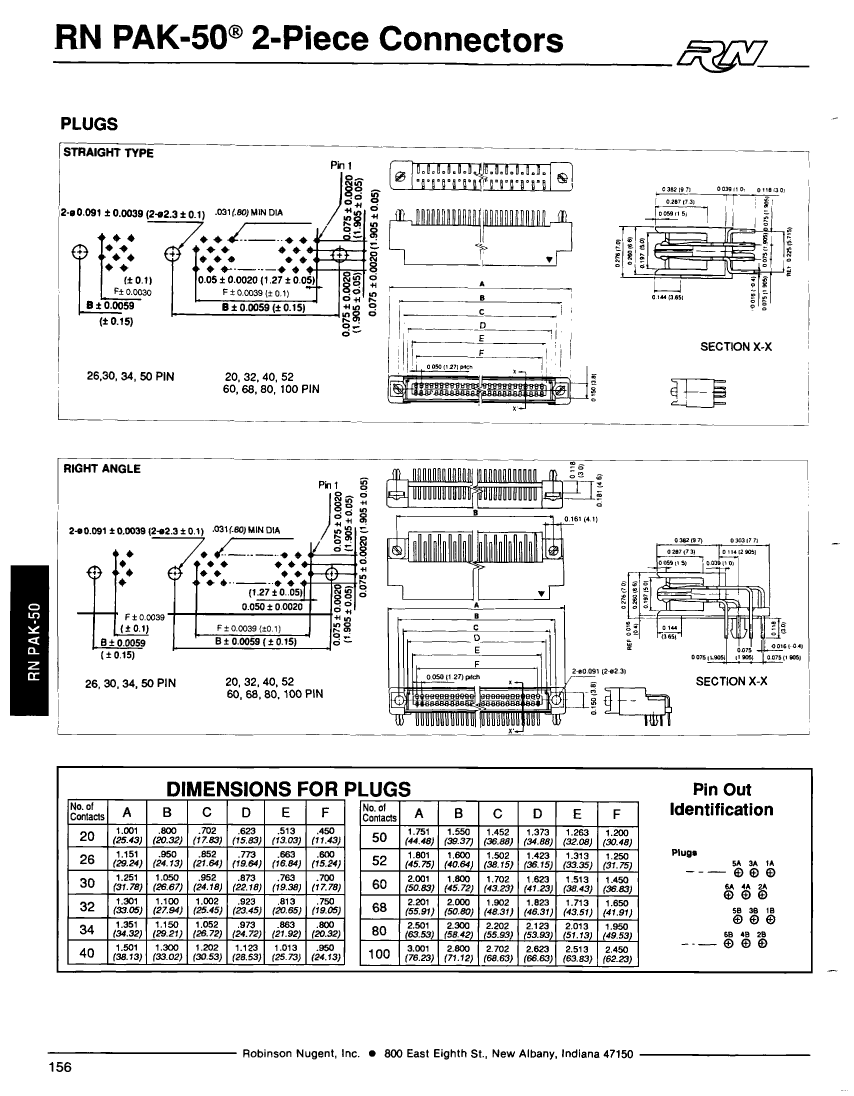

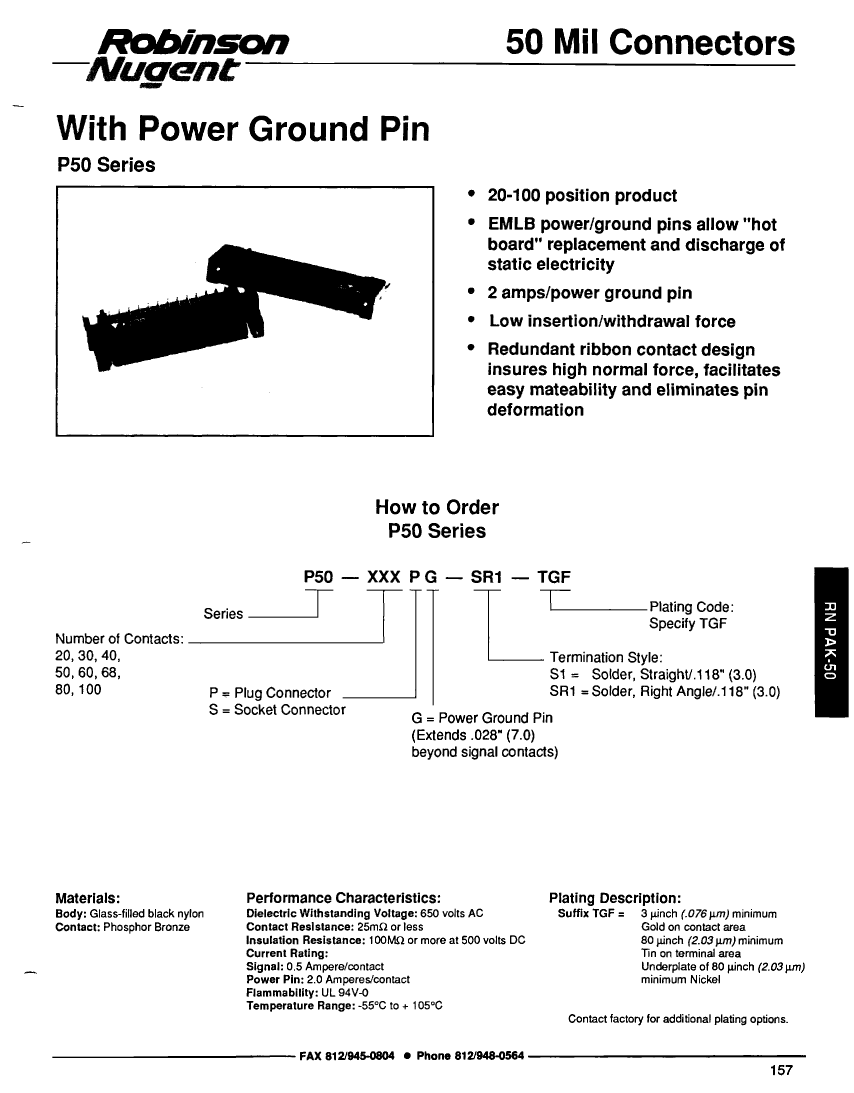

Preview

Download Datasheet

View All

P50-100PG-SR1-TGF Related Products

	P50-100PG-SR1-TGF	P50-030PG-SR1-TGF	P50-040PG-SR1-TGF	P50-060PG-S1-TGF	P50-100PG-S1-TGF
Description	HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	3M	3M	3M	3M	3M
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	GUIDE POST	GUIDE POST	GUIDE POST	GUIDE POST	GUIDE POST
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.724 inch	0.724 inch	0.724 inch	0.461 inch	0.461 inch
body length	3.001 inch	1.251 inch	1.501 inch	2.001 inch	3.001 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	P50	P50	P50	P50	P50
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	100	30	40	60	100
Base Number Matches	1	1	1	1	1
