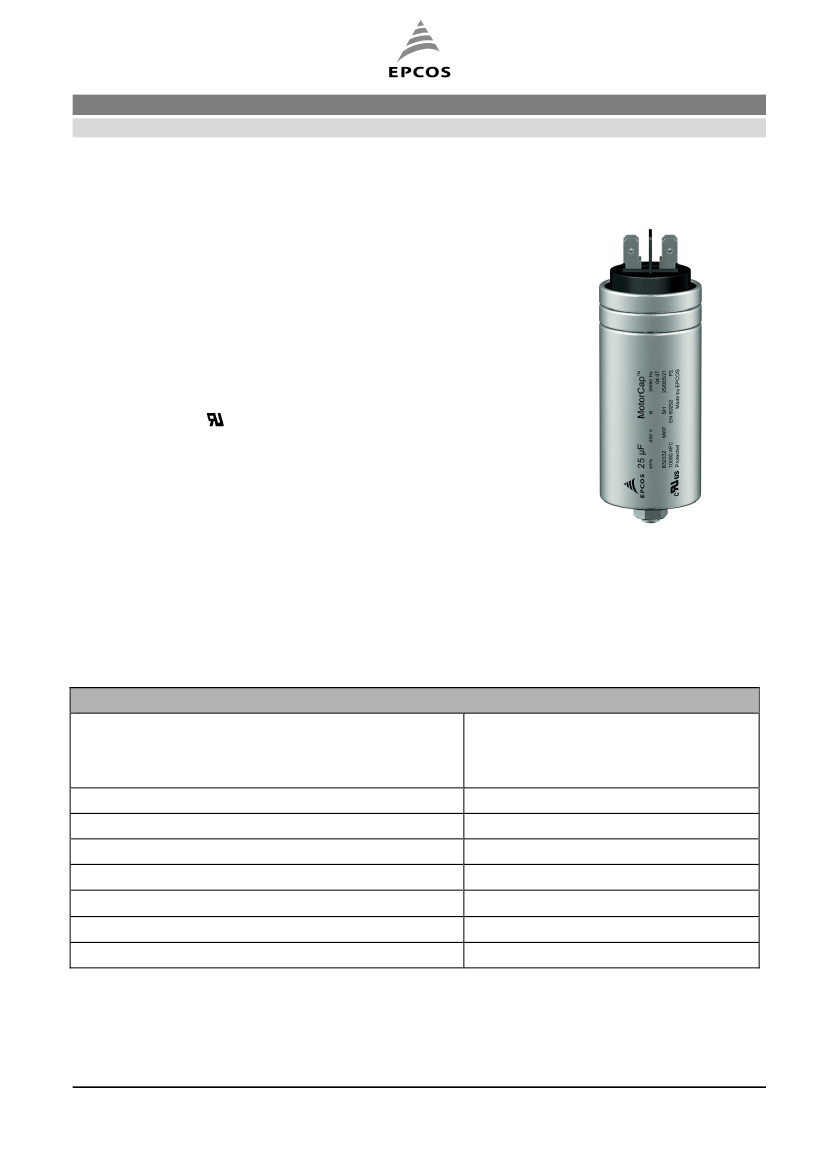

Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – MotorCap™
Construction
Dielectric: polypropylene film
Aluminum can
Soft polyurethane resin
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
Highest safety level P2 to IEC 60252-1 2001-02
High insulation resistance
Capacitor
C US
UL files E106388
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
B32330 – single fast-on: 6.3 × 0.8 mm
B32332 – double fast-on: 6.3 × 0.8 mm
Mounting parts (optional)
Threaded stud at bottom of can (M8; max. torque = 5 Nm)
Technical data and specifications
Reference standards
IEC 60252-1 2001-02
EN 60252 2001
UL 810
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
UL 810 file E106388
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
P2
250 V: 10,000 h (class B)
Approved component 10000 AFC
See dimensions table
±5%
250 V
50/60 Hz
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 6
July 2007
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – MotorCap™
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal V
TT
Insulation voltage terminals to case
Insulation resistance R
ins
or time constant
τ
at 20 °C; rel. humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Ball pressure test to IEC 60309-1 sec. 27.3
Top disk material
Option A:
UL 94 V2 compatible
Glow wire test to
IEC 60695-2-11
Test temp 550 °C for I
R
≤
0.5 A
Test temp 850 °C for I
R
> 0.5 A
Option B:
UL 94 V2/V0 compatible
Glow wire test to
IEC60335-1 & IEC 60695-2-11
Test temp 550 °C / 750 °C
Part is compatible to EN 60335-1
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
> 250 V
Self-extinguish within 2 seconds of
withdrawing glow wire
Self-extinguish within 30 seconds of
withdrawing glow wire
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
at 125°C
2 · V
R
, 2 s (routine test)
2 · V
R
, 60 s (type test)
2,000 V AC, 60 s (type test)
2,000 V AC, 2 s (routine test)
3,000 s
1.1 · V
R
1.3 · I
R
(V
R
= rated voltage)
(I
R
= rated current)
≤
1,0 · 10
-3
(120 Hz)
10 V/μs
Mechanical and electrical properties of terminal top disk material
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 6
July 2007
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – MotorCap™
Dimensional drawings B32330/B32332
d±1
Before Safety
Device Operation
Marking
±2
A
13
16 max.
After Safety
Device Operation
Marking
M8 for ø30-53 mm
M12 for ø63.5 mm
According to DIN 6797-A
According to DIN 934
M 8 bolt:
M 12 bolzt:
L
= 12 mm
L
= 16 mm
KMK1156-A-E
A = 5 mm for diameters d =30, 35, 40, 45 mm
A = 0 mm for diameters d = 50, 53, 63.5 mm
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 6
L
July 2007
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – MotorCap™
Ordering codes and packing units
V
R
V AC
250
C
R
μF
4
5
6
7
8
10
12
15
20
25
30
35
40
45
50
55
60
Composition of ordering code:
*: terminals
0 – single fast-on terminals
2 – double fast-on terminals
#: construction of can and plastic top
5 – aluminum can, Option A: UL 94 V2 top
6 – aluminum can, Option B: UL 94 V2/V0 top/IEC 60335-1
7 – aluminum can with M 8 bolt, Option A: UL 94 V2 top
8 – aluminum can with M 8 bolt, Option B: UL 94 V2/V0 top/IEC 60335-1
Max. dimensions
dxl
mm
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
35 × 68
35 × 68
35 × 78
40 × 78
40 × 78
40 × 78
40 × 78
40 × 103
40 × 103
40 × 103
Ordering code
Packing units
B3233*B1405J0#0
B3233*B1505J0#0
B3233*B1605J0#0
B3233*B1705J0#0
B3233*B1805J0#0
B3233*B1106J0#0
B3233*B1126J0#0
B3233*B1156J0#0
B3233*B1206J0#0
B3233*B1256J0#0
B3233*B1306J0#0
B3233*B1356J0#0
B3233*B1406J0#0
B3233*B1456J0#0
B3233*B1506J0#0
B3233*B1556J0#0
B3233*B1606J0#0
150
150
150
150
150
150
150
50
50
50
50
50
50
50
50
50
50
U
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for Power
Capacitors” issued by ZVEI, which are available on the Internet at
www.epcos.com/ac_capacitors,
to ensure optimum performance and to
prevent products from failing, and in worst case, bursting and fire. Information given in the data sheet reflects typical specifications. You are
kindly requested to approve our product specifications or request our approval for your specification before ordering.
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 5 of 6
