25J111-2: DescriptionRF N Connector, Female, Cable Mount, Jack; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

25J111-2 Overview

RF N Connector, Female, Cable Mount, Jack

25J111-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Amphenol
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG-9/U; RG-13/U; RG-214/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.17 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	N
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

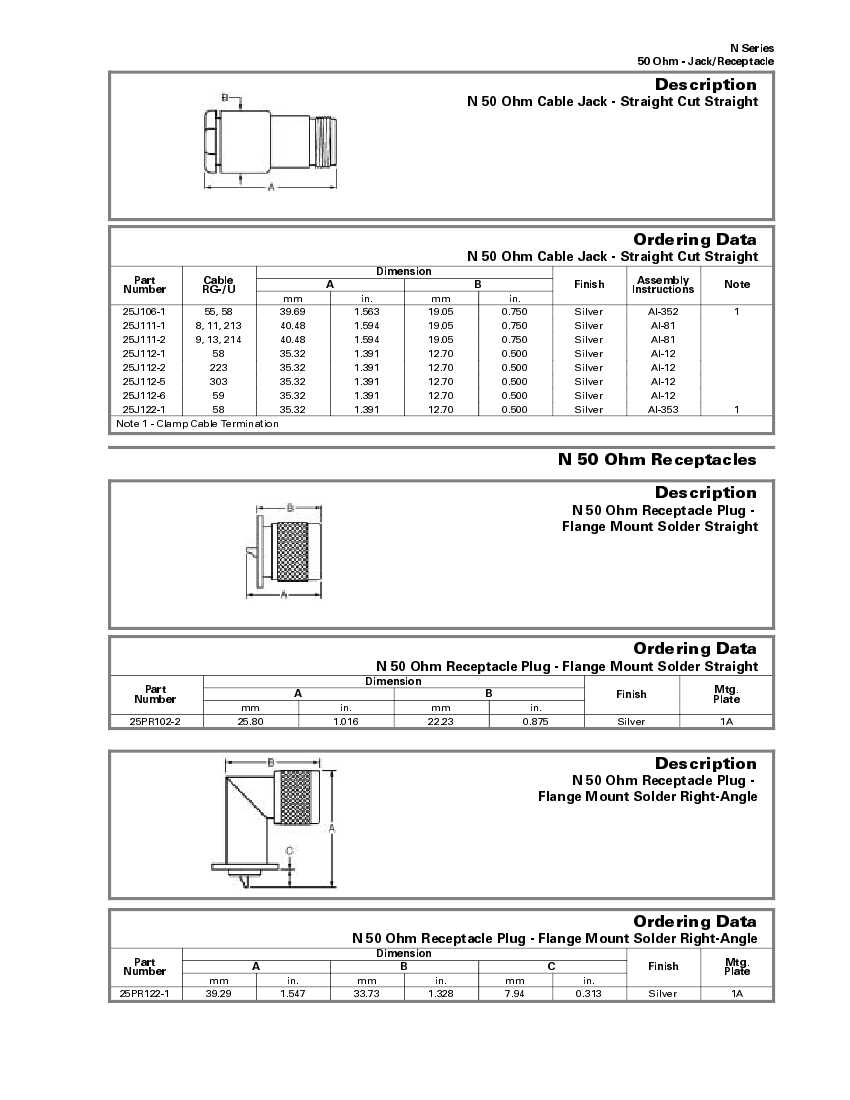

N 50 Ohm Cable Jack - Straight

Cut Straight

50 Ohm Jack/Receptacle

N Series

50 Ohm - Jack/Receptacle

RF/Coaxial

Description

N Series

25J106-1

55, 58

25J111-1

8, 11, 213

25J111-2

9, 13, 214

25J112-1

25J112-2

223

25J112-5

303

25J112-6

25J122-1

Note 1 - Clamp Cable Termination

Part

Number

Cable

RG-/U

39.69

40.48

35.32

Dimension

N 50 Ohm Cable Jack - Straight Cut Straight

Ordering Data

Note

in.

1.563

1.594

1.391

19.05

12.70

in.

0.750

0.500

Finish

Silver

Assembly

Instructions

AI-352

AI-81

AI-12

AI-353

N 50 Ohm Receptacles

Description

N 50 Ohm Receptacle Plug -

Flange Mount Solder Straight

25PR102-2

Part

Number

25.80

Dimension

N 50 Ohm Receptacle Plug - Flange Mount Solder Straight

22.23

Ordering Data

Mtg.

Plate

in.

1.016

in.

0.875

Finish

Silver

N 50 Ohm Receptacle Plug -

Flange Mount Solder Right-Angle

Description

N 50 Ohm Receptacle Plug - Flange Mount Solder Right-Angle

25PR122-1

Part

Number

Ordering Data

Finish

39.29

in.

1.547

33.73

Dimension

in.

1.328

7.94

in.

0.313

Silver

Mtg.

Plate

RF/Coaxial

30-73

25J111-2 Related Products

	25J111-2	25PR102-2	25J111-1	25J112-1	25J112-2	25J112-5	25J112-6	25J106-1	25PR122-1
Description	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Male, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Female, Cable Mount, Jack	RF N Connector, Female, Cable Mount, Clamp Terminal, Jack	RF N Connector, Male, Panel Mount, Solder Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	RECEPTACLE	JACK	JACK	JACK	JACK	JACK	JACK	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.17 dB	0.17 dB	0.17 dB	0.17 dB	0.17 dB	0.17 dB	0.17 dB	0.17 dB	0.17 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	N	N	N	N	N	N	N	N	N
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	NO	NO	NO	NO	NO	NO	YES
voltage standing wave ratio	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-
Other features	APPLICABLE CABLES: RG-9/U; RG-13/U; RG-214/U	HERMETICALLY SEALED	APPLICABLE CABLES: RG-8/U; RG-11/U; RG-213/U	APPLICABLE CABLES: RG-58/U	APPLICABLE CABLES: RG-223/U	APPLICABLE CABLES: RG-303/U	APPLICABLE CABLES: RG-59/U	APPLICABLE CABLES: RG-55/U; RG-58/U	-
