3811-60006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3811-60006

3811-60006: DescriptionRF SMP Connector,; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

3811-60006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3811-60006	-	-	View	Buy Now

3811-60006 Overview

RF SMP Connector,

3811-60006 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	RF SMP CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

ROHS COMPLIANT

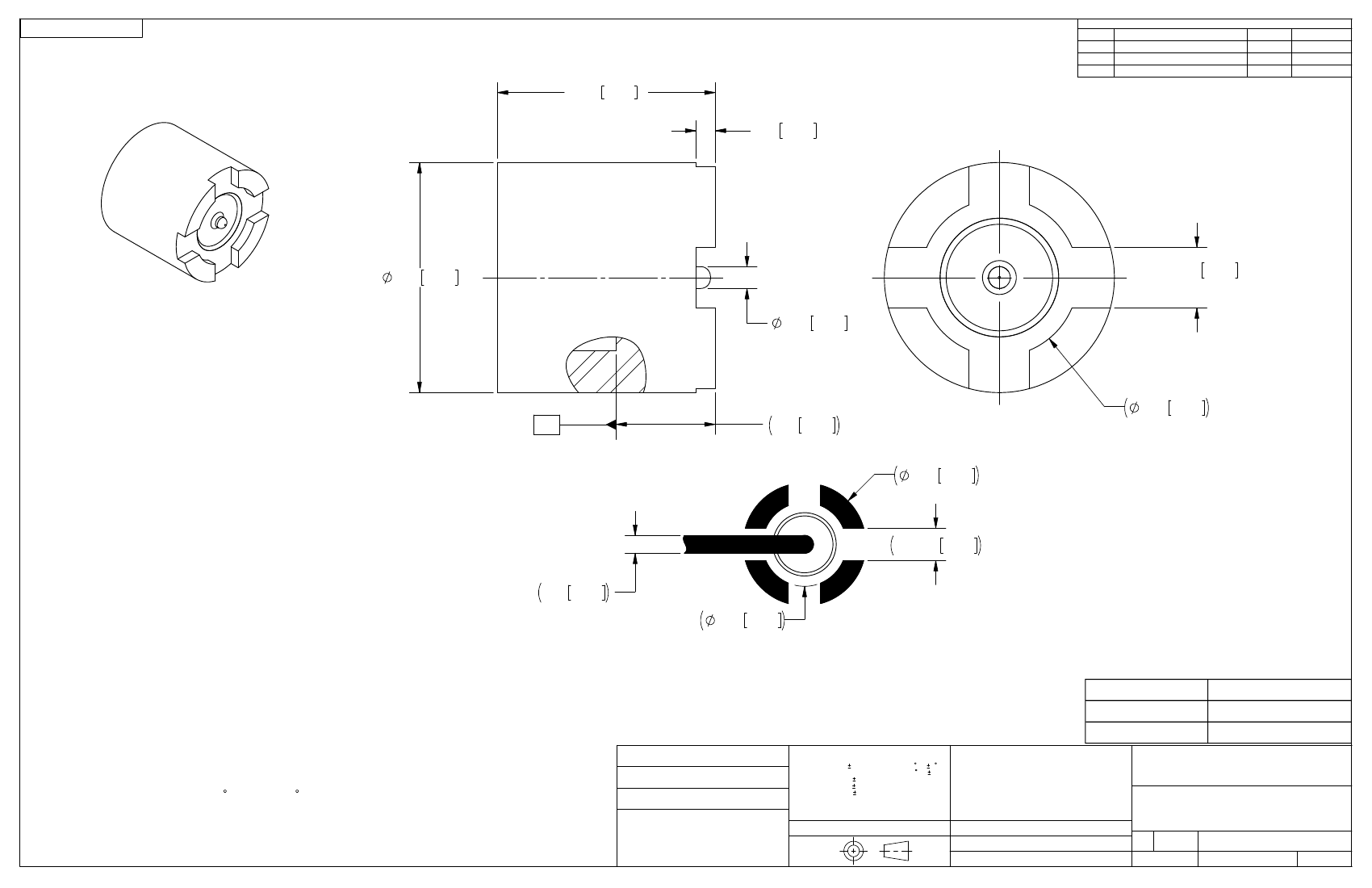

PRODUCT DATA DRAWING

.090 2.29

.008 0.20

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 38515

REV. DCN 39575

DCN 42425

09/11

12/13/12

06/16

STW

DAL

STW

.095 2.41

.009 0.23

4X .025 0.64

SLOTS

.065 1.65

.041 1.04

.110 2.79

MATERIAL:

BODY:

PIN:

GLASS:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

KOVAR PER ASTM-F15

CORNING 7070 OR EQUIVALENT

.010 0.25

.065 1.65

RECOMMENDED PCB LAYOUT

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

MATERIAL:

FINISH:

4X .025 0.64

FINISH:

BODY & PIN:

SV P/N

3811-60005

3811-60006

SEE NOTES

N/A

PROPRIETARY

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

INTERFACE

SMOOTH BORE

FULL DETENT

PERFORMANCE:

IMPEDANCE:

OPERATING TEMP.:

50 OHMS.

-55 C TO +125 C.

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

FED 09/01/11

STW 09/01/11

SMPS MALE

SURFACE MOUNT

95077

SIZE CAGE CODE DWG. NO.

3811-60005-60006

SHEET 1 OF 1

SCALE: 30:1
