55510-134TRLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55510-134TRLF

55510-134TRLF: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size233KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

55510-134TRLF Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug, LEAD FREE

55510-134TRLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS ELV COMPL & TAPE PACKAGE
body width	0.157 inch
subject depth	0.177 inch
body length	1.335 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.807 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	55510
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
Evacuation force-minimum value	.1946 N
Base Number Matches	1

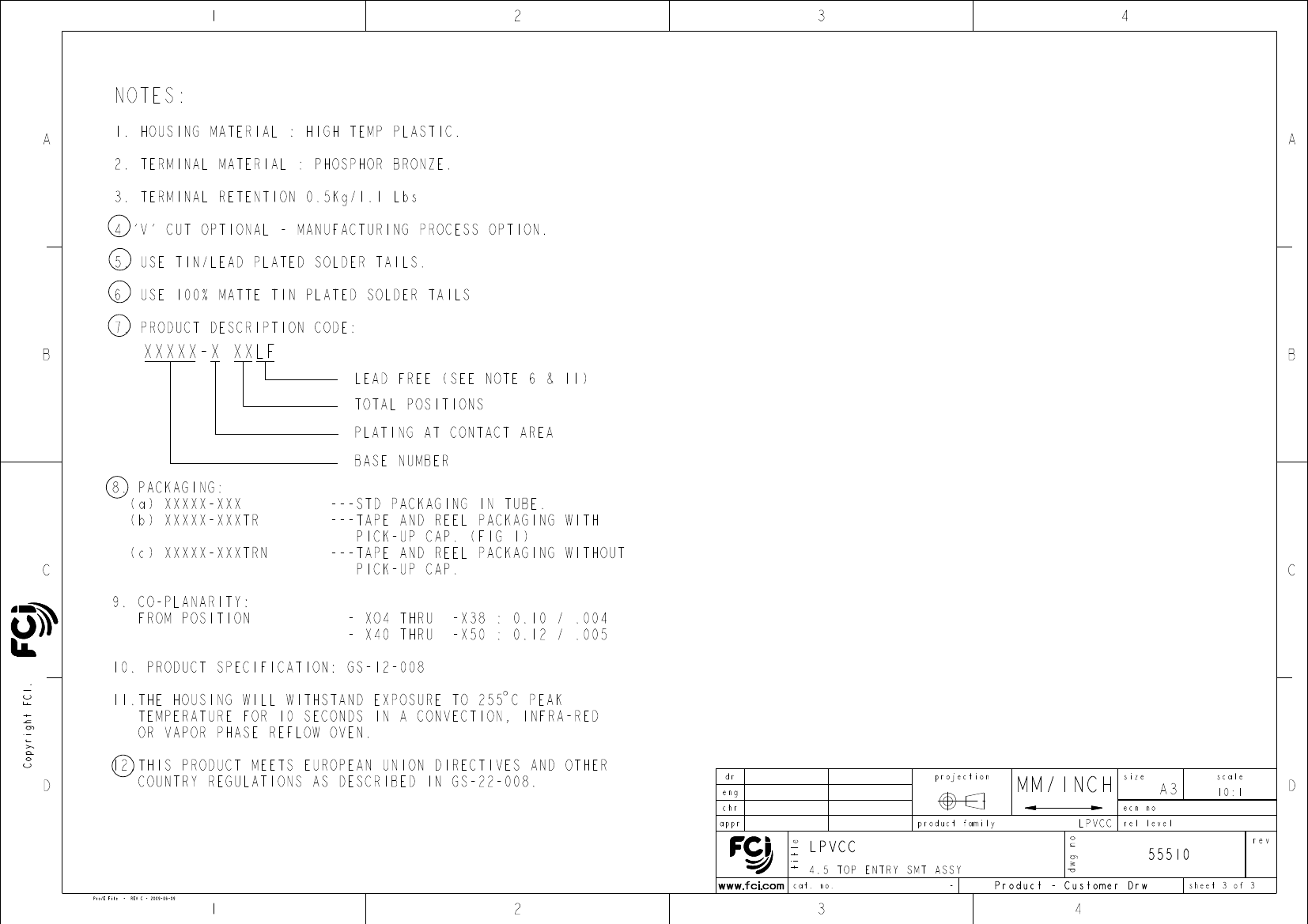

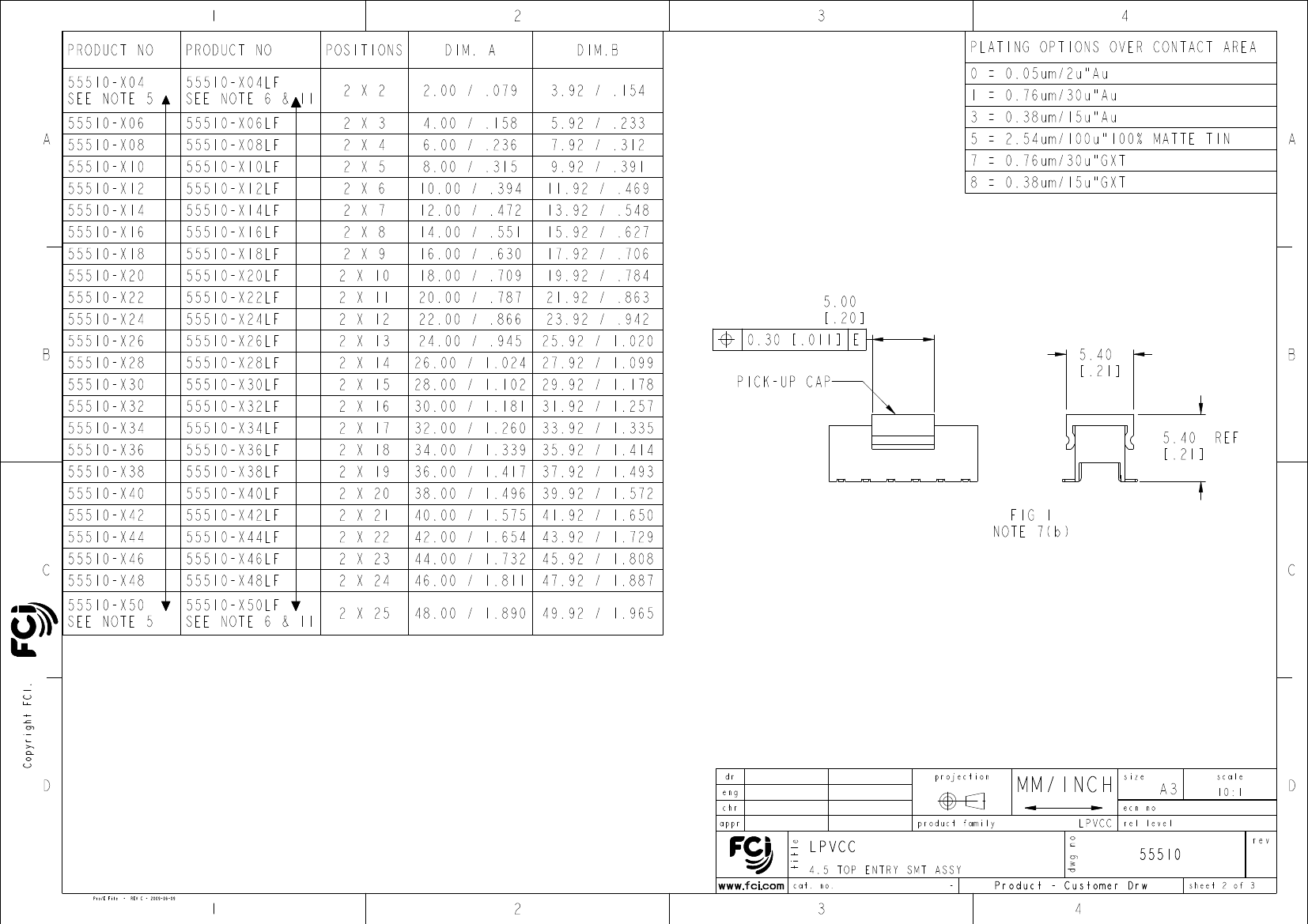

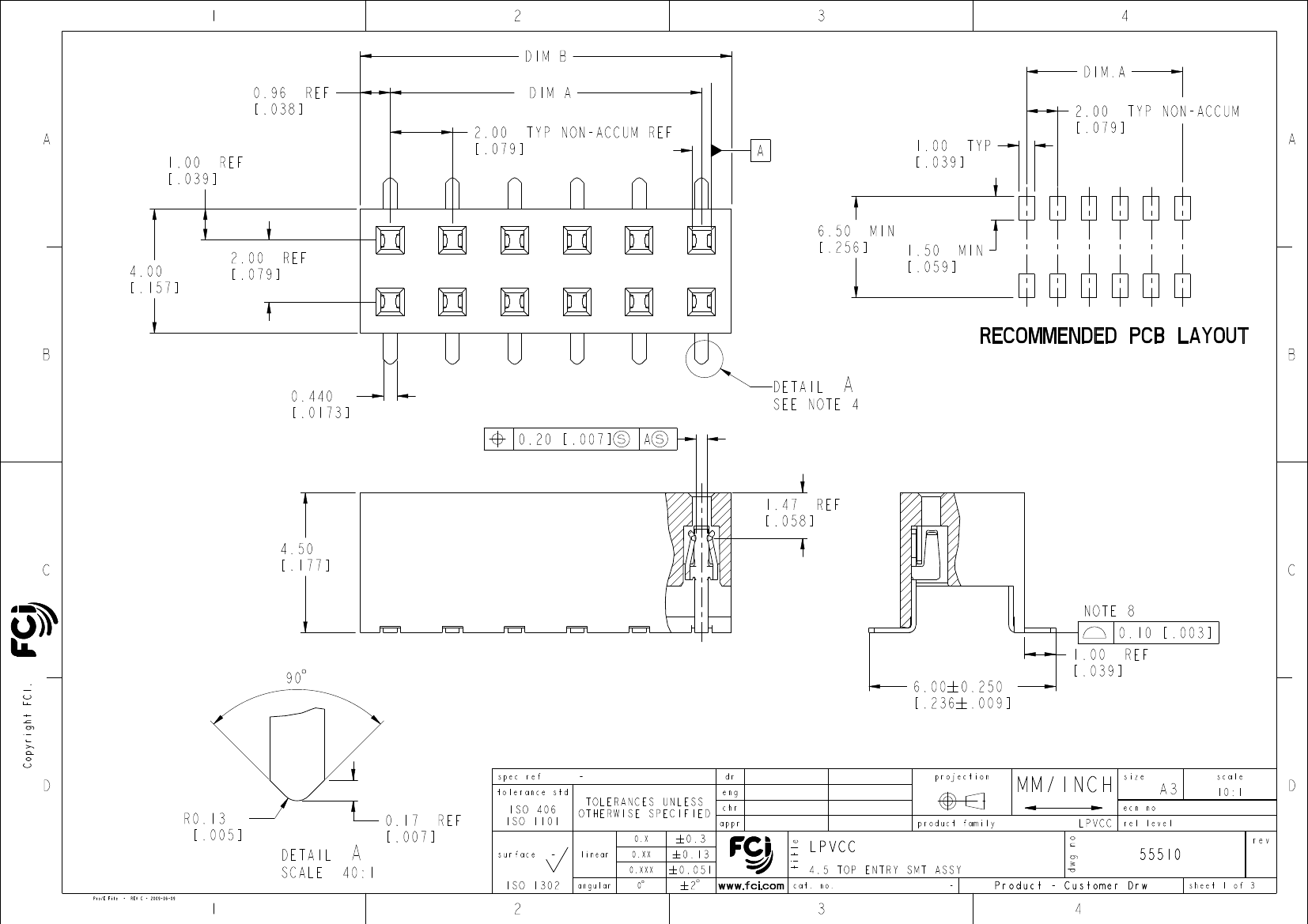

Preview

Download Datasheet

View All

Andrew Yong

Su-Hua Miao

Rick Bian

2010/10/14

2013/01/01

ELX-N-13781-1

Released

PDS: Rev :H

STATUS:Released

Printed: Jan 02, 2013

55510-134TRLF Related Products

	55510-134TRLF	55510-304	55510-346LF	55510-346	55510-030LF	55510-134TR	55510-322LF	55510-348LF
Description	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug, LEAD FREE	Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug	Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug, LEAD FREE	Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug	PREFERRED P/N SERIES FOR NEW PROJECT: 10131937 Minitek® 2.00mm, Board to Board Connector, PCB Mounted Receptacle , Vertical , Surface Mount, Double row, 30 Positions, 2.00mm (0.079in) Pitch.	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug, LEAD FREE	PREFERRED P/N SERIES FOR NEW PROJECT: 10131937 Minitek® 2.00mm, Board to Board Connector, PCB Mounted Receptacle , Vertical , Surface Mount, Double row, 48 Positions, 2.00mm (0.079in) Pitch.
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	conform to	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
body length	1.335 inch	0.154 inch	1.808 inch	1.808 inch	1.178 inch	1.37 inch	0.863 inch	1.887 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL	TIN LEAD OVER NICKEL	MATTE TIN OVER NICKEL	TIN LEAD OVER NICKEL	MATTE TIN	NOT SPECIFIED	MATTE TIN OVER NICKEL	MATTE TIN
Contact completed and terminated	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	700VAC V	700VAC V	700VAC V	700VAC V	707VAC V	500VAC V	700VAC V	707VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	25 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	1.807 N	1.807 N	1.807 N	1.807 N	1.946 N	1.807 N	1.807 N	1.946 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	PLASTIC	THERMOPLASTIC	THERMOPLASTIC	PLASTIC
JESD-609 code	e3	e0	e3	e0	e3	e0	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	105 °C	105 °C	105 °C	125 °C	125 °C	105 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5 mm	5.0038 mm	5.0038 mm	5 mm
Plating thickness	30u inch	15u inch	15u inch	15u inch	2u inch	30u inch	15u inch	15u inch
Rated current (signal)	1 A	2 A	2 A	2 A	1 A	1 A	2 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL	UL, CSA	UL, CSA	UL
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	34	4	46	46	30	34	22	48
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	0.195 N	.1946 N	.1946 N	0.195 N
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	-	-	Lead free	-
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol	-
package instruction	LEAD FREE	-	LEAD FREE	-	LEAD FREE	-	LEAD FREE	LEAD FREE
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-	EAR99	EAR99
Manufacturer's serial number	55510	55510	55510	55510	-	55510	55510	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-
Base Number Matches	1	1	1	1	-	1	1	-
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING
