52520-001129 datasheet, PDF - EEWORLD Datasheet

52520-001129: DescriptionTelecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size331KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

52520-001129 Overview

Telecom and Datacom Connector, 29 Contact(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	W/POST AND DIGITAL/ANALOG CNTS
body width	0.389 inch
subject depth	0.455 inch
body length	1.45 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	44.48 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.075 inch
Match contact row spacing	0.075 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	7
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	MIXED
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.102 inch
Terminal pitch	1.905 mm
Termination type	SOLDER
Total number of contacts	29
Evacuation force-minimum value	9.7856 N
Base Number Matches	1

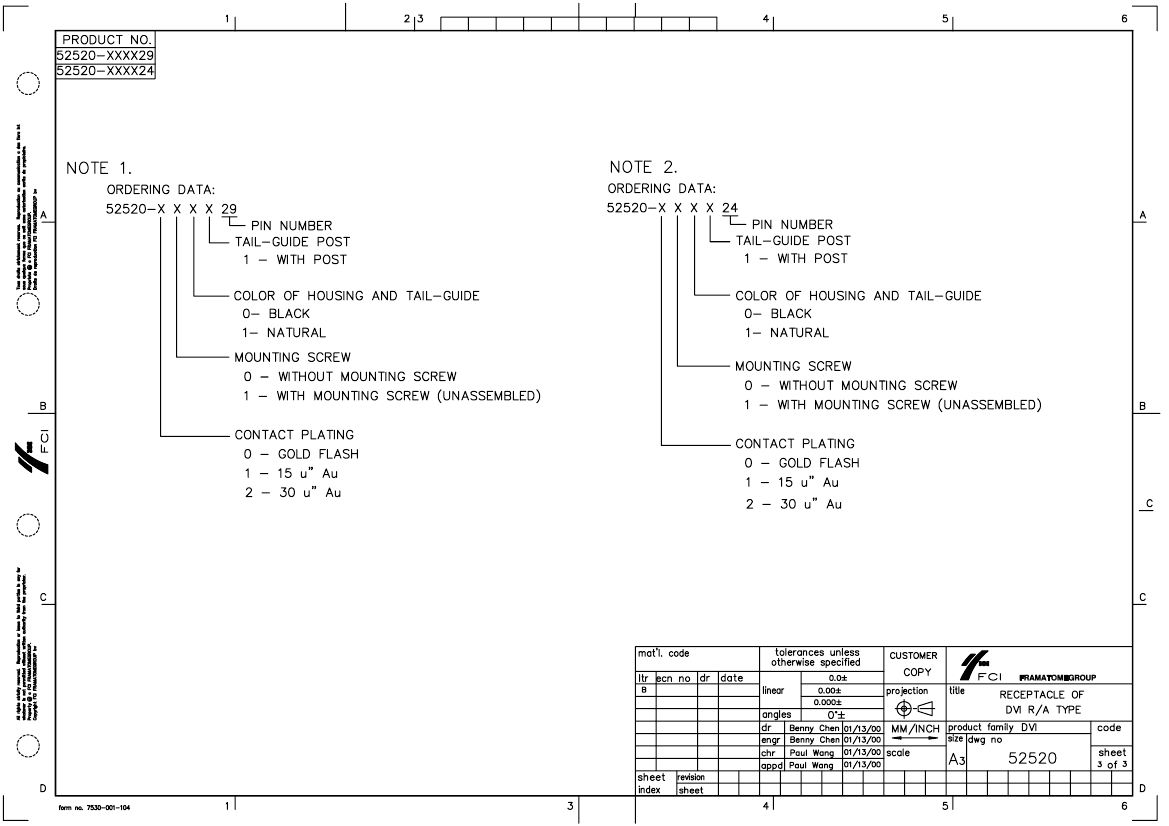

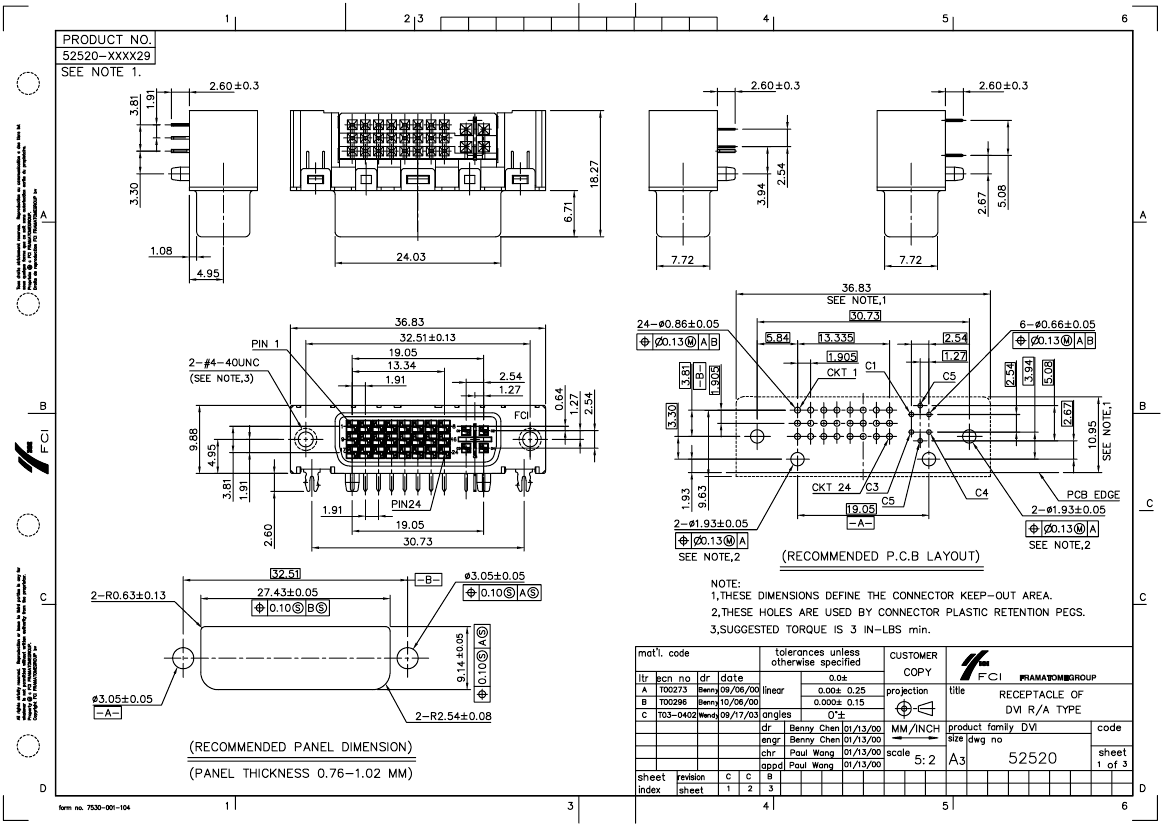

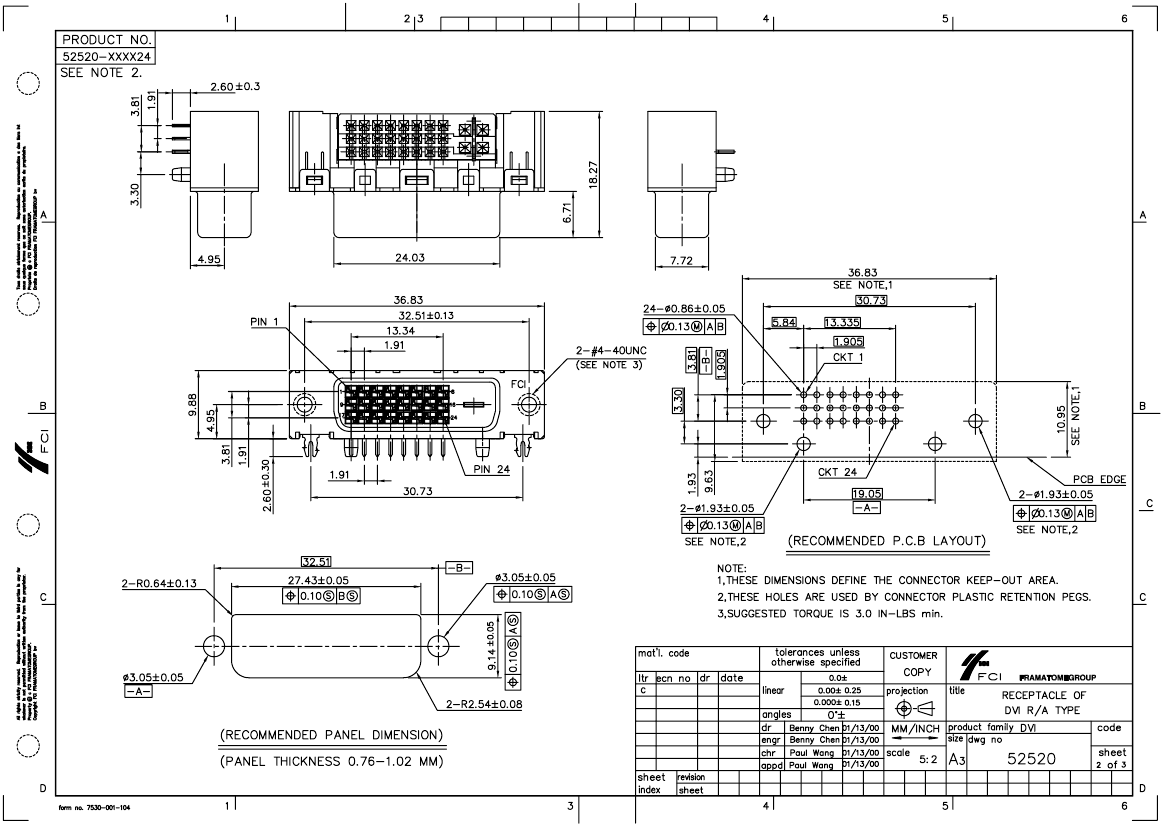

PDM: Rev:C

STATUS:

Released

Printed: Feb 28, 2004
