PLS168N-B datasheet, PDF - EEWORLD Datasheet

PLS168N-B: DescriptionOT PLD, PLS-Type, TTL, PDIP24; CategoryProgrammable logic devices Programmable logic; File Size914KB，12 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

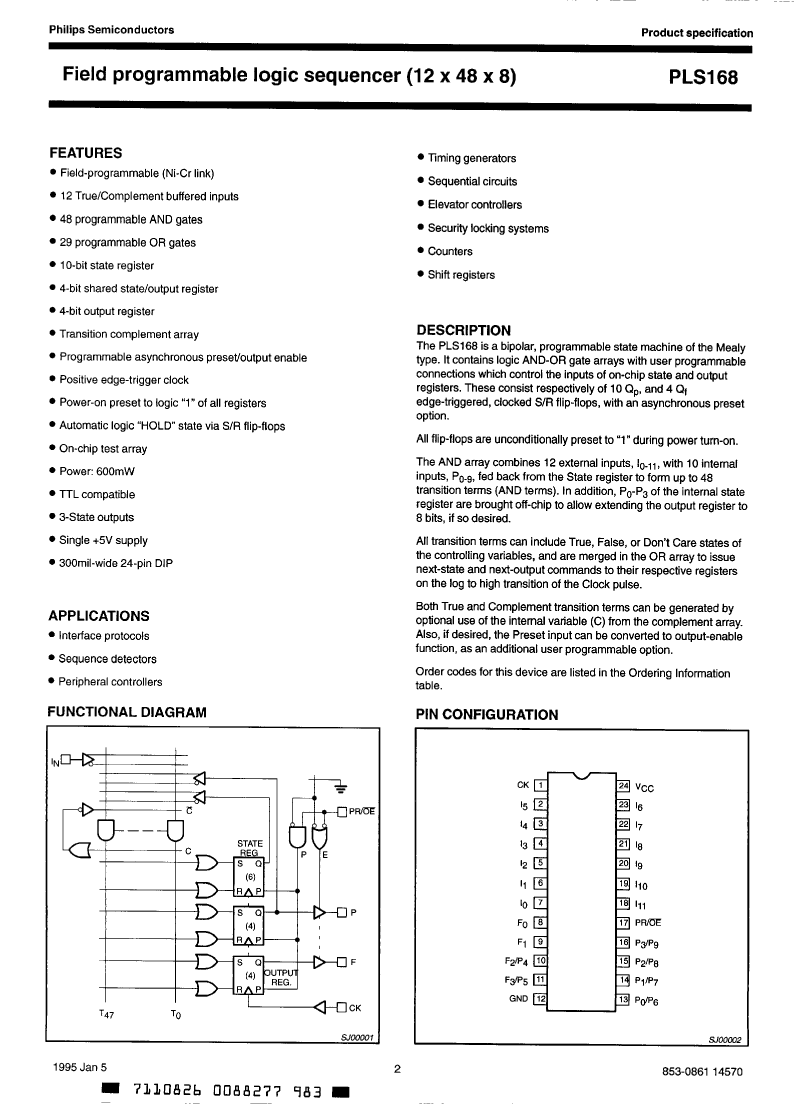

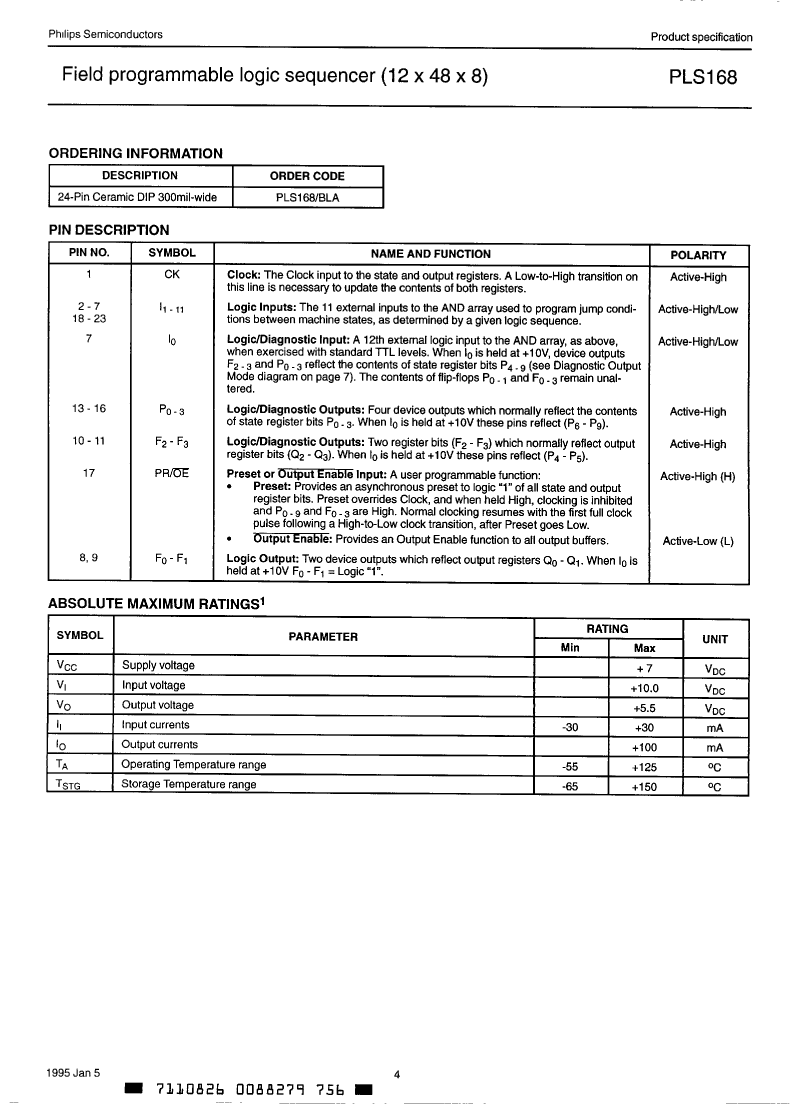

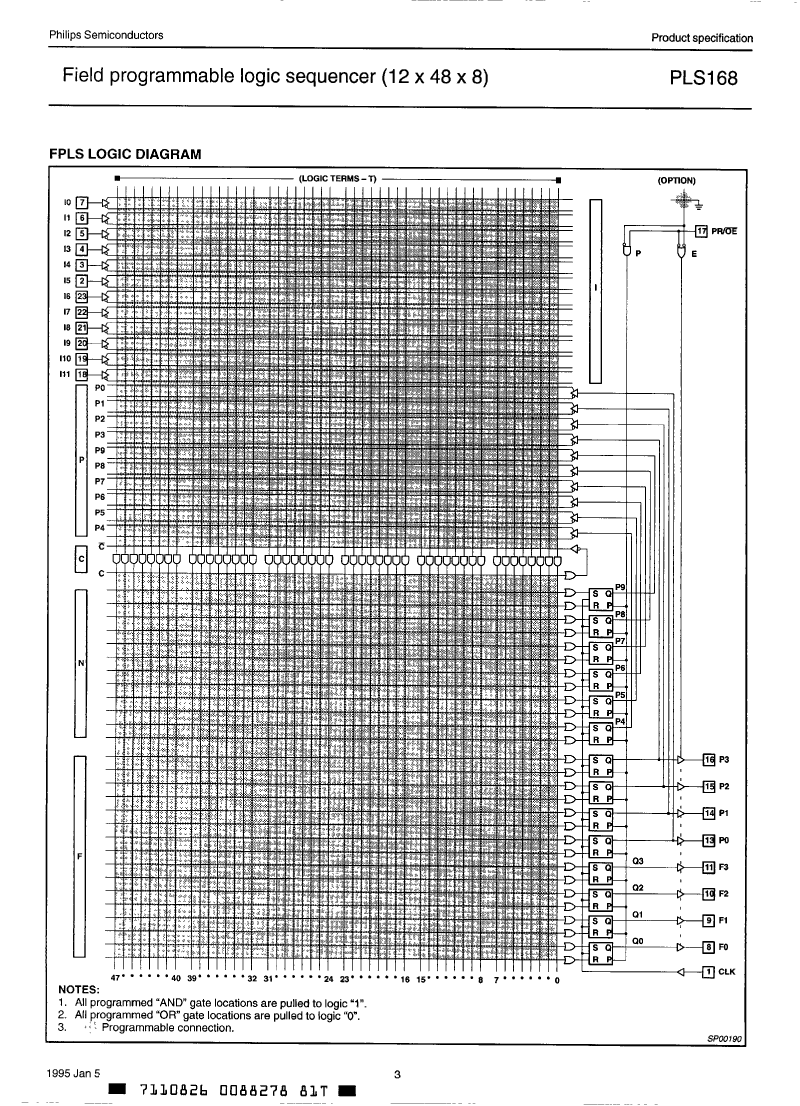

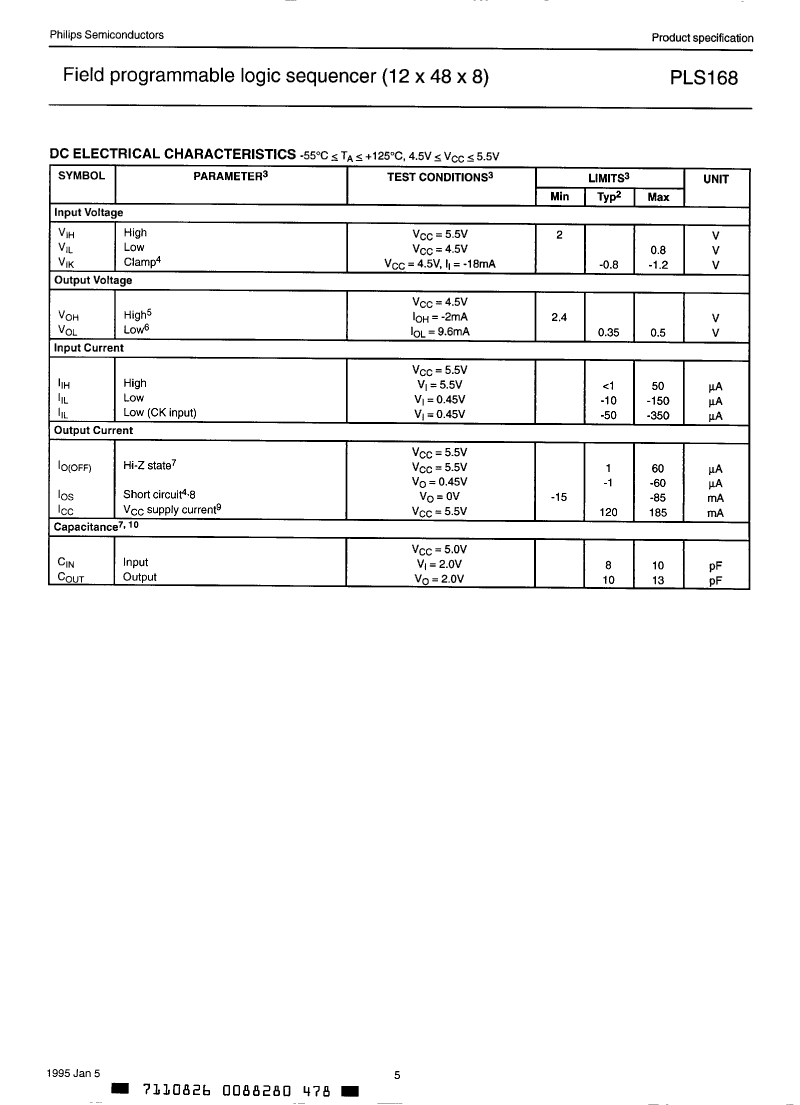

PLS168N-B Overview

OT PLD, PLS-Type, TTL, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Architecture	PLS-TYPE
maximum clock frequency	9.8 MHz
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of entries	12
Output times	8
Number of product terms	48
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programmable logic type	OT PLD
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	PLS168N-B	CAR3010K1TNHZ0-1A	PLS168AN	PLS168AN-B	PLS168A
Description	OT PLD, PLS-Type, TTL, PDIP24	3000 Watt 24 / 48V Rectifier Power Supply	OT PLD, PLS-Type, TTL, PDIP24,	OT PLD, PLS-Type, TTL, PDIP24	OT PLD, PLS-Type, TTL, PQCC28,
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.3	-	DIP, DIP24,.3	DIP, DIP24,.3	QCCJ, LDCC28,.5SQ
Reach Compliance Code	unknown	-	unknown	unknown	unknown
Architecture	PLS-TYPE	-	PLS-TYPE	PLS-TYPE	PLS-TYPE
maximum clock frequency	9.8 MHz	-	20 MHz	12.5 MHz	13.9 MHz
JESD-30 code	R-PDIP-T24	-	R-PDIP-T24	R-PDIP-T24	S-PQCC-J28
JESD-609 code	e0	-	e0	e0	e0
Number of entries	12	-	12	12	12
Output times	8	-	8	8	8
Number of product terms	48	-	48	48	48
Number of terminals	24	-	24	24	28
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP24,.3	-	DIP24,.3	DIP24,.3	LDCC28,.5SQ
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	-	IN-LINE	IN-LINE	CHIP CARRIER
power supply	5 V	-	5 V	5 V	5 V
Programmable logic type	OT PLD	-	OT PLD	OT PLD	OT PLD
Nominal supply voltage	5 V	-	5 V	5 V	5 V
surface mount	NO	-	NO	NO	YES
technology	TTL	-	TTL	TTL	TTL
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL	QUAD
Base Number Matches	1	-	1	1	1
