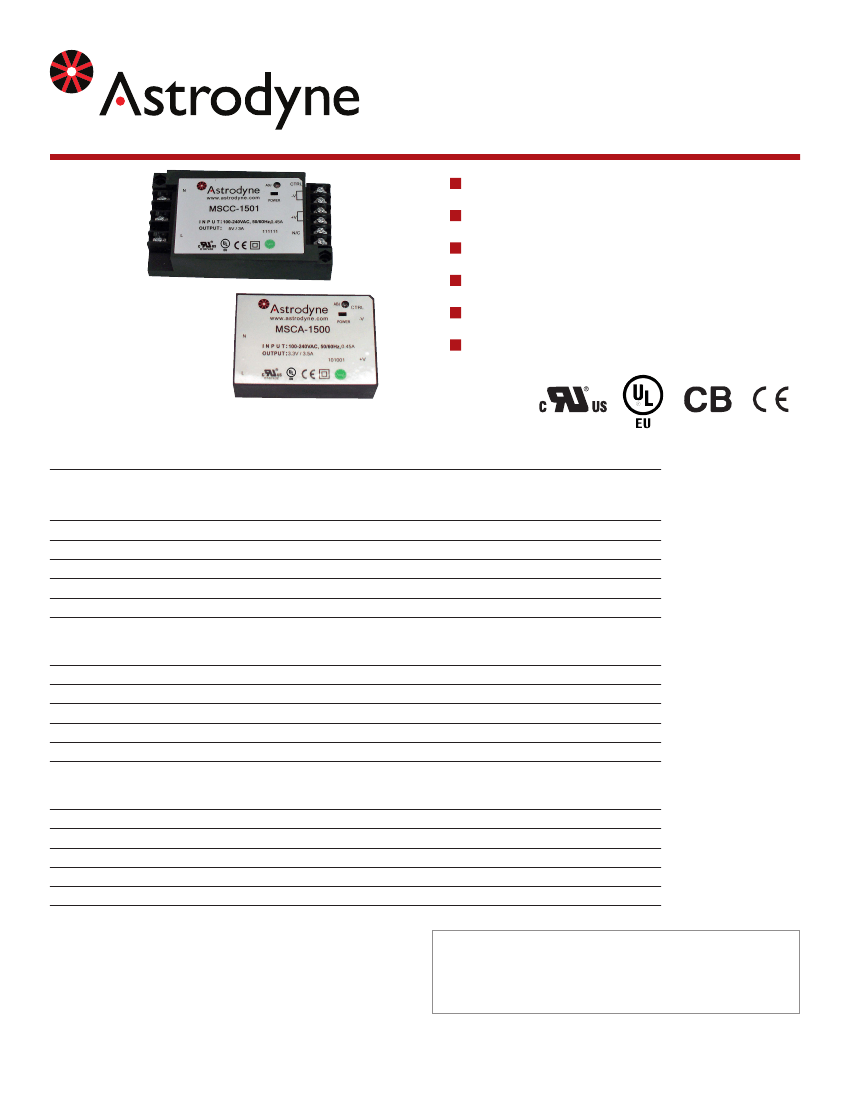

1 5 W U l t r a mi ni ature Mod ular Switc hing P ower S uppl ies
MCA-15
Single / Dual / Triple Outputs
Universal 90 to 264VAC Input
3.3VDC to 24VDC Outputs
series
Chassis 3.96”L x 2.16”W x 1.0”H
3,000VAC Input to Output Isolation
PCB and Chassis Mount Packages
Full Safety Approvals
PCB 2.75”L x 1.89”W x 0.95”H
Model
Number
Output
Voltage
Output
Amps
3.5
3
1.66
1.25
1
0.63
3.5
3
1.66
1.25
1
0.63
3.5
3
1.66
1.25
1
0.63
Output
Watts
12W
15W
15W
15W
15W
15W
12W
15W
15W
15W
15W
15W
12W
15W
15W
15W
15W
15W
Ripple & Noise Line/Load
max.
(Note 2)
Reg. max.
(Note 3)
100mV pk-pk
100mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
100mV pk-pk
100mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
100mV pk-pk
100mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
1% / 3%
1% / 1%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
1% / 3%
1% / 1%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
1% / 3%
1% / 1%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
0.5% / 0.5%
Efficiency
66% nom.
73% nom.
75% nom.
77% nom.
78% nom.
80% nom.
66% nom.
73% nom.
75% nom.
77% nom.
78% nom.
80% nom.
66% nom.
73% nom.
75% nom.
77% nom.
78% nom.
80% nom.
Fully Approved
(c)UL60950-1, IEC60950-1
File# E167432
SINGLE OUTPUT - PCB Mount
MSCA-1500
3.3 VDC
MSCA-1501
5 VDC
MSCA-1504
9 VDC
MSCA-1502
12 VDC
MSCA-1503
15 VDC
MSCA-1505
24 VDC
SINGLE OUTPUT - Chassis Mount
MSCC-1500
3.3 VDC
MSCC-1501
5 VDC
MSCC-1504
9 VDC
MSCC-1502
12 VDC
MSCC-1503
15 VDC
MSCC-1505
24 VDC
SINGLE OUTPUT - DIN Rail Mount
MSCC-1500/DRL 3.3 VDC
MSCC-1501/DRL 5 VDC
MSCC-1504/DRL 9 VDC
MSCC-1502/DRL 12 VDC
MSCC-1503/DRL 15 VDC
MSCC-1505/DRL 24 VDC
These Specifications are subject to change at any time without prior notification
All specifications are typical at nominal input, full load, and 25DegC unless
otherwise noted
These Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458

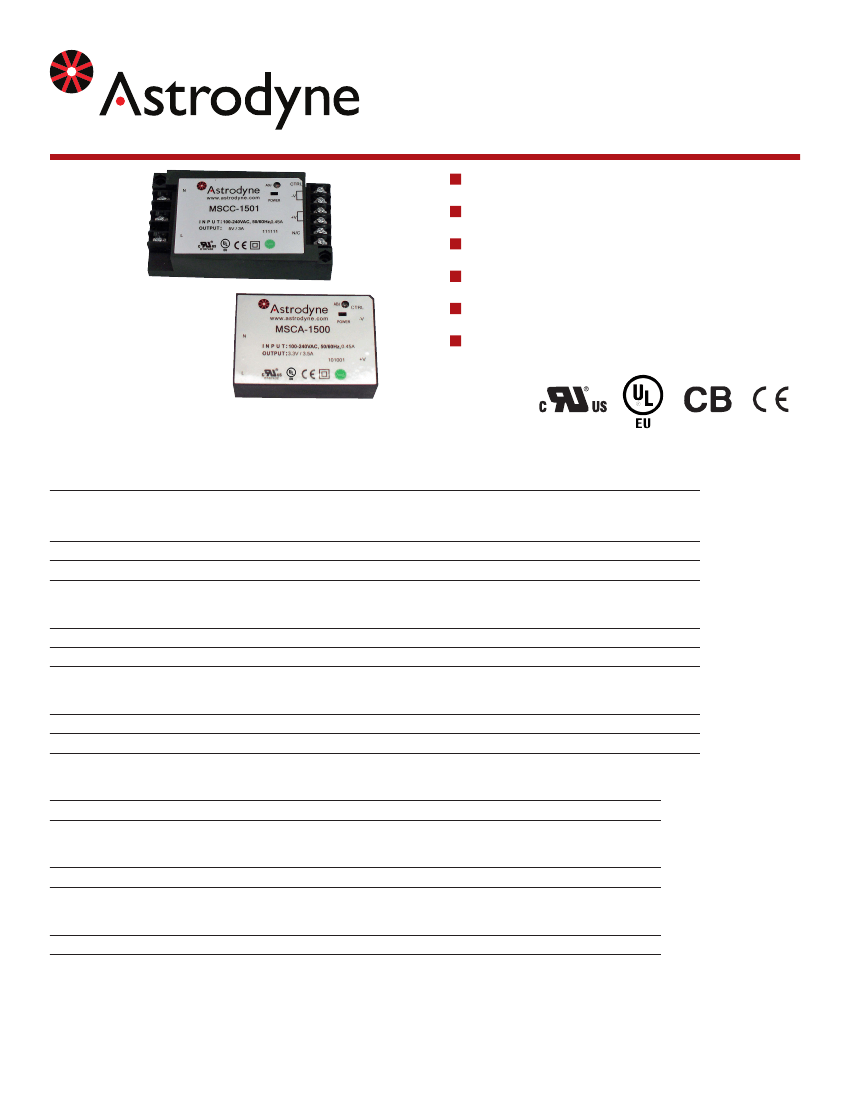

1 5 W U l t r a mi ni ature Mod ular Switc hing P ower S uppl ies
MCA-15
Single / Dual / Triple Outputs
Universal 90 to 264VAC Input
3.3VDC to 24VDC Outputs
series
Chassis 3.96”L x 2.16”W x 1.0”H
3,000VAC Input to Output Isolation
PCB and Chassis Mount Packages
Full Safety Approvals
PCB 2.75”L x 1.89”W x 0.95”H
Model
Number
Output
Voltage
Output
Amps
+/-0.63
+/-0.5
1.5/0.63
+/-0.63
+/-0.5
1.5/0.63
+/-0.63
+/-0.5
1.5/0.63
Output
Watts
15W
15W
15W
15W
15W
15W
15W
15W
15W
Ripple & Noise Line/Load
max.
(Note 2)
Reg. max.
(Note 3)
75mV pk-pk
1% / 3%
75mV pk-pk
1% / 3%
100/150mV pk-pk 1% / 1%,5%
75mV pk-pk
1% / 3%
75mV pk-pk
1% / 3%
100/150mV pk-pk 1% / 1%,5%
75mV pk-pk
1% / 3%
75mV pk-pk
1% / 3%
100/150mV pk-pk 1% / 1%,5%
75, ±75mV pk-pk
75, ±75mV pk-pk
75, ±75mV pk-pk
75, ±75mV pk-pk
75, ±75mV pk-pk
75, ±75mV pk-pk
0.6%, ±0.2 / 0.6%, ±0.5%
0.6%, ±0.2 / 0.6%, ±0.5%
0.6%, ±0.2 / 0.6%, ±0.5%
0.6%, ±0.2 / 0.6%, ±0.5%
0.6%, ±0.2 / 0.6%, ±0.5%
0.6%, ±0.2 / 0.6%, ±0.5%
Fully Approved
(c)UL60950-1, IEC60950-1
File# E167432
Efficiency
72% nom.
74% nom.
74% nom.
72% nom.
74% nom.
74% nom.
72% nom.
74% nom.
74% nom.
70% nom.
71% nom.
70% nom.
71% nom.
70% nom.
71% nom.
DUAL OUTPUT - PCB Mount
MDCA-1506
+/-12 VDC
MDCA-1507
+/-15 VDC
MDCA-1508
+5/12 VDC
DUAL OUTPUT - Chassis Mount
MDCC-1506
+/-12 VDC
MDCC-1507
+/-15 VDC
MDCC-1508
+5/12 VDC
DUAL OUTPUT - DIN Rail Mount
MDCC-1506/DRL +/-12 VDC
MDCC-1507/DRL +/-15 VDC
MDCC-1508/DRL +5/12 VDC
TRIPLE OUTPUT - PCB Mount
MTCA-1509
+5,+/-12 VDC 2.5,0.1/0.1 15W
MTCA-1511
+5,+/-15 VDC 2.5,0.1/0.1 15W
TRIPLE OUTPUT - Chassis Mount
MTCC-1509
+5,+/-12 VDC 2.5,0.1/0.1 15W
MTCC-1511
+5,+/-15 VDC 2.5,0.1/0.1 15W
TRIPLE OUTPUT - DIN Rail Mount
MTCC-1509/DRL +5,+/-12 VDC 2.5,0.1/0.1 15W
MTCC-1511/DRL +5,+/-15 VDC 2.5,0.1/0.1 15W
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 5 W U l t r a mi ni ature Mod ular Switc hing P ower S uppl ies
INPUT SPECIFICATIONS
Input Voltage, Nominal
Input Frequency
Input Current (LL/HL)
Inrush Current (Note 1)
Leakage Current
90-264VAC
Nominal: 100-240VAC
47-440 Hz, 50-60Hz Nom.
0.6A / 0.3A max.
20A @ 100VAC, typ
40A @ 200VAC, typ
<3.5mA at 265Vin, 50Hz
MCA-15
series
ENVIRONMENTAL SPECIFICATIONS
0 to +50°C FL See Derate
*
(Free-air Convection)
Relative Humidity (Note 5)
0-95%, Non-Condensing
Storage Temperature
-25 to +71°C
*
MTBF, Single/Multi O/P (Note 9) 180,000 / 110,000 Hrs
Vibration (Note 10)
2G Peak, 10~500Hz, 3 Axes
Drop Test
70 cm
EMS
ESD:
EN61000-4-2, 6kV Contact, 8kV Air
RS: (Note 7)
EN61000-4-3
EFT:
EN61000-4-4, 2kV on AC Line
Surge:
EN61000-4-5, 1kV L-N
CS:
EN61000-4-6, 3V EMF
Dips: (Note 8)
EN61000-4-11
EMI
CISPR EN55011 class B
Oper. Temperature
OUTPUT SPECIFICATIONS
Output Voltage/Current
Preset Accuracy
Single & Matched Dual:
Unmatched Dual -0108 (5V, 12V):
Triple O/P: (5, ±O/P)
Voltage Adjust
Load/Line Regulation (Note 3)
Cross Regulation (Note 11)
Single & Dual O/P:
Unmatched Dual -0108 (5V, 12V):
Triple O/P: (5, ±O/P)
Temperature Coefficient
Ripple/Noise (Note 2)
Over Voltage Protection
Start Up
Hold Up Time
Rise Time
Over-Shoot/Under-Shoot
Short Circuit Protection
See Model Selection Chart
±1% nom.
±2%, ±5% nom.
±1%, ±5% nom.
±6%, typ
See Model Selection Chart
3% max.
±1%, ±4% max.
N/A, ±0.5% max.
±0.03%/°C
See Model Selection Chart
Clamp*
<1S
30mS, typ
<20mS
<10% nominal O/P voltage
Continuous, self-recovering
*
PHYSICAL SPECIFICATIONS
Case Material
Construction
Weight PCB / CHA
Rynite, 94V-0 Rated
Encapsulated, Soft Pot
5.6 oz (159g) / 8.9 oz (252g)
GENERAL SPECIFICATIONS
On/Off Control (Note 4)
Input-Output Isolation
Insulation Resistance (Note 6)
Operating Frequency
Efficiency
Safety (c)UL:
CE:
CB:
Open Collector Logic “1”/Open=ON
Logic “0”/GND=OFF
3000VAC, 60S
≥ 20M Ω
140 Khz, fixed
See Model Selection Chart
UL 60950-1, 2nd Edition, 03-27-2007
covering European Market
EN 60601-1-2
IEC 60950-1
Notes:
1. Cold Start and 25°C
2. Test by dc loading side parallel with a 0.1uF ceramic capacitor and
measured band-width with DC-20MHz.
3. Regulation includes line, cross temperature drift, tolerance variation
Load regulation measured from 20% to Full load. All other outputs
at nominal load.
4. No termination necessary with Control pin to maintain constant ”On”
operation.
5. Operating or Storage
6. 500Vdc, 1 Sec between primary to secondary
7. FR: 80MHz-2.5GHz; Field Strength 3V/M
8. 95% 250Cy , 70% 25Cy, 40% 5Cy, 5% 0.5Cy
9. MIL STD 217, 25°C
10. Tested with shippinjg container for 30 minutes
11. Measured at nominal load with the other output(s) varied between
20% and 100% nominal load.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 5 W U l t r a mi ni ature Mod ular Switc hing P ower S uppl ies

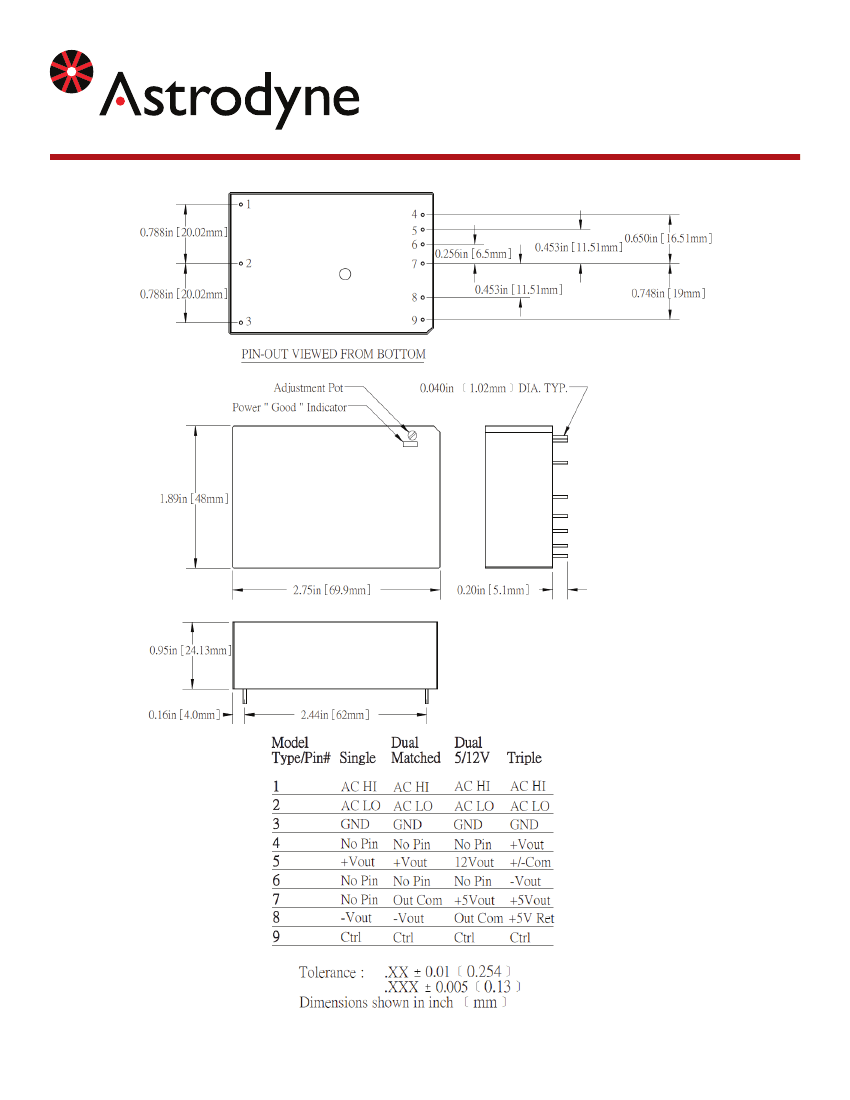

MECHANICAL DIMENSIONS - PCB MOUNT
MCA-15
series
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 5 W U l t r a mi ni ature Mod ular Switc hing P ower S uppl ies

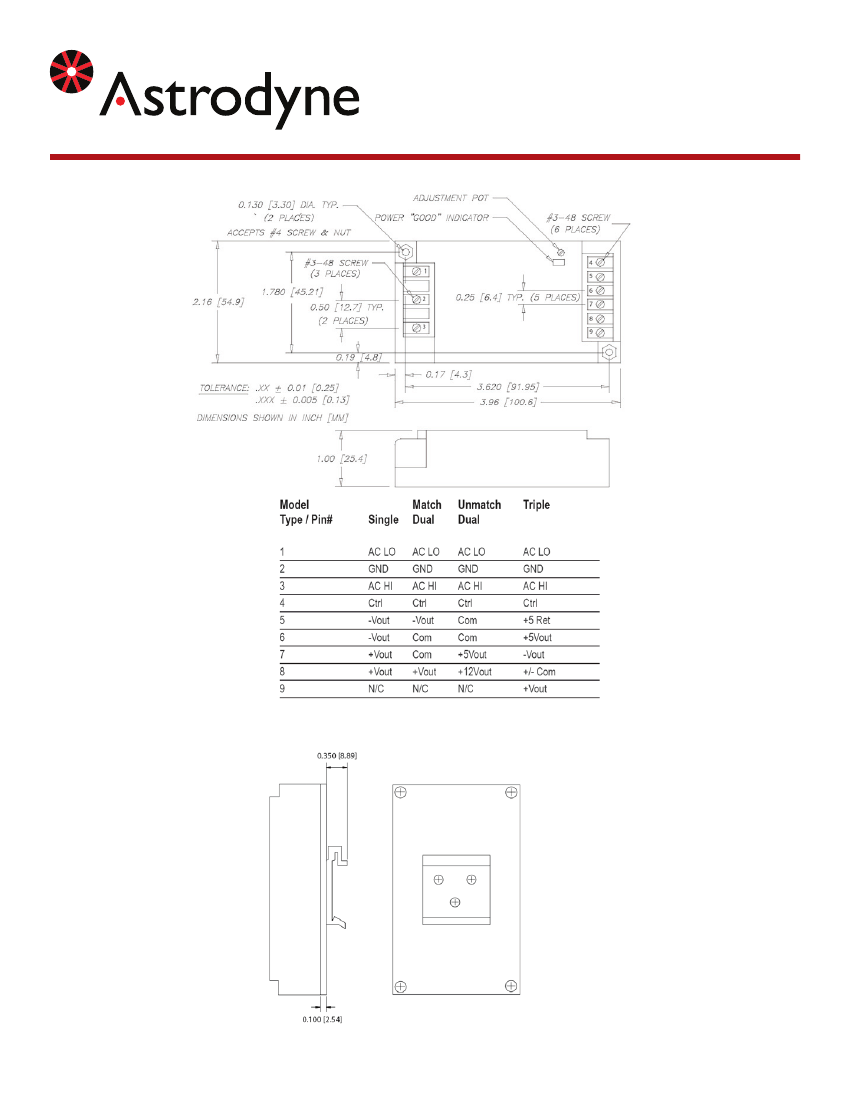

MECHANICAL DIMENSIONS - CHASSIS MOUNT
MCA-15
series
MECHANICAL DIMENSIONS - DIN RAIL
DIN Rail mounting kit available for Chassis-mount modules, specify part #
M-DRL-15. Kit includes mounting plate, DIN Rail cliip and assembly hardware.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
